Factory directly supply Steel Roller Shutter Slat Forming Machine - Galvanized Ridge Cap Zinc Roofing Sheet Roll Forming Machine – Haixing Industrial Detail:

galvanized ridge cap zinc roofing sheet roll forming machine parameters

1 Decoiler Manual decoiler or hydraulic decoiler
2 Raw material thickness 0.2-0.8mm
3 Material As your requirements
4 Machine dimensions 7000*800*1500mm
5 Feeding width According to your profile
6 Forming station 13 to 15 steps
7 Shaft diameter 75mm
8 Shaft material High-grade 45# steel, heated and quenched
9 Roller material High-grade 45# steel, coated with 0.05mm chrome
10 Forming speed 10-15m/minute (adjustable)
11 Transmission type Chain transmission
12 Machine frame stand Welded structural steel, thickness is 18mm
13 Main motor 5.5kW from Shanghai, China
14 Cutting type Stop hydraulic cutting
15 Cutting power 3kW
16 Cutter material Cr12 with quenched treatment HRC 58-62
17 Cutting length error ±2mm
18 Voltage 380V/50Hz and 3 or according to your requirements
19 Control system PLC control system
20 Size of PLC 700*1000*300mm
21 PLC Delta/Siemens

Galvanized ridge cap zinc roofing sheet roll forming machine details:

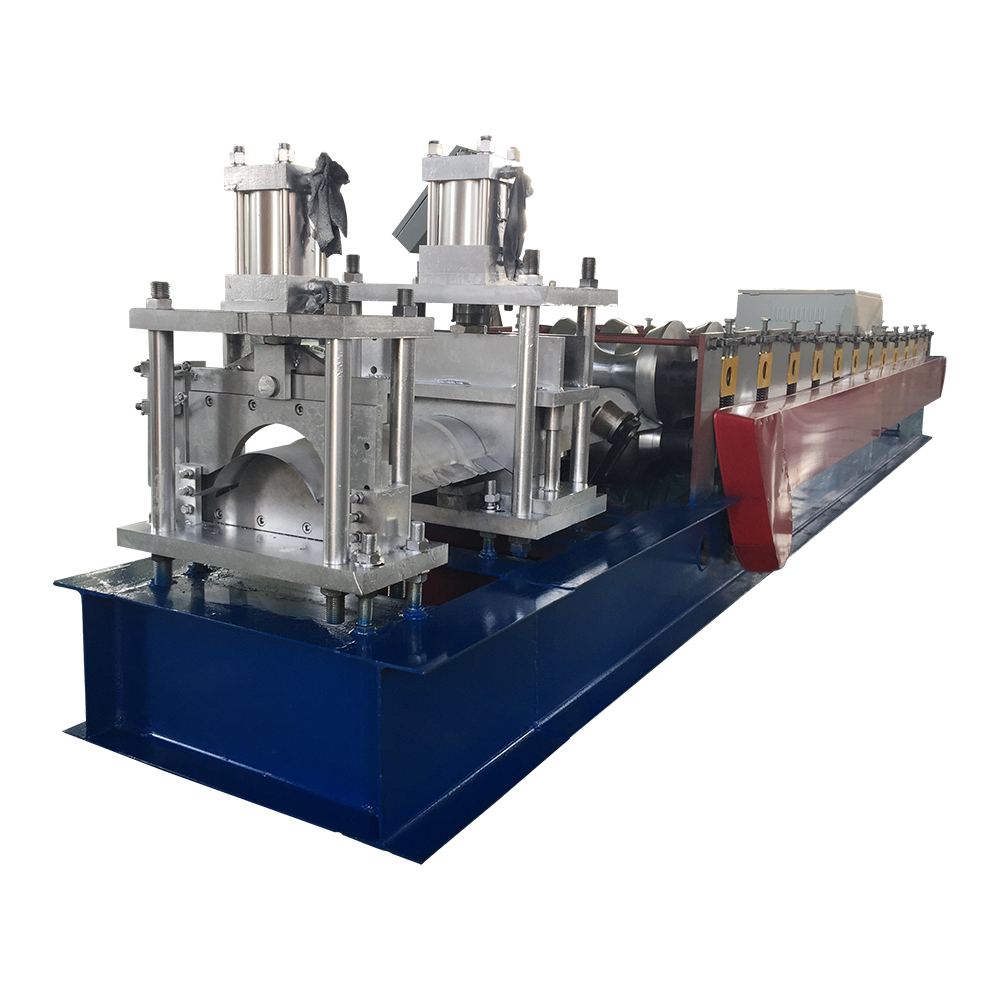

Ridge cap machine21 Ridge cap machine22 Ridge cap machine23

The advantages of the ridge cap roll forming machine

1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.

3.We can make and design will kinds of roll forming machine according to customer’s request.


Product detail pictures:

Factory directly supply Steel Roller Shutter Slat Forming Machine -
 Galvanized Ridge Cap Zinc Roofing Sheet Roll Forming Machine – Haixing Industrial detail pictures
