Metal Sheet Cut To Length Line Machine

Short Description:

  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Cut to length machine technical parameters

    1 Material type Pre-painted steel or aluminum coil, galvanized steel coils, GI, PPGI, GL, PPGL
    2 Thickness 0.3-1.0mm
    3 Width Max. 1250mm
    4 Yield strength 235-345Mpa
    5 Slitting width 80mm-1250mm
    6 Slitter material Cr12 mould steel
    7 Cutter material Cr12 mould steel
    8 Quantity of slitting blade 6 pairs
    9 Working speed 15 times/min
    10 Type of cutting length-set cutting
    11 Size of machine 2500mm*1700mm*1400mm
    12 Control mode Mitsubishi PLC
    13 Operating mode Operation buttons + Mitsubishi touching screen
    14 Electric condition 380V/3phase/50Hz (or according to customers requirement)
    15 Main motor power 4 KW
    16 Hydraulic station power 2.2 KW

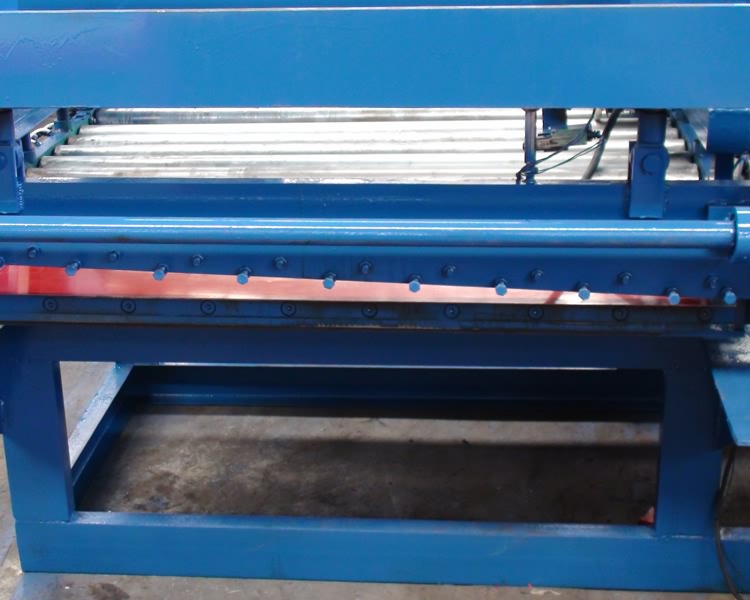

    Metal Sheet Cut To Length Line Machine picture display

    Metal Sheet Cut To Length Line Machine11 Metal Sheet Cut To Length Line Machine21


    Decoiler: 1set

    Guiding device: 1set

    Leveling system: 1set

    Hydraulic cutting system: 1set

    PLC controlling system: 1set

    Slitter device: 1set

    Outputs table: 2 pieces
