Well-designed C/U Purlin Roll Forming Machine - Roof ridge making machine – Haixing Industrial Detail:

roof ridge making machine parameters

1 Decoiler Manual decoiler or hydraulic decoiler
2 Raw material thickness 0.2-0.8mm
3 Material As your requirements
4 Machine dimensions 7000*800*1500mm
5 Feeding width According to your profile
6 Forming station 13 to 15 steps
7 Shaft diameter 75mm
8 Shaft material High-grade 45# steel, heated and quenched
9 Roller material High-grade 45# steel, coated with 0.05mm chrome
10 Forming speed 10-15m/minute (adjustable)
11 Transmission type Chain transmission
12 Machine frame stand Welded structural steel, thickness is 18mm
13 Main motor 5.5kW from Shanghai, China
14 Cutting type Stop hydraulic cutting
15 Cutting power 3kW
16 Cutter material Cr12 with quenched treatment HRC 58-62
17 Cutting length error ±2mm
18 Voltage 380V/50Hz and 3 or according to your requirements
19 Control system PLC control system
20 Size of PLC 700*1000*300mm
21 PLC Delta/Siemens

Machine details:

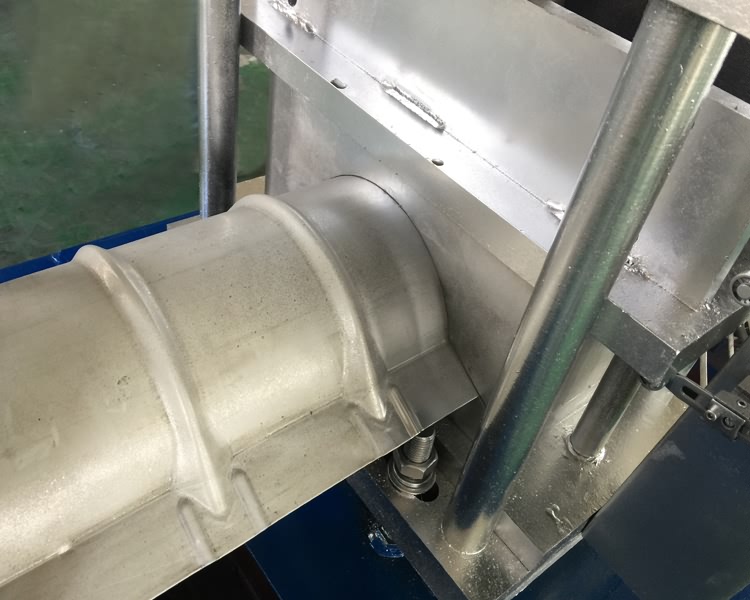

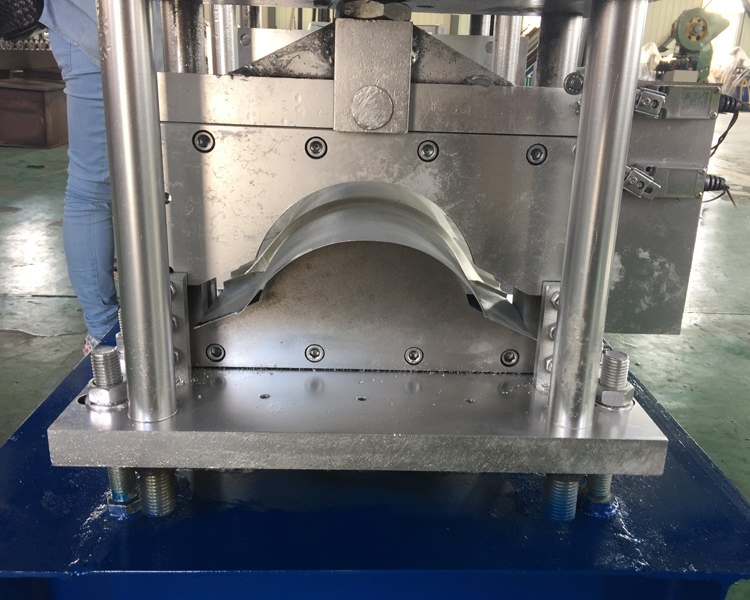

roof ridge making machine11 roof ridge making machine21

Roof ridge making machine package and shipment details:

Standard export packing: 1 x 40GP container, main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.


Product detail pictures:

Well-designed C/U Purlin Roll Forming Machine -
 Roof ridge making machine – Haixing Industrial detail pictures
