Quality Initial,and Shopper Supreme is our guideline to offer the best support to our shoppers.Nowadays, we’re seeking our greatest to be one of the most beneficial exporters in our field to satisfy customers a lot more need for China OEM China Cut to Length Machine Line Steel Leveling Line Automatic Aluminum Cutting Machine Price, Aluminum Door and Window Frame Cutting Machine, The concept of our corporation is “Sincerity, Speed, Services, and Satisfaction”. We’re going to follow this concept and gain more and far more customers’ pleasure.
Quality Initial,and Shopper Supreme is our guideline to offer the best support to our shoppers.Nowadays, we’re seeking our greatest to be one of the most beneficial exporters in our field to satisfy customers a lot more need for China Roll Forming Machine, Rolling Machine, As a way to use the resource on the expanding info in international trade, we welcome prospects from everywhere on the web and offline. In spite on the high quality objects we offer you, effective and satisfying consultation service is supplied by our qualified after-sale service group. Item lists and in depth parameters and any other info weil be sent to you timely for the inquiries. So you should make contact with us by sending us emails or call us when you’ve got any questions about our organization. ou could also get our address information from our site and come to our enterprise. We get a field survey of our merchandise. We’re confident that we are going to share mutual accomplishment and create solid co-operation relations with our companions within this market place. We’re seeking forward for your inquiries.
Advantages of coil straightening cr cold rolled steel coil slitting machine
1.This leveling cutting slitting and rewinding machine adopts steel welded structure, hydraulic transmission, easy to operate, reliable performance, nice appearance.
2. Blade gap is adjusted according to sign post, can adjust light quickly.
3. It has light for wire device, and can non-polar adjust route.
4. It adopts fence type safety device.
5. Size of rear block stop and shearing numbers has digital display apparatus.
|
No.
|
coil straightening cr cold rolled steel coil slitting machine Parameters
|
|
|
1
|
Suitable to process
|
Color alu-zinc steel coil
|
|
2
|
Roller
|
Up: 5 rollers; Down: 6 rollers
|
|
3
|
Dimensions
|
2200x2000x2000mm
|
|
4
|
Motor Power |
4Kw
|
|
5
|
Pump Station Motor
|
3Kw.Lichao Brand |
|
6
|
Thickness of the plate
|
Slitting: Max 0.8mm; Cutting: Max 2.0mm
|
|
7
|
Productivity
|
10-15m/min
|
|
8
|
Material of the cutting blade
|
Cr12,Quenched treatment 58℃-60℃
|
|
9
|
Diameter of the roller
|
Φ90mm
|
|
10
|
Weight
|
About 2500kgs
|
|
11
|
Main structure of the machine
|
350H beams
|
|
12
|
Processing precision
|
Within 1.0mm
|
|
13
|
Side panel of machine
|
40mm
|
|
14
|
Chain Wheel and Cycle Chain
|
1 Inch
|
|
15
|
Voltage
|
380V 50Hz 3phases or as customer’s need
|
|
16
|
Control system
|
PLC control (Delta)
|
|
17
|
Frequency system
|
Delta
|
|
18
|
Drive mode
|
Motor driver
|
|
19
|
Touch screen
|
Delta
|
|
20
|
Rolling materials
|
45# forging steel with chromium plate
|
|
21
|
Length Tolerance
|
±2mm
|

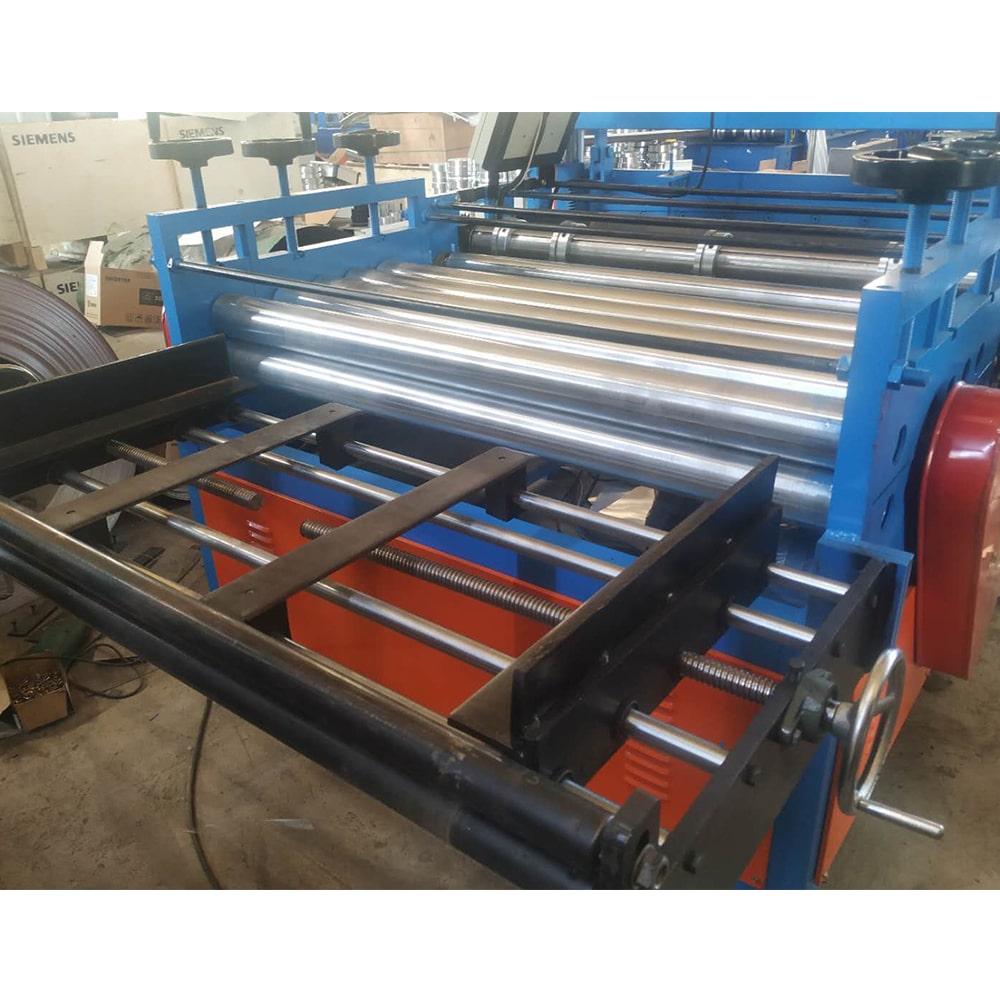

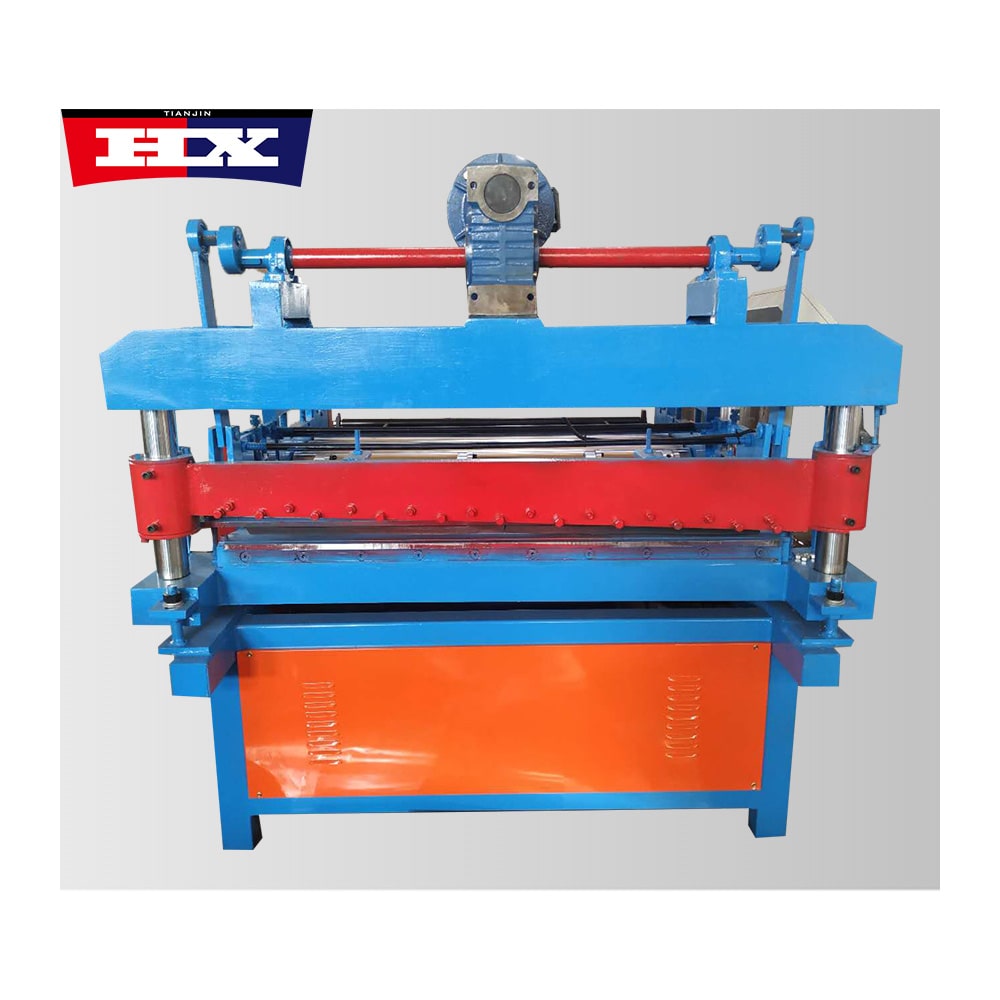

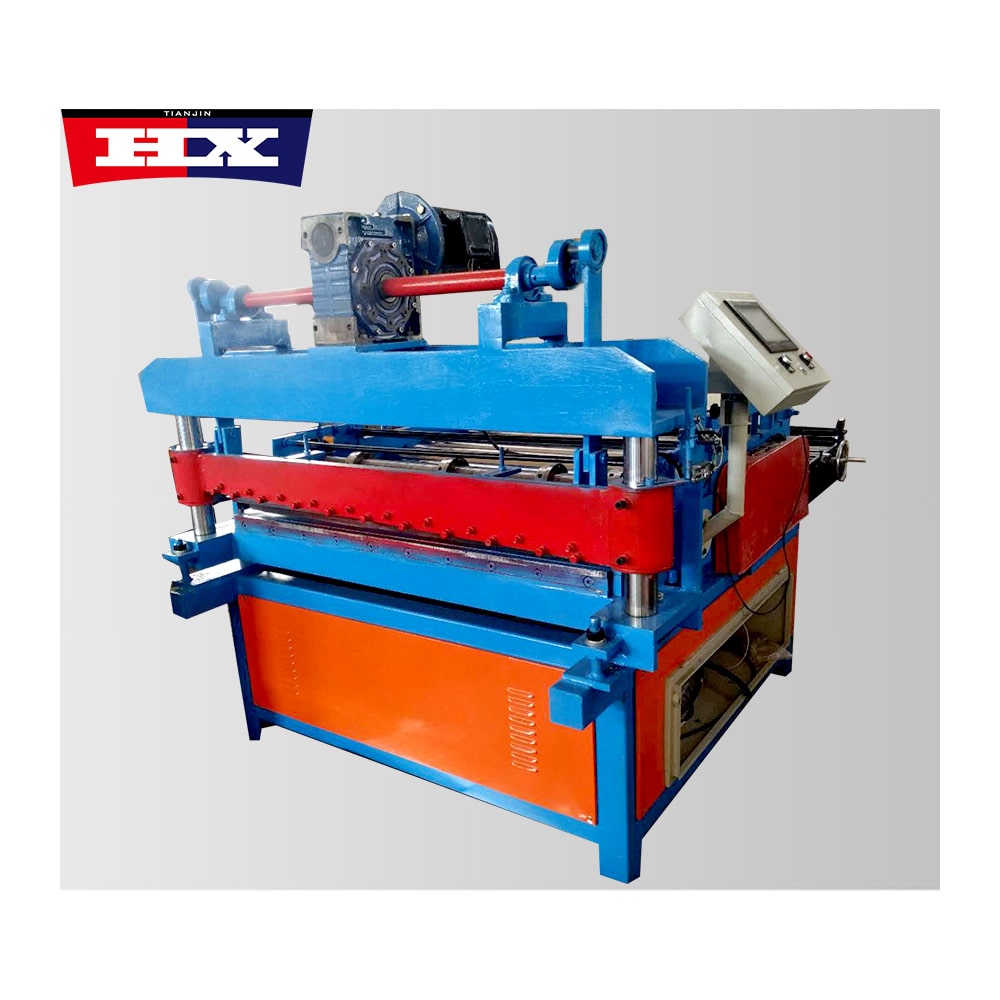

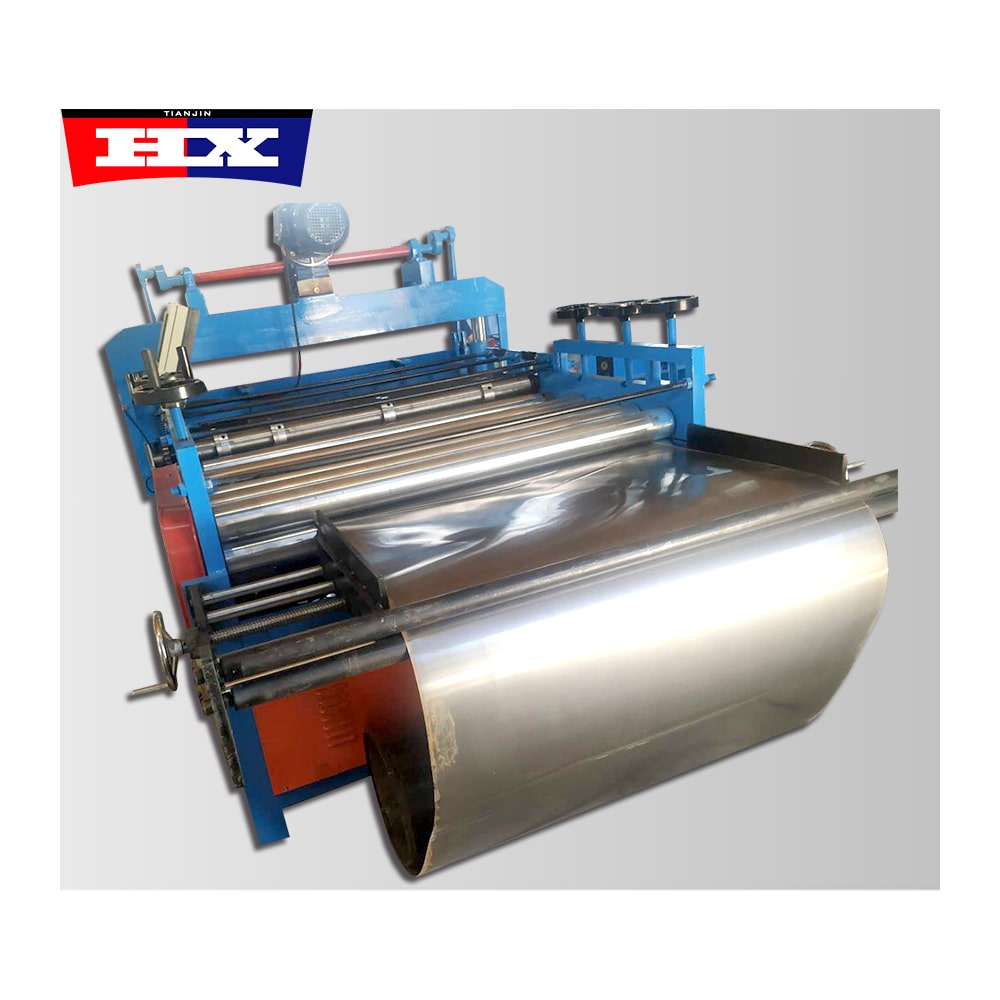

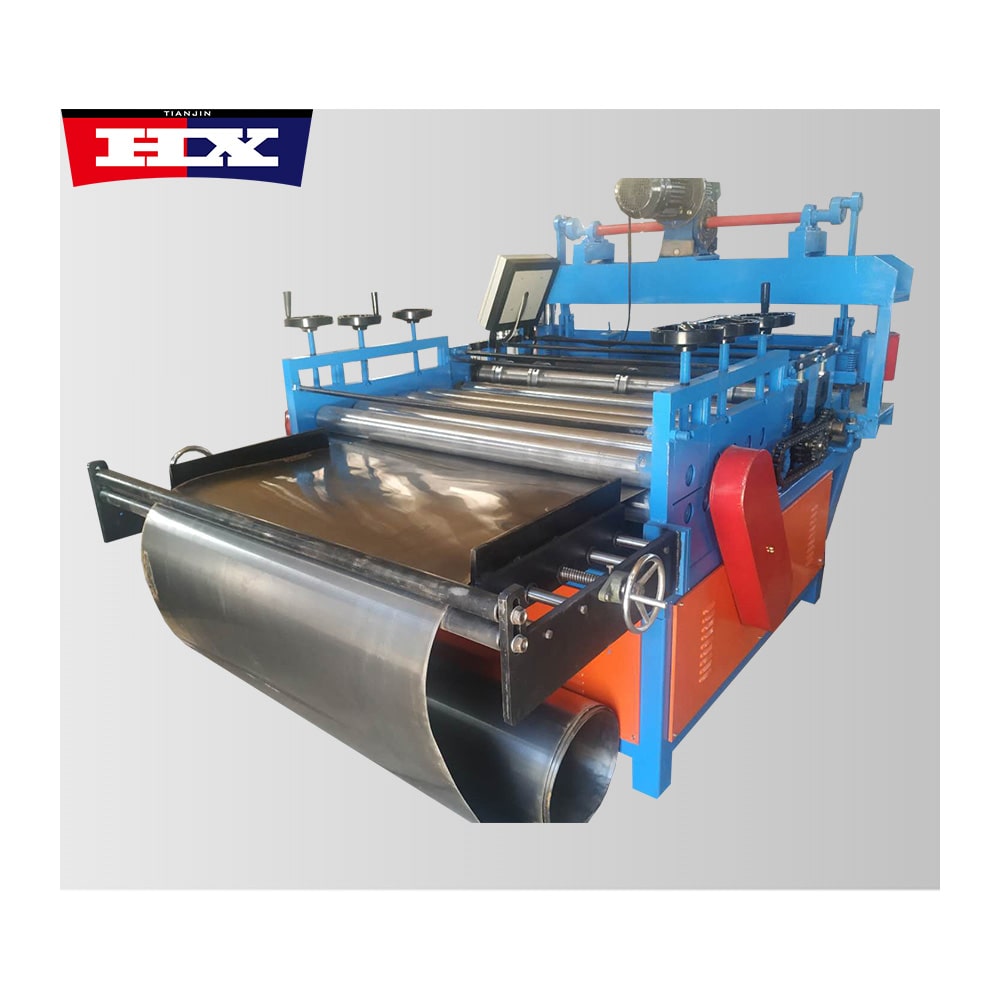

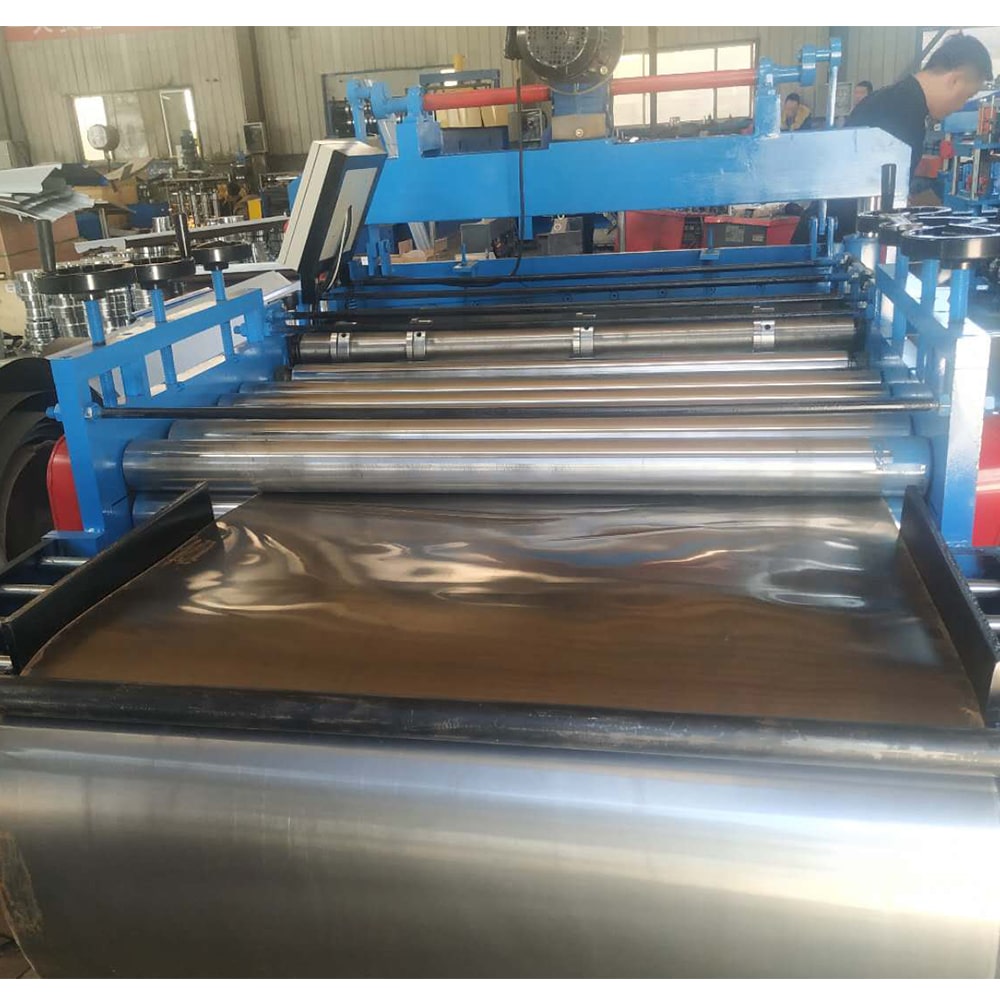

Picture Details
Packing & Shipping
a.The main body of coil straightening cr cold rolled steel coil slitting machine with water-proof plastic, then fixed to container by 8mm diameter steel wire and angle iron.
b.Rollers and shafts are covered with anti-rust oil.
c.PLC control system and motor pump are packed with waterproof paper and plastic film.
d.Spare parts in a carton box.
e.Manual decoiler was nude packing.
f.The output-table put into a carton box.
g.If the machine is too long, we will divide it into two parts and pack them in one package with steel wire.
h.Fit for ocean shipping.
