Corrugated Galvanized Roof Panel Roll Forming Machine

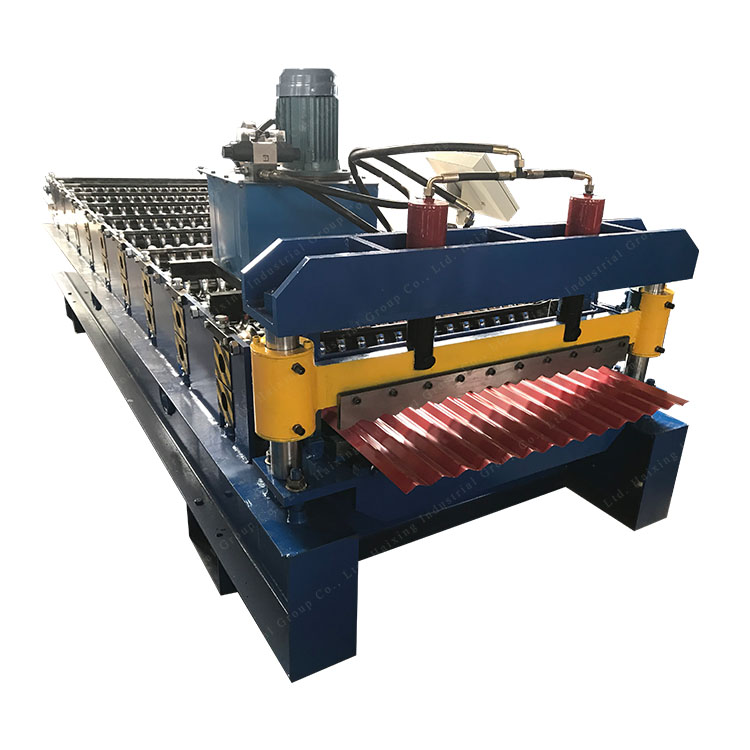

Corrugated Galvanized Roof Panel Roll Forming Machine Featured Image
  • Corrugated Galvanized Roof Panel Roll Forming Machine

Short Description:

Our Advantages

  1. Our machine motor are GERMAN BRAND SEMENS
  2. Our roller spacer are 4 mm thick seamless steel pipe
  3. Our output table can be adjust height according customer demands
  4. Our PLC control console can be look around 360 degree
  5. All easy-broken pars can be change within 14 month in free


Download as PDF

Product Detail

Product Tags

Corrugated galvanized roof panel roll forming machine parameters

1 Main motor power 4kW/5.5KW/7.5KW or as actual demands
2 Hydraulic motor power 3kW/4KW.5.5KW or as actual demands
3 Hydraulic pressure 10-12MPa according oil pump and pump motor
4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
5 Control system Automatic PLC control system
6 Main frame 350H beams/400H beams according machine demands
7 Wall sheet thickness 16mm/18mm/20mm/22mm according machine demands
8 Chain size  1 inch/1.2inch according machine demands
9 Feeding material Galvanized steel coil/color steel coil/aluminum steel coil
10 Feeding thickness 0.3-0.8 mm
11 Productivity 0 – 25m/min (according machine specification)
12 Roll station Common 11rolls ro 25rolls (according to different design)
13 Roller diameter 70mm/75mm/80mm (depends on different design)
14 Roller material 45# steel
15 Cutter material Cr12MOV
16 Cr-plating size 0.05 mm

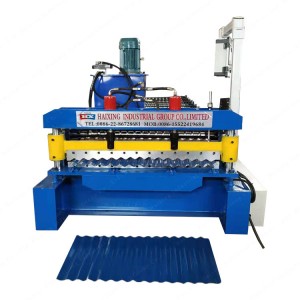

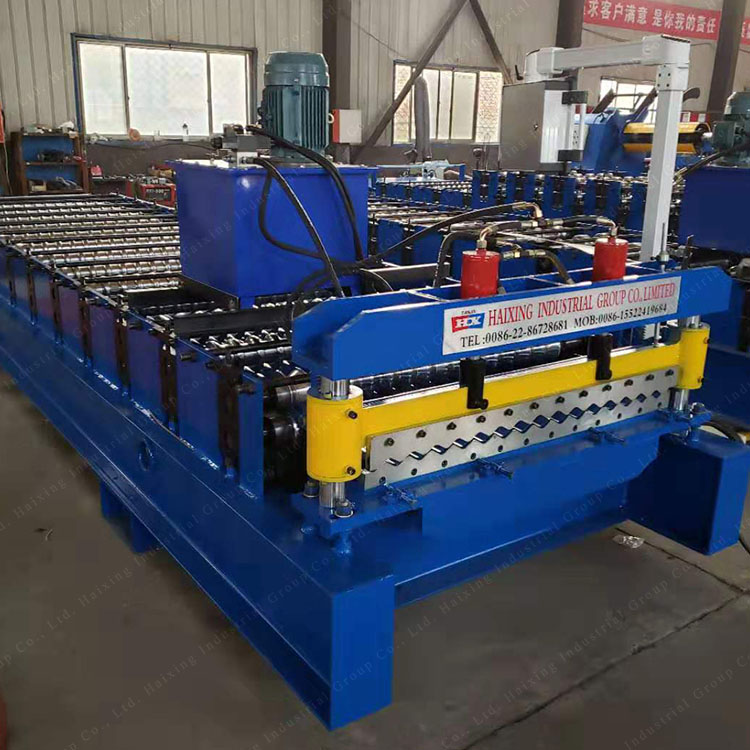

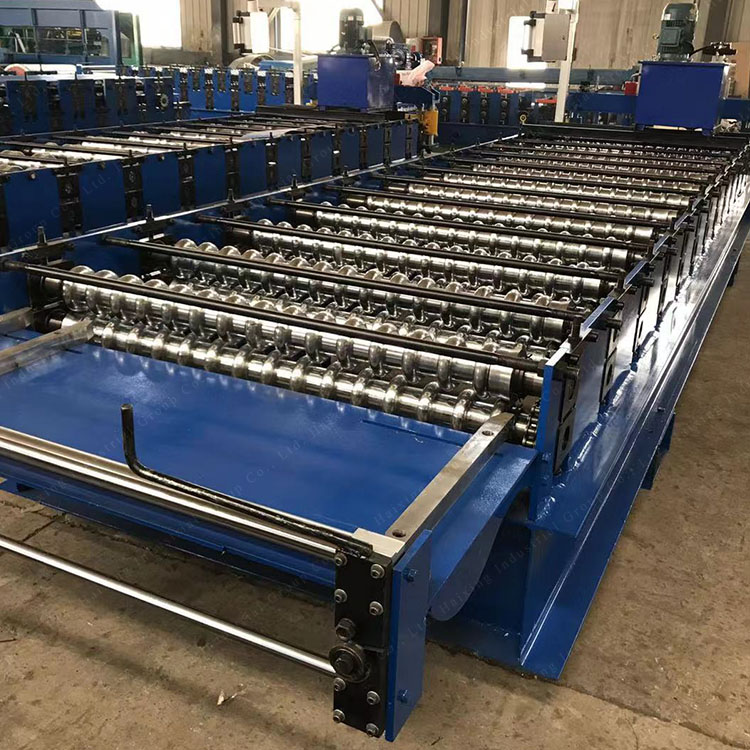

Machine pictures

corrugated roof machine2(2) corrugated roof machine2(3)

Our Advantages

  1. Our machine motor are GERMAN BRAND SEMENS
  2. Our roller spacer are 4 mm thick seamless steel pipe
  3. Our output table can be adjust height according customer demands
  4. Our PLC control console can be look around 360 degree
  5. All easy-broken pars can be change within 14 month in free
