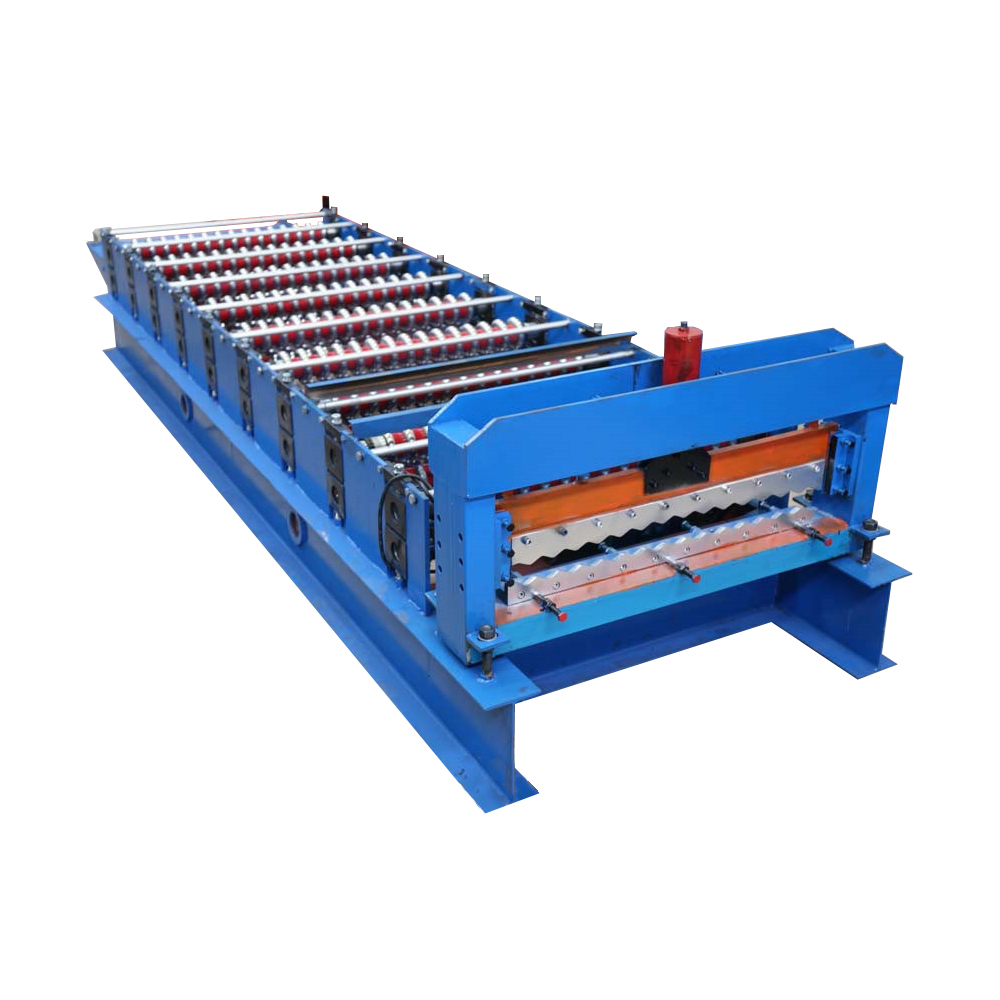

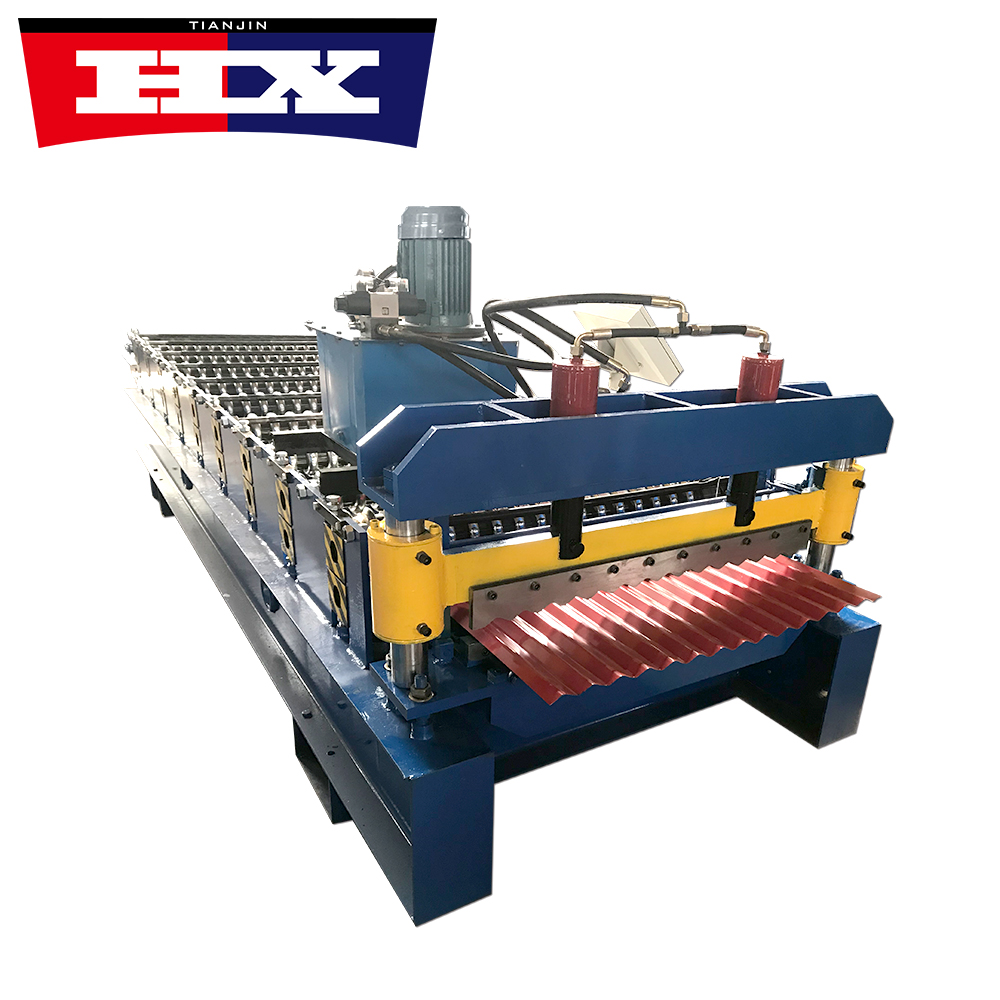

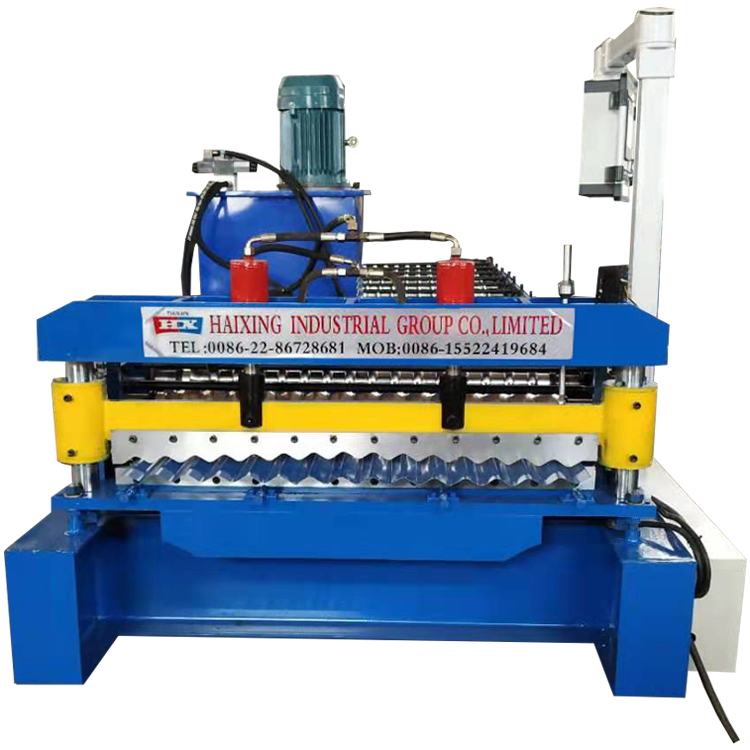

corrugated roof sheet making machine manufacturers

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Machine production process

    Packaging & Delivery

    FAQS

    Product Tags

    Corrugated roof sheet making machine manufacturers details

    chain 1 inch
    middle plate 16mm,45# steel
    mainframe 350mm,45# steel
    shearing knife Cr12,heat treatment,HRC 58-60℃
    roller material 45# steel, surface heat treatment chrome plating, hardness HRC 58-60℃
    feeding thickness 0.3-0.8mm
    feed width 1000mm
    effective width 840mm
    Cutting method Hydraulic guide column cutting
    decoiler/uncoiler 5t manual decoiler,1000mm
    Shaft diameter 70mm, solid shaft, high quality 45# forged steel, with anti-return pad,
    productivity 8-12m/min
    Number of rows 13 rows
    hydraulic pump station gear pump
    Main motor power 4KW (Lichao)
    Pump station motor power 3KW (Delta)
    Control System PLC Control System,360 degree rotation,Delta
    Voltage 220V, 50HZ, single phase power
    Length tolerance ±2mm
    Receiving table 3-meter lifting rack,2sets
    Cutting tolerance ±1mm
    Reducer 8# Gear Reducer,Delta

    The metal roof panel machine for sale parts are as follows:

    01. Mainframe

    02. Operator station

    03. Cutter

    04. Retaining pad

    05. Easy hanging

    06. Wheel

    07. Travel switch

    08. Rear hand knife

    09. Resin wheel

    10. Electric control cabinet

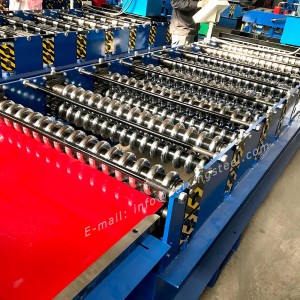

    roof machine details


  • Previous:
  • Next:

  • Drawing confirmation

    ——After confirming the final profile with the customer, the team of 12 engineers worked out detail workable parts CAD drawings;

    ——After 5 recheck, the production manager arrangement the material for all machine parts;

    Start production

    ——Our company own 12sets rough lathe machine, 20sets precise lathe machine, and 30sets shearing machine, all machine parts start manufacture.

    Product Inspection

    ——Our company Own 3sets hard test machine, and 4sets surface thickness Chromium test machine.

    ——Roller and shaft: Our Inspect team test 90% wheels and shafts, confirm all parts size precise and performance after processing.

    ——Our Inspect team test all roller surface, confirm all part surface paint above 5um.

    ——Main frame and medium plate: Our Inspect team test the main frame and plate cutting precise.

    Assembling machine

    ——5 worker assemble and welding one machine body frame by three days.

    Machine painting

    ——Putty ensure weld parts surface smoothly, and environment-friendly paint ensure protect worker body and environment.

    Machine Manual use test

    ——Confirm the output sheet tolerance within 2mm.

    Cutter production

    ——According the finally manufacture sheet, confirm the blade precise profile, Cr12MOV steel cutting knife finished by laser cutting.

    Storage

    ——For protect machine surface clear and without damage, we paint again and package by film.

    production process overview

    Packaging

    Our products are usually available in two packaging methods: plastic film packaging and plastic film + wooden box packaging.

    1. The main machine is covered with plastic film.

    2. PLC control box, spare parts, and other small parts are packed by wooden cartons.

    Delivery

    Two days before delivery, we unpacked and repainted the machine and repackaged it.

    packing & transport

    1) Q: Do you have after-sales support?

    A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

    2) Q: How do your machines compare with other big companies in this market?

    A: We are up to date with the latest technology and improve our machines accordingly.

    3) Q: How does your factory do regarding quality control?

    A: Quality is the priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.

    4) Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers’ specifications, using top brand name components.

    5) Q: Can you make the machine according to my design or prototype?

    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
