Arch Roof Building Roll Forming Machine

Arch Roof Building Roll Forming Machine Featured Image

Short Description:

FOB Price: Get Latest Price from inquiry

Min.Order Quantity: 1 set

Supply Ability: 200 sets per Month

Port: TIANJIN

Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.

Lead Time: 25-35 days after received the deposit

Send email to us Download as PDF

Product Detail

Product Tags

Main Technical Parameters of arch roof building roll forming machine

machine size	520mm520mm1200mm
Feeding width	914-1250mm
Equipment weight	0.5T
Material of shaft	45#steel adjustable treatment
Out diameter of shaft	φ70mm
Material of roller	Cr12, hard chromize coated HRC58-60°C
Number of forming rollers	3-4 rows
Main frame	300 H steel
Thickness of medium plate	16mm
Certification	ISO9001
Thickness of formed steel	0.3-0.8mm
Main motor power	4 KW
Bearing	6213
Brand name	HX
Forming speed	8000-10000mm/min
Feeding plate thickness	0.25-0.8mm
Removable or not	Removable type with 4 wheels

Details of light aluminum corrugated roof panel curving machine

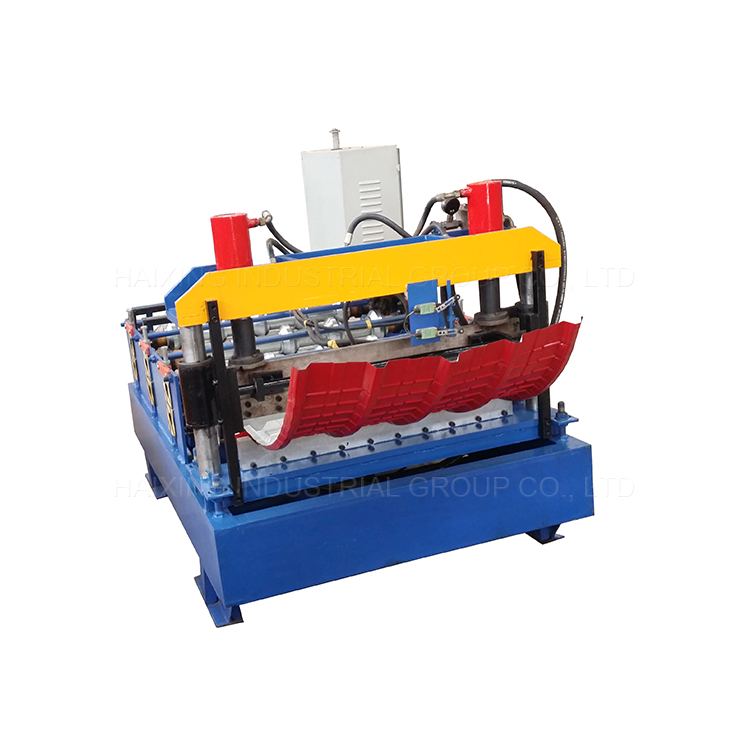

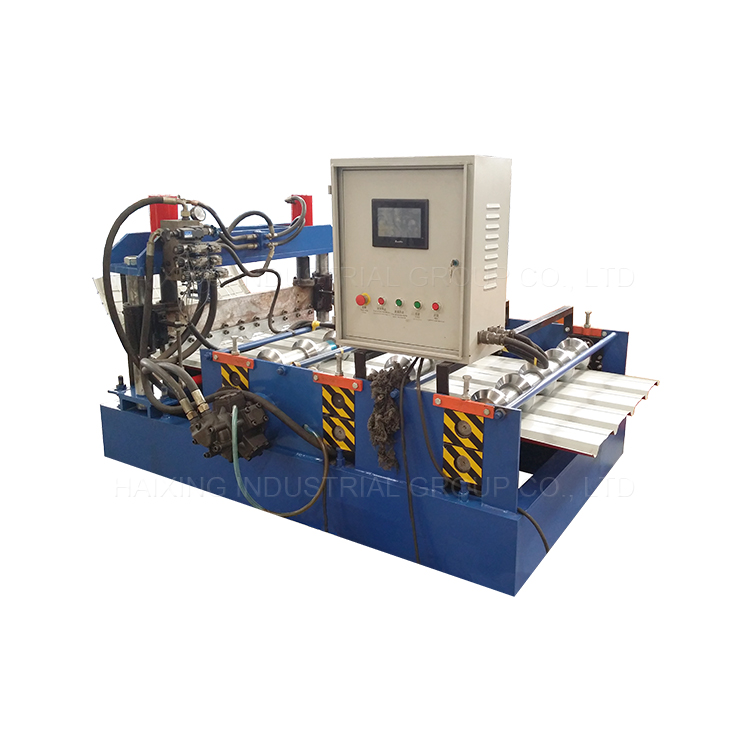

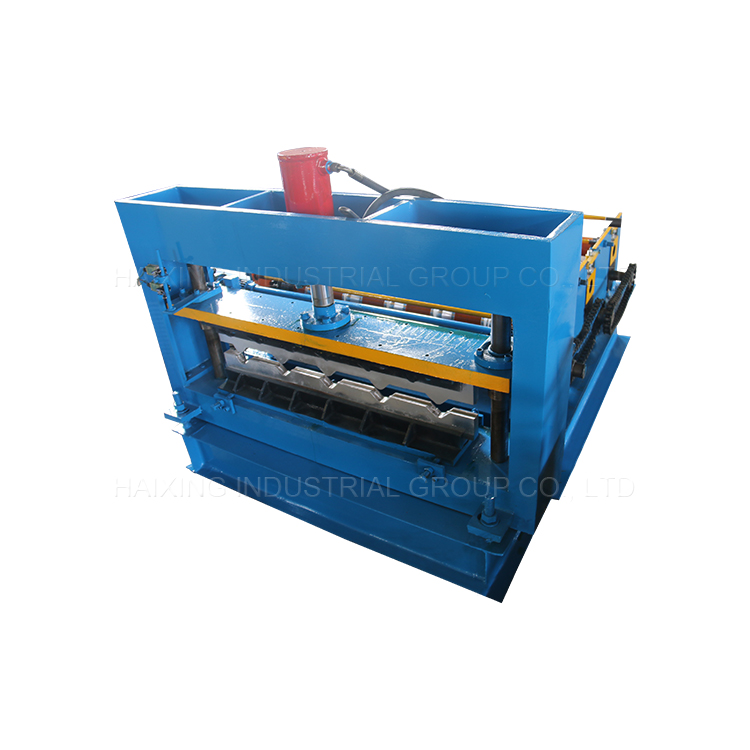

roof curving machine_0000 roof curving machine_0005 roof curving machine_0006
