Ceiling C Channel Making Machine

Short Description:

Ceiling c channel making machine packaging: The main unit is bare, fixed in the container with wire, the drum is oiled, and packed in plastic film. The control box is equipped with a carton.


Product Detail

Product Tags

Ceiling c channel making machine packaging: The main unit is bare, fixed in the container with wire, the drum is oiled, and packed in plastic film. The control box is equipped with a carton.

Light steel keel roll forming machine parameters

1 Main motor power 4kw/3 phase (or as your request)
2 Hydraulic motor power 3kw
3 Hydraulic pressure 10~12MPa
4 Voltage 380V/3 phase/50HZ (or as your request)
5 Control System PLC Delta /Panasonic/Siemens/
6 Main Frame 300/350mm H-Beam
7 Backboard Thickness 17/20mm
8 Chain size 1/2inch
9 Feeding material color steel coils
10 Feeding thickness 0.18~0.8mm
11 Feeding width Better as your profile or from our design
12 Effective width Better as your profile or from our design
13 Productivity 0-3min
14 Roll station 11~20 roll steps(according to different design)
15 Roller diameter 75mm (according to different design)
16 Roller material 45#steel
17 Cutter material Cr12
18 Cr-Plating size 0.05mm
19 Overall size 5000mm*1000mm*1500mm
20 Total weight 2~12T

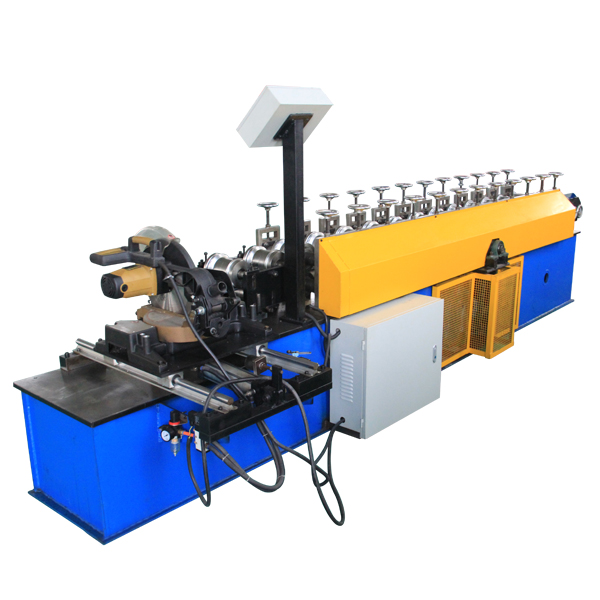

Ceiling c channel making machine picture display

C light steel keel1 C light steel keel2

Packaging Details

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
