Metal is a durable home roofing material that can increase the resale value and insulation capacity of a home. Compared to asphalt-mixed homes, modern metal roofs in homes can increase the resale value of homes by 1% to 6%.
Parameters of corrugated zinc roofing sheet roll forming machine
| 1 | Main motor power | 4kW, 3-phase or as your requests |
| 2 | Hydraulic motor power | 3kW |
| 3 | Hydraulic pressure | 10-12MPa |
| 4 | Voltage | 380V/3-phase/50Hz (or as your requirements) |
| 5 | Control system | PLC delta inverter |
| 6 | Mainframe | 300/350mm H-beam or 350mm |
| 7 | Backboard thickness | 16mm |
| 8 | Chain size | 1 Inch |
| 9 | Feeding material | color steel coils |
| 10 | Feeding thickness | 0.3-0.8mm |
| 11 | Feeding width | 1000mm |
| 12 | Effective width | 850mm |
| 13 | Productivity | 0-15/min |
| 14 | Roll station | 13 roll steps (according to different design) |
| 15 | Roller diameter | 70mm (depends on different design) |
| 16 | Roller material | 45# steel |
| 17 | Cutter material | Cr12 |
| 18 | Cr-plating size | 0.05mm |
| 19 | Overall size | 6800*1400*1150mm |
| 20 | Total weight | 4.8 tons |
Components:
Manual un-coiler: 1 set
Guiding platform: 1 set
Coil strip leveler: 1 set
Main machine of roll forming: 1 set
Electric-motor: 1 set
Cutting device: 1 set
Hydraulic station: 1 set
PLC control: 1 set
Supporter table: 1 set

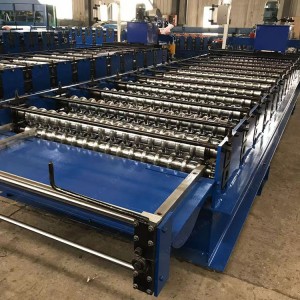

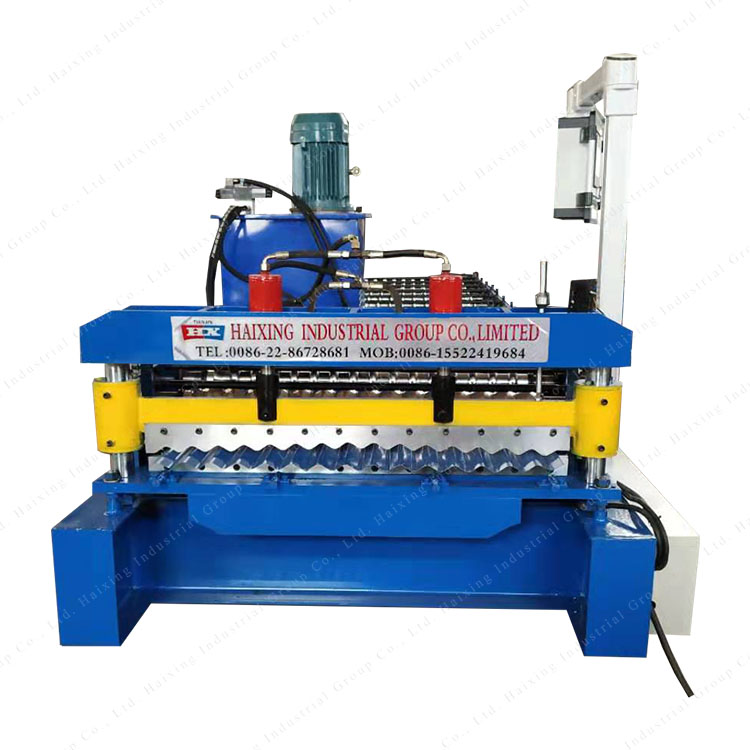

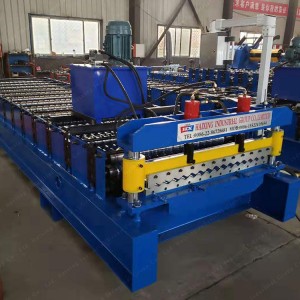

Photos of corrugated zinc roofing sheet roll forming machine：
If you have any questions about the model, parameters, etc., please feel free to contact us. We will do our best to answer your questions and look forward to cooperation.
