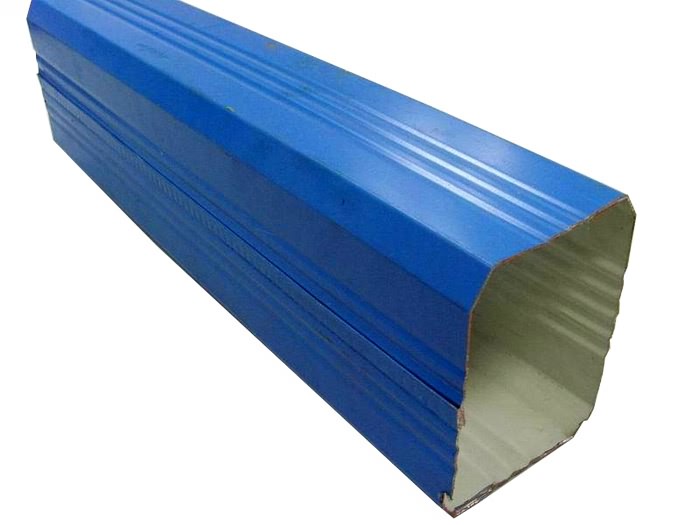

The downspout cold roll forming machine is used to manufacture metal pipes that collect roof rainwater and concentrate them on rainwater pipes below the ground.
|
Downspout roll forming machine parameters |
||
| 1 | Material specifications | color-painted galvanized steel sheet |
| 2 | Thickness | 0.40mm to 0.60mm |
| 3 | Main motor power | 7.5kW |
| 4 | Hydraulic station power | 4kW |
| 5 | Feeding width | up to the final design |
| 6 | Cover width | up to the final design |
| 7 | Coil yield strength | Q235MPa (33KSI) |
| 8 | Roll forming speed | 10-12m/min |
| 9 | Cutting tolerance | ±2mm |
| 10 | Rollers material | no 45 steel coated with chrome |
| 11 | Cutting blades material | Cr12 mold steel |
| 12 | Manual decoiler Max capacity | 3000kg |
| 13 | Type of cutting | roll-formed and length-set cutting |
| 14 | Control system | Mitsubishi PLC, inverter and touchscreen |
| 15 | Encoder | Omron |
Main components of Downspout cold roll forming machine:
Decoiler: 1 set
Sheet gilding device: 1 set
Roll former: 1 set
Hydraulic cutting device: 1 set
PLC control system: 1 set
Supports tables: 1 set
Downspout curving machine: 1 set
Machine picture display
Packaging Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
Terms:
1. Delivery: within 60 days after receiving the deposit.
2. Package: export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
