Galvanized Ridge Cap Zinc Roofing Sheet Roll Forming Machine

Short Description:

The galvanized ridge cap zinc roofing sheet roll forming machine Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    galvanized ridge cap zinc roofing sheet roll forming machine parameters

    1 Decoiler Manual decoiler or hydraulic decoiler
    2 Raw material thickness 0.2-0.8mm
    3 Material As your requirements
    4 Machine dimensions 7000*800*1500mm
    5 Feeding width According to your profile
    6 Forming station 13 to 15 steps
    7 Shaft diameter 75mm
    8 Shaft material High-grade 45# steel, heated and quenched
    9 Roller material High-grade 45# steel, coated with 0.05mm chrome
    10 Forming speed 10-15m/minute (adjustable)
    11 Transmission type Chain transmission
    12 Machine frame stand Welded structural steel, thickness is 18mm
    13 Main motor 5.5kW from Shanghai, China
    14 Cutting type Stop hydraulic cutting
    15 Cutting power 3kW
    16 Cutter material Cr12 with quenched treatment HRC 58-62
    17 Cutting length error ±2mm
    18 Voltage 380V/50Hz and 3 or according to your requirements
    19 Control system PLC control system
    20 Size of PLC 700*1000*300mm
    21 PLC Delta/Siemens

    Galvanized ridge cap zinc roofing sheet roll forming machine details:

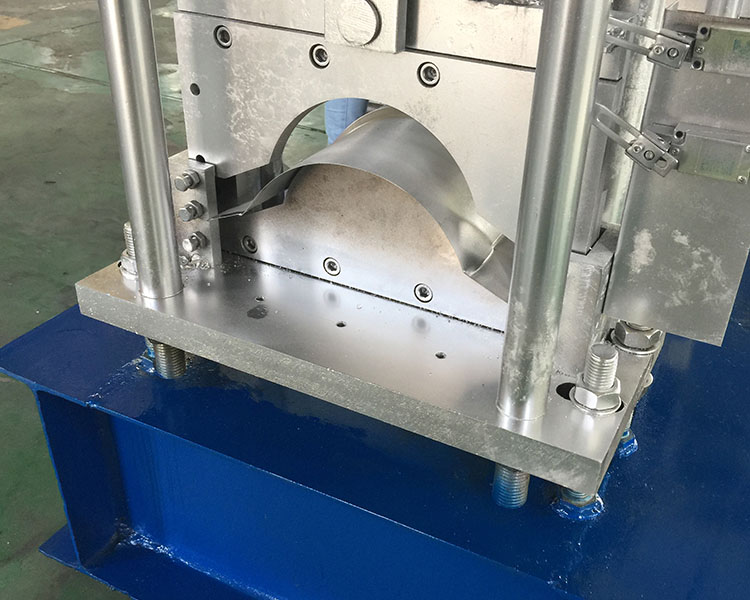

    Ridge cap machine21 Ridge cap machine22 Ridge cap machine23

    The advantages of the ridge cap roll forming machine

    1.Our machines can uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate.

    2.Controlling by computer, PLC display, operation is easy, running is steady and reliable,endurable,maintenance-free.

    3.We can make and design will kinds of roll forming machine according to customer’s request.
