Good User Reputation for Metal T Grid Roll Forming Machine - Hydraulic decoiler with car – Haixing Industrial Detail:

This decoiler enables automatic loading. The hydraulic decoiler itself cannot automatically feed, and it can be automatically loaded after the car is loaded.

Decoiler technical parameters
1	Coil inner diameter	450mm-650mm
2	Maximum width of coiling	1250mm
3	Maximum weight of loading	10 tons
4	Hydraulic power	3kW
5	Motor power	3kW
6	Working speed	0-15m/minute
7	Oil pump inner diameter	120mm
8	Working press	10MPa
9	Voltage	380V/50Hz, 3 phase
10	Dimensions	3110x1650x1780mm

Features:

1. Types available: hydraulic decoiler.

2. Adapts hydraulic expand/loosen and hydraulic driving system.

3. Easy to operate.

4. Suitable for pre-painted coil, cold-rolled coil and galvanized coil.

Machine picture display

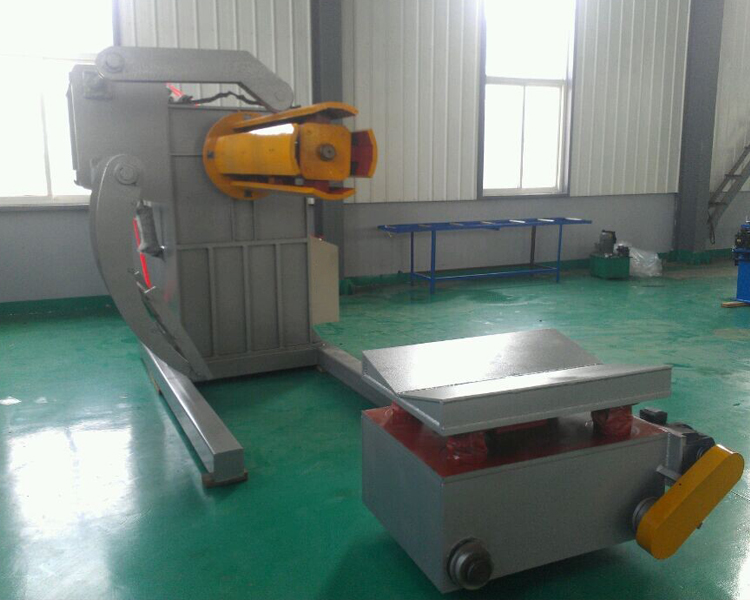

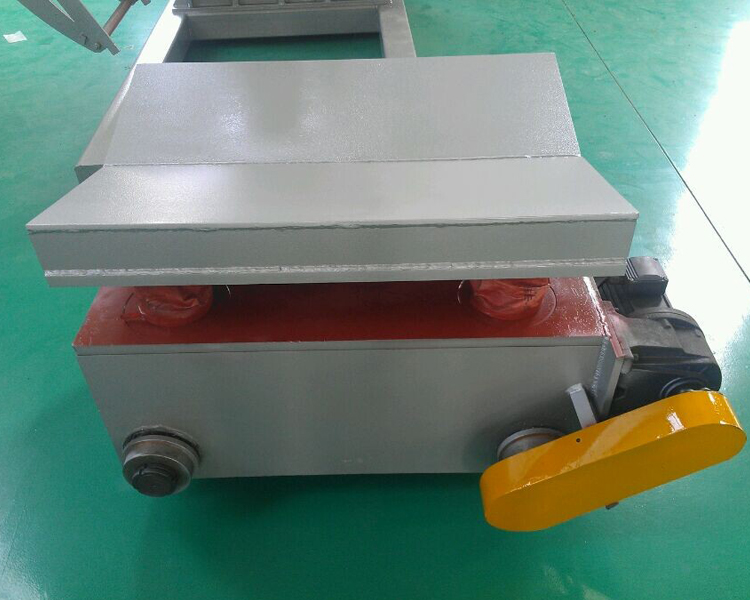

hydraulic decoiler1 hydraulic decoiler2

Packaging Details：

1. Machine is covered by plastic film.

2. Spare parts and other small parts are packed by wooden carton box.

Terms:

1. Delivery: within 60 days after receiving the deposit

2. Package: export standard package for container

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery)

Product detail pictures:
