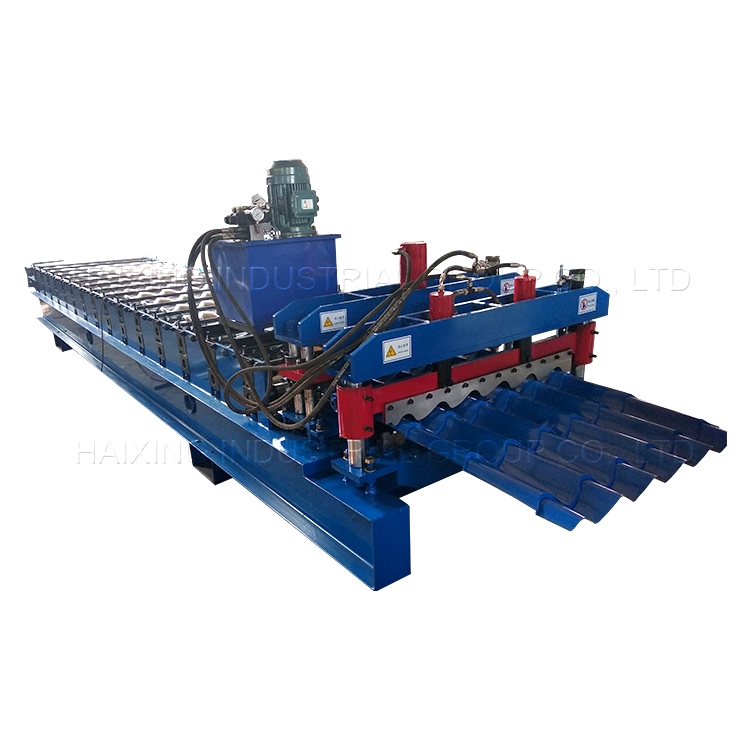

hydraulic press steel roof tile making machine Technical Parameters
| Style | metal roof panel roll forming machine |
| Machine dimension (mm) | 6500*1500*1200 |
| Total wight (Kg) | 3500 |
| Forming steps | 13 rows |
| Forming speed (m/min) | 8-12 |
| Hydraulic station power(Kw) | 4 |
| Diameter of shaft (mm) | 75 |
| Hydraulic pressure(MPa) | 18-20 |
| Electric condition | 380V/3Phase/ 50HZ |
| Suitable to process | Color steel plate(G330 or G350) |
| Decoiler max capacity (Kgs) | 10000 |
| Control system | PLC |
| Raw material thickness (mm) | 0.3-0.8 |
| Effective width(mm) | 750 |
| Material width(mm) | 1000 |
| Main application | tile roof |
Our Advantage
1. Our machine motor are GERMAN BRAND SIEMENS;
2. Our roller spacer are 4 mm thick seamless steel pipe;
3. Our output table can be adjust height according customer demands;
4. Our PLC control console can be look around 360 degree;
5. All easy-broken pars can be change within 14 month in free.
-
