Low MOQ for Stainless Steel Roller Shutter Door - Floor Deck Cold Roll Forming Machine – Haixing Industrial Detail:
Floor deck cold roll forming machine parameters
|
Feeding platform |
1 | Frame structure: steel plate welded |
| 2 | roller flatting system and pre-hand cutting system | |
| 3 | Advantage: not scratch the surface of metal plate | |
|
Roll forming M/C |
1 | Machine weight: 13 tons |
| 2 | Installation dimensions: 1500*1800*1500mm | |
| 3 | Machine under frame: steel 400 H-beam | |
| 4 | Sidewall: 45# steel plates | |
| 5 | Roller stations: 28 rows | |
| 6 | Shaft diameter: 85mm | |
| 7 | Side wall plate: 24mm | |
| 8 | Main shaft material: 45# steel with finish turning | |
| 9 | Roller material: 45# forging steel with chromium plate | |
| 10 | Chromium plate thickness: 0.05mm | |
| 11 | Motor power: 15kW*2, brand Siemens | |
| 12 | Reducer type: 2-8# gear speed reducer-Shanghai, China | |
| 13 | Chain wheel and cycle chain: 1.2-inch | |
| 14 | Production line speed: 10-12m/minutes | |
|
PLC control system |
1 |
Functions: adapts quantity cutting system, length of roof sheet can be set on the computer |
| 2 | Tolerance: within 1.0mm | |
| 3 |
Frequency converter: Delta |
|
| 4 |
PLC is Siemens |
|
| 5 |
Encoder: Omron |
|
| 6 |
Touchscreen: Delta |
|
| 7 |
Voltage standard: 3 phases 380V/50Hz or according to customer’s need |
|
| 8 |
Pressing die material: Cr12 |
|
|
Hydraulic pressing device |
1 |
Quenched treatment 58 to 62ºC |
| 2 |
Length tolerance: ±2mm |
|
| 3 |
Pump station motor: 5.5kW, LICHAO, Shanghai |
|
| 4 |
Hydraulic oil: 40# |
|
|
Hydraulic cutting device |
1 |
Functions: adapts electric drive and automatic location system to decide the dimension and cut the target |
| 2 |
Working method: stop to post then post to cut |
|
| 3 |
Cutting mold material: Cr12 |
|
| 4 |
Quenched treatment 58 to 62°C |
|
| 5 |
Length tolerance: ±2mm |
|
| 6 |
Pump station motor: 5.5kW, LICHAO, Shanghai |

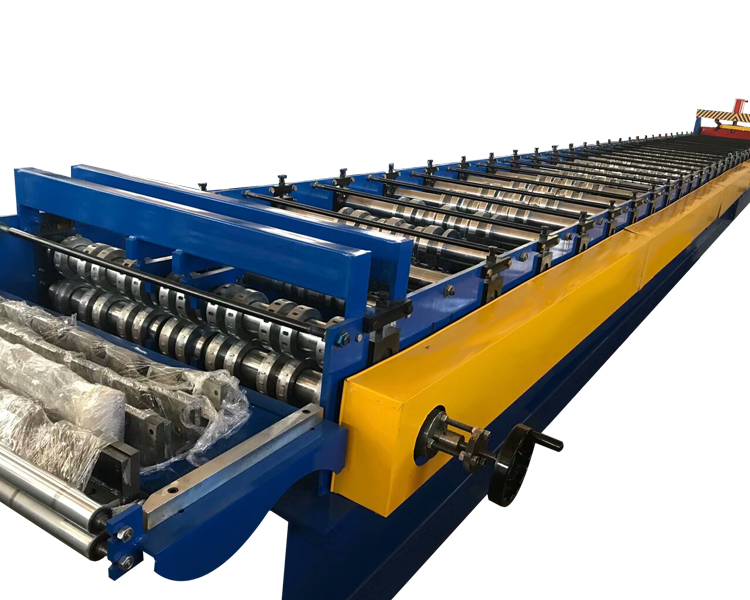

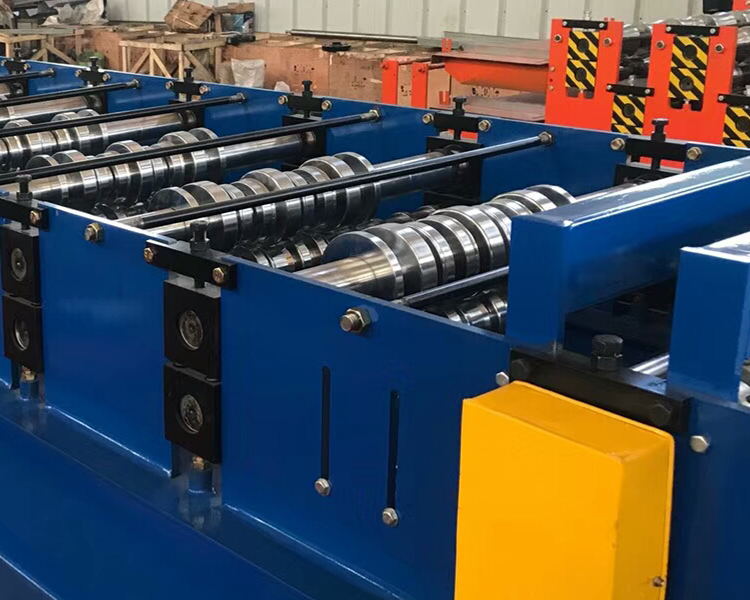

Photos of floor deck cold roll forming machine
Packaging Details：
1. Machine is covered by plastic film.
2. PLC control box, spare parts and other small parts are packed by wooden carton box.
About the floor deck cold roll forming machine and other roll forming machine details, if you have any need and questions, please don’t hesitate to contact us.
