Metal Sheet Highway Guardrail Roll Forming Machine

Short Description:

The highway guardrail roll forming machine with good bending compression performance, flatness is good, and automatic fixed length cutting, automatic punching, high degree of automation, fast and convenient installation.


Product Detail

Product Tags

Metal sheet highway guardrail roll forming machine parameters:

1 Suitable to process Color steel plate, galvanized sheet, aluminum coils and etc.
2 Effective width 310mm
3 Roller station 17 rows forming, 7 roller leveling
4 Thickness of feeding material 2.0-2.5 mm
5 Productivity 8-12m/min
6 Rollers’ material 45# forging steel
7 Diameter of shaft 100mm
8 Cutting tool material:  Cr12 with quenched treatment 60-62°C
9 Weight About 6.9T
10 Size 13.5*1.85*1.6mm
11 Voltage 380V 50Hz 3phases
12 Wall thickness of main forming machine 14mm steel plate
13 Main forming machine body 300 mm H steel
14 Total power 22+11 kw
15 Leveling power 2.2 kw

Machine picture display

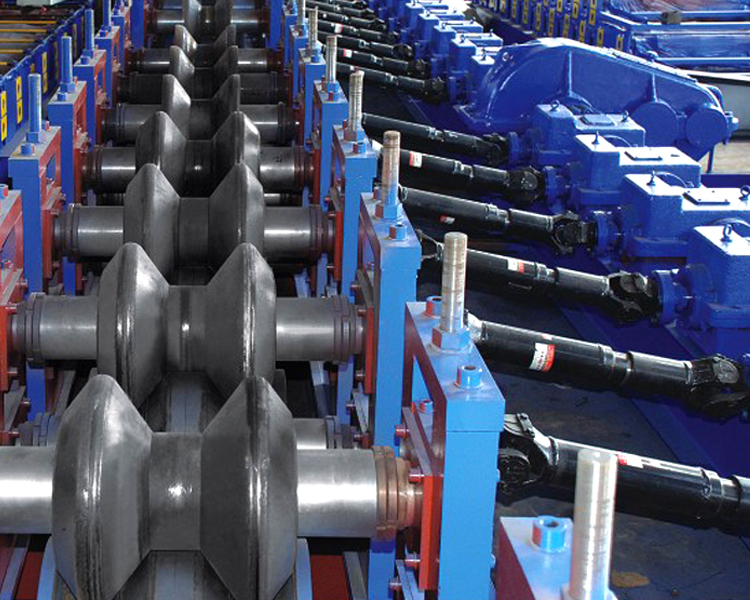

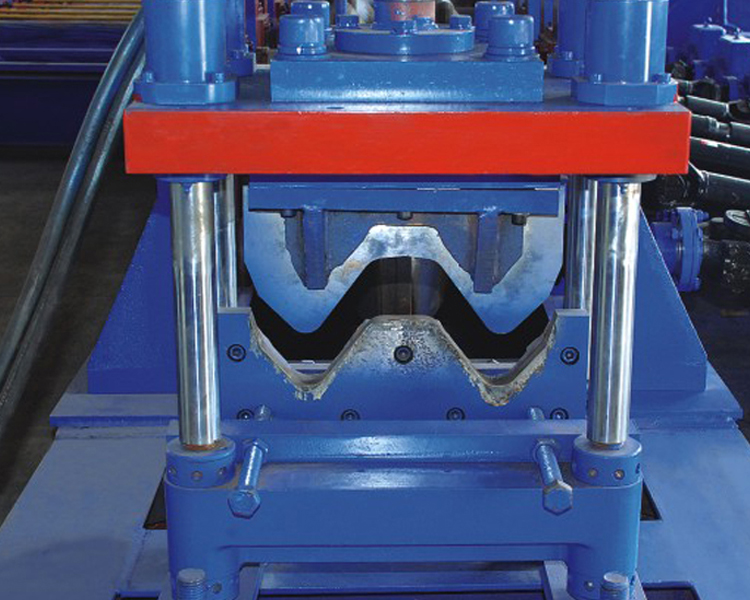

Metal Sheet Highway Guardrail Roll Forming Machine1 Metal Sheet Highway Guardrail Roll Forming Machine2

Metal sheet highway guardrail roll forming machine details

The highway guardrail roll forming machine with good bending compression performance, flatness is good, and automatic fixed length cutting, automatic punching, high degree of automation, fast and convenient installation.

Package and shipment

Standard export packing: 1 x 40 GP container, main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, electrics devices be packed with wooden box.
