Mexico 988 corrugated 994 trapezoidal double layer roof forming machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Double layer roof forming machine parameters

    1 Main motor power 4kW/5.5KW/7.5KW
    2 Hydraulic motor power 3kW/4kw
    3 Hydraulic pressure 10-12MPa
    4 Voltage 380V/3-phase/50Hz (or as your requirements)
    5 Control system PLC control system
    6 Mainframe 350/400 H-beam
    7 Backboard thickness 16mm/18mm
    8 Chain size 1 Inch
    9 Feeding material color steel coils
    10 Feeding thickness 0.3-0.8mm
    11 Feeding width 1000mm
    12 Effective width 840mm, 850mm, or as profile
    13 Productivity 0-30m/min (motor drive can arrived 25m/min to 30m/min)
    14 Roll station 13 roll steps (according to different design)
    15 Roller diameter 70mm (depends on different design)
    16 Roller material 45# steel
    17 Cutter material Cr12
    18 Cr-plating size 0.05mm
    19 Overall size 6800*1400*1150mm
    20 Total weight 4.8 tons

    Components of trapezoidal corrugated metal roof double layer roll forming machine:
    Manual uncoiler: 1 set
    Guiding platform: 1 set
    Coil leveler: 1 set
    Roll forming parts: 2 sets
    Electric-motor: 1 set
    Cutting device: 2 sets
    Hydraulic station: 1 set
    PLC control: 1 set
    Output Supporter table: 1 set

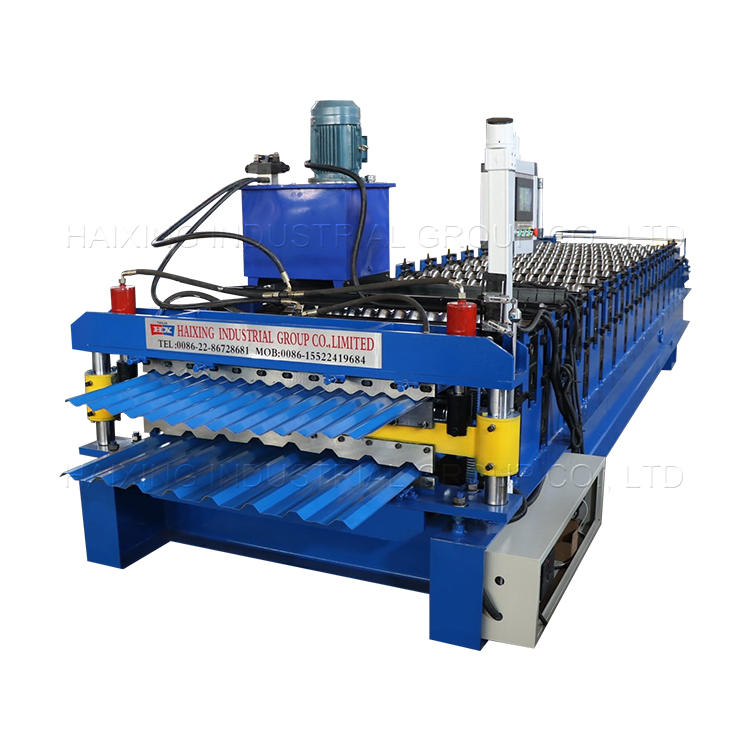

    Details of Mexico 988 corrugated 994 trapezoidal double layer roof forming machine

    988 714double machine.

    Packing & delivery photos

    roof machine packaging
