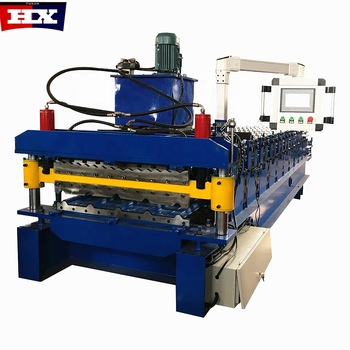

Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Technical parameters:

    1

    Cutting & Hydraulic type

    Double guide pillar

    2

    Hydraulic motor power

    3kw

    3

    Hydraulic Pressure

    10-12MPa

    4

    Voltage

    380V /3phase/ 50 HZ (or as your requirement)

    5

    Cutting drive

    Decelerating motor + Chain drive gear all by

    high-frequency

    6

    Control System

    Panasonic /Siemens / Schneider / Delta PLC

    7

    Length measurement

    Encoder

    8

    Main Frame

    300mm/350mm H-Beam or 350mm

    9

    Backboard Thickness

    17mm/200mm

    10

    Chain Size

    1inch/2inch

    11

     Feeding Material

    1000mm;1000mm

    12

     Feeding Thickness

     0.18mm-0.8mm

    13

     Effective width

    840mm;850mm

    14

     Productivity

     10-15/min

    15

     Roll Station

    13 rows; 11 rows

    16

     Roller Diameter

     70mm/75mm

    17

     Roller material

     45# steel

    18

     Cutter material

     Cr12 mould steel heat-treated hardness

    of HRC 60-62 degrees

    19

    Total Weight

    About 6.5 t

    20

    Package of machine

    Water proofing membrane, standard export packing

    21

    Components

    Manual decoiler——————-1 set(5t)

    Guiding Platform——————1 set

    Coil Strip Leveler—————–1 set

    Main Machine of Roll Forming—-1 set

    Hydraulic Station—————- -1 set

    Supporter Table——————-1 set

    Coil Strip Leveler——————1 set

    23

      machine technical parameters can be changed, according to customer’s need.

    Drawing

    Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming MachineMost Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine

    Detail show



    Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming MachineMost Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming MachineMost Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming MachineMost Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming MachineMost Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine







    Component parts show

    Un set manual decoiler free:

    Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine





    PLC control:

    Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine



    Motor electric and hydraulic cylinder:

    Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine



    Consumables:

    Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine



    Related machine:

    Most Popular 840 850 Double Layer Roof Automatic Tile Roll Making Forming Machine





    Our advantage:

    Installation: With installation instructions, the line is connected, is very easy to operate, only need                      to insert the pin.

    After service: Two years guarantee for machine; 24 hours technical support by email or calling;                           If there is any problem found of the machine, we will repair it for free within two years.

    Easy to use: Our PLC is installed on the machine to reduce the space.

    And the PLC can be rotated to check the sheet while controlling.
