Original Factory Glazed Tile Roll Forming Machine - Automatic Steel Sheet Slitting Machine – Haixing Industrial Detail:

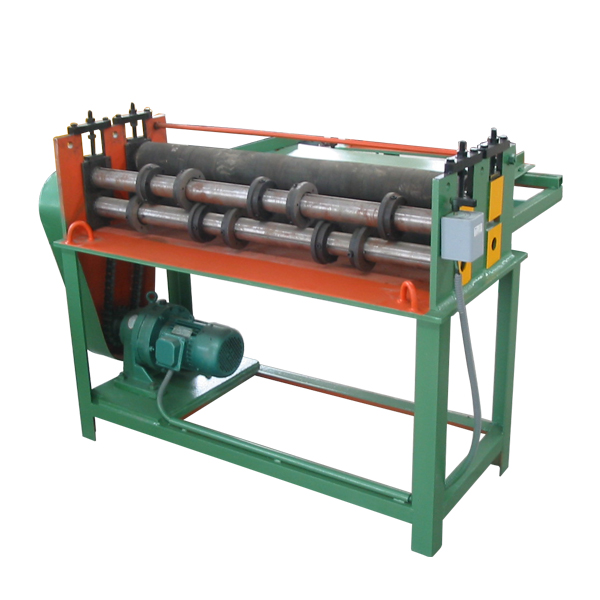

Automatic Steel Sheet Slitting Machine use:

Slitting the steel sheet into several required strips.

Machine Parameters:

1	Suitable to process	PPGI, galvanized sheet
2	Thickness of raw material	Slitting: Max 0.8mm Cutting: Max 2.0mm
3	Roller station	Up: 5 rollers Down: 6 rollers
4	Voltage	380V,50HZ,3Phase
5	Main frame	350 H beams
6	Side-wall thickness	40mm
7	Diameter of shaft	¢90mm
8	Chain size	1 Inch
9	Motor power	3kw(Siemens)
10	Touch screen/PLC	Siemens
11	Transmission	Gear transmission
12	Machine size	2200x2000x2000m
13	Machine weight	About 2Tons

Packaging Details：

1. Machine is covered by plastic film.

2. PLC control box, spare parts and other small parts are packed by wooden carton box.

Company Profile:

Haixing Industrial Group Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines, material of building.

Automatic Steel Sheet Slitting Machine11
