Personlized Products Special Multi-function Profile Light Steel Keel C Z Cold Roll Forming Machine With Replaceable

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Adhering to the basic principle of “quality, provider, performance and growth”, we have now attained trusts and praises from domestic and global customer for Personlized Products Special Multi-function Profile Light Steel Keel C Z Cold Roll Forming Machine With Replaceable, Our group members are goal to provides merchandise with significant performance cost ratio to our consumers, as well as target for all of us is usually to satisfy our consumers from all around the environment.
    Adhering to the basic principle of “quality, provider, performance and growth”, we have now attained trusts and praises from domestic and global customer for Cold Roll Forming Machine, Light Keel Cold Roll Forming Machine, Roll Forming Machine, Customer satisfaction is our goal. We’re looking forward to cooperating with you and providing our best services in your case. We warmly welcome you to contact us and remember to feel free to contact us. Browse our online showroom to see what we can do for you. And then E-mail us your specifications or inquiries today.
    Equipment components of C channel light steel keel making machine:

    Manual decoiling, roll forming machine, computer control system, hydraulic control system, cutting, run out table.



    Light steel keel roll forming machine parameters

    1 Main motor power 4kw/3 phase (or as your request)
    2 Hydraulic motor power 3kw
    3 Hydraulic pressure 10~12MPa
    4 Voltage 380V/3 phase/50HZ (or as your request)
    5 Control System PLC Delta /Panasonic/Siemens/
    6 Main Frame 300/350mm H-Beam
    7 Backboard Thickness 17/20mm
    8 Chain size 1/2inch
    9 Feeding material color steel coils
    10 Feeding thickness 0.18~0.8mm
    11 Feeding width Better as your profile or from our design
    12 Effective width Better as your profile or from our design
    13 Productivity 0-3min
    14 Roll station 11~20 roll steps(according to different design)
    15 Roller diameter 75mm (according to different design)
    16 Roller material 45#steel
    17 Cutter material Cr12
    18 Cr-Plating size 0.05mm
    19 Overall size 5000mm*1000mm*1500mm
    20 Total weight 2~12T

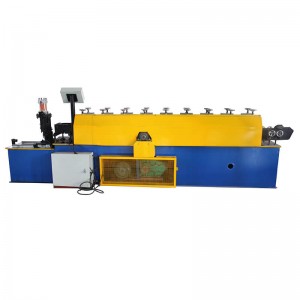

    C channel light steel keel roll forming machine picture display

    gdafd fadf

    Packaging Details

    1. Machine is covered by plastic film

    2. PLC control box, spare parts and other small parts are packed by wooden carton box.



    Terms:

    1. Delivery: within 60 days after receiving the deposit.

    2. Package: export standard package for container.

    3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
