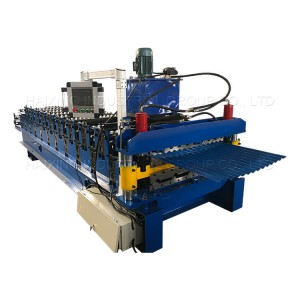

roof tile making machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Packaging & Delivery

    FAQS

    Product Tags

    roof tile making machine parameters

    1 Main motor power 4kW/5.5KW/7.5KW or as actual demands
    2 Hydraulic motor power 3kW/4KW.5.5KW or as actual demands
    3 Hydraulic pressure 10-12MPa according to oil pump and pump motor
    4 Voltage 380V/ 3 phase/ 50 Hz (or as your requirements)
    5 Control system Automatic PLC control system
    6 Mainframe 350H beams/400H beams according to machine demands
    7 Wall sheet thickness 16mm/18mm/20mm/22mm according to machine demands
    8 Chain size  1 inch/1.2inch according to machine demands
    9 Feeding material Galvanized steel coil/color steel coil/aluminum steel coil
    10 Feeding thickness 0.3-0.8 mm
    11 Productivity 0 – 25m/min (according to machine specification)
    12 Roll station Common 11rolls or 25rolls (according to different design)
    13 Roller diameter 70mm/75mm/80mm (depends on different design)
    14 Roller material 45# steel
    15 Cutter material Cr12MOV
    16 Cr-plating size 0.05 mm

    Machine characteristics: Power saving, cheap, labor-saving, fast speed, convenient transportation, and small floor space.

    We offer our customers easy-broken parts for free.

    Easy-broken parts1

    Source of raw materials for roof tile making machine

    Medium plate: from Baogang steel, Tangshan Iron and Steel, Anshan Iron and Steel, the above-mentioned production areas are all China’s first-class large-scale steel production base.

    H-beam: from Tangshan Iron and Steel, Hebei Iron and Steel, specializing in the production of H-beams in China.

    The wheels and shafts are made of round steel, which is from Baogang steel, Jigang steel and Tangshan Iron and Steel Co., Ltd., which are produced by a full set of imported Japanese production lines, with high precision components and mechanical properties.

    The motor, frequency converter, touch screen, and PLC are all Siemens brands from Germany and are the most professional and best quality manufacturers in the world.

    Pumping station: Shanghai Licha, a well-known Chinese brand, guarantees that there will be no quality problems after 10 to 15 years of use.

    Blade and hand knife: Cr12 Mov, from Shanghai Baogang steel, Japan’s Xiangpu Steel, hardness up to HR800, high-temperature resistance up to 3000 degrees Celsius.

    Tubing, chain and bearing: The company’s procurement team consists of 10 people, and the purchased products have all passed the preliminary verification. The oil pipe is guaranteed not to age or block for 8 to 10 years; the chain is guaranteed not to break for 8 to 10 years; the bearing is guaranteed to have no crack for 8 to 10 years.

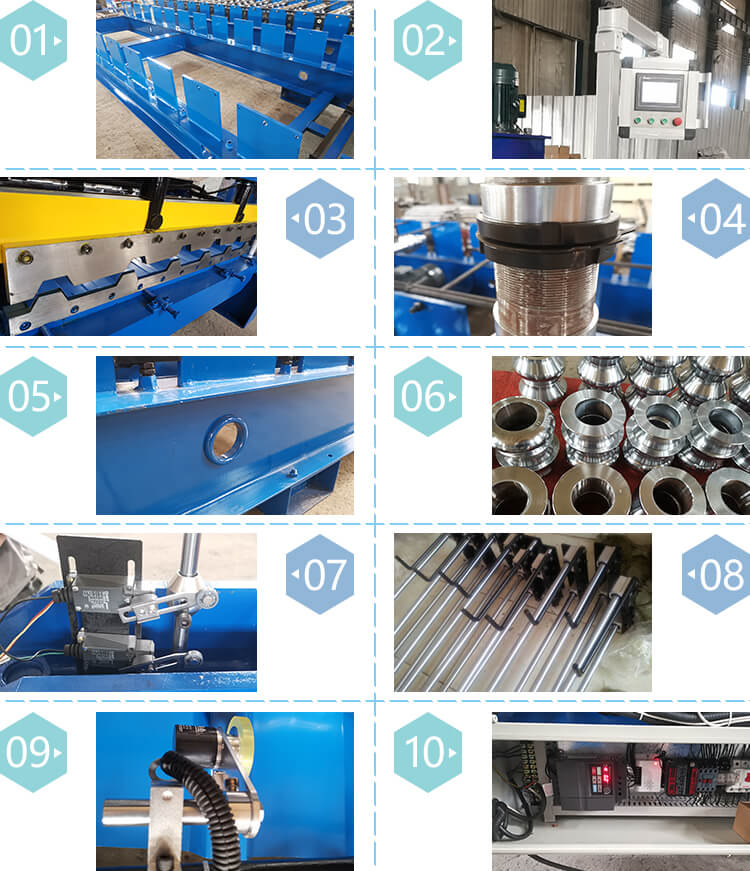

    roof machine details


  • Previous:
  • Next:

  • 1. The main machine is covered with plastic film.

    2. PLC control box, spare parts, and other small parts are packed by wooden cartons.

    packing & transport

    A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

    2) Q: How do your machines compare with other big companies in this market?

    A: We are up to date with the latest technology and improve our machines accordingly.

    3)Q: How does your factory do regarding quality control?

    A: Quality is the priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.

    4) Q: Do you sell only standard machines?

    A: No, most of our machines are built according to customers’ specifications, using top brand name components.

    5) Q: Can you make the machine according to my design or prototype?

    A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
