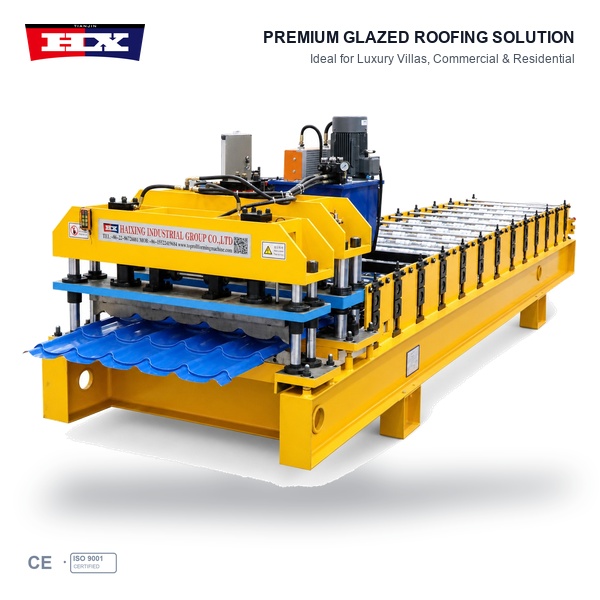

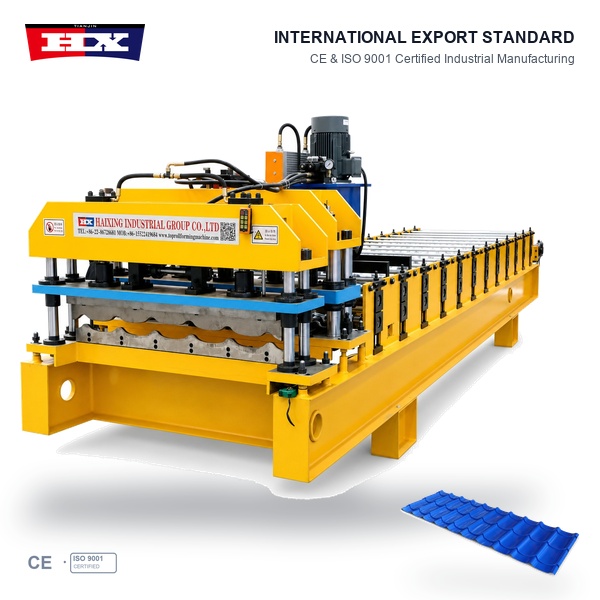

Step Tile Roll Forming Machine for Metal Roofing | Haixing

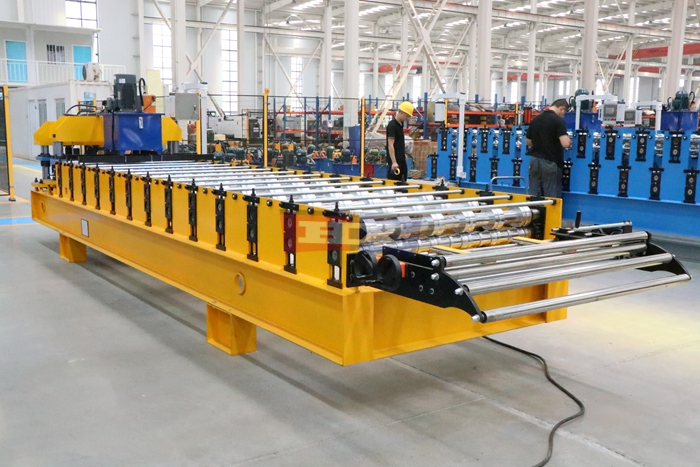

The step tile roll forming machine from Haixing is designed to manufacture decorative metal roofing sheets with raised, tile-like steps. By combining progressive roll forming with a dedicated step-pressing process, the equipment transforms suitable coated steel coils into roofing panels that resemble traditional roof tiles.
This type of machinery is commonly selected by roofing sheet manufacturers that want to expand beyond conventional corrugated or trapezoidal panels. The distinctive stepped profile offers a different architectural appearance while retaining the manufacturing advantages of continuous metal sheet processing.
How the Metal Step Tile Forming Process Works
A typical step tile roll forming machine uses a decoiler, material guiding section, forming rollers, step-pressing system, and cutting equipment. Each section contributes to transforming a flat steel coil into a finished decorative roofing panel.

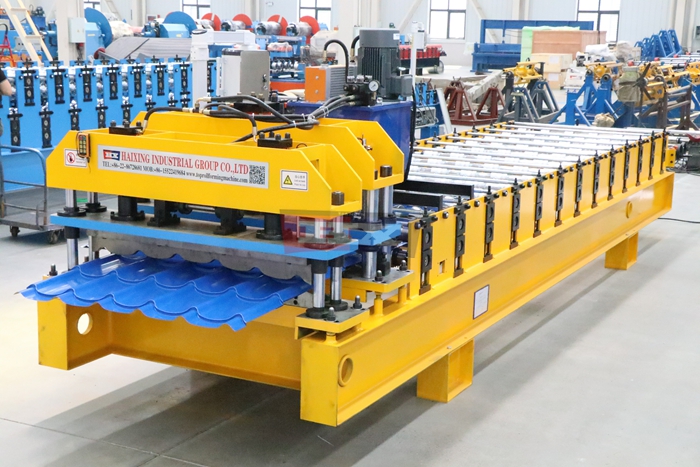

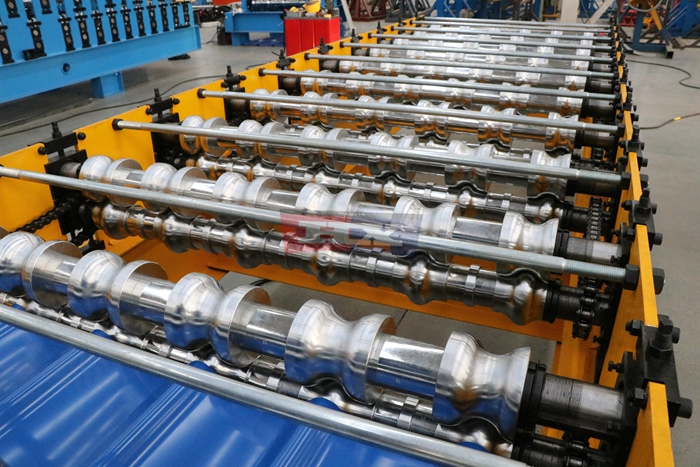

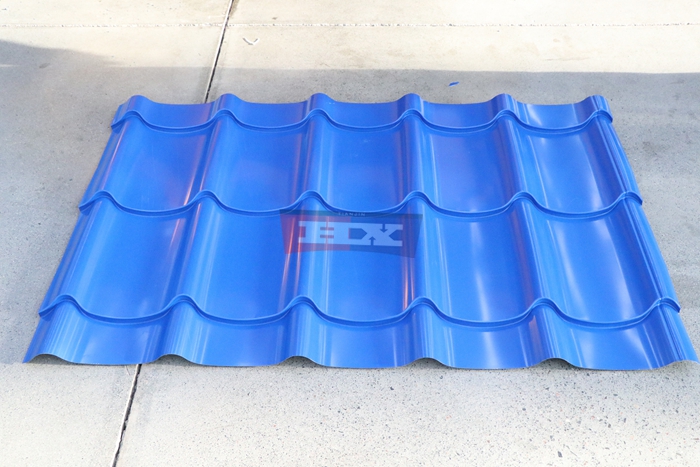

The material first enters the roll forming section, where successive roller sets gradually produce the longitudinal profile. The pressing unit then creates transverse tile steps at predetermined intervals. These steps give the finished sheet its characteristic roof tile pattern.
The completed roofing panel is cut to the specified length. Depending on the equipment design, the pressing and cutting operations may use different sequences or control arrangements.
Customized Step Height, Spacing and Roofing Profiles
The dimensions of a stepped roofing panel influence both its appearance and the equipment required to manufacture it. Important profile details include the overall sheet shape, step height, distance between steps, effective coverage width, and finished sheet length.
Haixing can evaluate customers’ roofing drawings or physical samples to discuss suitable forming roller designs and pressing arrangements. Customization is based on the required finished product and the material specifications supplied by the customer.
For manufacturers serving different regional markets, accurate profile drawings are especially important because decorative roof tile patterns and installation requirements may vary.
Steel Coil Materials for Step Tile Roofing Sheets
A step tile roll forming machine can be configured to process suitable galvanized or pre-painted steel coils within its approved material specifications. The correct material thickness, steel grade, and coating selection depend on the required roofing profile and intended application.
Pre-painted steel is frequently considered for decorative roofing products because it is available in different colors and surface finishes. The finished sheet design and coating selection should be evaluated according to local construction requirements.
Before equipment production, customers should confirm the steel thickness range, coil width, material grade, and relevant coating specifications.
Applications of Stepped Metal Roof Tiles
Stepped metal roofing panels are used in residential buildings, villas, commercial properties, and projects where a decorative tile-style roof appearance is preferred.
For roofing material distributors and manufacturers, offering stepped metal roof tiles can complement existing corrugated and trapezoidal roofing sheet product ranges. Different profile designs and coating colors provide options for various architectural styles.
A dedicated step tile roll forming machine allows manufacturers to produce these roofing panels according to the approved profile dimensions and required sheet lengths.
What to Confirm Before Ordering the Machine
To select an appropriate production line, customers should provide the roofing tile profile drawing, material thickness, coil width, step height, step spacing, target sheet length, and required production capacity.
These details affect the forming roller arrangement, pressing system, cutting method, and other equipment components. The final production speed, automation functions, and technical specifications are confirmed according to the approved machine configuration.
Why Work with Haixing?
Haixing supplies roll forming equipment for the metal roofing and building material industries. Our team can assist with roofing profile evaluation, equipment configuration, manufacturing coordination, factory testing, and technical support.
Whether you are developing a new decorative roofing product or expanding an existing roofing sheet factory, Haixing can discuss a suitable machine solution based on your manufacturing requirements.
Request a Step Tile Roll Forming Machine Quotation
Looking for a step tile roll forming machine for your roofing sheet production project? Send Haixing your finished tile drawing, steel coil specifications, desired step dimensions, and production requirements.
Our team can review your project and prepare a customized equipment proposal. Contact Haixing to discuss machine configuration and request a quotation.
