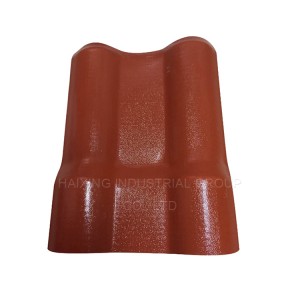

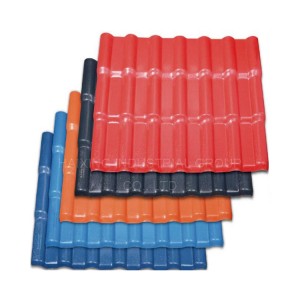

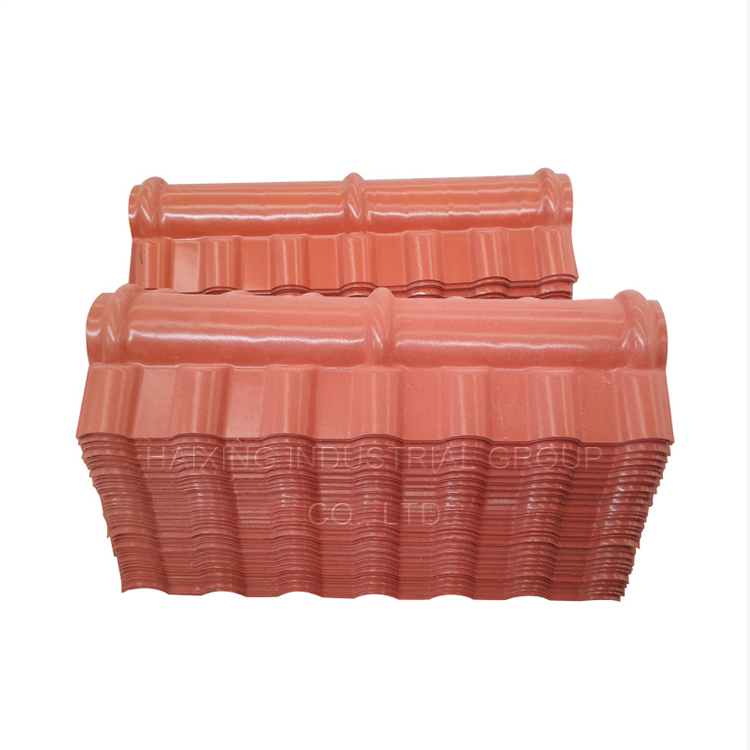

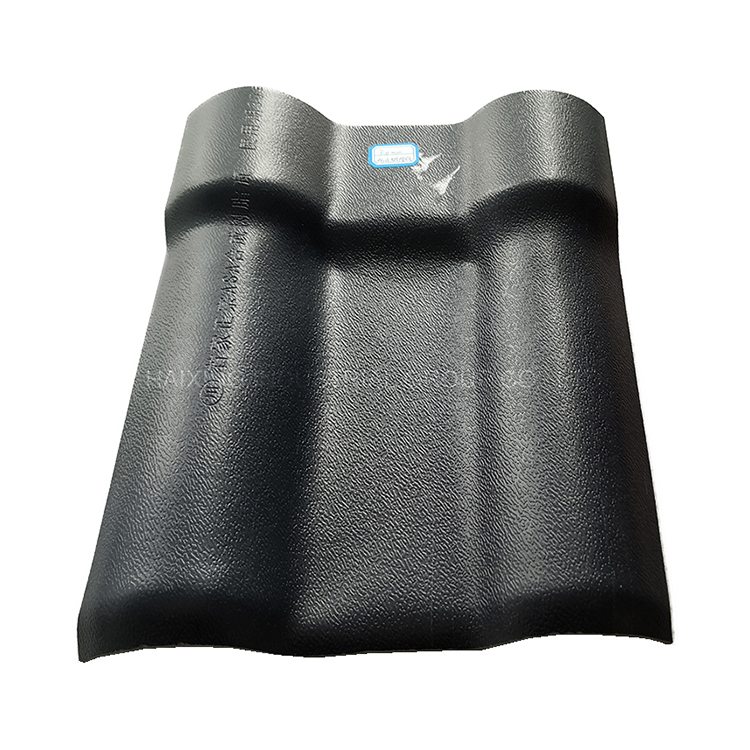

synthetic resin roof tile

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Synthetic resin tile is made of high weathering engineering resin ASA. ASA is a terpolymer composed of Acrylonitrile, Styrene, and Acrylate.

    Synthetic resin roof tile Parameters

    Width 1050 mm
    Effectic width 960 mm
    Length Customized
    Color Red,Grey, blue, green or as customized
    Thickness 2.3 mm  3.0mm
    Weight 2.3 mm/4 .38kg/sqm
    2.5 mm/4.76kg/sqm
    3 mm/5.9kg/sqm
    Features 1. Corrosion resistance
    2. Sound insulation
    3. Acid and alkali and organic solvents
    4. Good resistance to impact and low temperature
    5. Flame retardant
    6. Easy to install, maintenance , and clean
    7. Environmental and healthy
    Application This kind of synthetic resin roof sheet was widely used in the roofs, sheds, farm markets, road hoardin! ,lat to slopinq roof conversion ,villas qardening ,pavillions and other fields ,Etc
    Packing list Thickness SQM/20”FCL(26TONS) SQM/40”FCL(26TONS)
    2.3 mm 5800 SQMS 5800 SQMS
    2.5 mm 5400 SQMS 5400 SQMS
    3.0 mm 4500 SQMS 4500 SQMS

    Popular PVC roof sheet

    popular pvc sheet(haixing)

    Synthetic resin roof tile Advantage

    1.save cost

    2.Loading bearing: It can load 150 kg per square meter evenly

    3.Lightweight: 5-6.0kg/square meter

    4.Water resistance: 100%

    5.Fire resistance: Self-extinguish off the fire

    6.Anti-corrosion

    7.Impact resistance and low-temperature resistance

    8.Sound and heat insulation

    9.Small Thermal expansivity

    10.Environmental protection and energy conservation

    11.Easy to install

    All products of our company and their applications

    A. Roll forming machinery: which could produce metallic roofing tile, trapezoidal or sinusoidal roofing sheet, floor deck, C and Z purlin, expressway guardrail, channel and stud, roller shutter and sandwich panel, etc. Customized profiles and requirements are acceptable, and assistant equipment such as hydraulic decoiler, auto stacker, etc.

    B. Steel structure Building: Complete service including design, fabrication, delivery and installation supervision for PEB industry, such as the warehouse, workshop, shopping mall, highrise building, etc.

    C. Related products: Metal material for PEB building and other related equipment, like H-beam process machinery, slitting/CTL machine, etc.
