2019 New Style Trapezoid panel forming machine roof tile roll forming machine roofing sheet making machine production line

Short Description:

FOB Price: Get Latest Price from inquiry

Min.Order Quantity: 1 set

Supply Ability: 200 sets per Month

Port: TIANJIN

Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.

Lead Time: 25-35 days after received the deposit

Send email to us Download as PDF

Product Detail

Product Tags

We also offer product sourcing and flight consolidation services. We have our own factory and sourcing office. We can provide you with almost every type of product related to our product range for 2019 New Style Trapezoid panel forming machine roof tile roll forming machine roofing sheet making machine production line, We consider you will be contented with our fair rate, good quality items and fast delivery. We sincerely hope you can give us an option to serve you and be your ideal partner!
We also offer product sourcing and flight consolidation services. We have our own factory and sourcing office. We can provide you with almost every type of product related to our product range for , Solutions have been exported to Asia, Mid-east,European and Germany market. Our company has constantly been able to update the goods performance and safety to meet the markets and strive to be top A on stable quality and sincere service. If you have the honor to do business with our company. we’ll unquestionably do our very best to support your business in China.

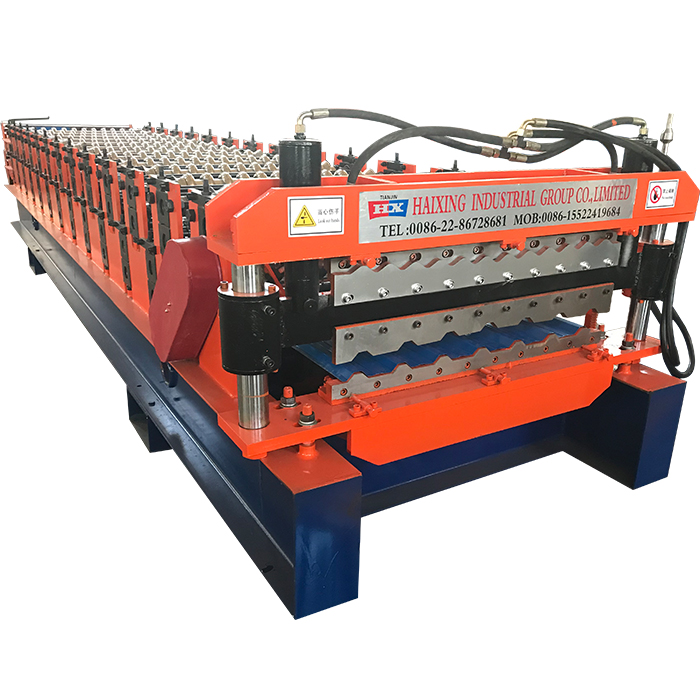

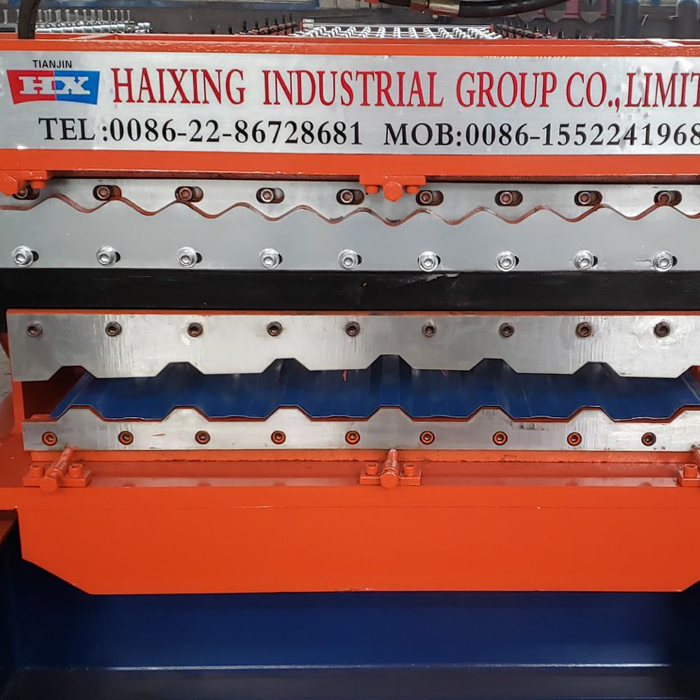

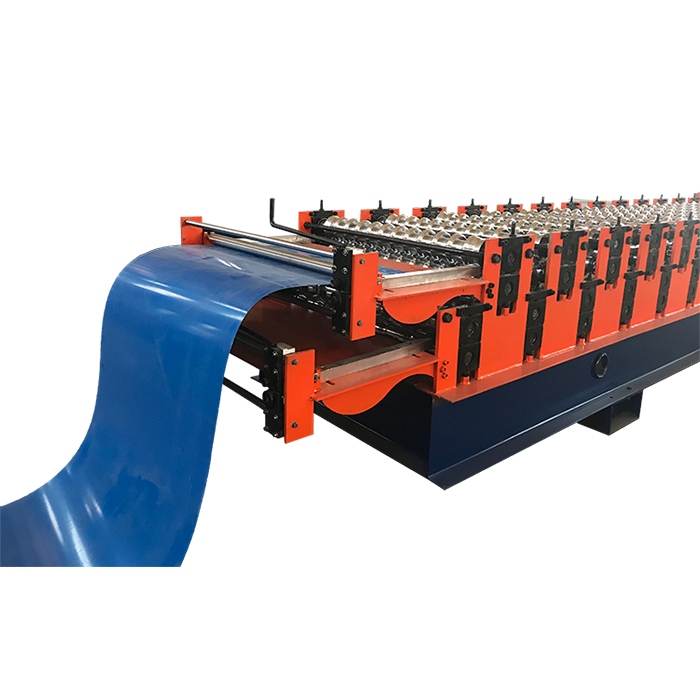

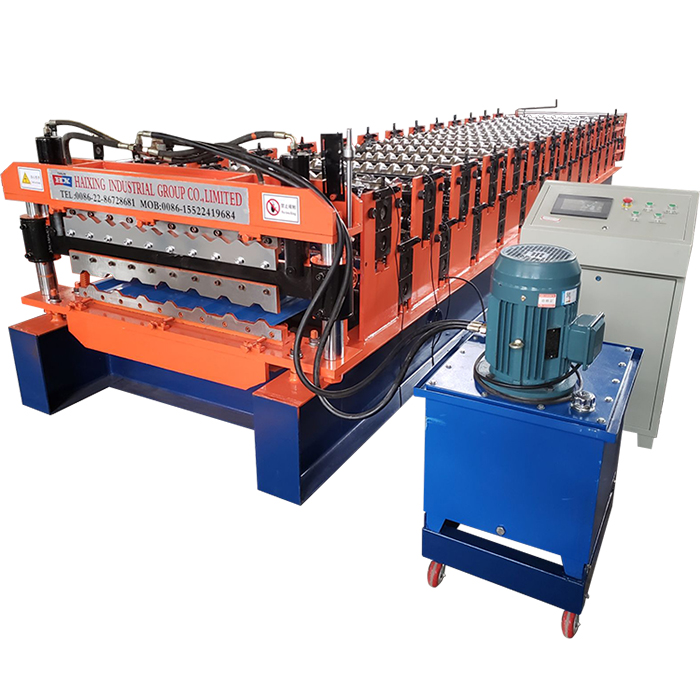

Double Layer Roof Tile Making Machine details showing

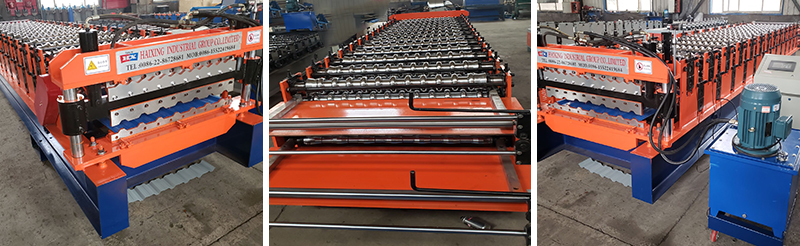

double layer roof machines

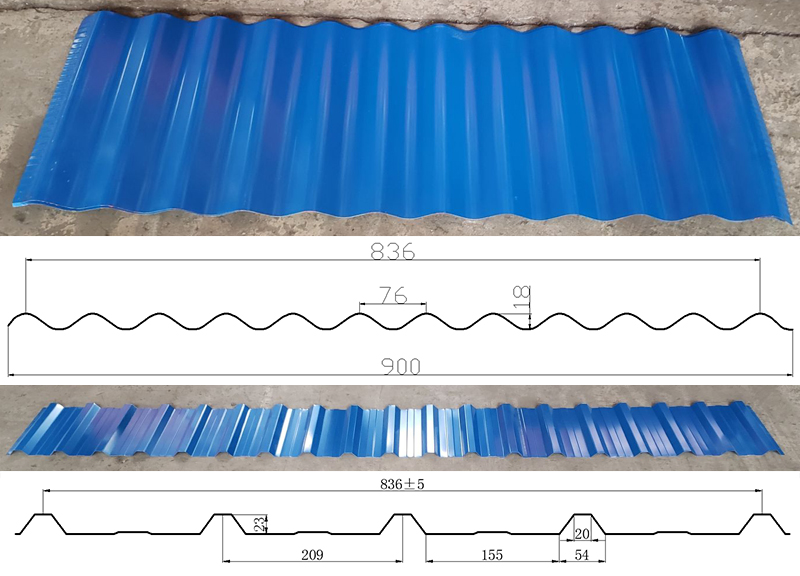

This machine can produce two different types of metal tile products. The upper layer of the machine can form corrugated tiles, and the lower layer of the machine can form trapezoidal tiles. The final product is as follows:

double layer roof machine finally product

Double Layer Roof Tile Making Machine Technical Parameters (some depend on the final design)

Style	836-816 Double roof roll forming machine for Bolivia
Machine dimension	800016501750mm
Total weight	6800kgs
Forming steps	Up layer: 13rows; Down layer: 13rows
Forming speed	10-15m/min
Hydraulic station power(KW)	4kw
Diameter of shaft	70mm
Hydraulic pressure	18-20 MPa
Electric condition(Voltage )	380V/3Phase/50HZ (or based on customer’s need, for example, 220V 440V 415V or 2Phase 60HZ )
Suitable to process	Color steel plate(G330 or G350 ) galvanized steel coil
Manual uncoiler max capacity	5000kgs
Control system	PLC
Raw material thickness	0.3-0.8mm
Effective width	836mm and 816mm
Material width	1000mm and 1000mm
Main motor	5.5Kw
Material of the cutting blade	Cr 12 quenched treatment 58℃-62℃
Main Shaft Material	45# steel with finish turning
Roller materials	45# Forging Steel with Chromium Plate
Machine Under Frame	400 H beams and sidewall 18mm

Components of double layer roof roll forming machine

Manual uncoiler	1 set	Post-cutting equipment	1 set
Sheet guiding equipment	1 set	Hydraulic station	1 set
Roll forming system	1 set	Electric controlling system	1 set
Pressing device	1 set	Support table	2 pieces

decoiler and output table

We offer our customers easy-broken parts for free.

Easy-broken parts1

Application

Roof roll forming machinery could produce metallic roofing tile, trapezoidal or sinusoidal roofing sheet, floor deck, C and Z purlin, expressway guardrail, channel and stud, roller shutter and sandwich panel, etc. Customized profiles and requirements are acceptable, and assistant equipment such as hydraulic decoiler, auto stacker, etc.

Our company

We are professional! Our factory has extensive experience in product and export processes.

We have an ultra-low price advantage! Our factory helps you save money from many details:

1, lower labor costs.

2, convenient transportation.

3, perfect supporting industry.

Certificates
