5 Ton Hydraulic Galvanized Steel Coil Uncoiler

Short Description:

To get the most out of your molding equipment, you must use a high-performance feed line. For many types of sheet metal processing, the leveling and feeding process can be integrated into one machine.


Product Detail

Product Tags

To get the most out of your molding equipment, you must use a high-performance feed line. For many types of sheet metal processing, the leveling and feeding process can be integrated into one machine.

5 Ton Hydraulic Galvanized Steel Coil Uncoiler technical parameters

Coil inner diameter 450mm-650mm
Maximum width of coiling 1250mm
Maximum weight of loading 5 tons
Hydraulic power 3kW
Motor power 3kW
Working speed 0-15m/minute
Oil pump inner diameter 120mm
Working press 10MPa
Voltage 380V/50Hz, 3 phase
Dimensions 3110x1650x1780mm

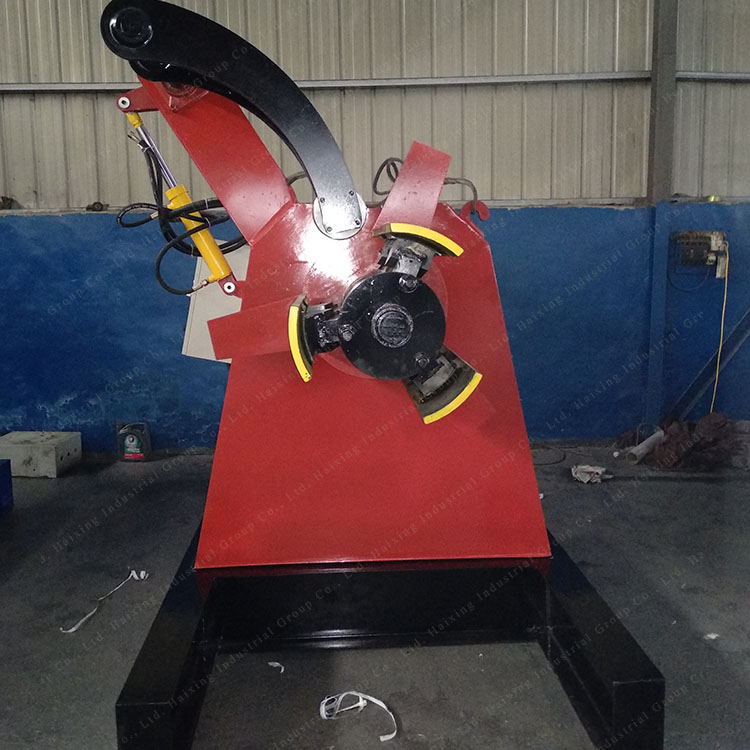

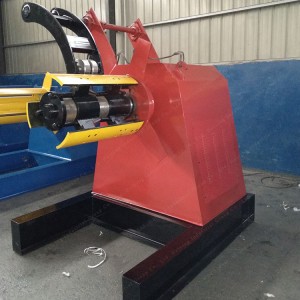

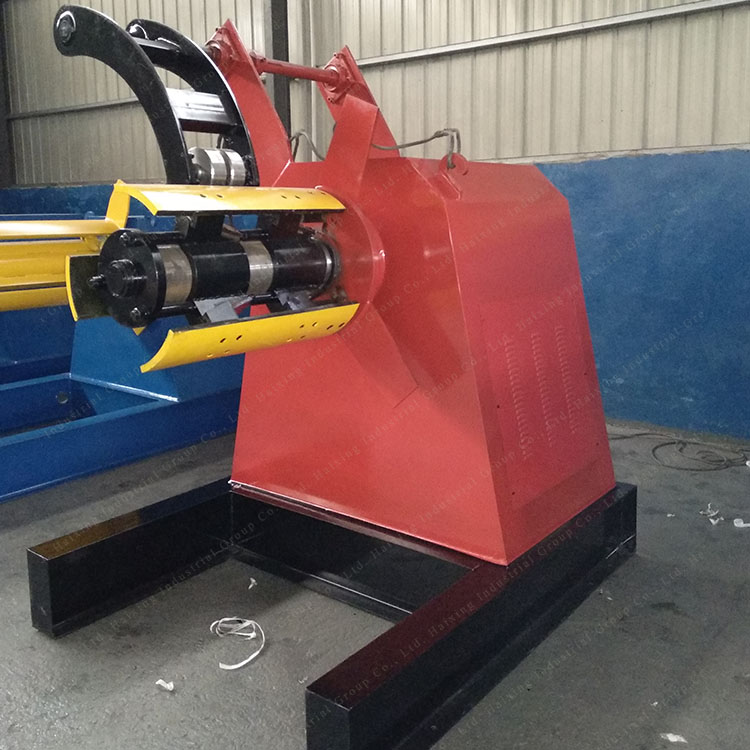

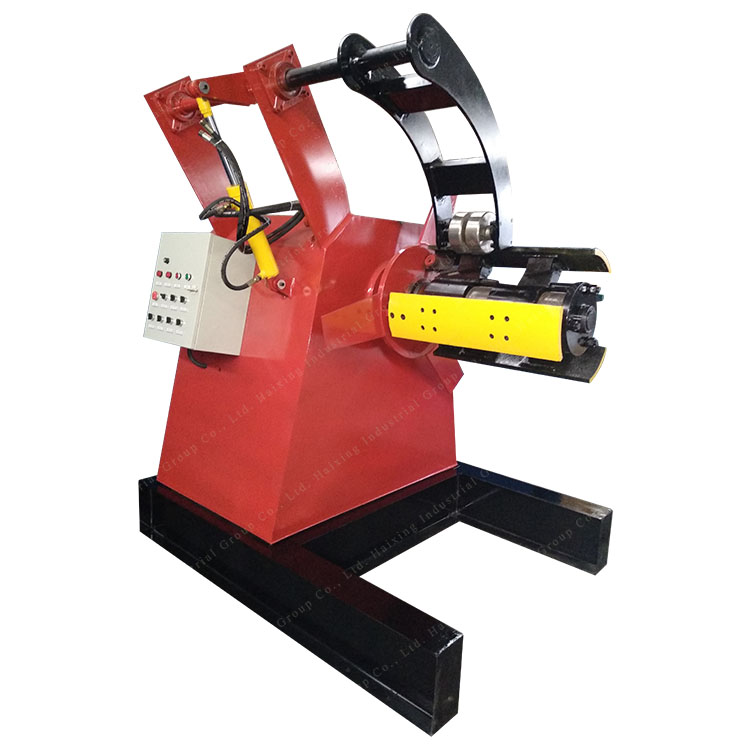

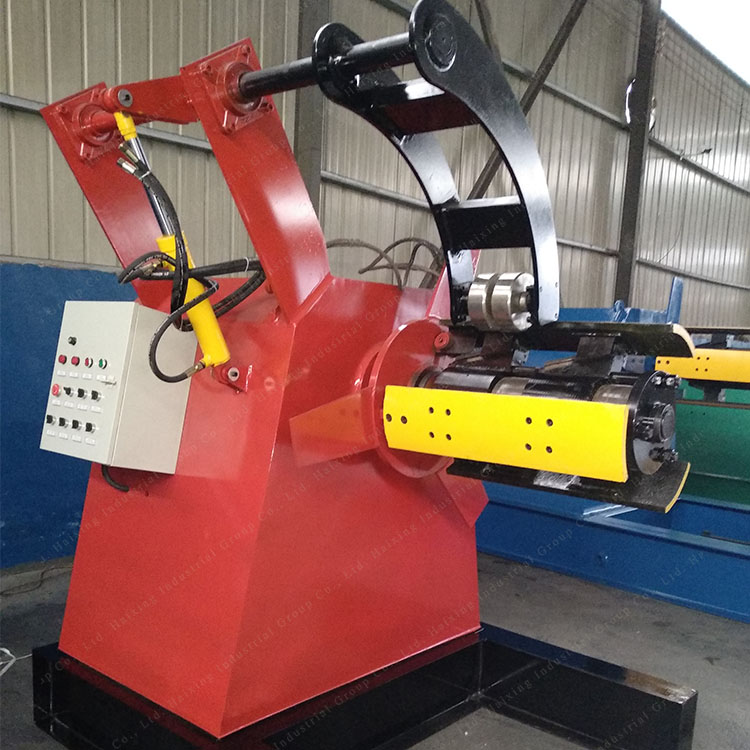

5 Ton Hydraulic Galvanized Steel Coil Uncoiler Pictures:

hydraulic decoiler(1) hydraulic decoiler(2) hydraulic decoiler(3)

Features:

Types available: hydraulic decoiler.

Adapts hydraulic expand/loosen and hydraulic driving system.

Easy to operate.

Suitable for pre-painted coil, cold-rolled coil and galvanized coil.



Delivery: within 60 days after receiving the deposit.

Package: export standard package for container.

Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).
