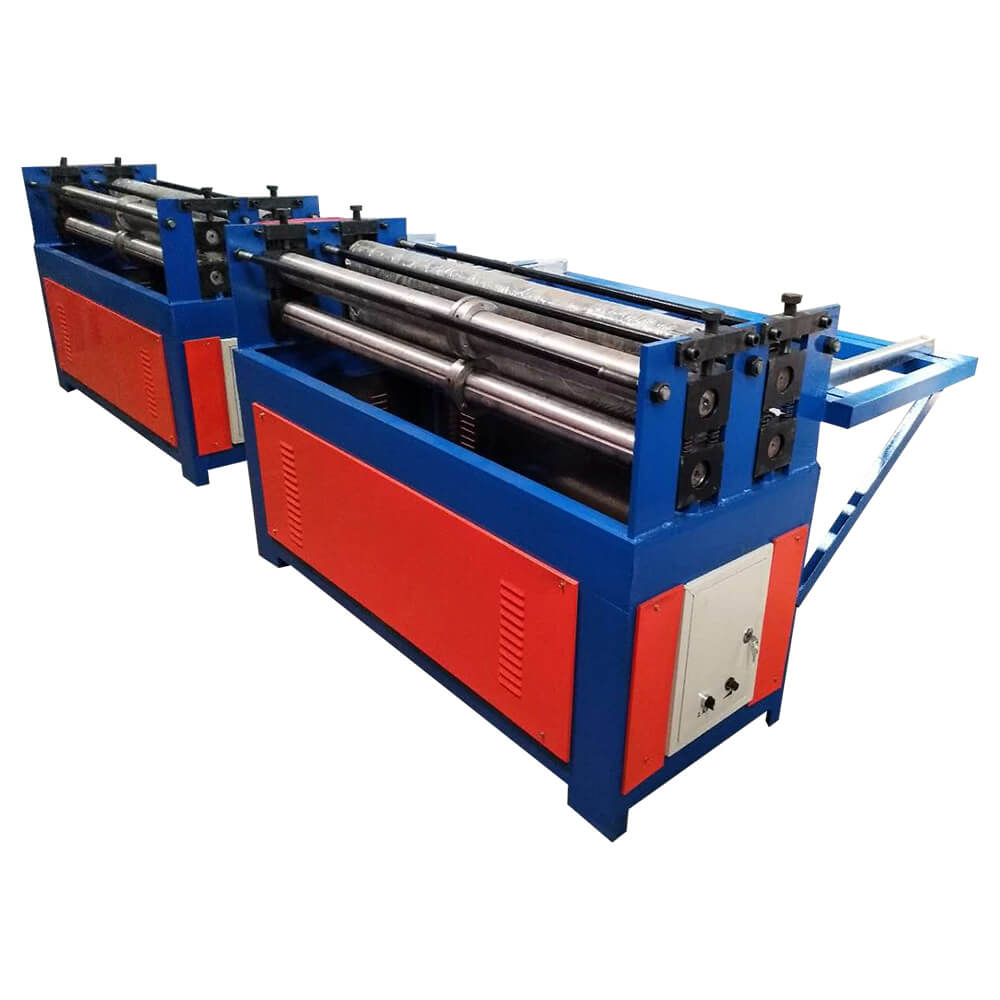

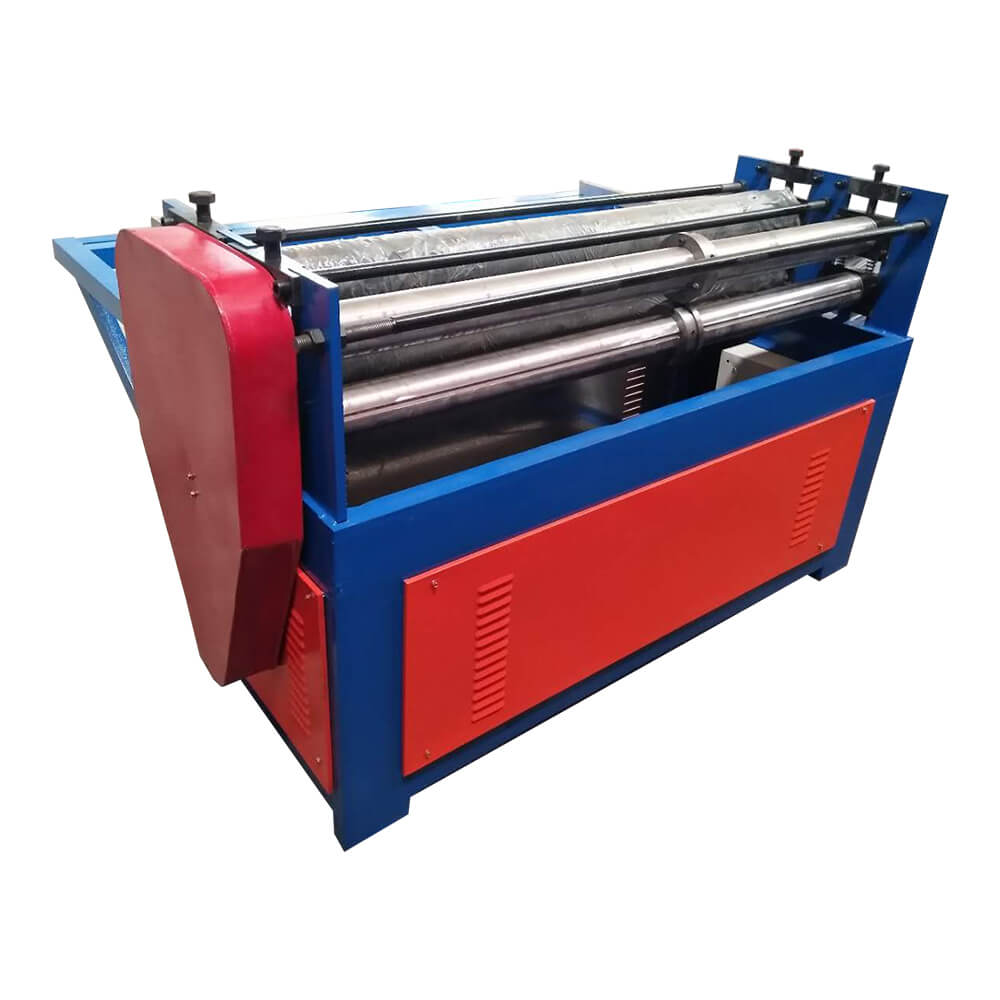

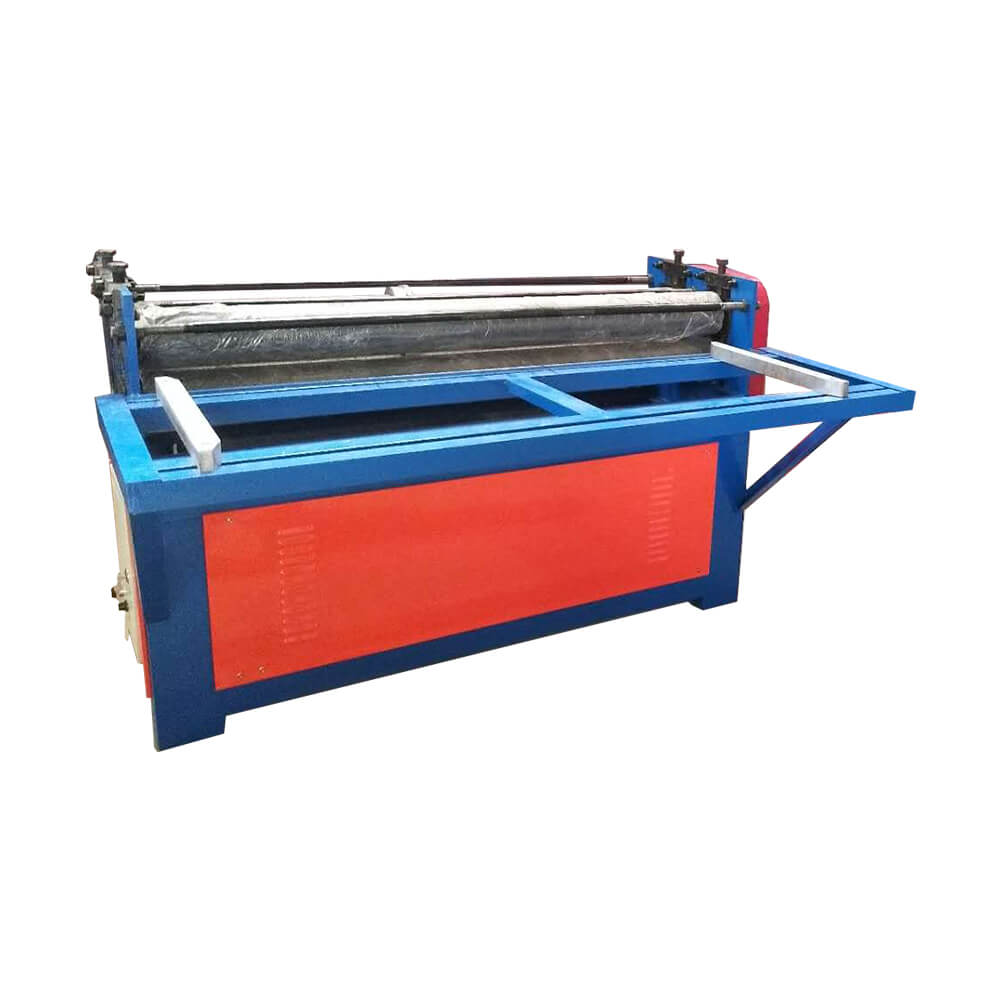

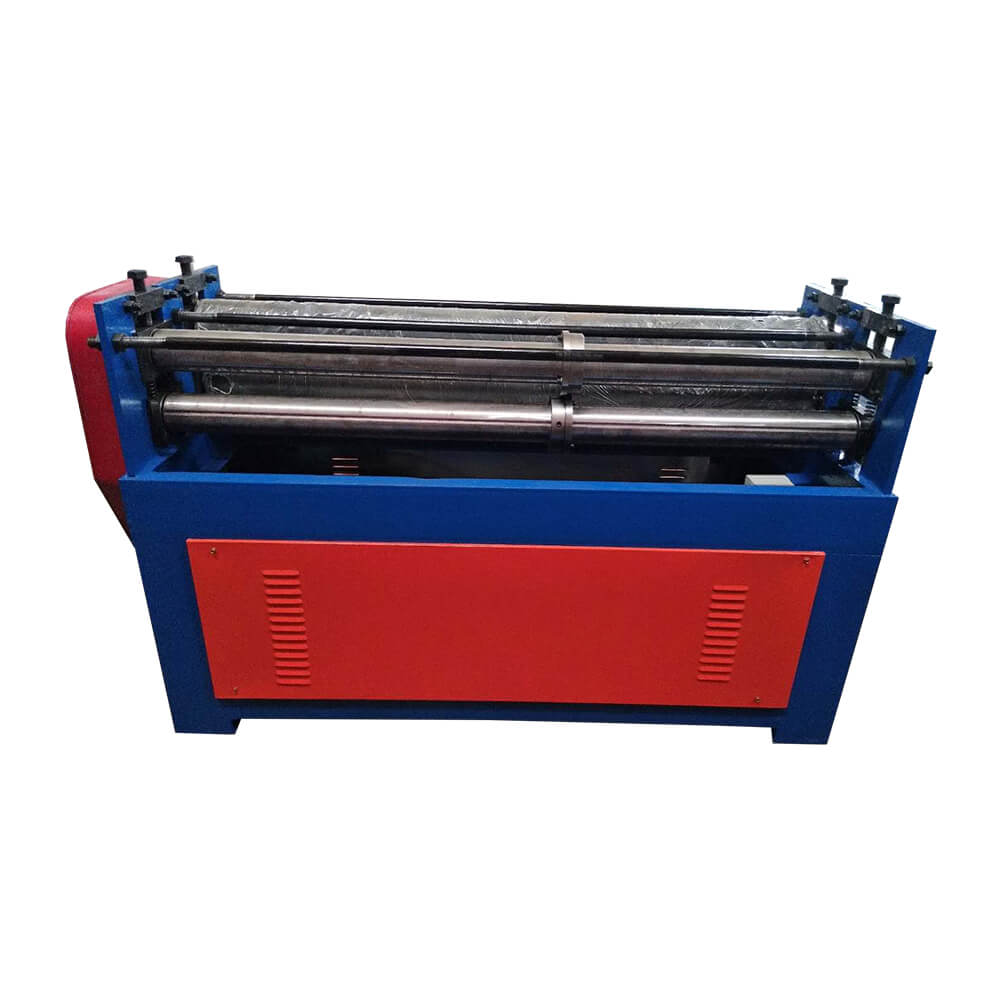

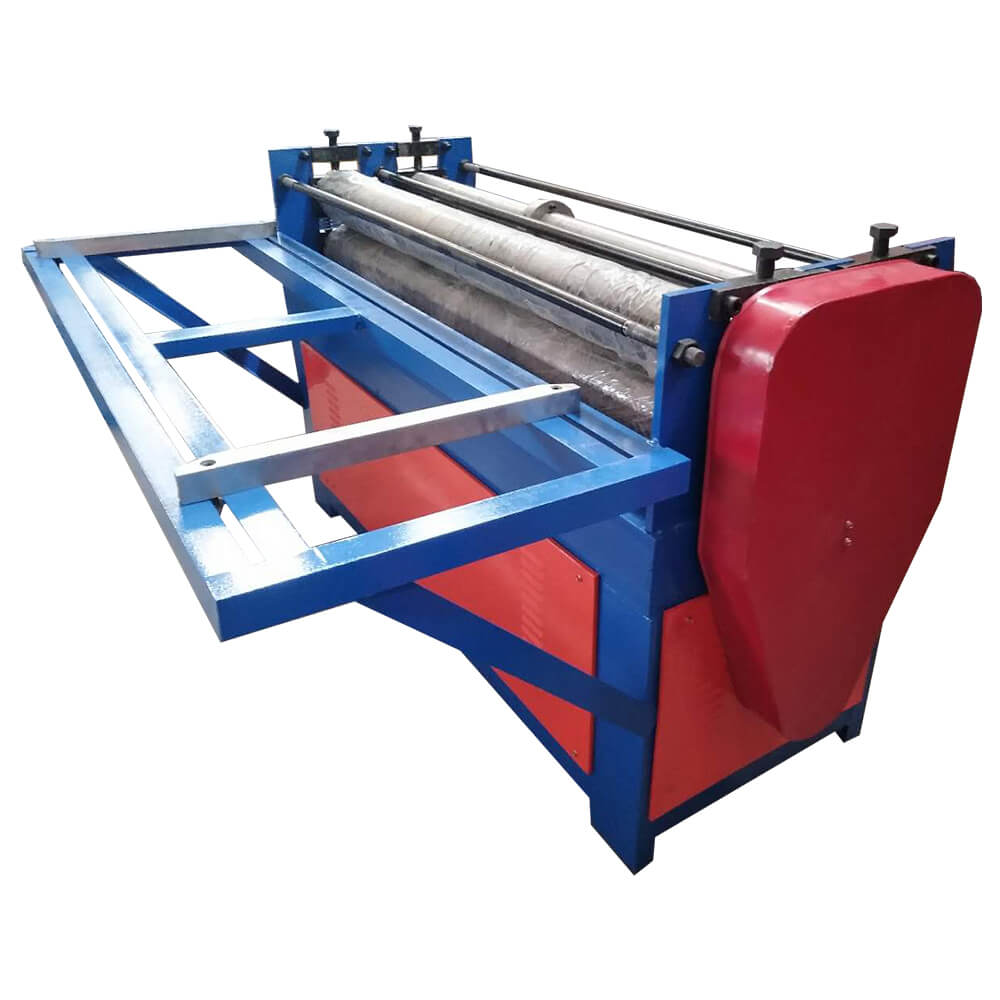

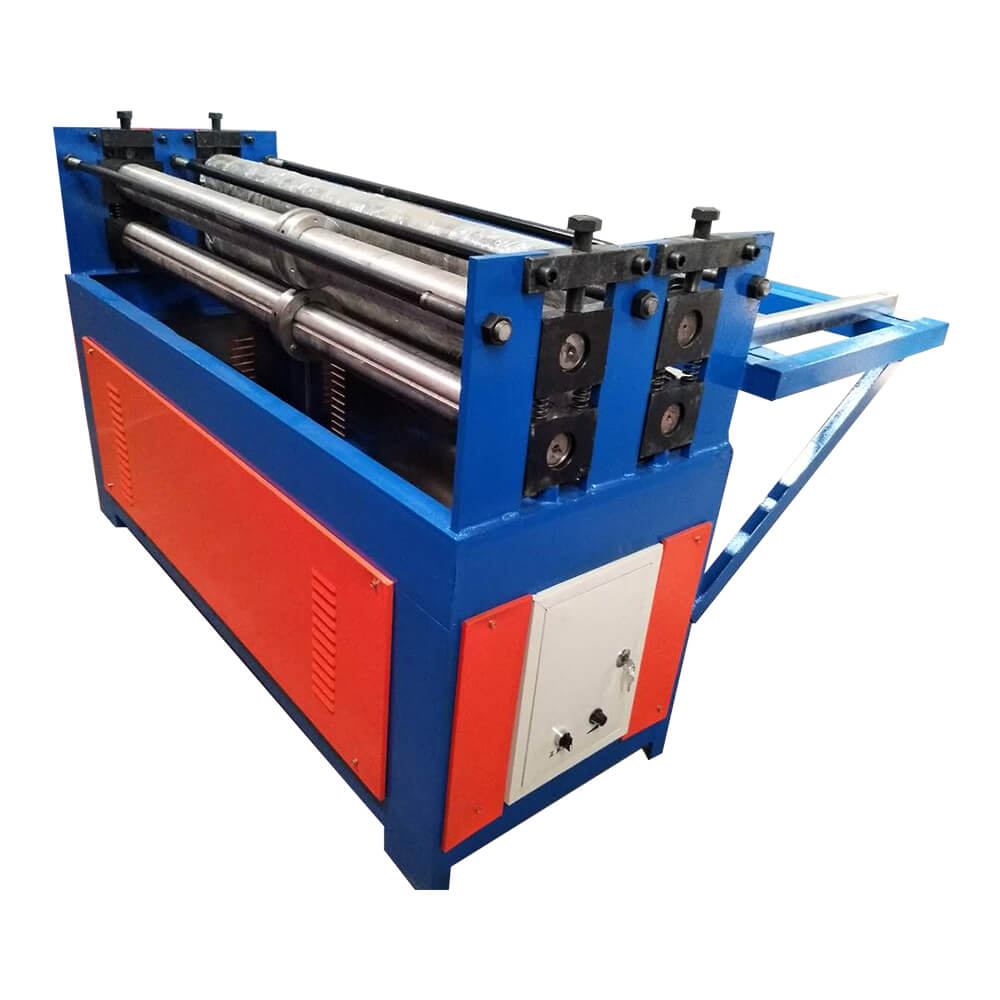

aluminium coil slitting machine

Short Description:


  • FOB Price: Get Latest Price from inquiry
  • Min.Order Quantity: 1 set
  • Supply Ability: 200 sets per Month
  • Port: TIANJIN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Money Gram payments for offline orders.
  • Lead Time: 25-35 days after received the deposit
  • Product Detail

    Product Tags

    Name
    aluminium coil slitting machine
    Size
    About 1.5m*1.3m*1.25m
    Weight
    0.35Tons
    The main motor power
    0.75-2.2kw or customer’s need
    The max machining width
    1250mm
    The machining steel thickness
    0.2-1.2mm
    Min slitting width
    75mm
    Material of the cutting blade
    Gr12,die steel, heat treatment, finish machining for excircle, surface and inner bore.
    Hardness of blade
    56~62 degree
    Feeding method
    With 2Φ130mm glue axis feeding
    Material of centre stand
    140mm channel steel maxum
    Voltage
    380v 50hz 3Phase or customer’s need

    gi coil cr narrow steel strip slitting machine detail

    aluminium coil slitting machine advantages

    1. Metal slitting machine is used to cut wide width materials to many narrow width products.
    2. The knife shaft and whole machine are manufactured by our own with high precision.
    3. Our machine can work with various special materials, such as bronze, iron, steel, and stainless steel,etc with the best additional value.
    4. In addition to our complete models, special specifications are also accepted.

    We, Tianjin Haixing is a professional cold roll forming machine manufacturer, We have been focusing on this field for 22 years. Our equipment includes roof roll forming machine, floor deck roll forming machine, automatic decoiler, shutter door roll forming machine, light keel roll forming machine, purlin machine, leveling and slitting machine, and other related construction equipment.
    Haixing has employed a team of engineers for more than 20 years. At the same time, our machines use branded electrical components, raw materials from branded steel factories, strict process control, two-year warranty, installation and training services.
