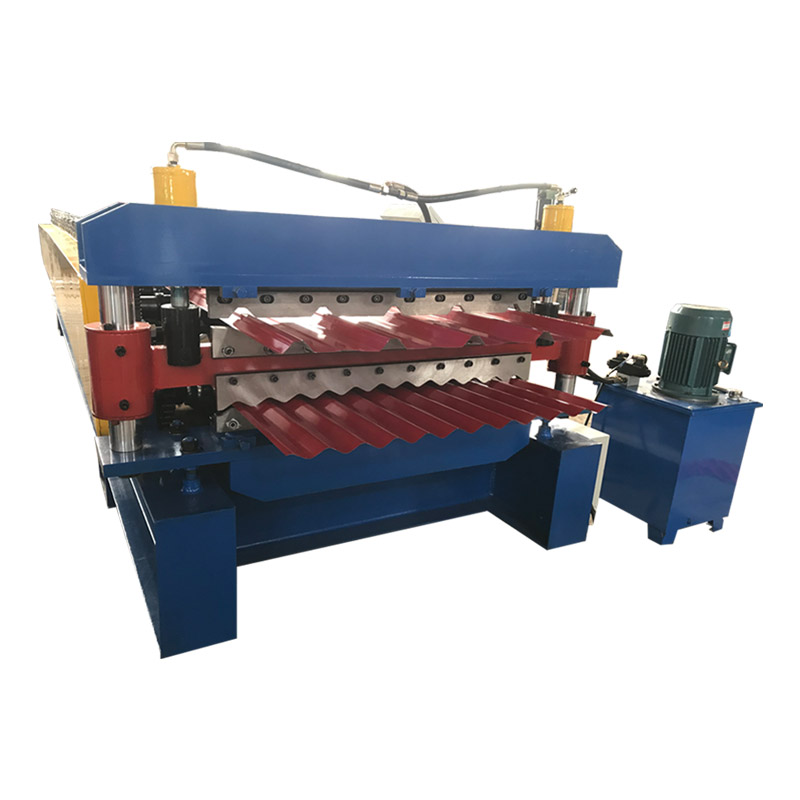

CNC double layer roof tiles making machine manufacturer

Short Description:

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter


Product Detail

Product Tags

Double layer roof panel roll forming machines can press two types of tiles of different versions. Specific version can be customized according to customer requirements.

Parameters of cnc double layer roof tiles making machine

1 Main motor power 4kW, 3-phase or as your requests
2 Hydraulic motor power 3kW
3 Hydraulic pressure 10-12MPa
4 Voltage 380V/3-phase/50Hz (or as your requirements)
5 Control system PLC delta inverter
6 Mainframe 300/350mm H-beam or 350mm
7 Backboard thickness 16mm
8 Chain size 1 Inch
9 Feeding material color steel coils
10 Feeding thickness 0.3-0.8mm
11 Feeding width 1000mm
12 Effective width 840mm, 850mm
13 Productivity 0-15/min
14 Roll station 13 roll steps (according to different design)
15 Roller diameter 70mm (depends on different design)
16 Roller material 45# steel
17 Cutter material Cr12
18 Cr-plating size 0.05mm
19 Overall size 6800*1400*1150mm
20 Total weight 4.8 tons

Terms:

1. Delivery: within 60 days after receiving the deposit.

2. Package: export standard package for container.

3. Payment: TT (30% by TT in advance, 70% by TT after inspect the machine before delivery).

We are committed to research and develop this industry for more than 20 years, and our productions are widely used in gardens, factories, resorts, hotels, exhibition halls, vacation lands, ancient architectures and modern villas.

fadsf gadfg

Q:Are you a manufacturer?

A:Yes absolutely. Welcome a lot for your visiting to us.

Q:What’s the delivery time?

Abnormally will take 60 days, for small lines will take 30 days.

Q:Do you have after-sale support?

A:Yes, we’re always here for giving you advice and support for technical details since we have senior technician.
