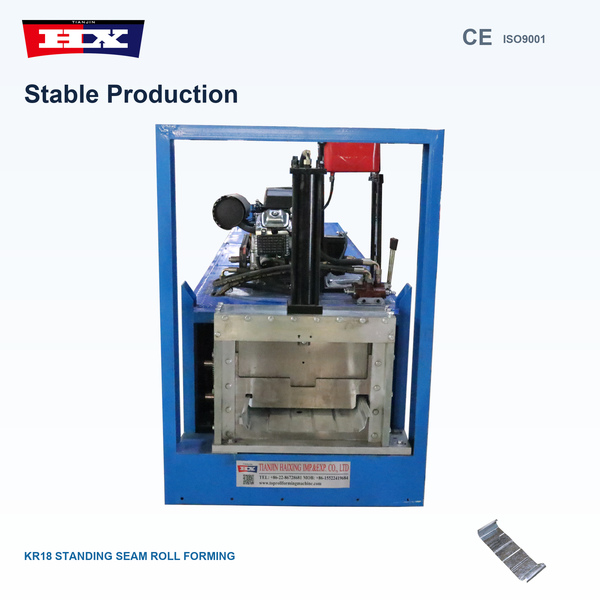

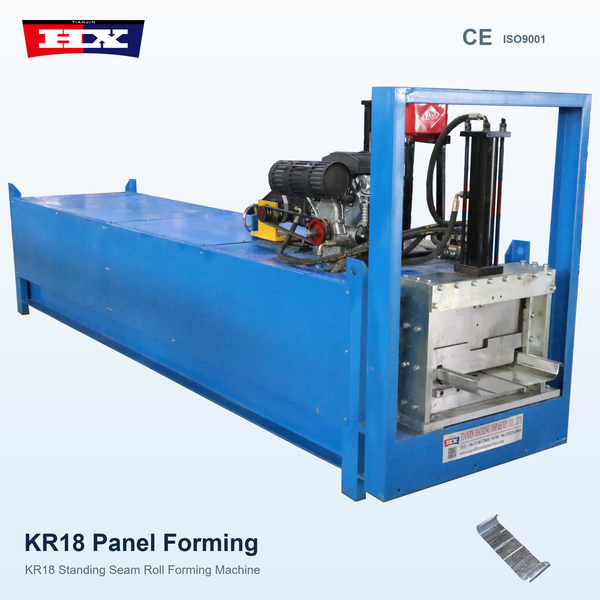

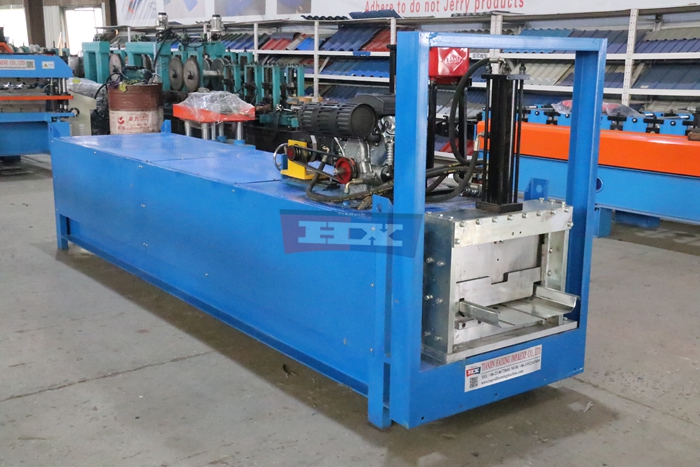

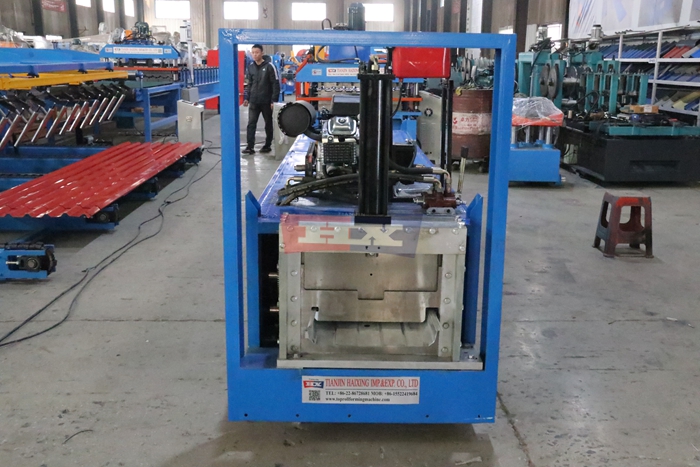

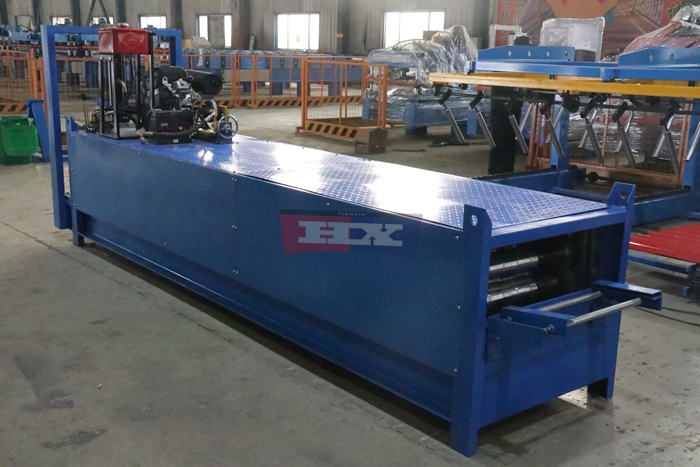

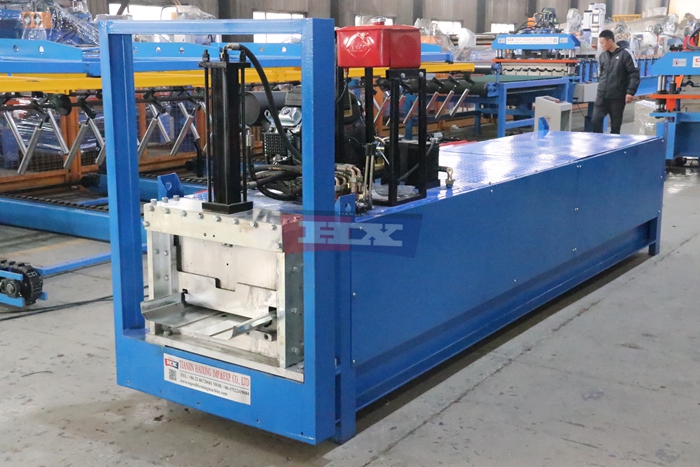

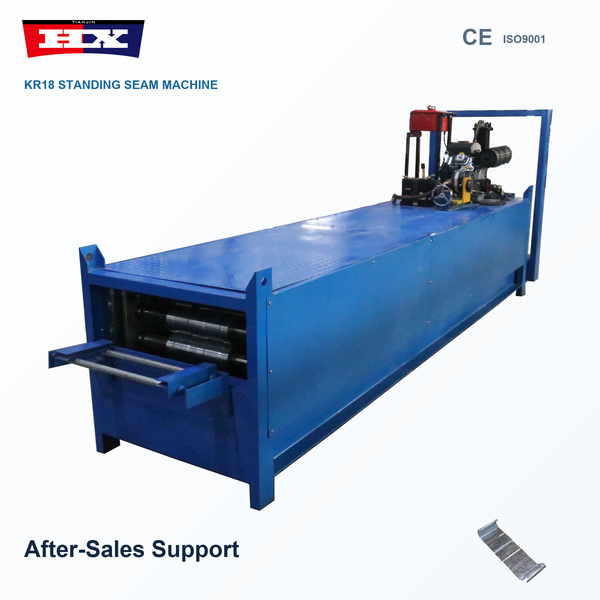

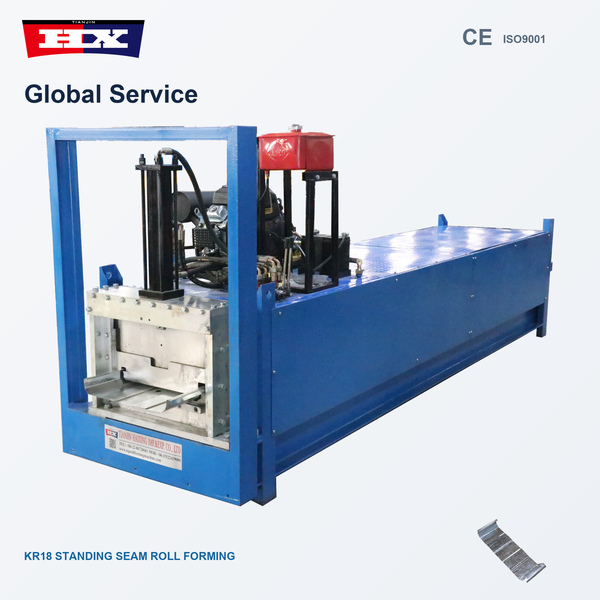

KR18 Metal Roof Forming Machine for Standing Seam Roofing Panels
The KR18 metal roof forming machine manufactured by Haixing is designed to produce KR18 standing seam roofing panels for metal construction applications. By combining progressive roll forming with a dedicated roofing profile design, the equipment converts suitable metal coils into finished panels with accurately shaped edges and consistent dimensions.
KR18 metal roofing panels are used in compatible standing seam roofing systems for industrial facilities, commercial buildings and architectural projects. Their formed longitudinal edges are designed to connect neighboring panels through the installation method specified for the selected roof system.
Haixing offers customized KR18 roof forming solutions for manufacturers that require equipment matched to their roofing profiles, material specifications and production objectives. The proposed system may include a decoiler, feeding guides, precision forming stations, a PLC-based control system and automatic cutting equipment.
KR18 Roofing Profile and Finished Panel Design
The KR18 metal roof forming machine is developed around the geometry of the required KR18 roofing panel.

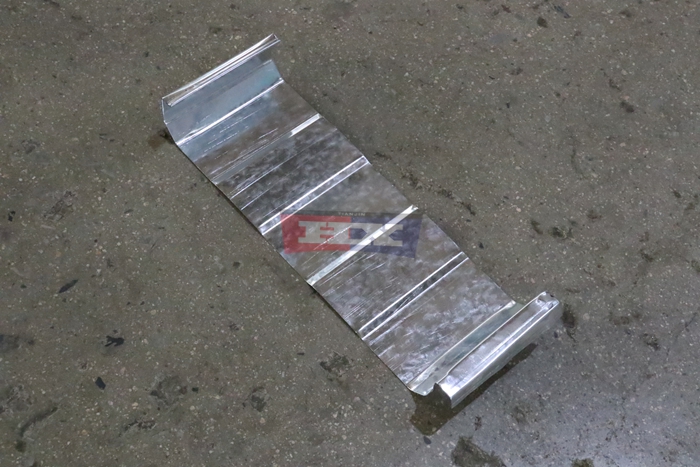

The finished sheet includes a main panel surface and specially formed longitudinal edges. These edges must match the intended roofing system so that adjacent panels can be connected using the specified installation method.
Important profile dimensions include effective covering width, edge geometry, seam dimensions and overall panel straightness.
Although KR18 is a recognized product designation in metal roofing equipment, actual panel dimensions and edge details should always be confirmed against the customer’s approved drawings.
Haixing evaluates the supplied profile design before determining the appropriate forming sequence and tooling arrangement.
How the KR18 Metal Roof Forming Process Works
KR18 roofing panel production uses cold roll forming technology to shape flat metal strip into the required roof panel profile.
The process begins when suitable metal coil material is placed on a decoiler. The strip is guided into the machine and progressively bent by successive forming roller stations.
Each forming station completes part of the required deformation, gradually creating the roofing panel surface and longitudinal seam edges.
Once the panel reaches its finished profile, it can be cut to the required length using a compatible cutting arrangement.
This continuous production method supports repeatable panel manufacturing when the machine is correctly configured for the selected material and profile.
Dedicated Forming Rollers for KR18 Panels
The forming roller system is a central component of the KR18 metal roof forming equipment.
Roller tooling is designed according to the approved roofing panel cross-section. The required bending stages are distributed across successive forming stations to achieve the intended profile geometry.
Proper tooling design helps manufacturers maintain consistent seam edges, effective panel width and finished panel shape.
The roller arrangement must also consider the selected metal’s mechanical properties, thickness and surface requirements.
Different roofing profiles may require separate tooling or a different machine configuration. A KR18 machine should not be assumed to produce other standing seam profiles without technical verification.

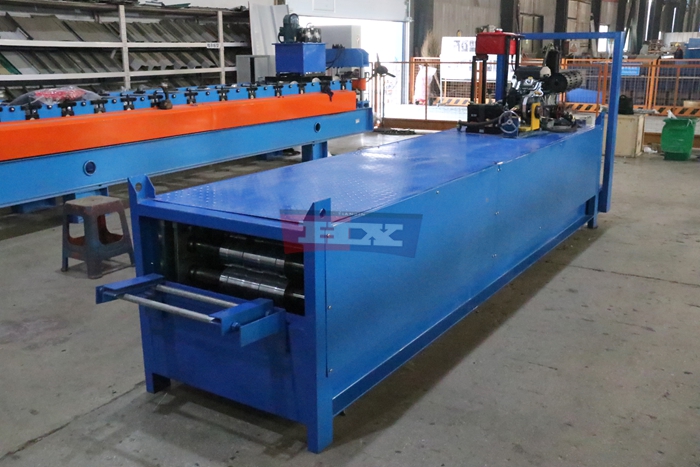

Aluminum and Steel Roofing Material Options
The KR18 metal roof forming machine can be designed for suitable metal roofing materials according to the approved technical specifications.
Potential materials include compatible aluminum alloy sheets, galvanized steel and pre-painted steel.
Aluminum roofing applications require particular attention to alloy grade, temper, sheet thickness and bending characteristics.
For coated steel roofing, the forming process must also consider the material strength and surface coating requirements.
Customers should provide the intended material grade, thickness range and incoming coil width before confirming the machine configuration.
Production Control and Roofing Panel Length Settings
Haixing KR18 roofing equipment can be configured with a PLC-based control system to manage production operations.
Depending on the approved machine specification, operators may set the required roofing panel length and production quantity through the control interface.
This arrangement supports the manufacture of different panel lengths for construction projects with varying roofing dimensions.
Automatic cutting equipment can be included according to the selected roofing profile, material properties and production requirements.
The final control system, electrical component brands and cutting functions are determined during technical confirmation.
Maintaining Accurate KR18 Standing Seam Edges
For KR18 roofing panels, dimensional accuracy is particularly important along the formed longitudinal edges.
The edges must correspond to the approved profile drawing to support compatibility with the intended roof assembly.
During production, manufacturers should monitor seam dimensions, effective panel width, straightness and visible surface condition.
Where the roofing system uses clips or additional mechanical seaming, sample panels should be checked with the specified installation components.
Regular production inspection helps identify dimensional variations before large quantities of roofing panels are manufactured.
KR18 Metal Roofing Applications
KR18 standing seam roofing panels can be considered for compatible roofing systems used in industrial buildings, commercial developments and architectural construction projects.
Potential applications include factories, warehouses, logistics facilities, commercial centers, exhibition buildings and other structures requiring suitable metal roof assemblies.
Standing seam roofing systems are often considered for projects where a continuous metal roof appearance and compatible concealed fastening arrangements are important.
The final roof design must account for structural loads, wind resistance, drainage, thermal movement and applicable building requirements.
Customized KR18 Roof Forming Machine Solutions
Haixing can evaluate different KR18 machine configurations according to the customer’s manufacturing requirements.
Customization may cover effective roofing panel width, seam edge geometry, sheet thickness, incoming coil width, cutting length and expected production capacity.
Equipment options may include suitable decoiling systems, material guiding arrangements, dedicated forming rollers, PLC-based controls, automatic cutting and finished panel handling devices.
Machine configuration is determined after reviewing the approved profile drawing and material specifications.
Equipment Testing and Production Preparation
Before commercial production, a KR18 roofing machine should be checked against the agreed technical specifications.
Important verification items include finished profile dimensions, seam edge geometry, panel straightness, cutting length and machine operation.
Sample panels can be used to evaluate the forming result and compatibility with the intended roofing installation components.
Material selection, tooling adjustment and operator training also contribute to consistent production performance.
Haixing supports customers with equipment configuration, manufacturing, factory testing and technical assistance according to the agreed project scope.
Why Work with Haixing?
Haixing supplies roll forming machinery for manufacturers in the metal roofing and building materials industries.
Our team evaluates customer roofing profiles and manufacturing requirements to develop appropriate equipment configurations.
Whether customers are establishing a new KR18 roofing panel production operation or expanding an existing manufacturing facility, Haixing can review the technical requirements and recommend a suitable forming solution.
Request a KR18 Metal Roof Forming Machine Quotation
Are you looking for a KR18 metal roof forming machine for your roofing panel manufacturing business?
Send Haixing your KR18 profile drawing, required covering width, seam dimensions, roofing material type, sheet thickness, incoming coil width, required panel length and production capacity requirements.
Our technical team can review your specifications and prepare a customized machine proposal and quotation.
Contact Haixing to discuss your KR18 standing seam roofing production requirements.
