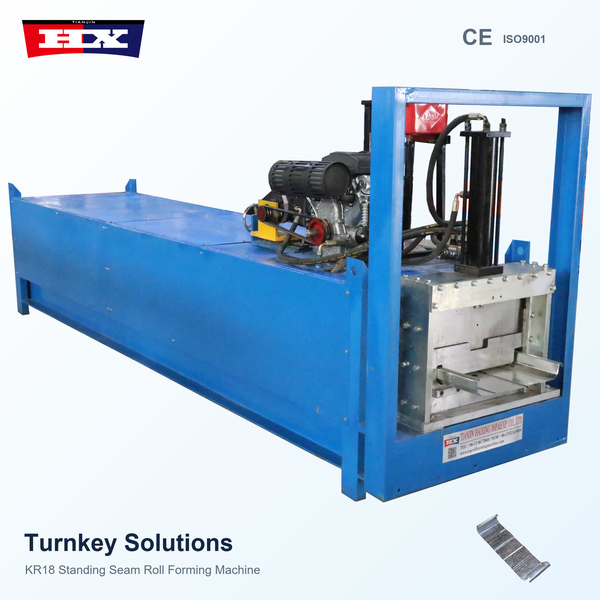

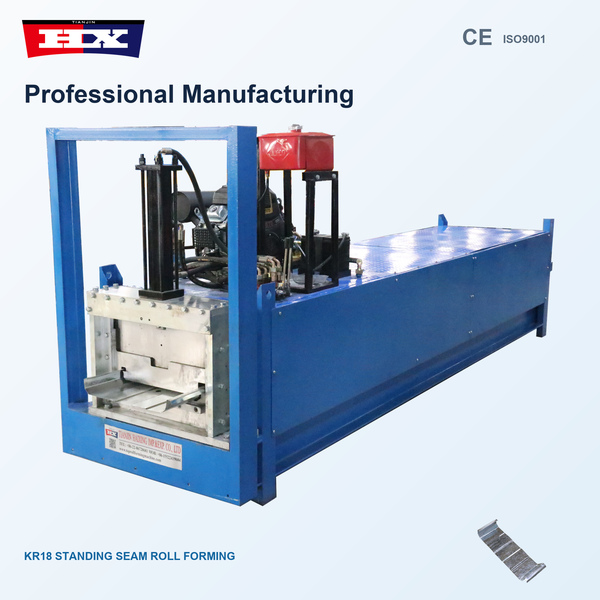

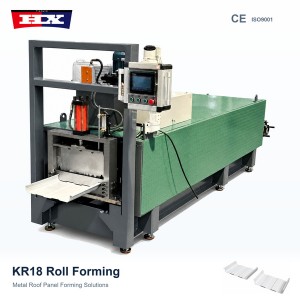

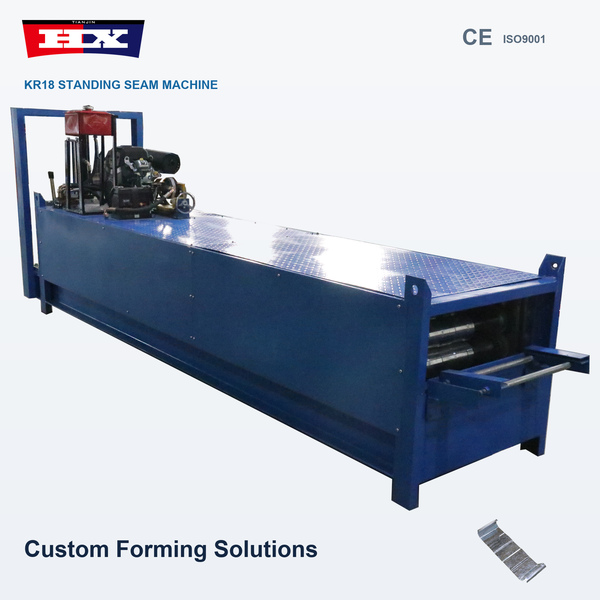

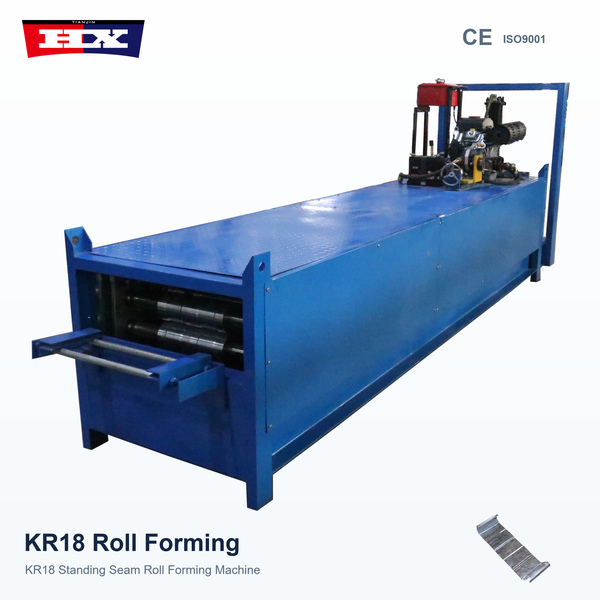

KR18 Roofing Sheet Making Machine for Standing Seam Metal Roofs | Haixing
The KR18 roofing sheet making machine from Haixing is designed for manufacturing KR18 standing seam metal roofing panels used in industrial, commercial and architectural construction projects. Through progressive cold roll forming, the equipment converts suitable metal coils into roofing panels with the specified KR18 cross-sectional geometry and formed longitudinal seam edges.
KR18 roofing panels are used in compatible standing seam roof systems where accurately formed panel edges are required for the intended joining arrangement. Depending on the approved roofing system, installation may involve suitable fixing clips, accessories or additional seaming operations.
Haixing provides customized KR18 roofing panel manufacturing equipment according to customer profile drawings, material specifications and production requirements. A proposed machine configuration may include decoiling equipment, material guiding, dedicated forming rollers, PLC-based control and automatic length cutting.
KR18 Standing Seam Roofing Panel Manufacturing
The KR18 roofing sheet making machine is intended for manufacturers producing metal roofing panels according to a specified KR18 profile drawing.
Each finished panel includes a main roofing surface and longitudinal edges formed to the dimensions required by the selected roof system. These edges allow adjacent panels to be connected using the approved installation method.
KR18 is a profile designation, and the exact panel geometry should be confirmed against the customer’s drawing rather than assumed from the model name alone.
Haixing evaluates the required covering width, edge shape, seam dimensions and material specifications before developing the corresponding forming roller arrangement.
This profile-based approach helps ensure that the equipment is configured for the intended finished roofing product.
Precision KR18 Seam Edge Forming
Accurate longitudinal seam geometry is an important consideration in KR18 roofing panel production.
The formed edges must correspond to the approved profile dimensions to support compatibility with adjacent panels and the intended roofing installation components.
During production, the metal strip passes through successive forming stations. Each roller station gradually bends the material until the specified KR18 roof panel geometry is achieved.
The forming sequence depends on the panel design, material thickness and mechanical properties of the selected metal.
Appropriate material guidance, roller alignment and inspection procedures help maintain consistent panel dimensions throughout production.
Compatible Materials for KR18 Roofing Sheets
The KR18 roofing sheet making equipment can be designed for suitable metal roofing materials according to the approved machine specifications.
Potential materials include compatible aluminum alloy sheets, galvanized steel and pre-painted steel, depending on the required profile and equipment configuration.
For aluminum roofing applications, customers should provide the intended alloy grade, temper and sheet thickness so that material compatibility can be evaluated.
Other important specifications include incoming coil width, material strength and surface coating requirements.
These parameters influence the forming roller design, bending sequence, material guiding arrangement and cutting equipment.
The final processing range must be confirmed in the technical proposal.
Continuous Cold Roll Forming Process
The manufacturing process begins with suitable metal coil material being loaded onto a decoiler and guided into the forming machine.
As the metal strip moves through successive roller stations, it is progressively shaped into the required KR18 roofing profile.
Each forming station performs part of the bending operation, allowing the finished cross-section to develop through a controlled sequence.
After the forming process, the roofing panel can be cut to the specified length and transferred for inspection, handling or subsequent installation.
Continuous roll forming supports repeated production of the same profile when the equipment is properly configured and operated with compatible materials.
Automatic Cutting and PLC Production Control
The KR18 roofing sheet making machine can be configured with PLC-based control and automatic length cutting equipment.
Depending on the approved configuration, operators can enter the required panel lengths and production quantities through the control interface.
Automatic cutting supports the production of roofing panels in different finished lengths according to customer orders and construction project requirements.
The cutting system is selected according to the approved KR18 profile geometry, material specifications and manufacturing conditions.
Actual control functions, component brands, cutting methods and operating parameters are confirmed in the final equipment specification.
KR18 Roofing System Compatibility
KR18 metal roof panels must be manufactured according to the requirements of the intended standing seam roofing system.
Important parameters include effective covering width, longitudinal seam dimensions, panel straightness, sheet thickness and finished length.
Depending on the roofing system, installation may require compatible clips, fixing accessories or mechanical seaming equipment.
These installation components should be evaluated separately from the roll forming machine itself.
Manufacturers should check sample panels against the approved roof system components before starting commercial production.
Applications of KR18 Standing Seam Roof Panels
KR18 roofing panels can be considered for compatible standing seam roof systems used in industrial buildings, commercial facilities, warehouses and architectural construction projects.
Potential applications include manufacturing plants, logistics centers, commercial complexes, exhibition buildings and other structures requiring suitable metal roof assemblies.
Standing seam roofing systems are frequently selected where continuous metal roofing appearance, concealed fastening arrangements and accommodation of thermal movement are important design considerations.
The final roof assembly must be evaluated according to applicable structural requirements, wind loads, drainage design and local building regulations.
Customized KR18 Machine Configuration
Haixing can evaluate customized KR18 roof panel forming equipment based on customer drawings and production requirements.
Customization parameters may include effective panel width, seam dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Available equipment arrangements may include suitable decoiling systems, dedicated forming rollers, material guiding devices, PLC-based controls, automatic cutting and finished panel handling options.
Different standing seam roofing profiles are not necessarily interchangeable without tooling changes. Any requirement for additional profiles or adjustable forming equipment should be confirmed during technical evaluation.
Quality Inspection for KR18 Roofing Panels
Dimensional consistency is an important consideration when manufacturing KR18 standing seam roofing panels.
Recommended inspection items include effective covering width, seam edge dimensions, finished panel length, straightness and visible surface condition.
Where the intended roof system requires clips or additional seaming operations, sample panels should be checked for compatibility with the specified installation components.
Inspection requirements should be established according to the approved panel drawings and roofing system specifications.
Why Choose Haixing KR18 Roofing Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers. Our team supports customers with profile evaluation, machine configuration, equipment manufacturing, factory testing and technical assistance.
For manufacturers planning to produce KR18 roofing panels, Haixing can evaluate suitable equipment arrangements based on the required profile geometry, material specifications and production objectives.
Our approach focuses on matching the machine configuration to the customer’s intended roofing product and manufacturing requirements.
Request a KR18 Roofing Sheet Making Machine Quotation
Looking for a KR18 roofing sheet making machine for your metal roofing production business?
Send Haixing your KR18 profile drawing, effective covering width, seam dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your specifications and prepare a customized equipment proposal and quotation for your KR18 standing seam roofing project.
Contact Haixing today to discuss your KR18 roofing panel manufacturing requirements.
