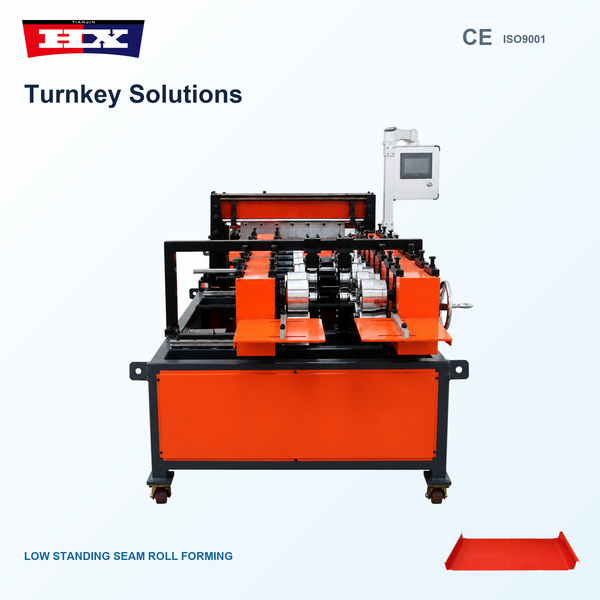

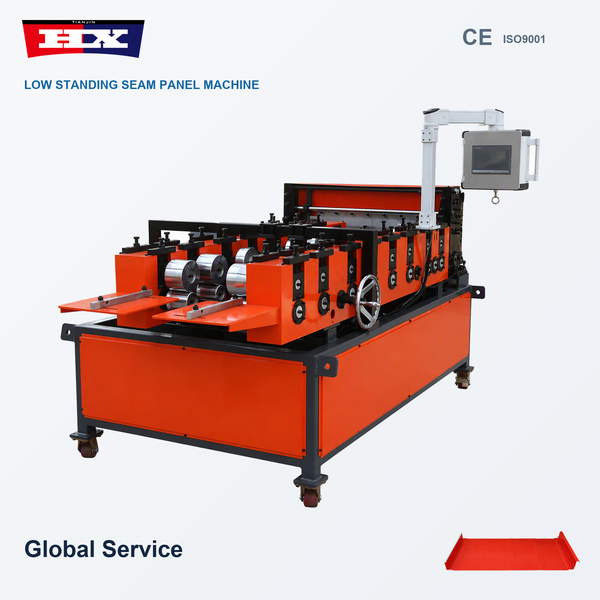

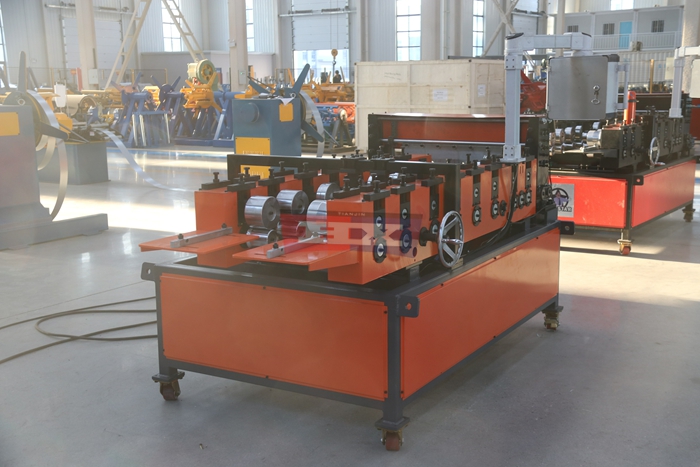

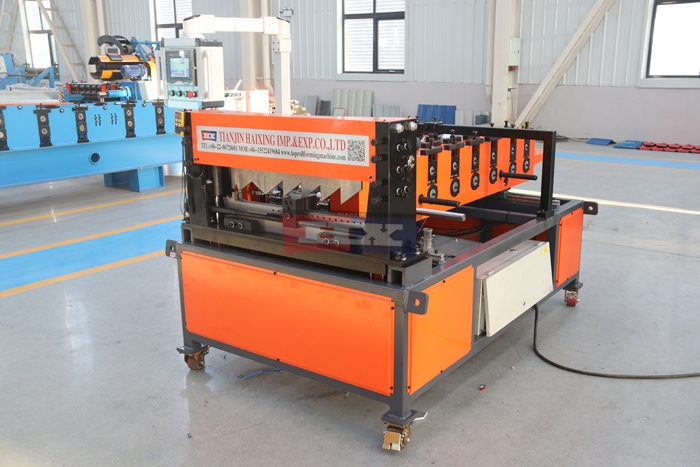

The standing seam metal roofing machine from Haixing is designed to manufacture low-profile metal roofing panels for industrial, commercial and architectural building projects. The equipment uses progressive cold roll forming technology to convert suitable metal coils into roofing sheets with accurately shaped longitudinal seam edges and consistent panel geometry.
Low standing seam roofing panels feature raised connections along the edges of adjacent sheets. These connections form part of the specified roofing assembly and contribute to the distinctive appearance of standing seam metal roofs. Depending on the selected system, compatible clips, fastening accessories or additional seaming operations may be required during installation.
Haixing provides customized metal roofing machinery based on customers’ panel drawings, material specifications and manufacturing objectives. Machine configurations can be developed to include coil feeding, material guiding, precision forming rollers, PLC-based production control and automatic cutting equipment.
Manufacturing Low Standing Seam Metal Roof Panels
The standing seam metal roofing machine is suitable for manufacturers planning to produce roofing panels with relatively low raised seam edges.
Unlike traditional corrugated roofing sheets, standing seam panels incorporate specially formed longitudinal edges that connect neighboring sheets according to the approved roofing system design.
The low-profile configuration can be selected for projects where a particular roof appearance and compatible seam geometry are required.
Panel characteristics such as seam height, effective covering width, edge shape and joining method depend on the specified roofing profile.
Haixing can evaluate customer drawings and recommend a suitable machine configuration for the intended metal roofing product.
Progressive Roll Forming for Consistent Panel Geometry
Cold roll forming is a continuous metal shaping process in which a flat strip passes through multiple forming stations.
Each roller station progressively bends the material until the required roofing panel shape is achieved. This approach allows the longitudinal edges and central panel surface to be formed through a controlled sequence.
The roller design must correspond to the approved profile geometry and the mechanical properties of the selected metal.
Correct alignment, appropriate material guidance and regular production checks help maintain dimensional consistency across finished roofing panels.

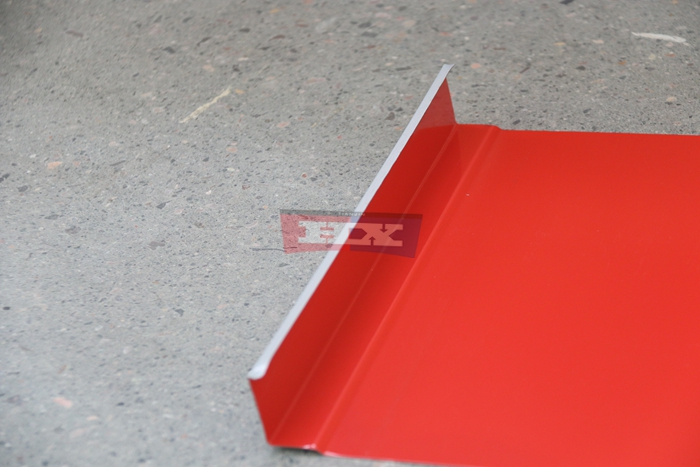

Low Seam Edge Design and Roof Panel Connections

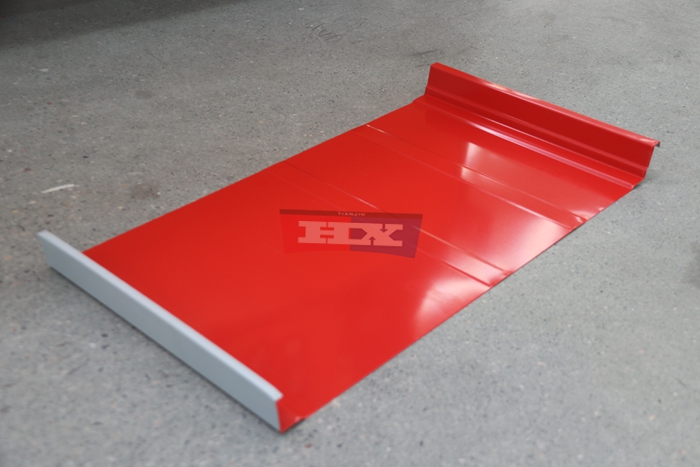

The longitudinal seam edges are among the most important features of a standing seam roofing panel.
These edges must be manufactured according to the intended connection design so that adjacent panels can be assembled with compatible installation components.
Different standing seam systems may use different joining methods, including mechanical seaming or other specified connection arrangements.
A low seam height alone does not determine the type of roofing connection. The exact edge geometry and installation method must be confirmed from the approved profile drawing.
Haixing develops dedicated forming roller arrangements for the selected panel design, helping manufacturers produce the required edge geometry consistently.
Metal Roofing Material Compatibility
The standing seam metal roofing machine can be configured for suitable roofing materials based on the approved equipment specifications.
Potential materials include compatible galvanized steel, pre-painted steel and aluminum alloy sheets.
The final material selection depends on the intended roofing panel design, sheet thickness, material strength, alloy grade and surface coating requirements.
For aluminum roofing projects, customers should provide the required alloy grade and temper to allow the forming process to be evaluated correctly.
Material properties influence roller design, bending stages, machine loading and cutting arrangements. For this reason, the intended production materials should be confirmed before machine manufacturing.
Integrated Metal Roof Panel Production Process
A typical low standing seam roofing panel production process begins with loading suitable metal coil material onto a decoiler.

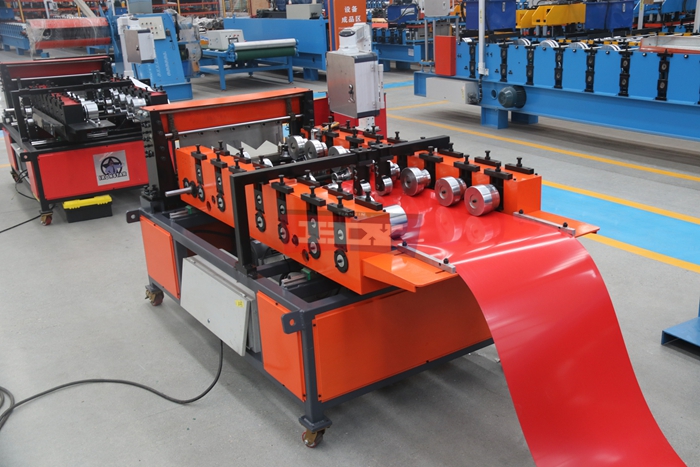

The metal strip is guided into the forming machine, where successive roller stations progressively shape the material into the specified roofing profile.
After forming, the panel passes to the cutting section, where it can be cut to the required finished length.
The completed panels are then collected, inspected and prepared for subsequent handling or shipment.
Machine layout, production speed and material handling arrangements are determined according to the selected equipment configuration and manufacturing requirements.
PLC Control and Automatic Length Cutting Options

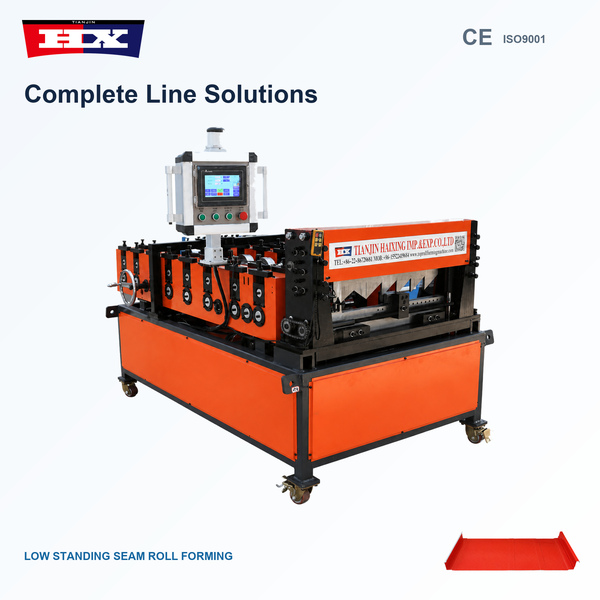

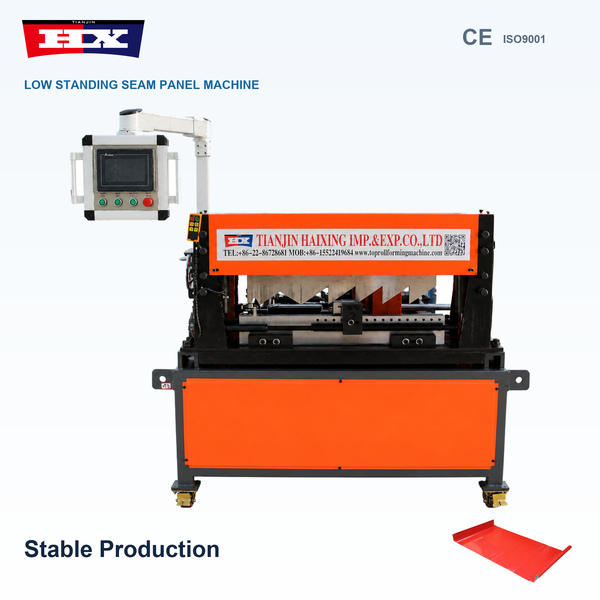

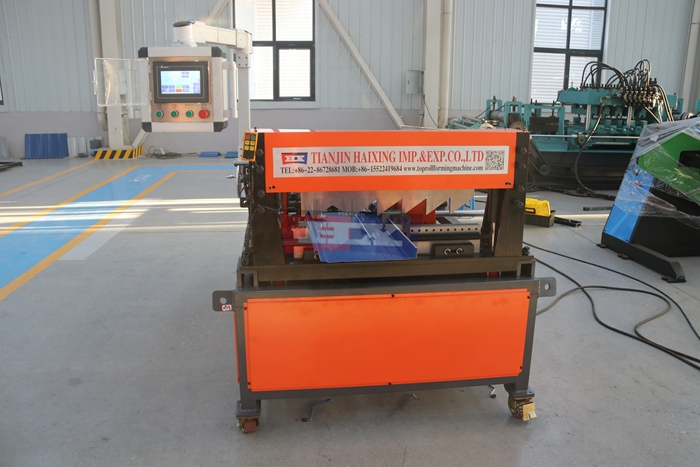

Haixing standing seam roofing equipment can be configured with PLC-based control and automatic cutting functions.
Depending on the final equipment specification, operators may enter production quantities and required panel lengths through a control interface.
Automatic cutting can help manufacturers produce roofing sheets in different lengths for specific customer orders and construction projects.

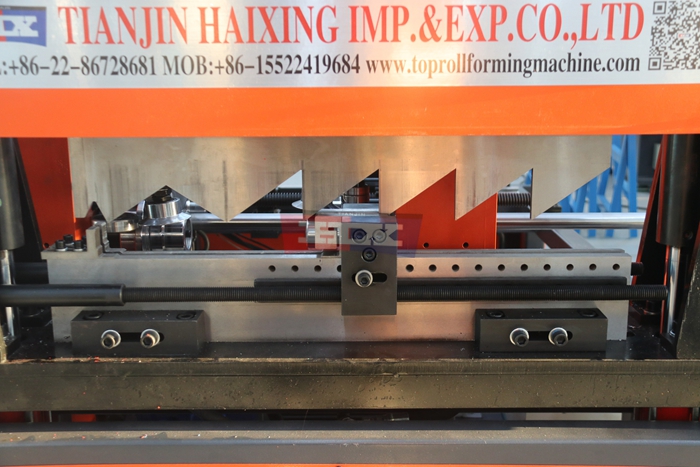

The cutting equipment is selected according to the required panel geometry, material properties and production conditions.
Control system functions, component brands and cutting methods are confirmed in the final technical proposal.
Applications for Standing Seam Metal Roofing Panels
Low standing seam metal roofing panels can be used in compatible roofing systems for industrial facilities, commercial buildings, warehouses and architectural construction projects.
Typical project categories include manufacturing plants, logistics facilities, exhibition buildings, commercial complexes and other buildings requiring suitable metal roof assemblies.
Standing seam roof systems are often considered where continuous metal roofing appearance and compatible concealed fastening arrangements are important design requirements.
The final roofing assembly must be evaluated according to applicable structural requirements, wind resistance, drainage design, thermal movement and local building regulations.
Customized Standing Seam Roofing Machine Configuration
Haixing can evaluate customized equipment solutions for different low standing seam roofing panel designs.
Important customization parameters include the effective panel width, seam height, edge geometry, incoming coil width, material thickness, finished panel length and expected production capacity.
Depending on the project, the equipment proposal may include dedicated forming rollers, suitable decoiling equipment, material guiding devices, PLC-based controls, automatic cutting and panel collection arrangements.
Different standing seam profiles may require different roller tooling. Customers requiring multiple panel designs should confirm whether additional tooling or a specialized machine arrangement is necessary.
Roof Panel Quality Inspection
Quality inspection is an important part of standing seam metal roof panel manufacturing.
Recommended checks include finished panel length, effective covering width, seam edge dimensions, straightness and visible surface condition.
For roofing systems using clips or additional seaming operations, sample panels should be checked for compatibility with the specified installation components.
Manufacturers should establish inspection criteria based on approved panel drawings and the requirements of the intended roofing assembly.
Why Choose Haixing for Metal Roofing Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers. Our team provides support with profile evaluation, equipment configuration, manufacturing, factory testing and technical assistance.
For manufacturers entering the standing seam roofing market or expanding their existing production capacity, Haixing can evaluate suitable equipment solutions according to their roofing panel designs and production requirements.
We focus on matching the forming equipment to the customer’s intended profile rather than assuming that one machine configuration is suitable for every standing seam roofing system.
Request a Standing Seam Metal Roofing Machine Quotation
Looking for a reliable standing seam metal roofing machine for your metal roof panel manufacturing business?
Send Haixing your roofing panel profile drawing, effective covering width, seam dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your project requirements and prepare a customized equipment proposal and quotation.
Contact Haixing today to discuss your low standing seam metal roofing production project.
