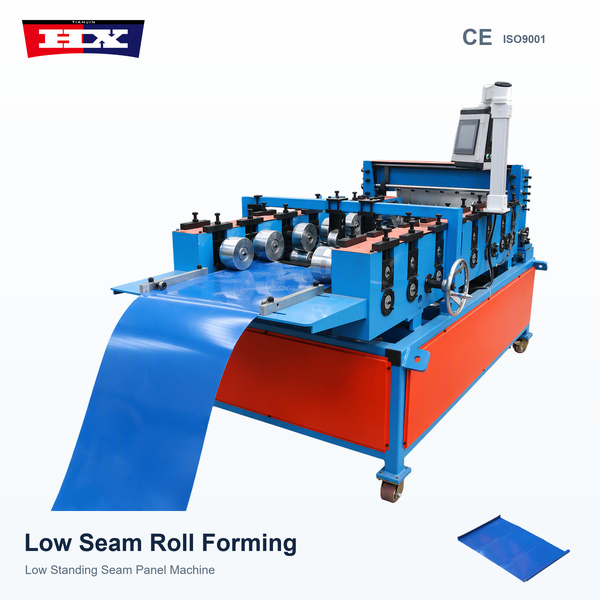

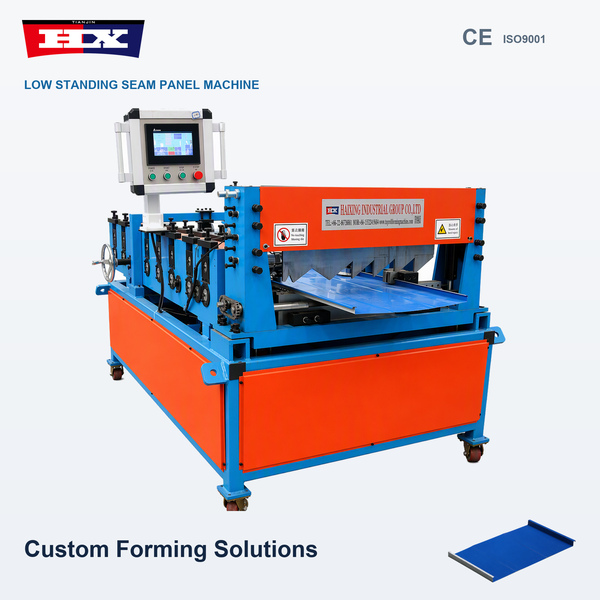

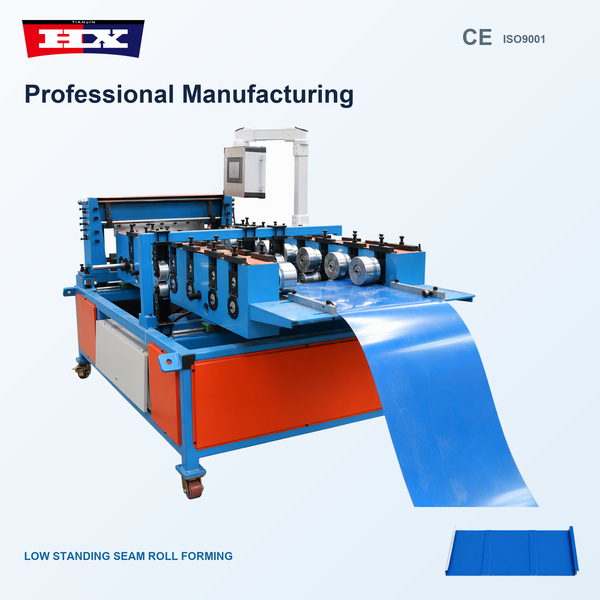

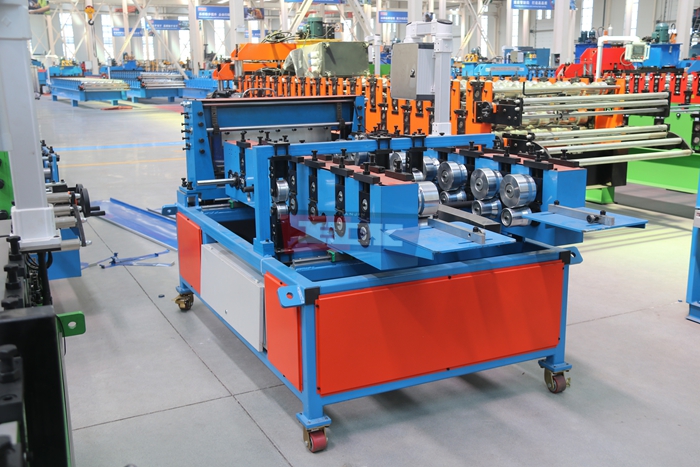

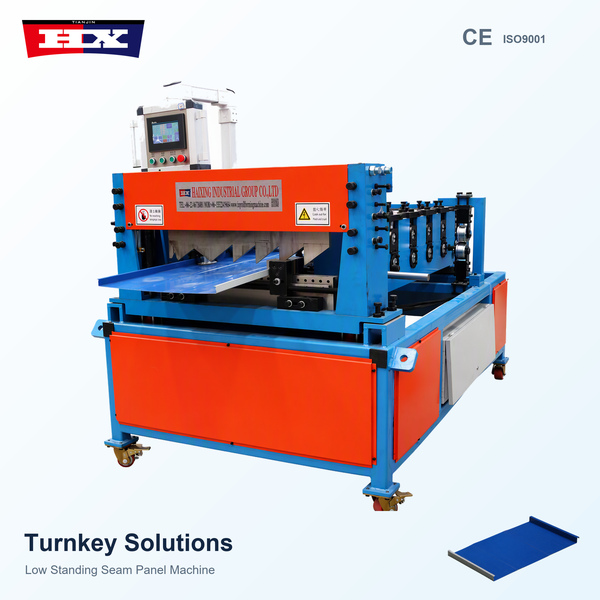

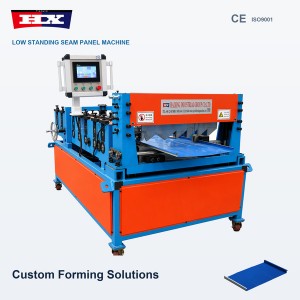

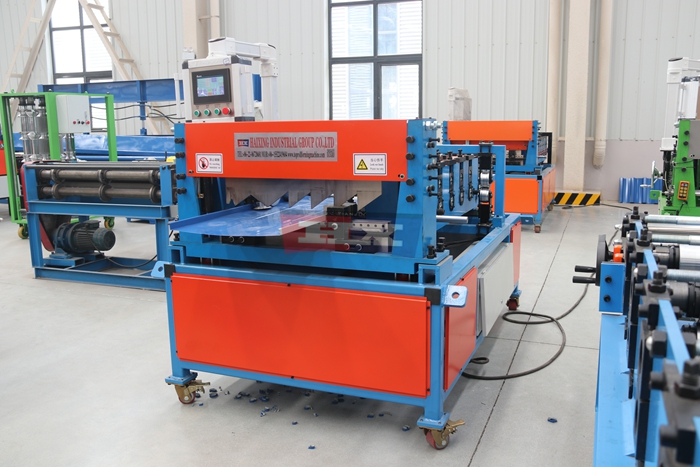

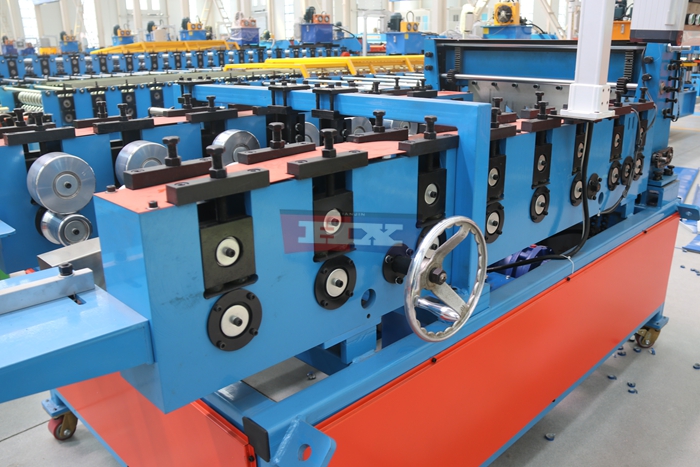

Low Standing Seam Roll Forming Machine for Metal Roofing | Haixing
The low standing seam roll forming machine from Haixing is designed for manufacturing metal roofing panels with low-profile raised seam edges. Using progressive cold roll forming technology, the machine transforms suitable metal coils into roofing panels with consistent cross-sectional geometry and accurately formed longitudinal edges.
Low standing seam roofing panels are used in compatible metal roof systems for industrial buildings, commercial facilities and architectural construction projects. Their relatively low raised seam profile provides a distinctive appearance while allowing adjacent panels to be connected through the installation method specified for the selected roofing system.
Haixing offers customized low standing seam roof panel forming equipment according to customer profile drawings, material specifications and production requirements. The equipment can be configured with suitable decoiling, material guiding, dedicated forming rollers, production control and automatic length cutting.
Low Standing Seam Roof Panel Manufacturing
The low standing seam roll forming machine is developed for roofing material manufacturers that require dedicated equipment for producing metal panels with relatively low longitudinal seam profiles.
Compared with standing seam panels featuring taller raised edges, low standing seam profiles offer a different roofing appearance and connection geometry. The exact seam height, shape and installation requirements depend on the approved roofing system design.
Each finished panel includes a main sheet surface and specially formed longitudinal edges. These edges are designed to connect adjacent roofing sheets through the specified joining arrangement.
Haixing evaluates customer profile drawings to determine suitable forming roller designs and machine configurations for the required roofing panel geometry.
Precision Low Seam Edge Forming
Consistent seam edge geometry is an important consideration when manufacturing low standing seam roofing panels.
The raised longitudinal edges must correspond to the approved profile dimensions so that adjacent roofing panels can be assembled using the intended connection method.

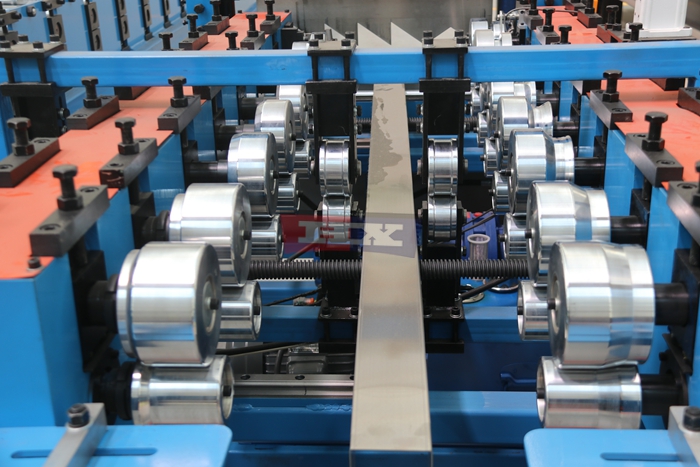

The roll forming system gradually bends the metal strip through successive roller stations. Each forming station performs part of the bending process, allowing the required low standing seam geometry to develop progressively.
The forming sequence is designed according to the approved panel drawing, material thickness and mechanical properties of the selected metal.
Appropriate machine adjustment and production inspection help manufacturers maintain consistent panel dimensions.
Compatible Metal Roofing Materials
The low standing seam roofing machine can be designed to process suitable metal roofing materials according to the approved equipment specifications.
Potential materials include compatible galvanized steel, pre-painted steel and aluminum alloy sheets, depending on the required profile geometry and machine configuration.
Important material parameters include sheet thickness, coil width, material strength, alloy grade and surface coating requirements.
These specifications influence the forming roller design, bending sequence, material guiding arrangement and cutting equipment.
Customers should provide their intended roofing material specifications before confirming the machine design.
Continuous Cold Roll Forming Process
The production process begins with suitable metal coil material being loaded onto a decoiler and guided into the roll forming section.
As the metal strip passes through successive forming stations, it is gradually shaped into the specified low standing seam roofing panel profile.
The number and arrangement of forming stations depend on the required panel geometry, material thickness and mechanical properties.
Continuous cold roll forming supports repeated production of the same roofing profile when the machine is correctly configured and operated with compatible materials.
After forming, the roofing panel can be cut to the required length and prepared for subsequent handling or installation.
Automatic Length Cutting and Production Control
The low standing seam roll forming machine can be configured with PLC-based control and automatic cutting equipment to support roofing panel manufacturing.
Depending on the approved machine configuration, operators can enter required panel lengths and production quantities through the control interface.
Automatic cutting supports the production of finished roofing panels in lengths suitable for different building projects.
The cutting system is selected according to the approved profile shape, material specifications and manufacturing requirements.
Actual control functions, electrical components and cutting arrangements are confirmed in the final technical proposal.
Low Standing Seam Roofing Applications
Low standing seam metal roofing panels can be considered for compatible roofing systems used in industrial buildings, warehouses, commercial facilities and architectural construction projects.
Metal standing seam roof systems are frequently selected where continuous roofing panel appearance, concealed fastening arrangements and accommodation of thermal movement are important design considerations.
Potential applications include manufacturing facilities, logistics centers, commercial complexes, exhibition buildings and other structures requiring suitable metal roofing assemblies.
The final roofing system must be evaluated according to project-specific structural requirements, wind loads, drainage conditions and applicable building standards.
Customized Low Standing Seam Roofing Profiles
Haixing can evaluate customized low standing seam forming equipment based on customer drawings and production requirements.
Customization parameters may include effective covering width, seam height, edge geometry, material thickness, incoming coil width and required panel length.
Available machine configurations may include dedicated forming rollers, suitable decoiling equipment, material guiding systems, PLC-based control, automatic cutting and finished panel handling arrangements.
Different standing seam profiles are not necessarily interchangeable. Requirements for additional profiles or adjustable forming equipment should be confirmed during the technical evaluation.
Quality Inspection and Roofing System Compatibility
For low standing seam roofing panels, consistent edge geometry and dimensional accuracy are important manufacturing considerations.
Recommended inspection items include effective covering width, seam dimensions, finished panel length, straightness and visible surface condition.
Where the roofing system requires clips, fastening accessories or mechanical seaming, sample panels should be checked for compatibility with the specified installation components.
Appropriate inspection procedures help manufacturers verify that the finished panels correspond to their approved drawings and production requirements.
Why Choose Haixing Low Standing Seam Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers developing low standing seam roofing products, Haixing can evaluate suitable forming solutions according to the required panel geometry, material specifications and production objectives.
Request a Low Standing Seam Machine Quotation
Looking for a low standing seam roll forming machine for your metal roofing manufacturing business?
Send Haixing your roofing panel profile drawing, effective covering width, seam dimensions, material type, sheet thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your requirements and prepare a customized equipment proposal and quotation for your low standing seam roofing panel production project.
