KR18 Seam Panel Machine for Aluminum Standing Seam Roofing | Haixing
The KR18 seam panel machine from Haixing is designed for manufacturing KR18-profile standing seam roofing panels used in industrial, commercial and architectural metal roofing systems. The machine processes suitable aluminum-magnesium-manganese alloy coils through progressive cold roll forming to produce roofing panels with the required cross-sectional shape, longitudinal seam edges and finished lengths.
Standing seam metal roofing panels are designed with specially formed longitudinal edges that connect adjacent roof sheets within a compatible roofing system. Unlike conventional exposed-fastener roofing sheets, standing seam panels can be incorporated into roof assemblies with concealed fastening arrangements, depending on the specified installation system.
Haixing provides customized KR18 forming solutions based on customer panel drawings, material properties and production requirements. The proposed equipment can include material decoiling, feeding and guiding, dedicated forming rollers, PLC-based control, automatic length cutting and finished panel handling arrangements.
KR18 Standing Seam Roofing Panel Manufacturing
The KR18 seam panel machine is developed for manufacturers supplying metal roofing panels to industrial and architectural construction projects.

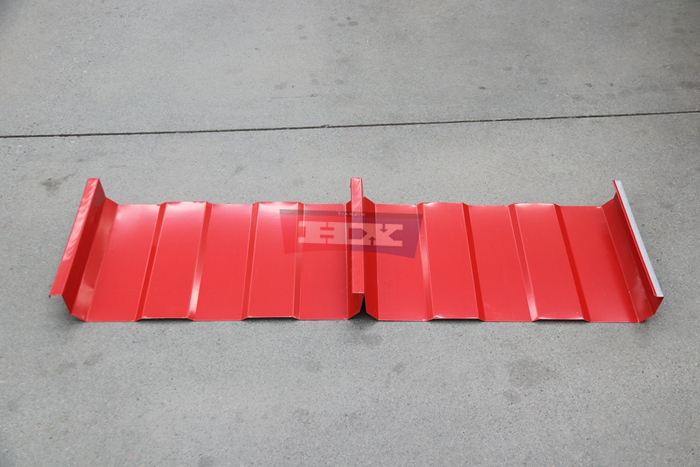

The finished panel consists of a main roofing surface and formed longitudinal edges intended for joining adjacent panels. These edges must match the approved KR18 profile drawing and the installation requirements of the selected roofing system.
Depending on the specified system, compatible fixing clips, mechanical seaming tools or other installation components may be required to complete the roof assembly.
Haixing can evaluate the required profile geometry to determine suitable forming rollers and machine arrangements for producing KR18 roofing panels.

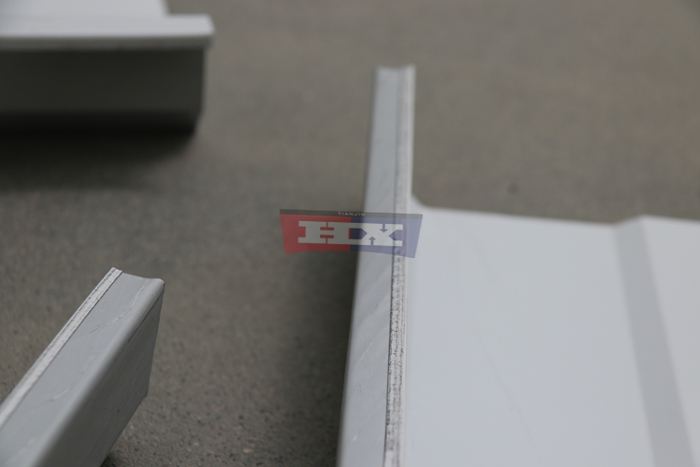

Standing Seam Edge Forming and Profile Accuracy
Consistent longitudinal edge geometry is an important requirement in the production of KR18 standing seam roofing panels.
The panel edges must correspond to the approved profile dimensions so that adjacent roofing sheets can be assembled using the intended connection method.
The roll forming process gradually bends the metal strip through a series of forming stations. Each station performs part of the bending operation, allowing the required seam shape to develop progressively.
The forming sequence is determined according to the KR18 panel drawing, material thickness and aluminum alloy properties.
During production, manufacturers should inspect seam dimensions, panel width, straightness and visible surface condition against the approved specifications.
Aluminum Magnesium Manganese Alloy Processing
Aluminum-magnesium-manganese alloy sheets are commonly used in architectural roofing applications because suitable aluminum alloys offer relatively low weight, corrosion resistance and good formability.
The KR18 roofing equipment can be configured to process compatible aluminum alloy sheets within its approved material thickness and mechanical property range.
Important material parameters include alloy grade, temper, sheet thickness, incoming coil width and surface coating requirements.
These specifications influence the roller design, forming sequence, material guiding arrangement and cutting equipment.
Customers should provide their intended aluminum alloy specifications before finalizing the machine configuration.

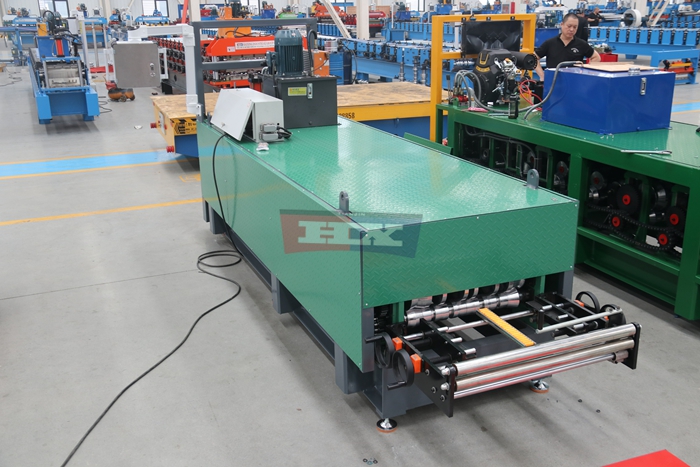

Continuous Cold Roll Forming Process

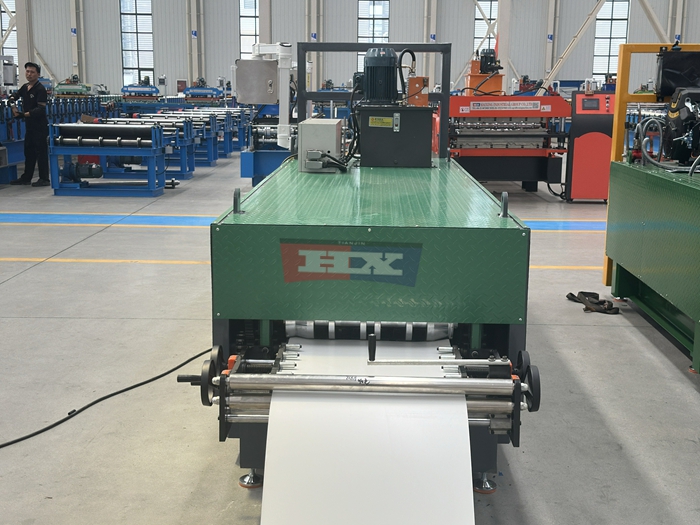

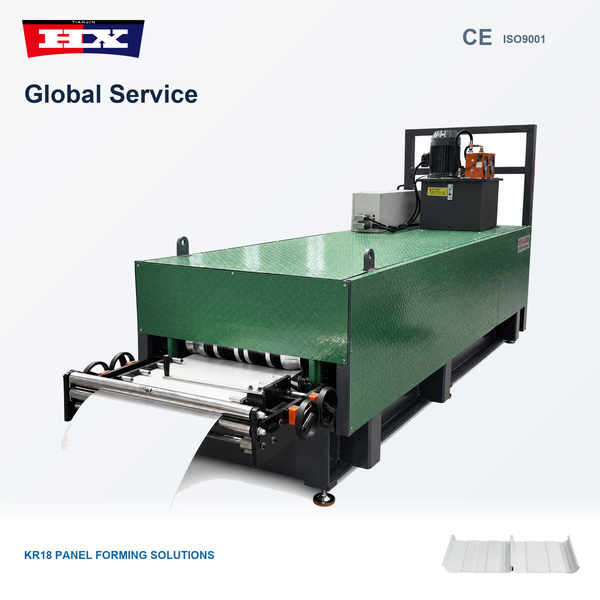

The KR18 seam panel production process begins with suitable metal coil material being loaded onto a decoiler and guided into the forming section.
The metal strip passes through successive roller stations, where it is gradually shaped into the required KR18 roofing panel geometry.
The number and arrangement of forming stations depend on the selected panel design, material thickness and alloy properties.
Continuous cold roll forming supports repeated production of the same panel profile when the equipment is properly configured and operated with suitable materials.
After forming, the finished roofing panel is cut to the required length and prepared for handling or subsequent installation.

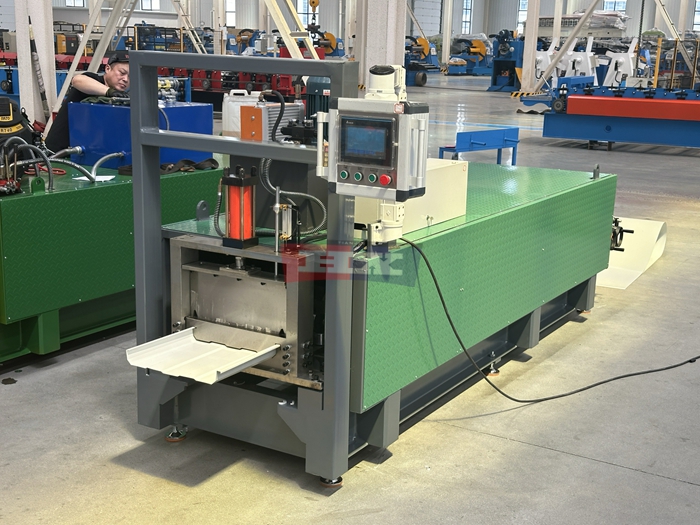

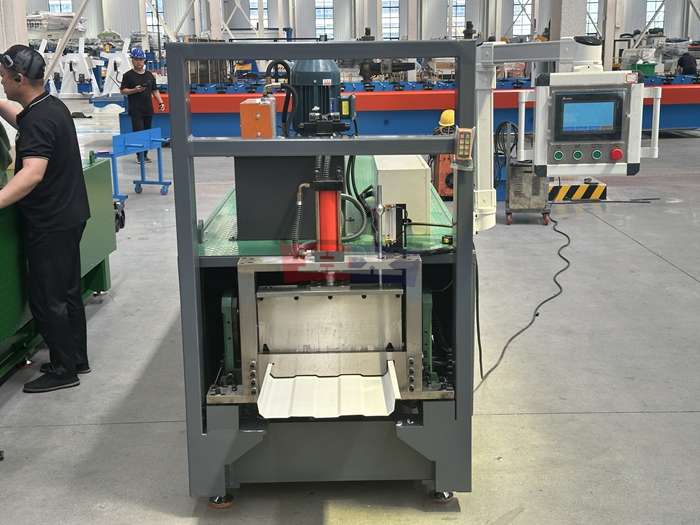

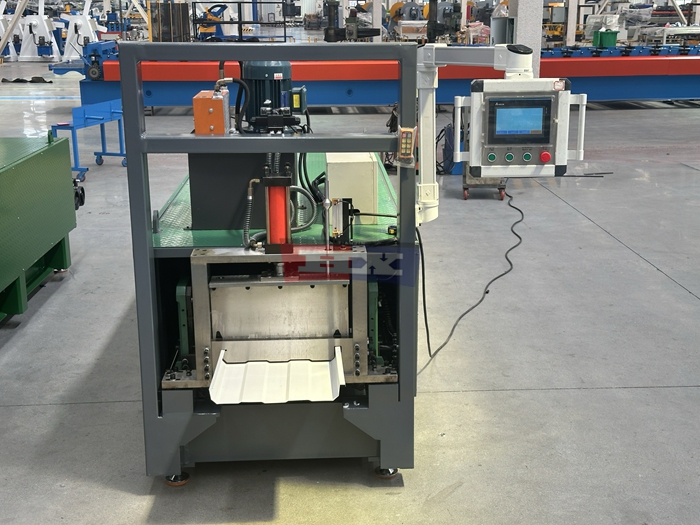

Automatic Cutting and PLC Production Control

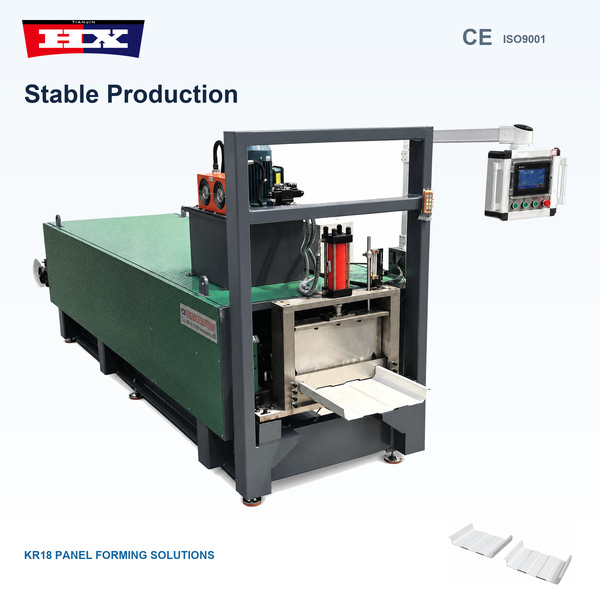

The KR18 seam panel machine can be equipped with PLC-based control and automatic length cutting equipment.
Depending on the approved machine configuration, operators can enter required roofing panel lengths and production quantities through the control interface.
Automatic cutting supports the manufacture of panels in lengths suited to different roofing projects.
The cutting system must be compatible with the selected KR18 profile geometry and aluminum alloy specifications.
Actual cutting methods, electrical components and supported control functions are confirmed in the final technical proposal.
Compatibility with Standing Seam Roofing Systems
KR18 roofing panels are intended for use in a compatible standing seam metal roof system.
The finished panel geometry must match the specified seam connection, fastening arrangement and installation method.
Depending on the roof system design, the installation may involve fixing clips, mechanical seaming equipment or other approved accessories.
These components should be confirmed separately from the roll forming machine specifications.
Manufacturers should verify that sample KR18 panels are compatible with the intended roofing system before beginning commercial production.
Applications in Industrial and Architectural Roofing
KR18 standing seam roofing panels can be considered for compatible metal roof systems used in industrial warehouses, manufacturing facilities, commercial buildings, transportation facilities and architectural construction projects.
Standing seam roofing systems are frequently selected where continuous metal roof appearance, concealed fastening arrangements and accommodation of thermal movement are important design considerations.
Potential applications include factories, logistics centers, exhibition buildings, airport facilities and other structures requiring suitable metal roofing assemblies.
The final roof system must be designed according to project-specific structural requirements, wind loads, drainage conditions and applicable building standards.
Customized KR18 Machine Configuration
Haixing can evaluate customized KR18 seam panel forming equipment according to customer drawings, aluminum alloy specifications and production requirements.
Configuration options may include dedicated forming rollers, suitable decoiling equipment, material guiding systems, PLC control, automatic cutting and finished panel handling arrangements.
Important customization parameters include effective covering width, seam dimensions, incoming coil width, material thickness and finished panel length.
Different standing seam profiles are not necessarily interchangeable without tooling changes. Any requirement for additional profiles or adjustable forming equipment should be confirmed before ordering.
Quality Inspection for KR18 Seam Panels
Quality inspection is important for manufacturers producing standing seam roofing panels intended for compatible roof assemblies.
Recommended inspection items include effective covering width, longitudinal seam dimensions, finished panel length, straightness and visible surface condition.
Where the selected roofing system requires clips or mechanical seaming, sample panels should be checked for compatibility with the specified installation components.
Appropriate inspection procedures help manufacturers verify that finished roofing panels correspond to the approved profile drawings and production requirements.
Why Choose Haixing KR18 Forming Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers producing aluminum-magnesium-manganese standing seam roofing panels, Haixing can evaluate suitable KR18 forming equipment based on the required panel geometry, material properties and manufacturing objectives.
Request a KR18 Seam Panel Machine Quotation
Looking for a KR18 seam panel machine for your aluminum roofing manufacturing project?
Send Haixing your KR18 profile drawing, effective covering width, seam dimensions, aluminum alloy grade, material thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your specifications and prepare a customized equipment proposal and quotation for your standing seam roofing panel production project.
