KR18 Roof Panel Machine for Aluminum Standing Seam Roofing | Haixing

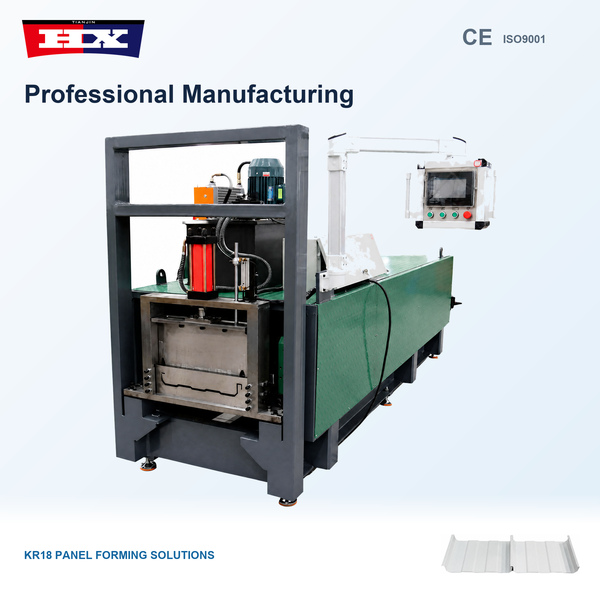

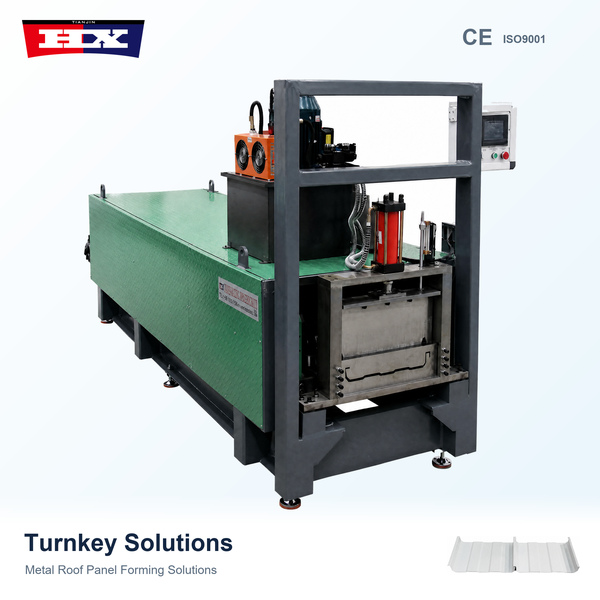

The KR18 roof panel machine from Haixing is designed to manufacture KR18-profile metal roofing panels for industrial, commercial and architectural construction projects. Using progressive cold roll forming technology, the equipment transforms compatible aluminum-magnesium-manganese alloy coils into finished standing seam roofing panels with the required profile geometry and cutting lengths.
KR18 roofing panels are intended for use in compatible standing seam metal roof systems. These systems connect adjacent panels along their specially formed longitudinal edges, creating continuous metal roofing surfaces with concealed fastening arrangements where specified by the roof system design.
Haixing provides customized KR18 roofing equipment based on customer profile drawings, material specifications and production requirements. The machine can be configured with suitable decoiling equipment, material guiding systems, dedicated forming rollers, PLC-based control and automatic length cutting.
KR18 Metal Roofing Panel Manufacturing
The KR18 roof panel machine is developed for manufacturers producing standing seam metal roofing panels for compatible building envelope systems.

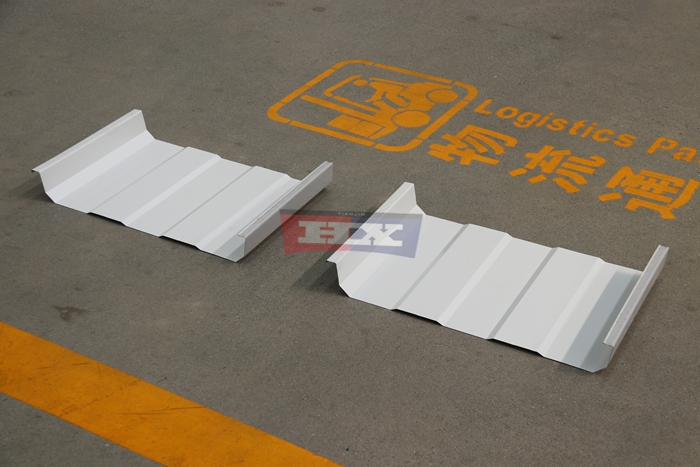

The finished KR18 panel includes a main sheet surface and specially formed longitudinal edges. These edges are designed to connect adjacent roofing panels using the installation method specified for the selected roof system.
Unlike conventional corrugated and trapezoidal roofing sheets, standing seam panels use raised edge connections as part of their roof assembly. Depending on the selected system, compatible clips, fastening components or seaming equipment may be required.
Haixing evaluates the approved KR18 panel drawing to determine a suitable forming roller arrangement and machine configuration.
Aluminum Magnesium Manganese Roofing Materials
Aluminum-magnesium-manganese alloy sheets are used in architectural roofing applications because suitable aluminum alloys offer relatively low weight, corrosion resistance and formability.
Haixing can evaluate KR18 roof panel forming equipment for compatible aluminum alloy sheets within the approved material thickness and mechanical property range.
Important material specifications include aluminum alloy grade, temper, sheet thickness, incoming coil width and surface coating requirements.
These properties influence the forming sequence, roller design, material guiding arrangement and cutting equipment. Customers should provide their intended alloy specifications before the machine configuration is finalized.

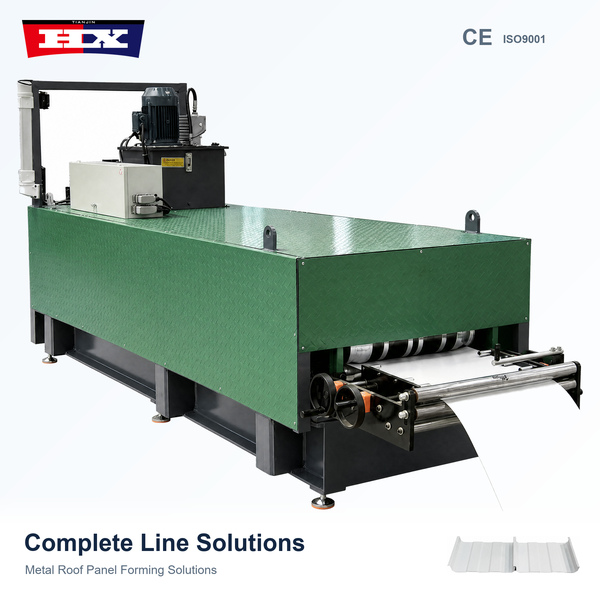

Progressive Cold Roll Forming Process

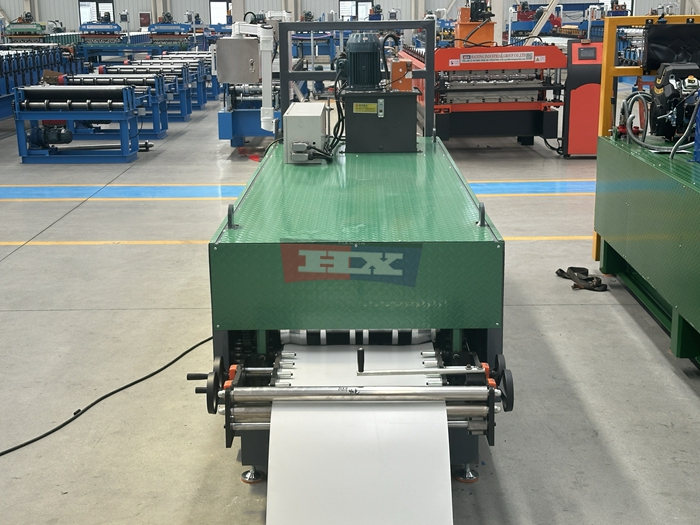

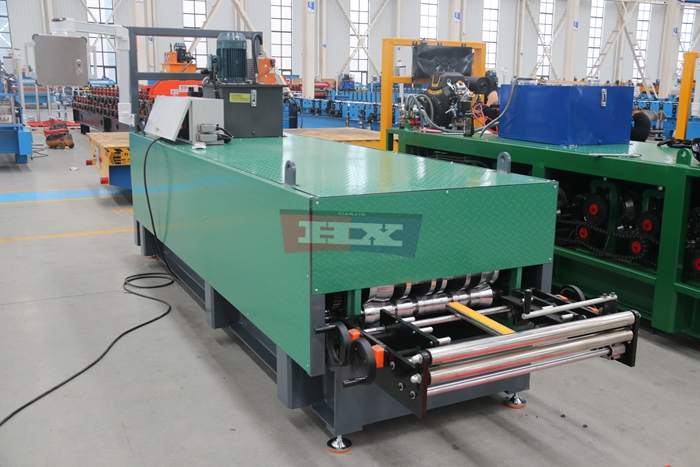

The KR18 roofing panel manufacturing process begins with a suitable metal coil being loaded onto a decoiler. The material is then guided into the roll forming section.
As the metal strip passes through successive forming stations, the rollers gradually bend it into the required KR18 roofing panel profile.
Each station performs part of the forming process. The roller arrangement is designed according to the approved panel geometry, aluminum alloy specifications and required material thickness.

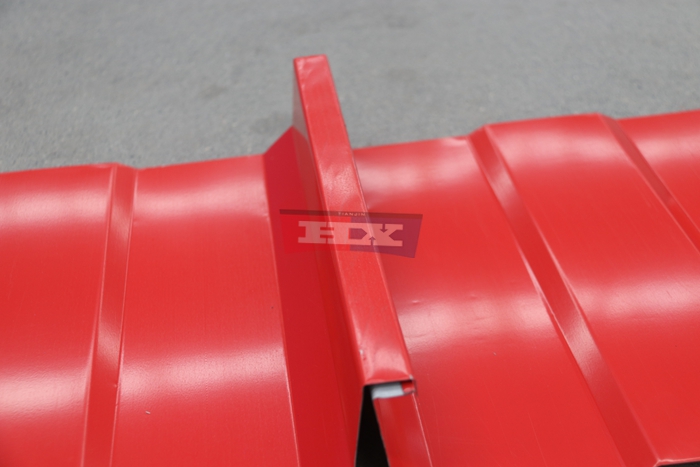

Particular attention is given to the longitudinal seam edges because their dimensions influence compatibility with the intended roofing system.
Correct roller alignment and material guidance help maintain consistent panel geometry during repeated production.
KR18 Standing Seam Profile and Roofing Compatibility
The KR18 roofing panel profile must correspond to the approved standing seam roof system design.
Important dimensions include effective covering width, seam height, edge geometry, incoming material width and finished panel length.
Depending on the roofing system, the finished panels may require compatible clips, fastening accessories or mechanical seaming equipment.
These installation components should be confirmed separately from the roll forming machine specifications.
Manufacturers should verify that the produced KR18 panels match the intended roof system before beginning commercial production.

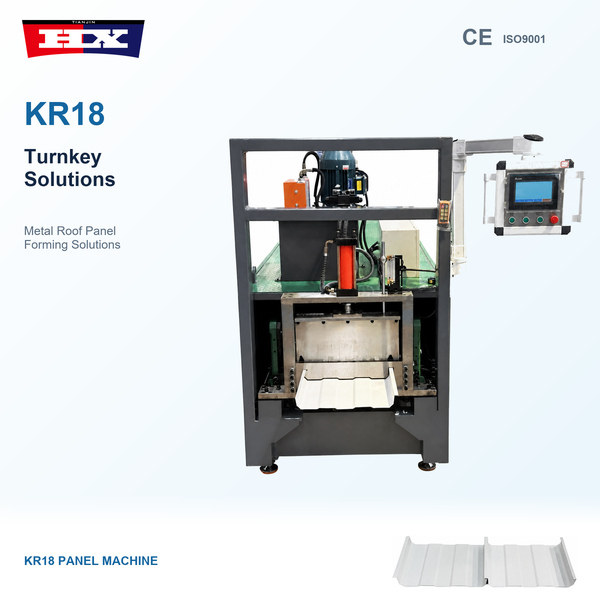

Automatic Length Cutting and PLC Control

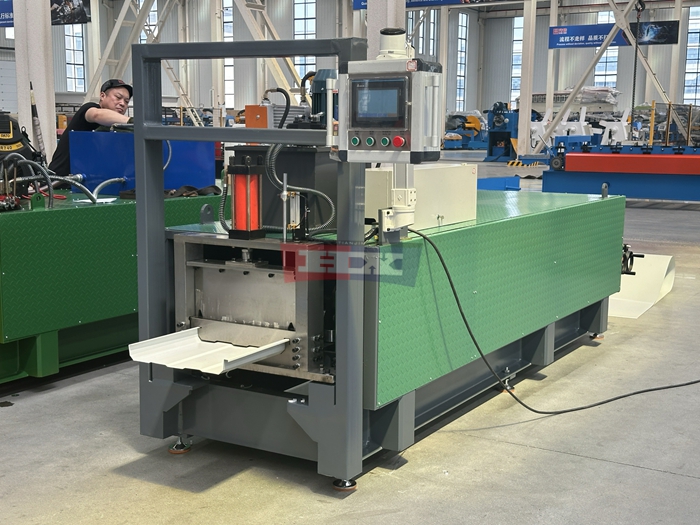

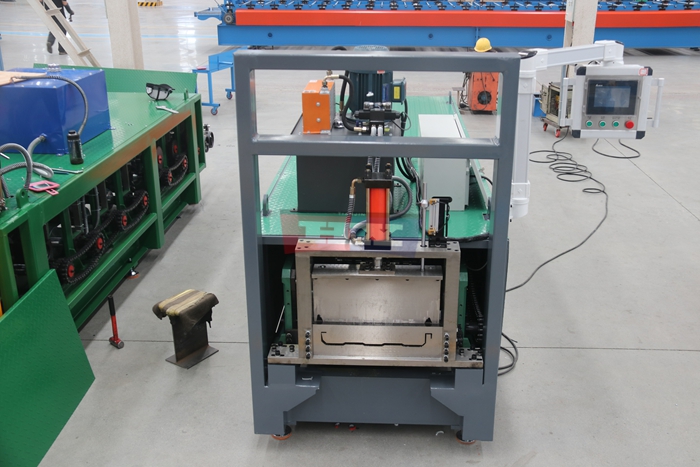

The KR18 roof panel machine can be equipped with a PLC-based control system and automatic cutting equipment.
Depending on the approved equipment configuration, operators can enter the required cutting lengths and production quantities through the control interface.
Automatic cutting supports the manufacture of roofing panels in lengths suited to different building projects.
The cutting method, available control functions and electrical components are determined by the final technical specifications.
Applications in Industrial and Commercial Roofing
KR18 standing seam roofing panels can be considered for compatible roof systems used in industrial warehouses, manufacturing facilities, commercial buildings, transportation facilities and architectural construction projects.
Standing seam metal roofing is frequently selected for projects where continuous metal panel appearance, concealed fastening arrangements and accommodation of thermal movement are important design considerations.
Potential applications include factories, logistics centers, exhibition buildings, airport facilities and other structures requiring suitable metal roof assemblies.
The final roofing system must comply with project-specific structural requirements, wind loads, drainage conditions and applicable building standards.
Customized KR18 Roofing Equipment
Haixing can evaluate customized KR18 roof panel machine configurations based on customer drawings, aluminum alloy specifications and production requirements.
Configuration options may include dedicated forming rollers, suitable decoiling equipment, material guiding systems, PLC control, automatic cutting and finished panel handling arrangements.
Customers can specify effective panel width, seam dimensions, material thickness, incoming coil width and expected production capacity for technical evaluation.
Different standing seam profiles are not necessarily interchangeable without tooling changes. Requirements for additional profiles or adjustable forming equipment should be confirmed before ordering.
Quality Inspection for KR18 Roofing Panels
Dimensional consistency is an important consideration when manufacturing standing seam roofing panels.
Recommended inspection items include effective covering width, longitudinal seam dimensions, finished panel length, straightness and visible surface condition.
Where the roofing system requires clips or mechanical seaming, sample panels should be checked for compatibility with the specified installation components.
Appropriate inspection procedures help manufacturers confirm that finished panels correspond to their approved production requirements.
Why Choose Haixing KR18 Roof Panel Equipment?
Haixing supplies roll forming machinery for metal roofing manufacturers and building material producers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers producing aluminum-magnesium-manganese standing seam roofing panels, Haixing can evaluate suitable KR18 forming solutions according to the required panel geometry, material properties and manufacturing objectives.
Request a KR18 Roof Panel Machine Quotation
Looking for a KR18 roof panel machine for your aluminum roofing manufacturing business?
Send Haixing your KR18 panel drawing, effective covering width, seam dimensions, aluminum alloy grade, material thickness, incoming coil width, required cutting length and expected production capacity.
Our team can review your requirements and prepare a customized equipment proposal and quotation for your standing seam roofing panel production project.
