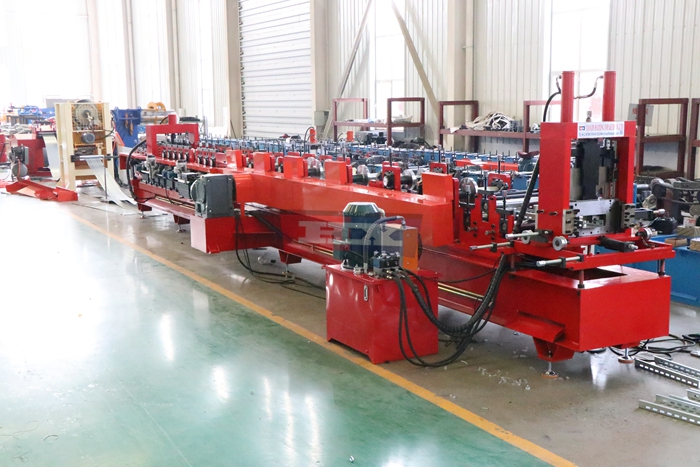

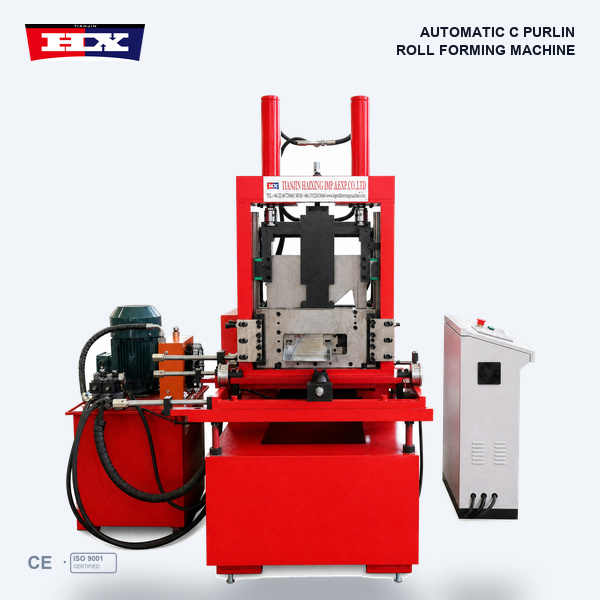

The automatic C purlin roll forming machine from Haixing is designed for manufacturing cold-formed C-shaped steel purlins used in industrial buildings, warehouses, steel workshops and prefabricated construction projects. The machine combines progressive roll forming with automated production control, punching and cutting functions to support efficient structural steel profile manufacturing.
Steel C purlins are widely used as secondary structural members in roof and wall framing systems. Their dimensions, material thickness and connection hole patterns vary according to the structural requirements of different construction projects.
Haixing provides automatic C purlin forming equipment with customized profile design and punching solutions. Customers can provide their required C-section drawings, steel specifications, hole positions and finished lengths to develop a suitable production configuration.
Automatic C Purlin Manufacturing for Steel Buildings
The automatic C purlin roll forming machine is developed for manufacturers requiring consistent production of C-shaped structural steel profiles.

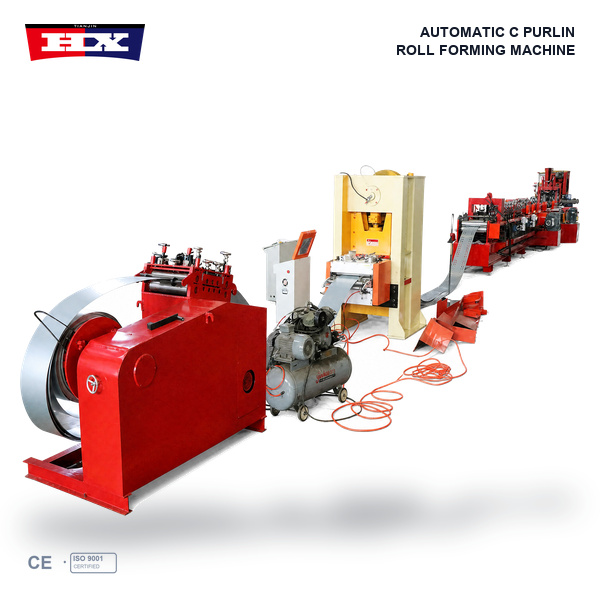

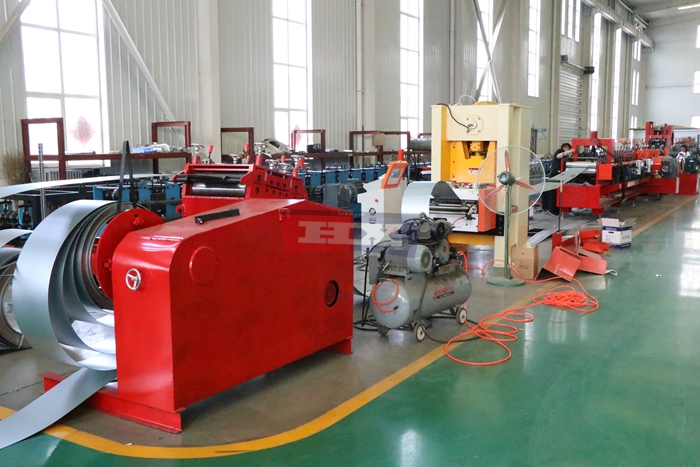

During operation, steel coil material is fed through a guiding system and successive forming rollers. The rollers progressively bend the steel strip into the required C-shaped cross-section.
The automated production system coordinates the selected processing functions, helping operators manage repeated production orders with specified profile lengths and quantities.
Depending on the approved equipment design, the machine can integrate punching, forming and cutting into a coordinated manufacturing process.
Integrated Punching for C Purlin Connections

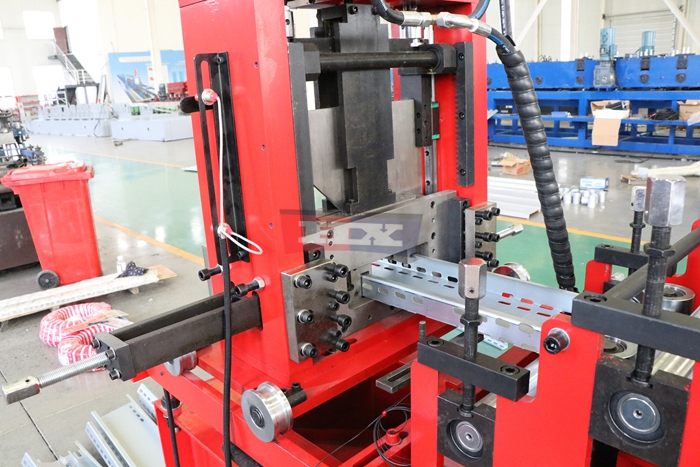

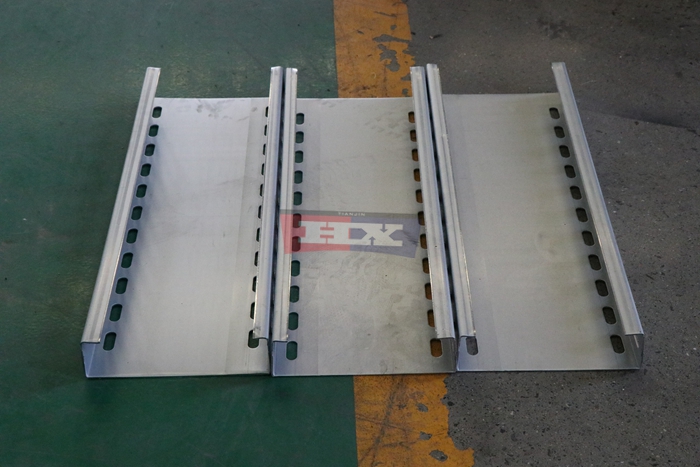

One of the key features of this C purlin production equipment is its punching capability. Structural steel purlins often require mounting holes or slots for connection to building frames, brackets and other structural components.
The punching system can be configured according to the customer’s required hole diameter, slot dimensions, spacing and position.
Depending on the approved production layout, punching may be arranged before or after the roll forming section. The appropriate arrangement is selected according to the required profile geometry, material properties and hole pattern.
Integrating punching into the production process can reduce the need for separate downstream hole-making operations when the required hole pattern is supported by the equipment.
PLC Control and Automated Production
The automatic C purlin forming system uses a production control arrangement designed to coordinate machine operation and the selected processing functions.
With a suitable PLC-based control configuration, operators can enter production parameters such as finished cutting length and required quantity through the control interface.
The control system helps coordinate material feeding, forming, punching and cutting according to the approved equipment design.
Specific automation functions, punching programs and control components are confirmed in the machine’s technical specifications.
Continuous Cold Roll Forming Process

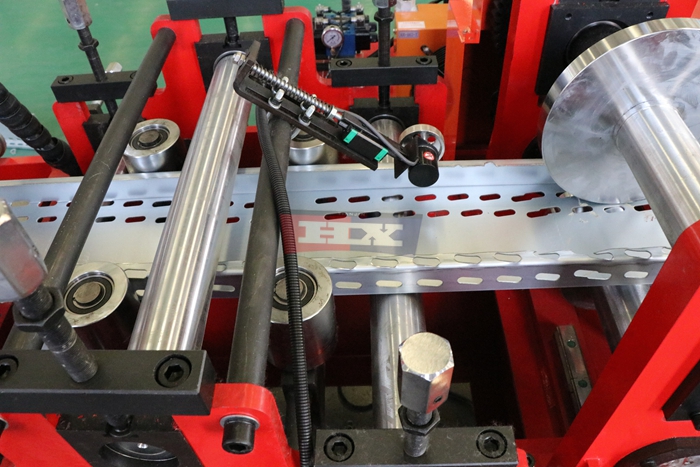

Cold roll forming is a metal shaping process in which flat steel strip passes through successive forming stations. Each roller station gradually bends the material until the required C-shaped profile is produced.
The forming sequence is developed according to the customer’s C-section dimensions, steel thickness, material grade and mechanical properties.
Important profile parameters include web height, flange width, lip dimensions and bend angles. These measurements influence the roller design and the required forming arrangement.
For manufacturers producing standardized C purlins, a dedicated forming configuration may be suitable. If several compatible C-section sizes are required, the available adjustment method must be confirmed separately.
Automatic Cutting to Required Lengths

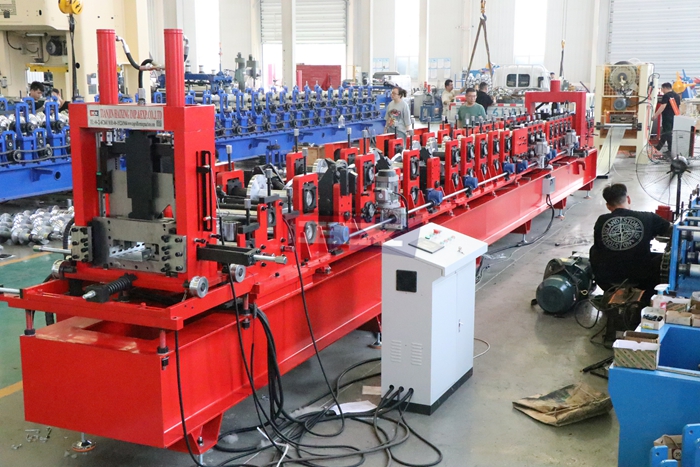

The automatic C purlin roll forming machine includes a cutting system for producing finished C purlins according to the specified length requirements.
Depending on the approved configuration, operators can set the required cutting length and production quantity through the machine control interface.
Automatic cutting supports repeated production of steel profiles for construction projects requiring multiple finished lengths.
The cutting method and supported profile dimensions depend on the final machine specifications.
Customized C Purlin Dimensions and Steel Materials
Different construction projects require C purlins with specific dimensions and material specifications. Haixing can evaluate customer drawings to develop suitable forming equipment for the required steel profiles.
Customers should provide web height, flange width, lip dimensions, steel thickness, material grade and finished length requirements.
Galvanized steel and other compatible structural steel materials may be considered within the machine’s approved processing range.
The required roller design, drive configuration and cutting system depend on the steel material properties and profile specifications.
Applications in Structural Steel Construction

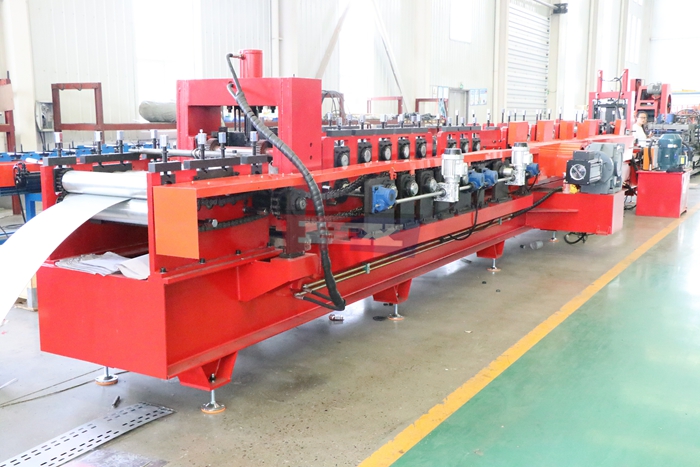

Automatic C purlin production equipment is suitable for manufacturers supplying steel components for industrial warehouses, manufacturing workshops, prefabricated buildings, agricultural facilities and commercial steel structures.
C purlins are commonly used as secondary structural members in suitable roof and wall framing systems, where they support building cladding and transfer loads according to approved engineering designs.
The appropriate C-section dimensions, material thickness and connection details depend on the structural requirements of each building project.
Why Choose Haixing Automatic C Purlin Equipment?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers requiring automatic C purlin production with punching functions, Haixing can evaluate suitable machine configurations based on the required profile drawings, steel material properties and production objectives.
Request an Automatic C Purlin Machine Quotation
Looking for an automatic C purlin roll forming machine with integrated punching and cutting functions?
Send Haixing your C-section drawings, required dimensions, steel thickness, material grade, punching hole patterns, cutting lengths and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
