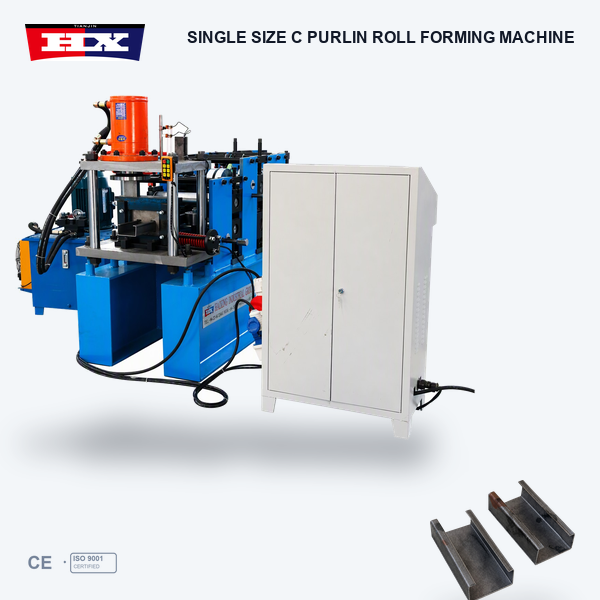

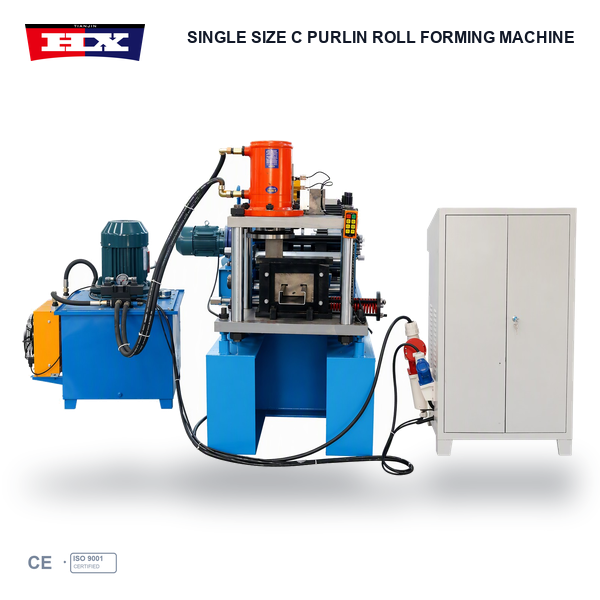

C Purlin Roll Forming Machine for Steel Structures | Haixing
The C purlin roll forming machine from Haixing is designed to manufacture cold-formed C-shaped steel purlins for structural steel construction. Using a progressive roll forming process, the machine transforms suitable steel coils into C-section profiles with dimensions specified according to customers’ building requirements.
C purlins are widely used as secondary structural members in steel warehouses, industrial workshops, agricultural buildings and prefabricated steel structures. For manufacturers focusing on C-shaped profiles, a dedicated C purlin forming machine provides a practical production solution without requiring additional mechanisms for changing between different cross-sectional profile types.
Haixing offers customized C purlin equipment configurations based on profile drawings, steel material properties, required processing functions and production objectives.
Dedicated C Purlin Profile Manufacturing
The C purlin roll forming machine is developed specifically for manufacturing C-shaped structural steel sections. Unlike combined C/Z or C/U production systems, this configuration focuses on forming C purlins according to the approved profile design.

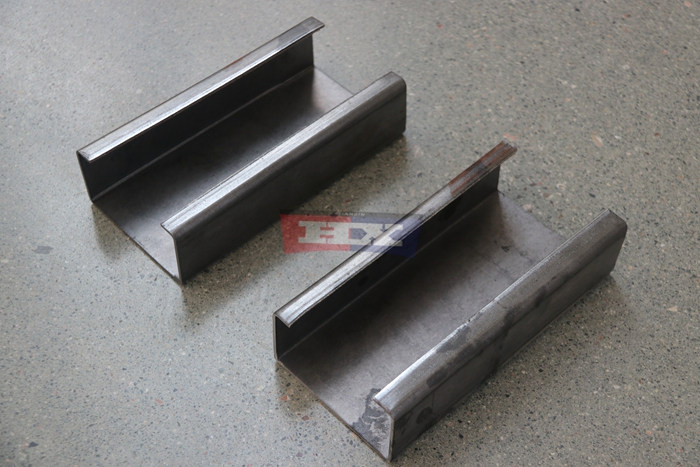

A typical C purlin has a web, two flanges and, depending on the design, inward-facing lips. These features form the required C-shaped cross-section used in suitable steel building framing systems.

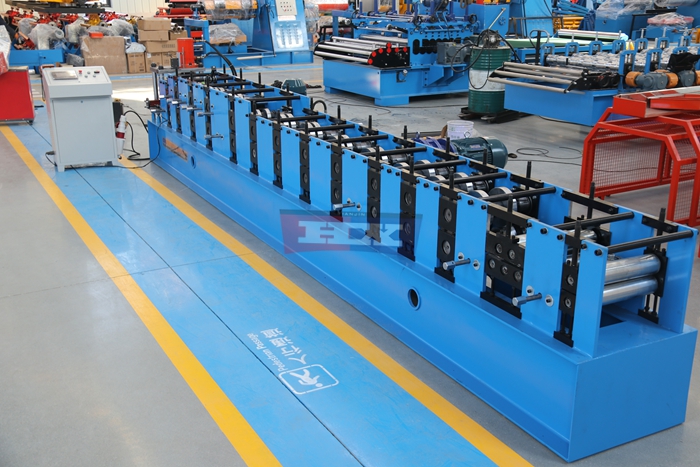

The forming rollers are designed according to the specified profile geometry. Depending on the selected equipment configuration, the machine may be designed for a fixed section size or an adjustable range of C purlin dimensions.
Customers should confirm the required section dimensions and adjustment method before equipment manufacturing.
Customized C Purlin Sizes and Dimensions
Steel construction projects require C purlins with different section heights, flange widths, lip dimensions and finished lengths. Haixing can evaluate customers’ drawings to determine suitable forming equipment for the required C-section specifications.
Important parameters include web height, flange width, lip size, material thickness, coil width and finished profile length. These dimensions influence the roller design, material feeding arrangement and cutting configuration.

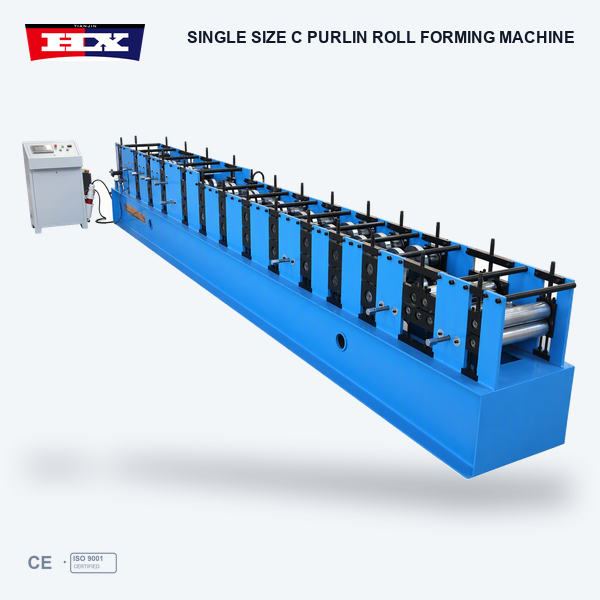

For a dedicated single-size machine, the forming rollers are designed around the approved profile dimensions. Where multiple C-section sizes are required, an adjustable configuration may be discussed separately.
The supported profile dimensions and steel thickness must be confirmed in the final technical proposal.
How the C Purlin Roll Forming Process Works

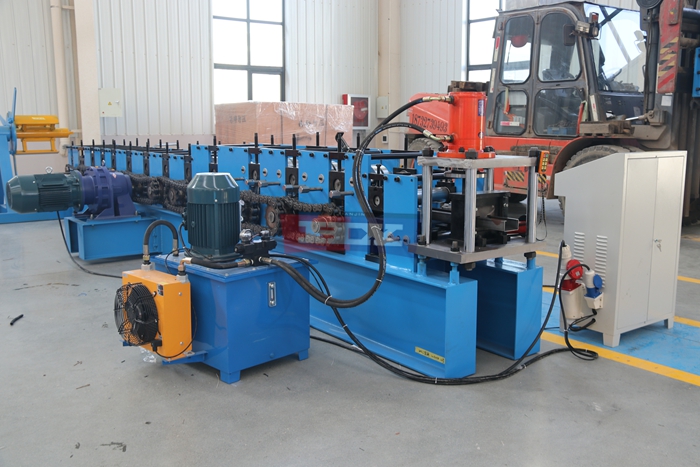

A typical C purlin manufacturing line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment can be considered when the finished C purlins require mounting holes.

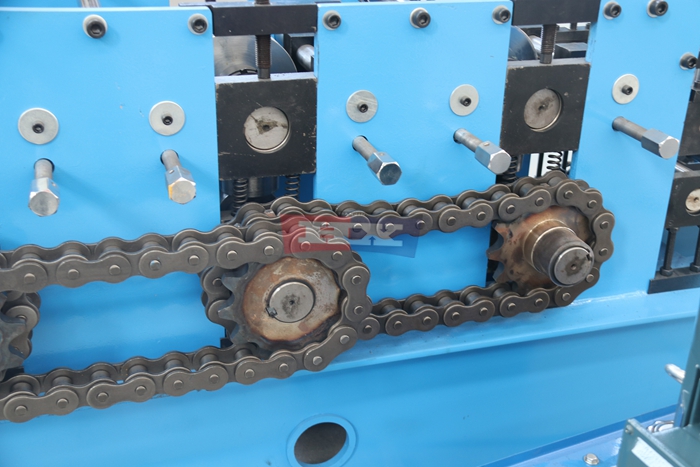

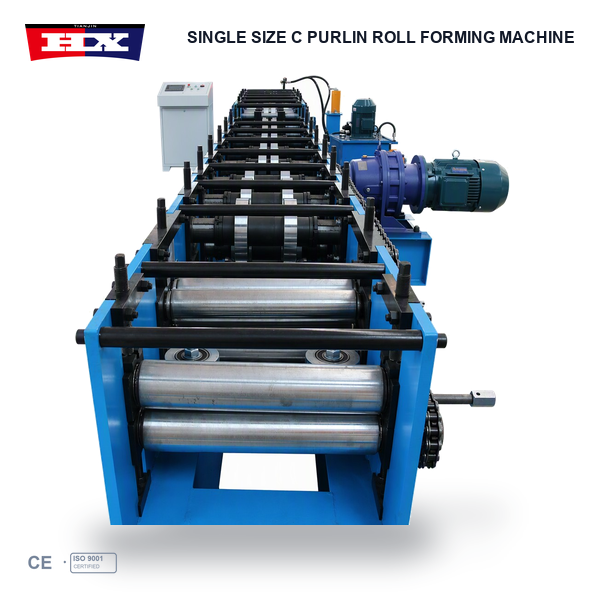

During operation, the steel coil is fed into the forming section. A series of roller stations progressively bends the steel strip into the required C-shaped cross-section.

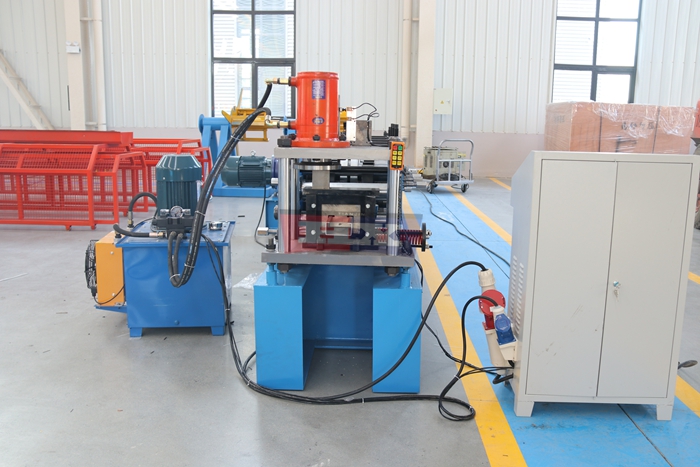

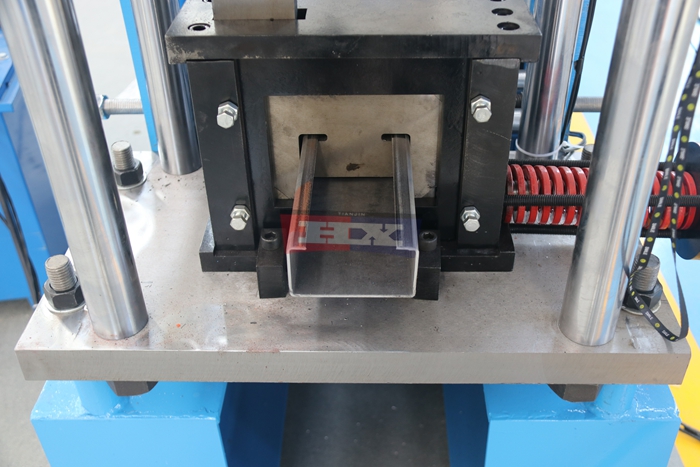

After forming, the C purlins are cut to the specified length. Depending on the selected equipment configuration, production length and quantity may be managed through the control interface.
The punching arrangement, cutting method and processing sequence depend on the approved machine design and customer requirements.
Suitable Steel Materials for C Purlin Production
The C purlin roll forming machine can be configured to process suitable structural steel materials within the approved machine specifications. Galvanized steel and other compatible steel grades may be considered according to the required finished profile and production application.

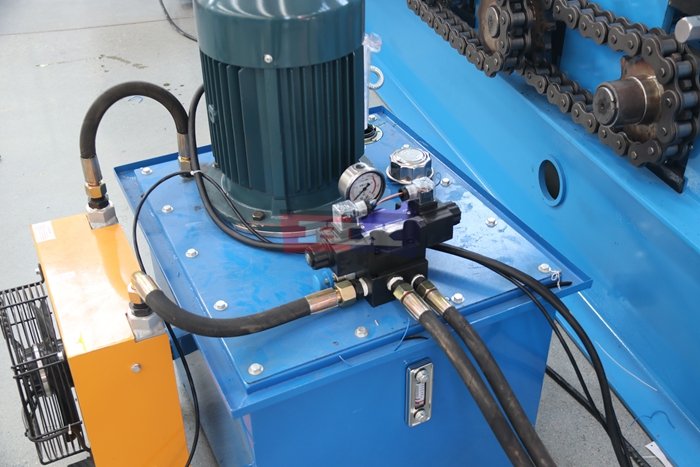

Material thickness, yield strength, coating properties and coil width are important factors when selecting the forming roller design and drive configuration.
Customers should provide material specifications together with C purlin drawings so that Haixing can evaluate the appropriate machine configuration.
Applications of C Steel Purlins
C-shaped steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, C purlins function as secondary structural members that support building cladding and transfer loads according to the approved structural design.
The required purlin size, steel grade, thickness and installation arrangement depend on the building’s engineering specifications.
Machine Configuration and Production Options
Before selecting a C purlin roll forming machine, manufacturers should confirm the required C-section dimensions, material thickness, steel grade, production speed requirements, punching details and cutting method.
Depending on the equipment configuration, optional features may include a PLC-based control system, programmable cutting lengths, production quantity counting and customized punching arrangements.
Factory layout, steel coil handling and finished purlin collection should also be considered when planning the complete production line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers focusing on C-shaped structural steel profiles, Haixing can discuss dedicated forming solutions based on the required profile dimensions, material properties and production objectives.
Request a C Purlin Roll Forming Machine Quotation
Looking for a C purlin roll forming machine for your steel structure manufacturing business?
Send Haixing your C-section profile drawings, required dimensions, steel thickness, material grade, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
