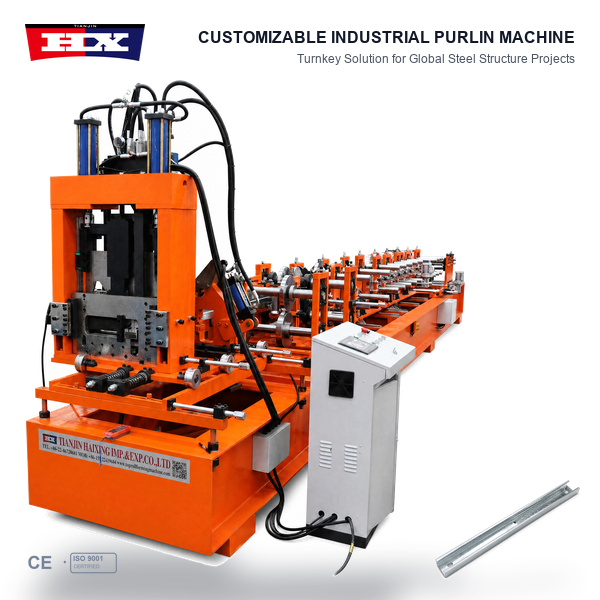

Automatic C U Purlin Production Line | Haixing
The automatic C U purlin production line from Haixing is designed to manufacture cold-formed C-shaped steel purlins and U-shaped steel channels for structural steel construction. Integrating coil feeding, progressive roll forming, profile adjustment, cutting and automatic production controls, this equipment provides a coordinated manufacturing solution for steel profile producers.
Steel construction projects require structural profiles in different shapes, dimensions and lengths. An integrated C/U purlin production line helps manufacturers organize the processing of supported C purlins and U channels while maintaining consistent production procedures across different customer orders.
Haixing provides customized production line configurations based on customers’ profile drawings, steel material specifications, required automation functions and manufacturing objectives.
Integrated C/U Purlin Manufacturing System

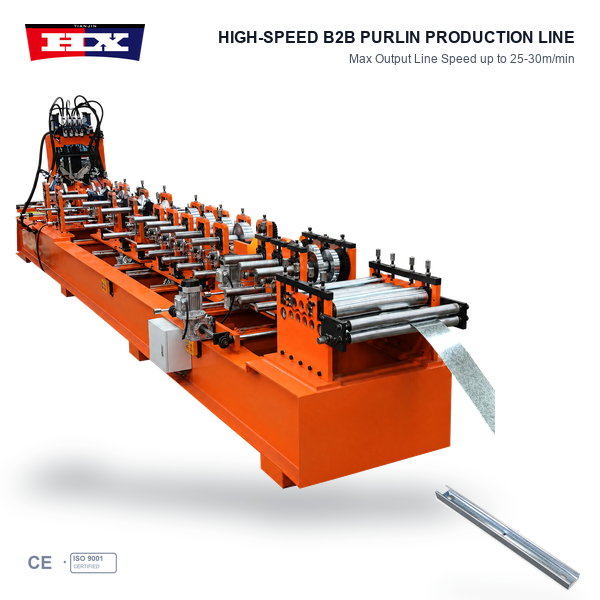

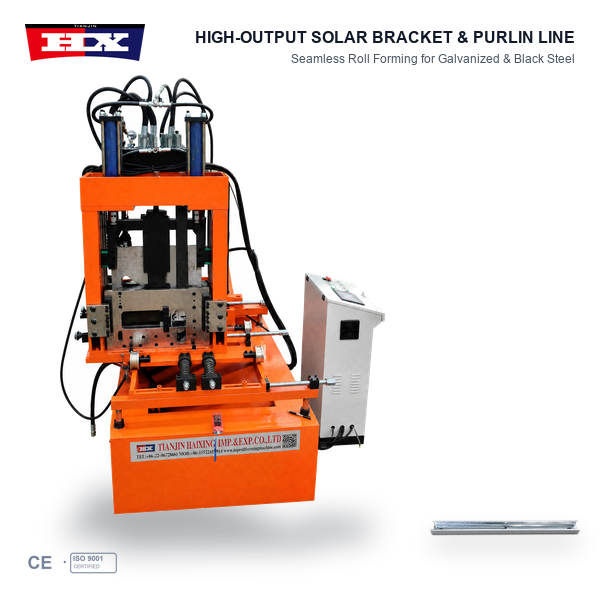

A typical automatic C U purlin production line includes a steel coil decoiler, material guiding section, roll forming machine, cutting equipment and automatic control system. Optional punching equipment and material handling components can be considered according to the required finished profiles.
These production stages work together to transform steel coil material into C-shaped purlins or U-shaped channels. The equipment arrangement can be planned around the required profile dimensions, factory layout and production capacity.
For manufacturers establishing or expanding a steel profile workshop, an integrated production line provides a practical basis for organizing material feeding, forming, cutting and finished profile collection.
C Purlin and U Channel Forming Capability
The production line is designed to manufacture C-shaped steel purlins and U-shaped steel channels within its approved forming range.
C purlins are commonly specified as secondary structural members in steel building roof and wall systems. U-shaped channels may be used for compatible structural framing, support and connection applications according to the building’s engineering design.

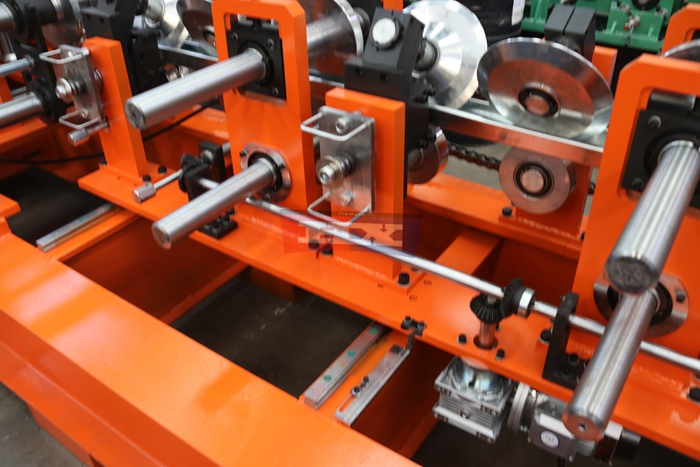

The forming system can be configured to accommodate the required C and U cross-sectional geometries. Depending on the approved machine design, automatic changeover mechanisms may coordinate adjustments between supported profile types.
The available profile dimensions, changeover procedure and adjustment functions should be confirmed in the final technical proposal.

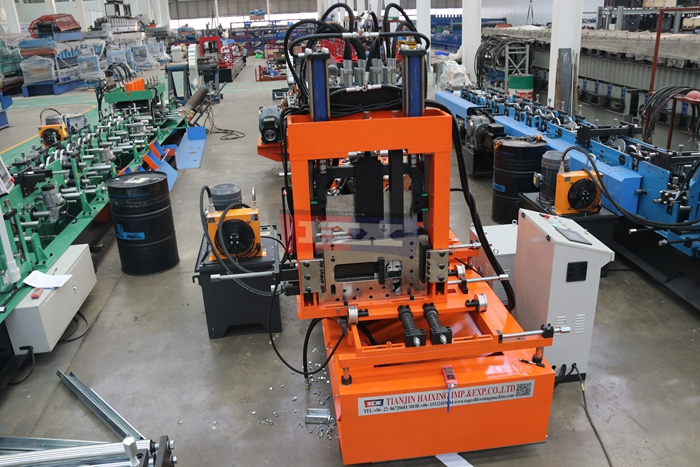

Automatic Profile Adjustment and Production Control
Structural steel manufacturers often need to produce profiles with different web heights, flange widths and finished lengths. An adjustable forming system helps operators prepare the line for different supported profile specifications.

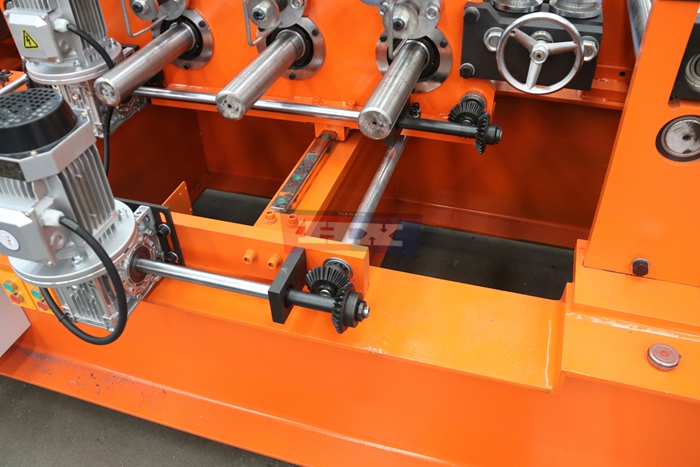

Depending on the selected configuration, motorized adjustment mechanisms and programmed settings can coordinate dimensional changes through the automatic control system.
Production controls may include profile selection, length settings, quantity counting and other functions required for organizing manufacturing orders.
The actual automation features, adjustment range and permitted steel thickness depend on the approved equipment specifications.
How the C/U Purlin Production Process Works

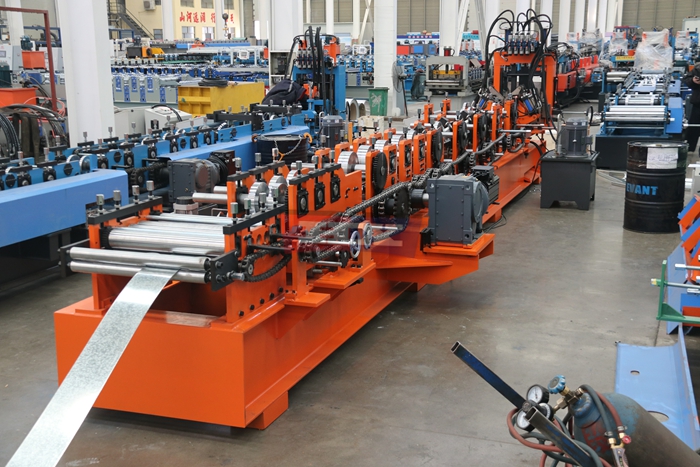

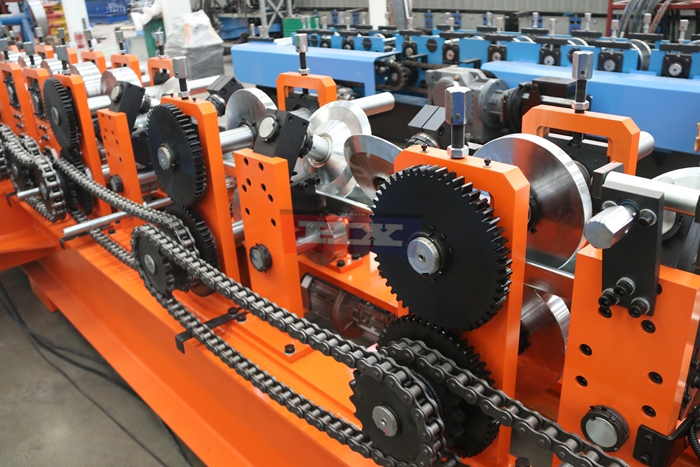

During production, a steel coil is positioned on the decoiler and fed through the material guiding section. The steel strip then passes through successive forming stations, where rollers progressively bend it into the selected C-shaped purlin or U-shaped channel profile.

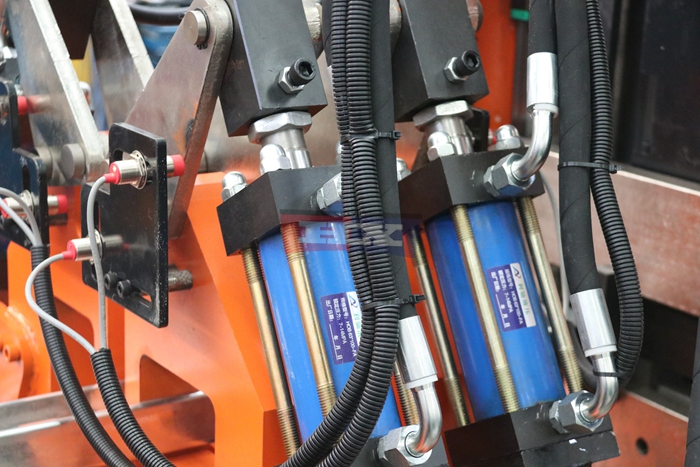

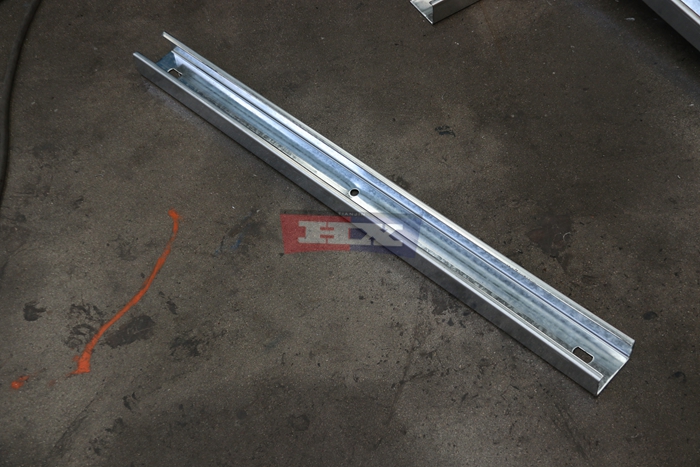

After forming, the finished steel section is cut to the specified length. Optional punching equipment can be integrated when the required profile drawings include mounting holes or other approved hole patterns.
The cutting method, punching arrangement and processing sequence depend on the final equipment design. Finished profiles can then be collected and prepared for inspection, handling and packaging.
Customized Steel Materials and Profile Specifications
The automatic C U purlin production line can be configured according to customers’ structural steel profile requirements. Important technical parameters include web height, flange width, lip dimensions where applicable, steel thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials may be used when their thickness and mechanical properties meet the approved machine specifications. Material grade, yield strength and coating requirements should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings or samples to discuss forming roller design, profile adjustment functions, optional punching equipment and cutting configurations.
Applications in Steel Structure Construction
C-shaped purlins and U-shaped channels can be manufactured for various steel construction applications, including industrial warehouses, manufacturing workshops, prefabricated buildings, agricultural facilities and commercial steel structures.
C purlins are commonly used as secondary structural members in suitable roof and wall framing systems. U channels may serve compatible framing, support and connection functions according to the project’s structural design.
The appropriate profile dimensions, material grade and thickness must be determined according to the engineering requirements of each building project.
Production Line Planning and Equipment Configuration
Before purchasing an automatic C U purlin production line, manufacturers should confirm the required C/U profile range, steel thickness, changeover method, dimensional adjustment functions, punching requirements, cutting system and expected production capacity.
Factory floor space, coil handling arrangements, electrical requirements and finished profile collection should also be considered when planning the manufacturing facility.
Haixing can discuss suitable equipment arrangements based on the customer’s available workshop space and intended production requirements.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or expanding an existing production facility, Haixing can discuss suitable equipment solutions based on your profile requirements and manufacturing objectives.
Request an Automatic C/U Purlin Production Line Quotation
Looking for an automatic C U purlin production line for your steel structure manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile dimensions, steel thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized production line proposal and quotation.
