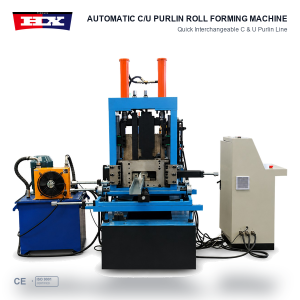

Automatic C U Purlin Roll Forming Machine | Haixing

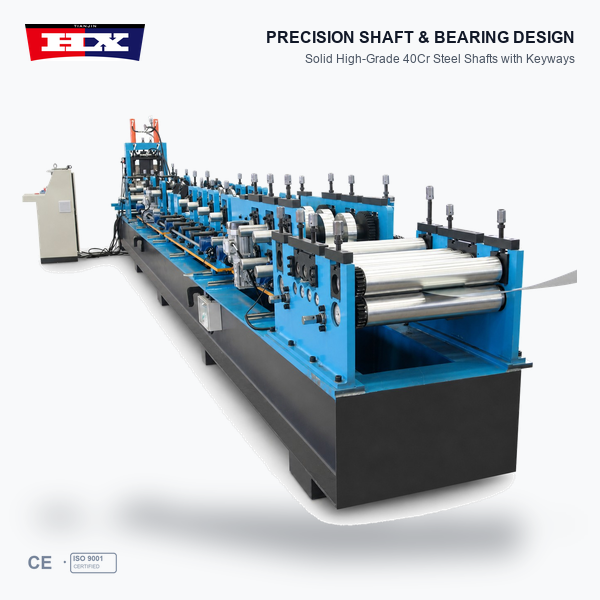

The automatic C U purlin roll forming machine from Haixing is designed to manufacture cold-formed C-shaped steel purlins and U-shaped steel channels for structural steel construction. Combining progressive roll forming, automatic C/U profile changeover and adjustable forming functions, this equipment supports the production of different structural steel profiles within the approved machine configuration.
Steel structure manufacturers frequently need to produce profiles with different section heights, flange dimensions and finished lengths. An integrated C/U forming system allows manufacturers to process supported C purlin and U channel specifications on a single production line, helping reduce equipment duplication and simplify production planning.
Haixing provides customized equipment solutions based on customers’ profile drawings, steel material specifications, required automation functions and production objectives.
Automatic C Purlin and U Channel Profile Production

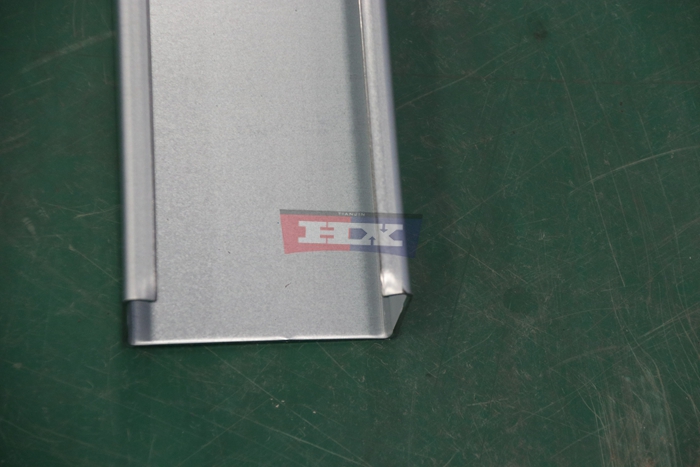

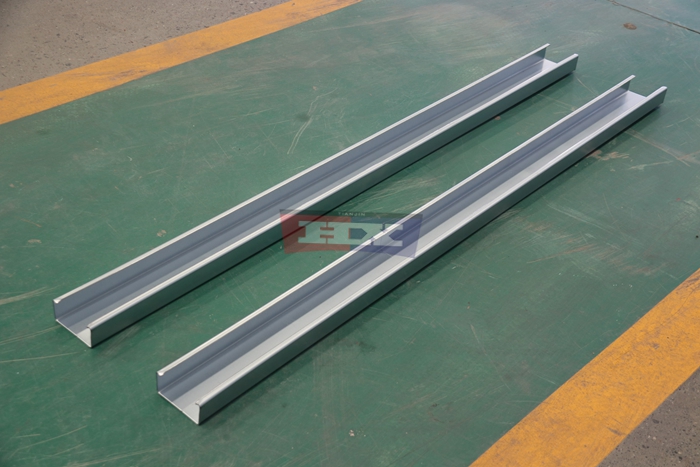

A key advantage of the automatic C U purlin roll forming machine is its ability to manufacture both C-shaped purlins and U-shaped steel channels within the supported machine configuration.
C-shaped purlins are commonly used as secondary structural members in roof and wall framing systems. U-shaped steel channels may be specified for compatible framing, support and connection applications according to the approved structural design.

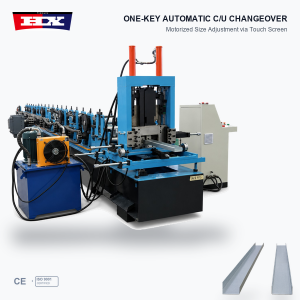

The machine’s forming system is designed to accommodate the required C and U cross-sectional geometries. Automatic C/U changeover mechanisms adjust the relevant forming components according to the selected profile type.
The specific C-to-U changeover method, adjustment sequence and supported profile dimensions depend on the approved equipment design. Customers should confirm the available automatic changeover and size adjustment functions in the technical proposal.

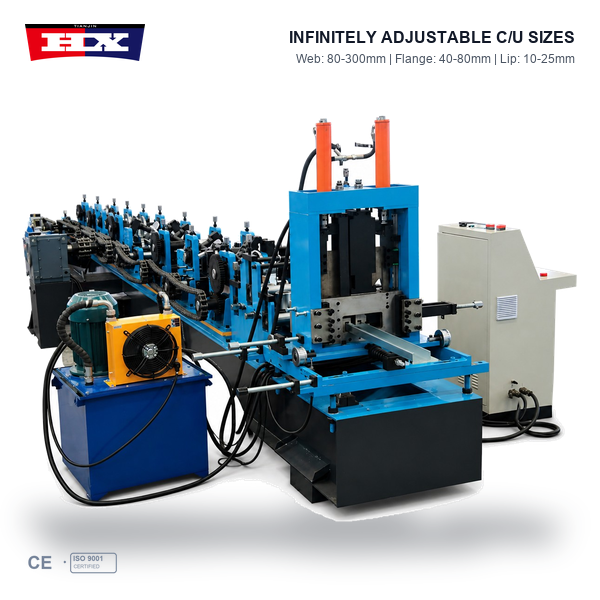

Automatic Size Adjustment for Different C/U Profile Dimensions
Steel building projects often require structural profiles with different section heights, flange widths, lip dimensions where applicable, and material thicknesses. The automatic size adjustment system can be configured to help operators prepare the machine for different supported C/U profile specifications.
Depending on the final machine configuration, dimensional adjustment may be coordinated through the control system and motorized adjustment mechanisms. This is particularly useful for steel profile manufacturers processing orders with different building design requirements.
Automatic size adjustment can reduce the need for extensive manual repositioning when changing between supported profile dimensions. The actual size range, adjustable dimensions and permitted steel thickness should be confirmed through the customer’s technical drawings and the final machine specifications.
How the C/U Purlin Roll Forming Process Works

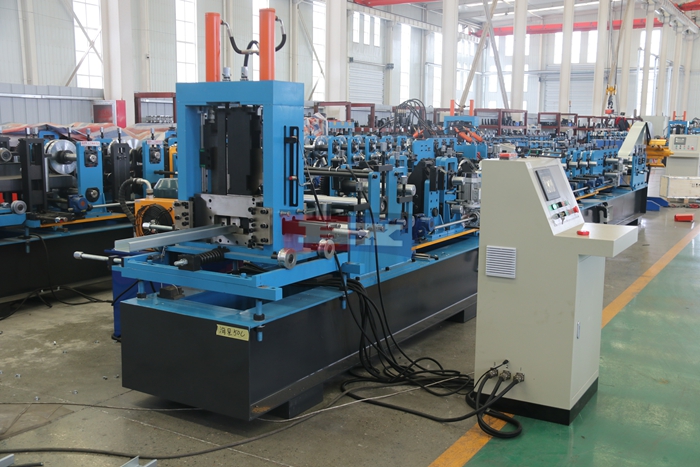

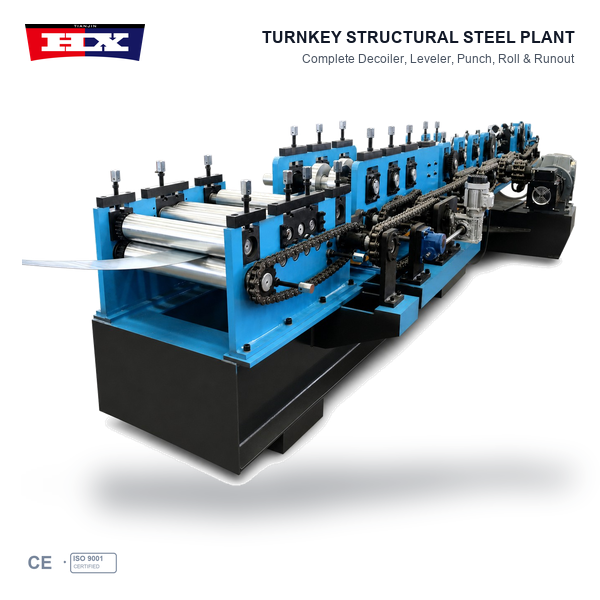

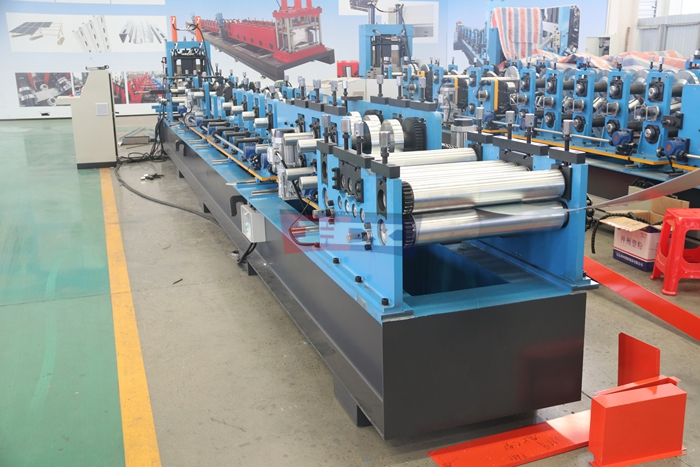

A typical automatic C/U purlin production line consists of a decoiler, material guiding system, roll forming section, cutting equipment and automatic control system. Punching equipment may also be included according to the finished profile requirements.

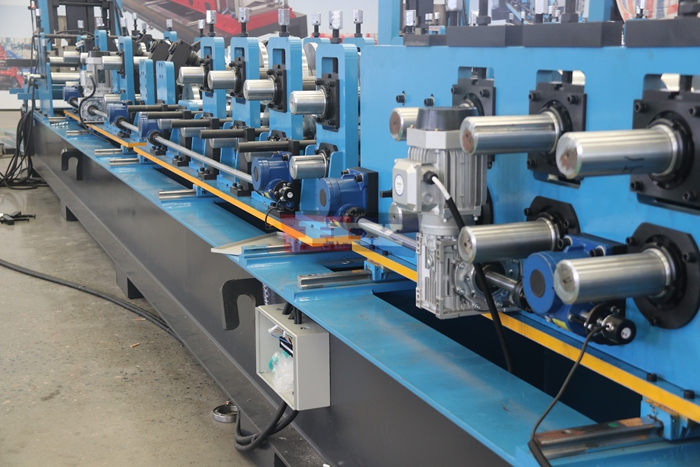

During production, steel coil material enters the forming section and passes through a series of roller stations. These stations progressively shape the steel strip into the required C-shaped purlin or U-shaped channel cross-section.

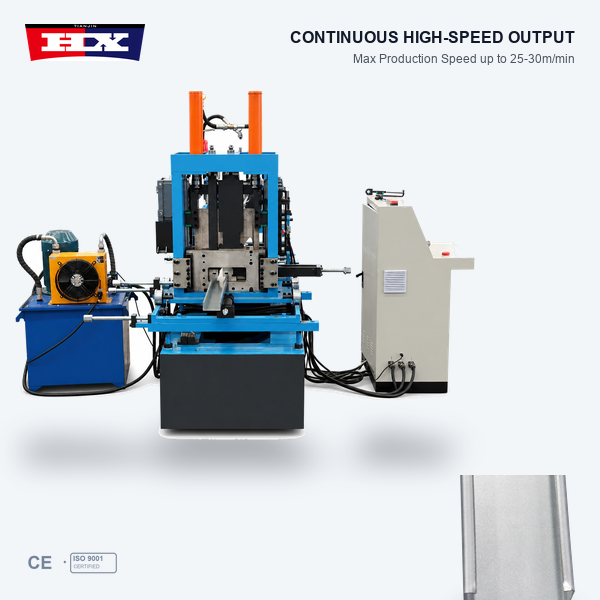

The formed profiles are then cut to the specified length. Where mounting holes are required, punching equipment can be considered as part of the production line configuration.
The punching arrangement, cutting method and processing sequence depend on the approved machine design.
Customized C/U Purlin Sizes and Steel Materials
The automatic C U purlin roll forming machine can be configured around customers’ required structural profile dimensions. Important specifications include section height, flange width, lip dimensions where applicable, steel thickness, coil width and finished profile length.
Suitable galvanized steel and other approved structural steel materials can be considered according to the machine design. Material grade, yield strength, coating requirements and thickness should be confirmed before equipment manufacturing to ensure compatibility with the forming system.
Haixing can evaluate C purlin and U channel drawings or samples to discuss suitable forming roller arrangements, dimensional adjustment functions and optional processing equipment.
Applications in Steel Structure Construction
C-shaped purlins and U-shaped steel channels can be manufactured for prefabricated steel buildings, industrial factories, warehouses, commercial steel structures and compatible roofing support systems.
C-shaped purlins may be specified for roof, wall and secondary structural framing applications. U-shaped channels can be used in suitable structural framing, support and connection arrangements according to project requirements.
The appropriate profile type, steel grade and section dimensions must be determined by the building’s structural design requirements.
Machine Configuration and Automation Options
Before purchasing an automatic C U purlin roll forming machine, manufacturers should confirm the required C/U profile range, steel thickness, size adjustment method, C/U changeover functions, punching requirements, cutting system and expected production capacity.
Depending on the selected control system, automation functions may include C/U profile selection, profile size settings, production length control, quantity counting and other production management features.
Factory layout, coil handling, profile collection and future production requirements should also be considered when planning the complete line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or expanding an existing production facility, Haixing can discuss suitable equipment solutions based on your profile requirements and manufacturing objectives.
Request an Automatic C/U Purlin Roll Forming Machine Quotation
Looking for an automatic C U purlin roll forming machine for your structural steel manufacturing business?
Send Haixing your C purlin and U channel drawings, required size range, material thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
