Automatic Changeover C U Purlin Machine | Haixing
The automatic changeover C U purlin machine from Haixing is designed to manufacture C-shaped steel purlins and U-shaped steel channels for structural steel construction. Featuring an automatic C/U profile changeover system, adjustable forming components and integrated production controls, this machine provides a flexible manufacturing solution for steel profile producers handling different structural building requirements.
Steel construction projects frequently require different profile shapes, section dimensions and finished lengths. A combined C/U forming machine allows manufacturers to produce supported C purlins and U channels on one production line, reducing the need for separate dedicated forming equipment for each profile type.
Haixing provides customized equipment solutions based on customers’ C/U profile drawings, material properties, required automation functions and production objectives.
Automatic Changeover Between C Purlins and U Channels
The main feature of the automatic changeover C U purlin machine is its ability to switch between supported C-shaped purlin and U-shaped channel production through an adjustable forming system.
C-shaped purlins are commonly used as secondary structural members in steel building roof and wall systems. U-shaped channels may be specified for compatible framing, support and connection applications according to the approved building design.
During profile changeover, relevant forming components are adjusted to accommodate the selected C or U cross-section. Depending on the approved equipment configuration, motorized mechanisms and programmed settings can coordinate the changeover process.
The specific changeover sequence, required operator actions and supported profile dimensions should be confirmed in the technical proposal.

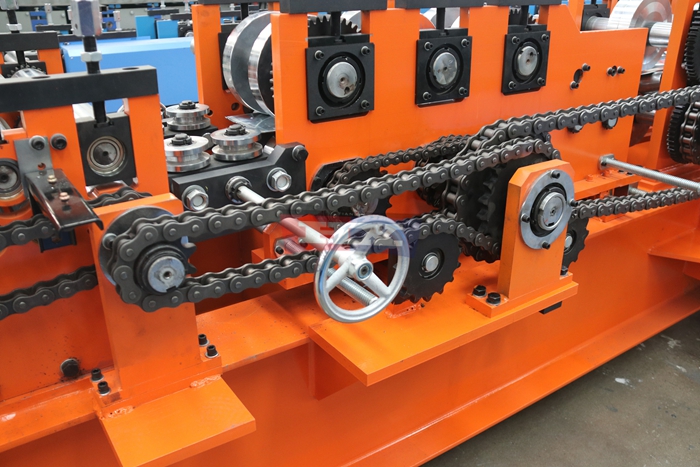

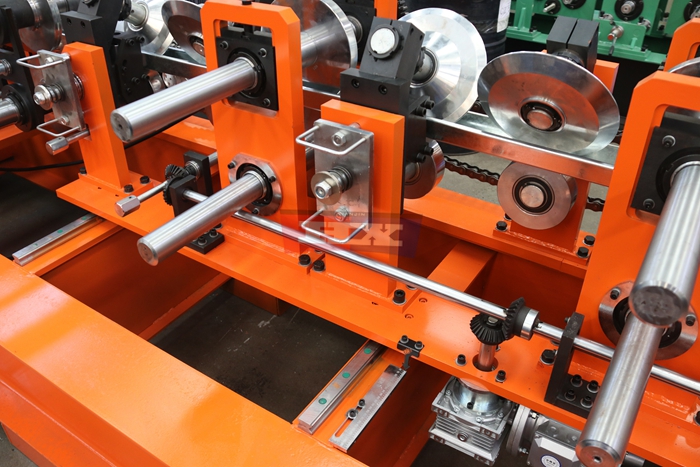

Adjustable Forming System for Multiple C/U Profile Sizes
In addition to changing between C and U profile types, the forming system can be configured to accommodate different supported section dimensions. Important profile parameters include web height, flange width, lip dimensions where applicable, and finished profile length.

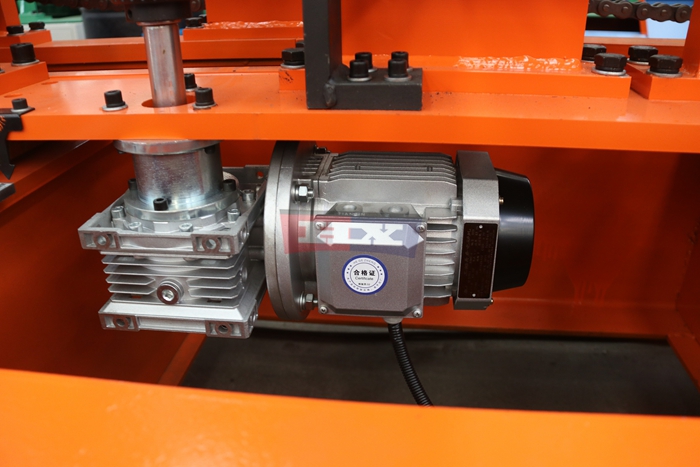

Depending on the selected equipment design, automatic size adjustment functions may allow operators to select supported dimensions through the control interface. Motorized mechanisms can then reposition relevant forming components according to programmed settings.
This flexibility is useful for manufacturers supplying steel profiles to warehouses, industrial workshops, prefabricated buildings and other structural steel projects.
The actual adjustment range, compatible steel thickness and permitted profile geometries depend on the final machine specifications.

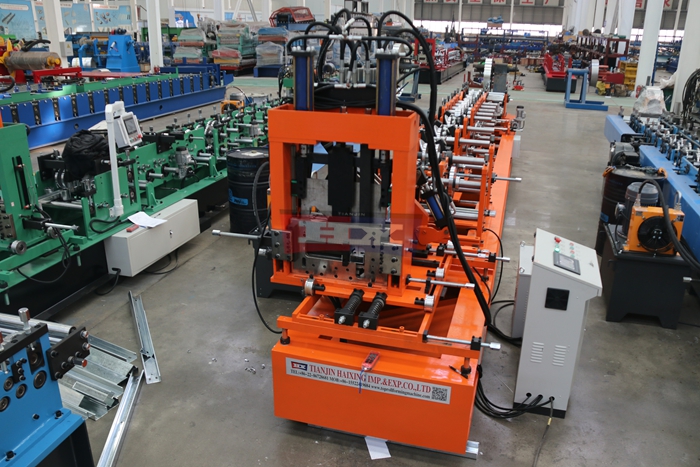

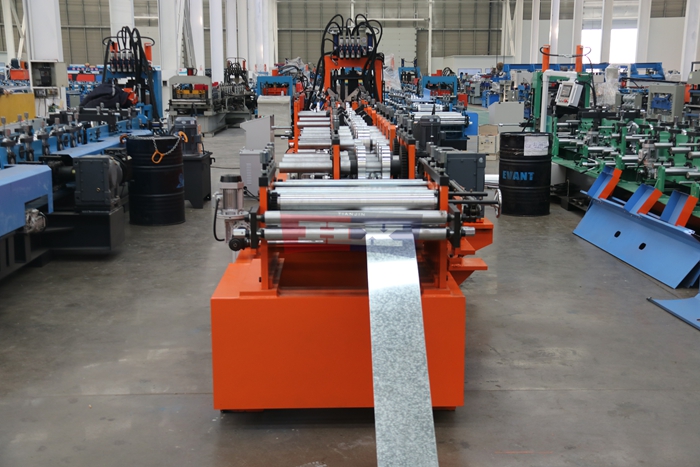

Automatic C/U Purlin Roll Forming Process
A typical automatic C/U purlin production line consists of a decoiler, material guiding section, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching equipment can be considered when the finished profiles require mounting holes.
During production, steel coil material is fed into the forming section and passes through successive roller stations. The rollers progressively bend the steel strip into the selected C-shaped purlin or U-shaped channel cross-section.

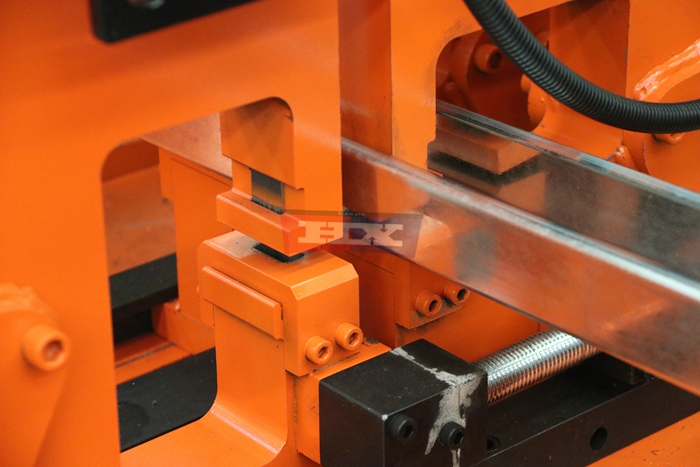

After forming, the finished steel profiles are cut to the required length. Depending on the selected control system, operators may manage profile settings, cutting length and production quantity through the machine interface.
The punching arrangement, cutting method and complete processing sequence depend on the approved equipment configuration.
Customized C/U Purlin Dimensions and Steel Materials
The automatic changeover C U purlin machine can be configured according to customers’ structural steel profile requirements. Important technical parameters include section height, flange width, lip dimensions where applicable, material thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials may be used when their thickness and mechanical properties meet the approved machine specifications. Material grade, yield strength and coating requirements should be reviewed before equipment manufacturing.
Haixing can evaluate C purlin and U channel drawings or samples to discuss suitable forming roller arrangements, automatic changeover functions, size adjustment options, punching configurations and cutting systems.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a variety of structural steel applications, including industrial warehouses, manufacturing workshops, prefabricated buildings, agricultural facilities and commercial steel structures.
C purlins are commonly specified as secondary structural members in roof and wall framing systems. U-shaped channels may be used for compatible structural framing, support and connection arrangements according to the building’s engineering requirements.
The appropriate profile type, section dimensions and steel grade depend on the structural design of each project.
Automation and Production Line Configuration
Before selecting an automatic changeover C U purlin machine, manufacturers should confirm the required C/U profile range, steel thickness, changeover method, dimensional adjustment functions, punching requirements, cutting system and expected production capacity.
Depending on the selected equipment configuration, automation functions may include C/U profile selection, profile size settings, production length control, quantity counting and other production management features.
Factory layout, steel coil handling, material feeding and finished profile collection should also be considered when planning the complete manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin production facility or upgrading an existing workshop, Haixing can discuss suitable equipment solutions based on your profile requirements and manufacturing objectives.
Request an Automatic Changeover C/U Purlin Machine Quotation
Looking for an automatic changeover C U purlin machine for your structural steel manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile dimensions, steel thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
