Automatic C U Purlin Changeover Machine | Haixing

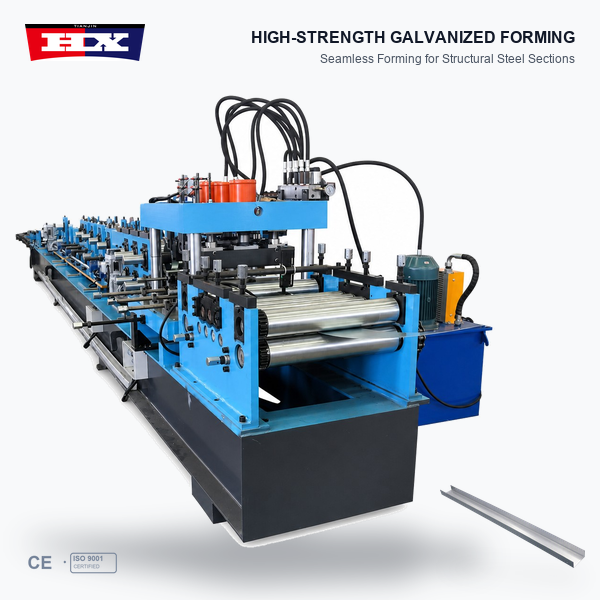

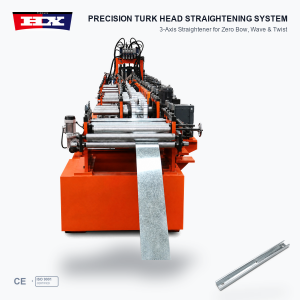

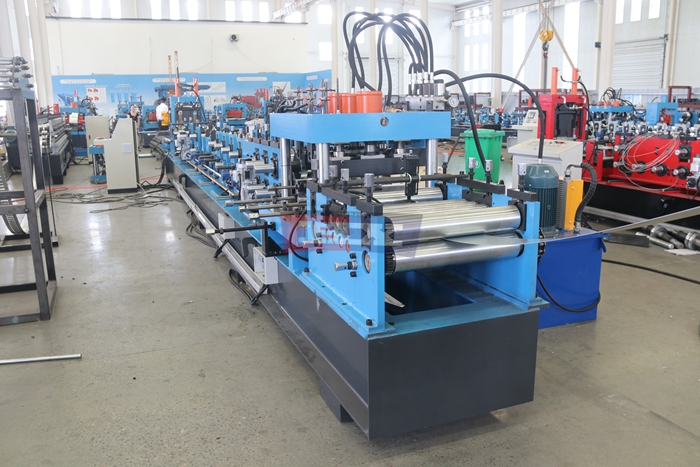

The automatic C U purlin changeover machine from Haixing is designed for manufacturing cold-formed C-shaped steel purlins and U-shaped steel channels used in structural steel construction. Featuring an automatic C/U profile changeover system and adjustable forming functions, this equipment supports manufacturers producing different steel profile types and dimensions on a single production line.
Steel structure manufacturers often need to produce multiple profile specifications for warehouses, industrial workshops, prefabricated buildings and commercial construction projects. A combined C/U purlin machine provides a flexible manufacturing solution for processing supported C-shaped and U-shaped sections without requiring separate dedicated forming lines for every profile type.
Haixing offers customized C/U purlin roll forming solutions based on customers’ profile drawings, steel material specifications, automation requirements and production objectives.
Automatic Changeover Between C Purlin and U Channel Profiles
A key feature of the automatic C U purlin changeover machine is its ability to switch between C-shaped purlin and U-shaped channel production through the designed automatic changeover system.
C purlins and U channels have different cross-sectional geometries and may be specified for different structural framing applications. The automatic changeover mechanism adjusts the relevant forming components according to the selected profile type and approved machine configuration.
This functionality is useful for manufacturers processing different structural steel profile orders. It helps organize production changeovers while maintaining compatibility with the supported profile specifications.
The actual changeover procedure, required operator actions and supported profile dimensions depend on the final equipment design.
Automatic Size Adjustment for Multiple C/U Steel Profile Specifications
Steel construction projects often require C-shaped and U-shaped profiles with different web heights, flange widths, material thicknesses and finished lengths. An automatic size adjustment system helps manufacturers prepare the production line for different supported C/U profile specifications.
Depending on the approved machine design, the control system coordinates motorized adjustment mechanisms to reposition relevant forming components for the selected profile dimensions.
The available adjustment range, compatible steel thickness and setup requirements should be confirmed according to the final technical specifications.
How the Automatic C/U Purlin Production Process Works

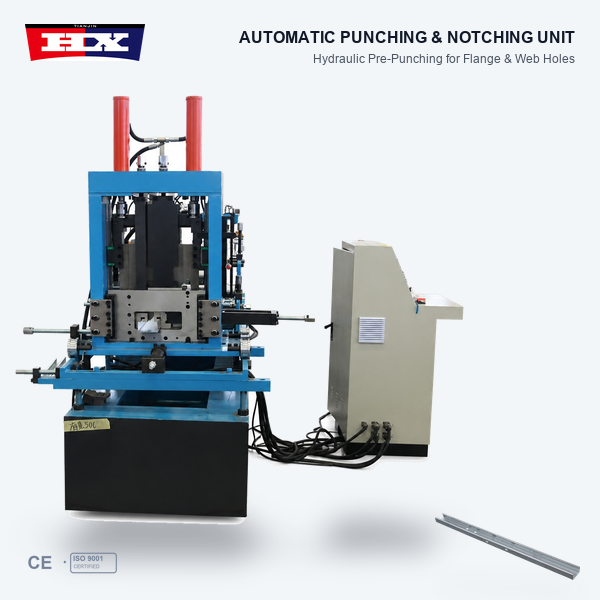

A typical automatic C/U purlin production line includes a decoiler, material guiding system, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching or additional processing equipment may be integrated according to the required structural profile design.

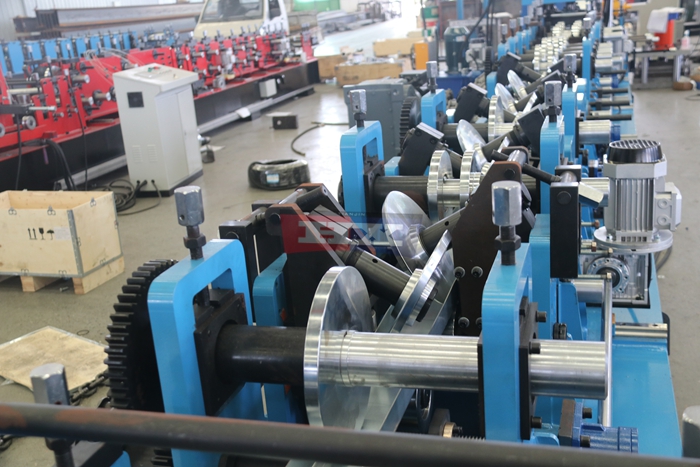

During production, steel coil material is fed into the forming section, where successive roller stations gradually shape the steel strip into the required C-shaped purlin or U-shaped channel cross-section.

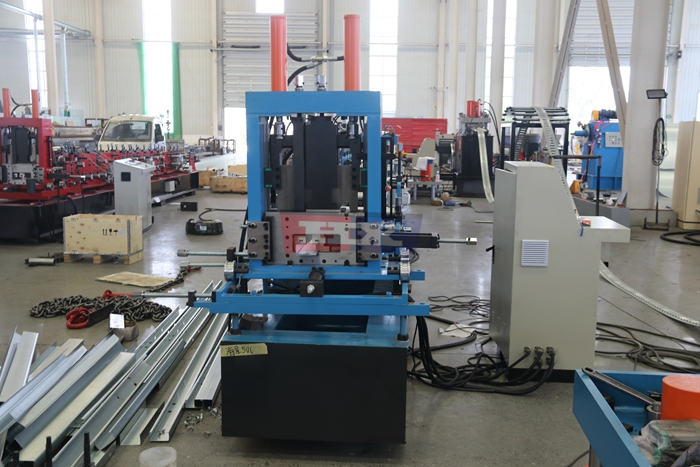

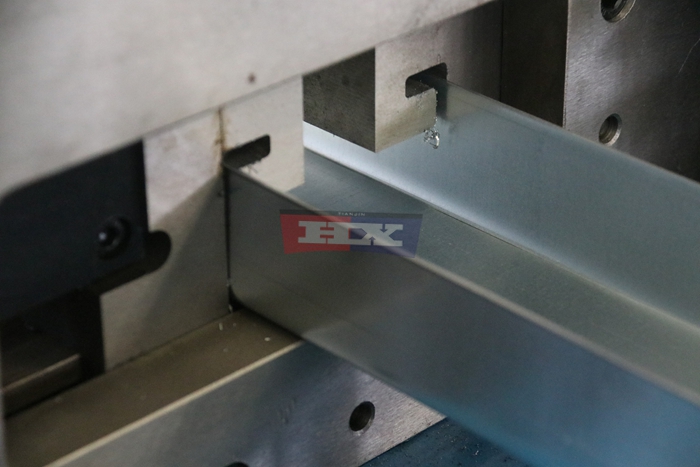

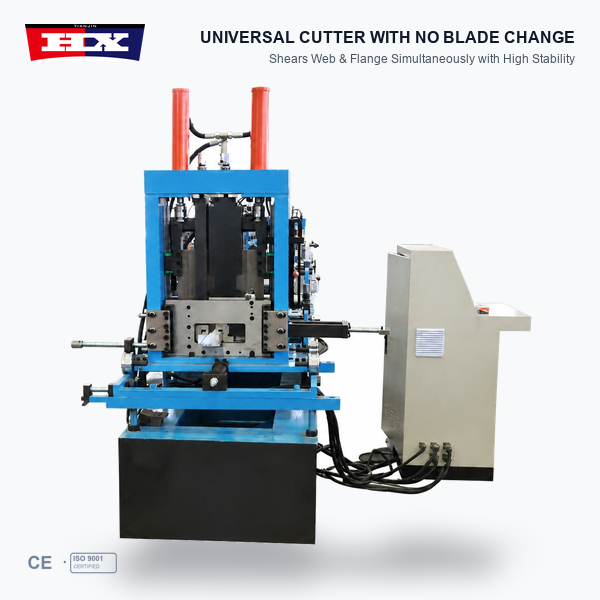

After forming, the finished steel profiles are cut to the specified length. The cutting method, optional punching arrangement and processing sequence depend on the approved equipment configuration.

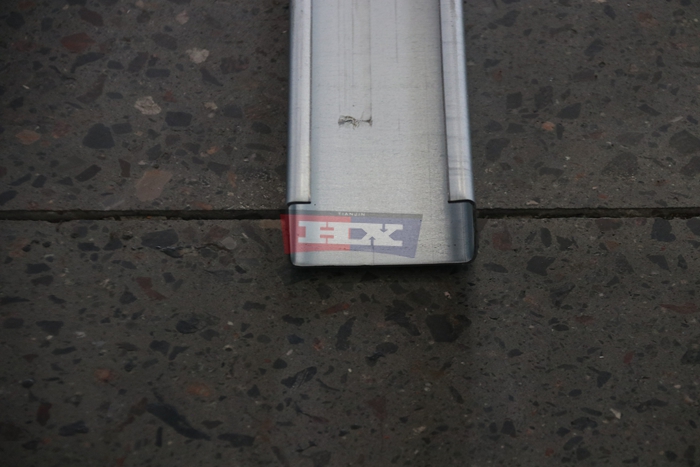

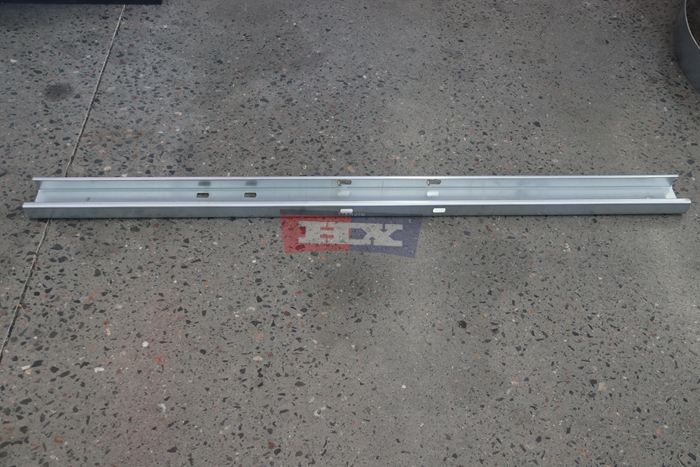

Customized C Purlin and U Channel Profiles
The automatic C U purlin changeover machine can be configured according to different structural steel profile requirements. Important specifications include web height, flange width, lip dimensions where applicable, material thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the machine design. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings to discuss suitable forming roller arrangements, automatic changeover functions, size adjustment systems and optional processing equipment.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a variety of structural steel applications, including industrial warehouses, prefabricated steel buildings, manufacturing workshops, agricultural facilities and commercial construction projects.
C-shaped purlins are commonly used as secondary structural members in roof and wall framing systems. U-shaped channels may be specified for compatible support, framing and connection applications according to the approved building design.
The appropriate profile type, material thickness and section dimensions depend on the structural engineering requirements of each project.
Automation and Production Planning
Before selecting an automatic C U purlin changeover machine, manufacturers should confirm the required C/U profile range, steel material thickness, automatic changeover method, size adjustment functions, optional punching requirements, cutting system and expected production capacity.

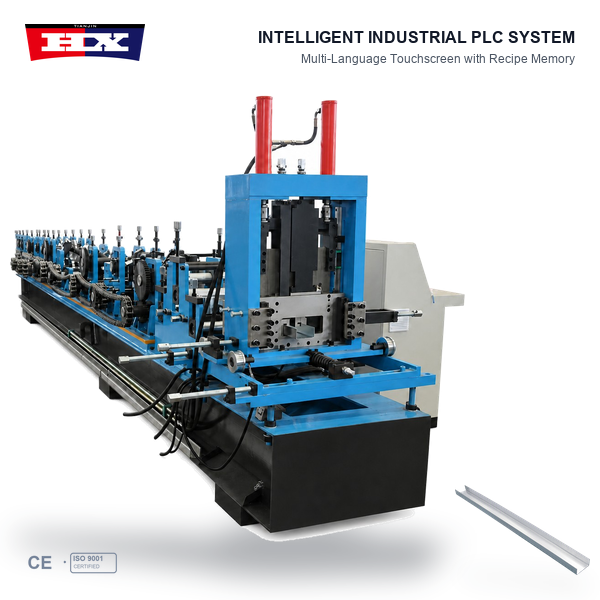

Depending on the selected control system, automation functions may include C/U profile selection, dimensional settings, production length control and quantity counting.
Factory layout, steel coil handling and finished profile collection should also be considered when planning the complete steel profile manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming machinery for structural steel and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or upgrading an existing production facility, Haixing can discuss suitable equipment solutions based on your manufacturing requirements.
Request an Automatic C/U Purlin Changeover Machine Quotation
Looking for an automatic C U purlin changeover machine for your structural steel profile manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile sizes, steel thickness, optional punching requirements and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
