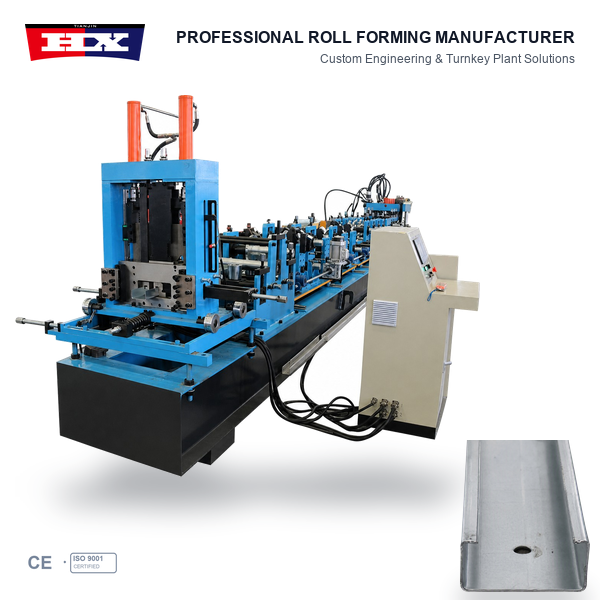

The fully automatic C U purlin forming machine from Haixing is designed for manufacturing cold-formed C-shaped steel purlins and U-shaped steel channels used in structural building applications. Featuring automatic C/U profile changeover and adjustable forming functions, this equipment supports manufacturers producing multiple steel profile specifications for different construction projects.
C-shaped purlins and U-shaped channels are used in a variety of steel structure applications, including industrial workshops, warehouses, prefabricated buildings and compatible roof or wall framing systems. For steel profile manufacturers handling different customer requirements, an automatic C/U roll forming system provides a flexible solution for producing different supported profile types and dimensions.
Haixing offers customized equipment configurations based on customers’ C/U profile drawings, steel material specifications, required automation functions and production objectives.
Automatic Changeover Between C Purlin and U Channel Profiles
A key feature of the fully automatic C U purlin forming machine is its ability to switch between C-shaped purlin and U-shaped channel production through the designed automatic changeover system.
C and U steel profiles have different cross-sectional geometries and may serve different structural framing purposes. The automatic changeover mechanism adjusts relevant forming components according to the selected profile type within the machine’s approved configuration.
This feature is useful for manufacturers producing multiple steel channel and purlin specifications. The actual changeover procedure, required operator actions and supported profile dimensions depend on the final equipment specifications.

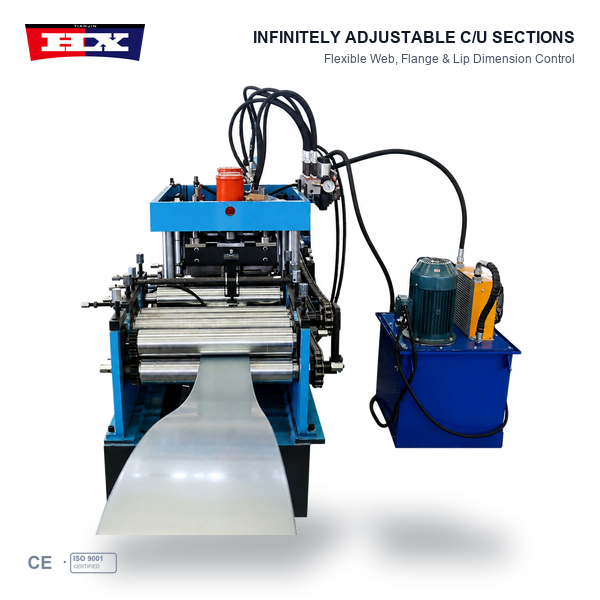

Automatic Size Adjustment for Multiple C/U Steel Profile Dimensions
Different steel construction projects require C-shaped and U-shaped sections with various web heights, flange widths, material thicknesses and finished lengths. An adjustable forming system allows manufacturers to prepare production settings for different supported C/U profile specifications.

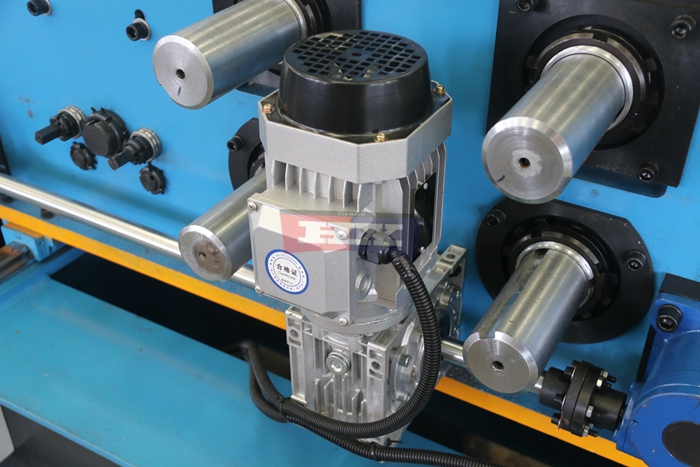

Depending on the approved machine design, automatic size adjustment functions can be coordinated through the control system and motorized adjustment mechanisms, reducing the need for extensive manual adjustments between supported profile sizes.
The actual adjustment range, compatible material thickness and setup requirements depend on the final forming roller design and technical specifications.
How the Automatic C/U Purlin Roll Forming Process Works

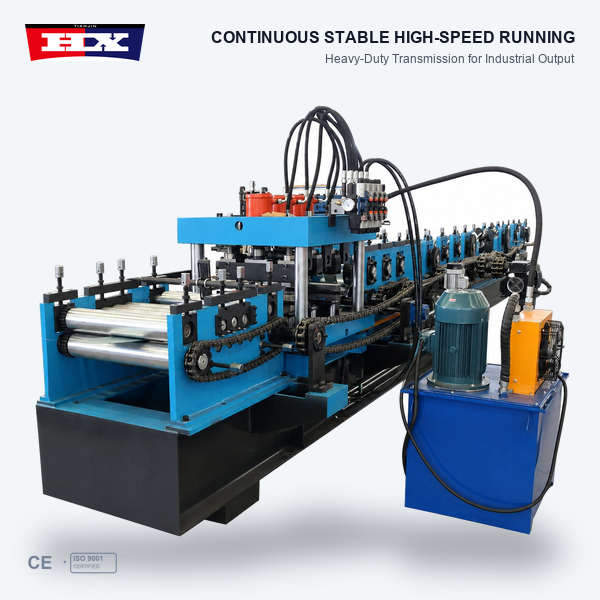

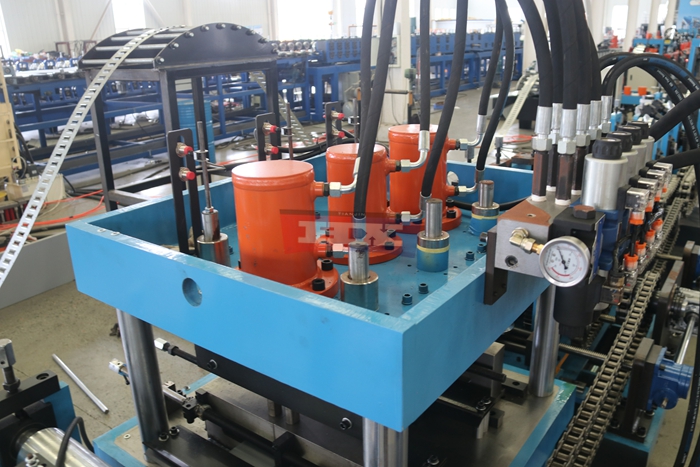

A typical automatic C/U purlin production line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching or additional processing equipment may be integrated according to the required structural profile design.

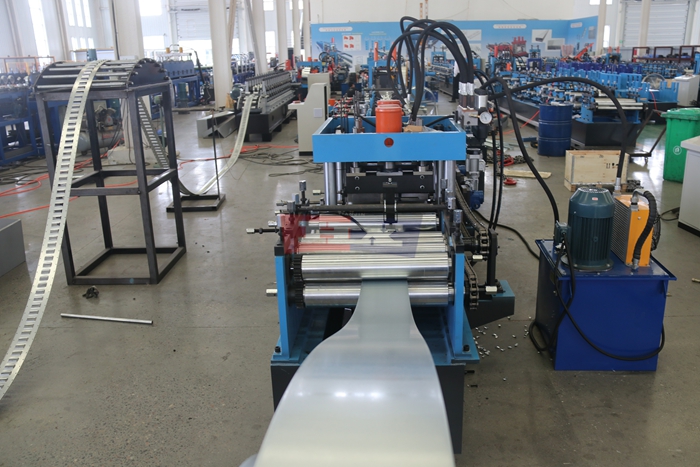

During operation, steel coil material is fed into the forming section, where successive roller stations gradually shape the steel strip into the selected C-shaped purlin or U-shaped channel cross-section.
After forming, the finished profiles are cut to the specified length. The cutting method, optional punching arrangement and production sequence depend on the approved machine configuration.
Customized C Purlin and U Channel Profiles

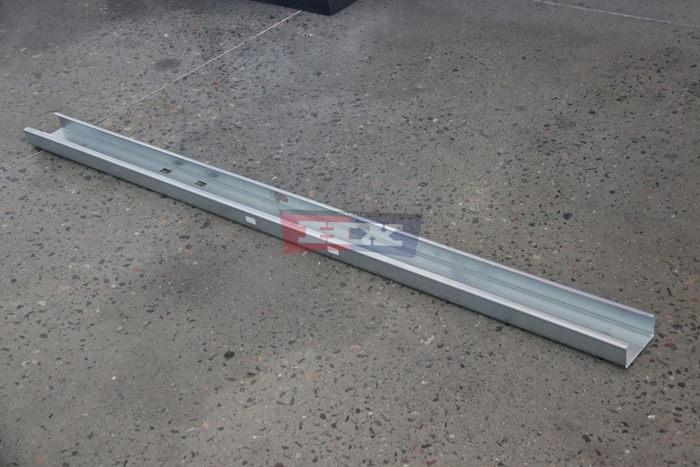

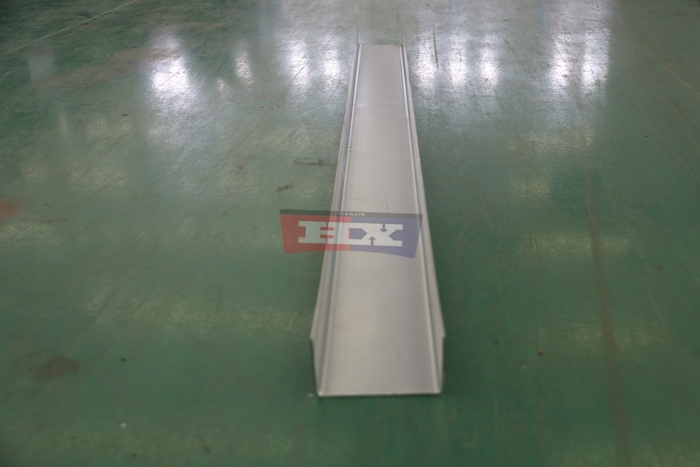

The fully automatic C U purlin forming machine can be configured according to customers’ structural steel profile requirements. Important specifications include profile web height, flange dimensions, lip dimensions where applicable, steel thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the machine design. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings to discuss suitable forming roller arrangements, automatic changeover functions, size adjustment systems and optional processing equipment.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a variety of steel building applications, including industrial warehouses, prefabricated steel structures, manufacturing workshops, agricultural facilities and commercial construction projects.
C-shaped purlins are commonly used as secondary structural members in roof and wall framing systems. U-shaped channels may be specified for compatible support, framing and connection applications according to the approved building design.
The appropriate profile type, steel thickness and section dimensions depend on the structural engineering requirements of each project.
Machine Automation and Production Planning
Before selecting a fully automatic C U purlin forming machine, manufacturers should confirm the required C/U profile range, steel material thickness, automatic changeover method, size adjustment functions, optional punching requirements, cutting system and expected production capacity.
Depending on the selected control system, automated functions may include C/U profile selection, dimensional settings, production length control and quantity counting.
Factory layout, steel coil handling and finished profile collection should also be considered when planning the complete structural steel profile production line.
Why Choose Haixing?
Haixing supplies roll forming machinery for structural steel and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or upgrading an existing production line, Haixing can discuss suitable equipment solutions based on your manufacturing requirements.
Request a Fully Automatic C/U Purlin Forming Machine Quotation
Looking for a fully automatic C U purlin forming machine for your structural steel profile manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile sizes, steel thickness, optional punching requirements and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
