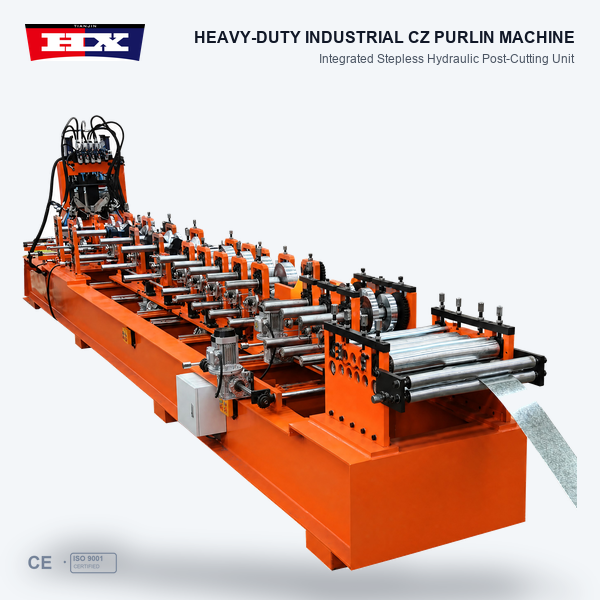

Fully Automatic C U Purlin Machine | Haixing
The fully automatic C U purlin machine from Haixing is designed to manufacture cold-formed C-shaped steel purlins and U-shaped steel channels for structural steel construction. Combining automatic C/U profile changeover, adjustable roll forming components and an integrated control system, this equipment supports manufacturers producing different structural steel profiles within the approved machine configuration.
Steel structure manufacturers frequently receive orders requiring different section heights, flange widths and finished lengths. A fully automatic C/U forming system helps simplify production planning by allowing operators to select supported profile types and dimensions through the machine control interface.
Haixing provides customized C/U purlin manufacturing solutions based on customers’ profile drawings, steel material specifications, required automation functions and production objectives.
Automatic Changeover Between C Purlins and U Channels
One of the main features of the fully automatic C U purlin machine is its ability to manufacture both C-shaped purlins and U-shaped steel channels within a single supported forming system.

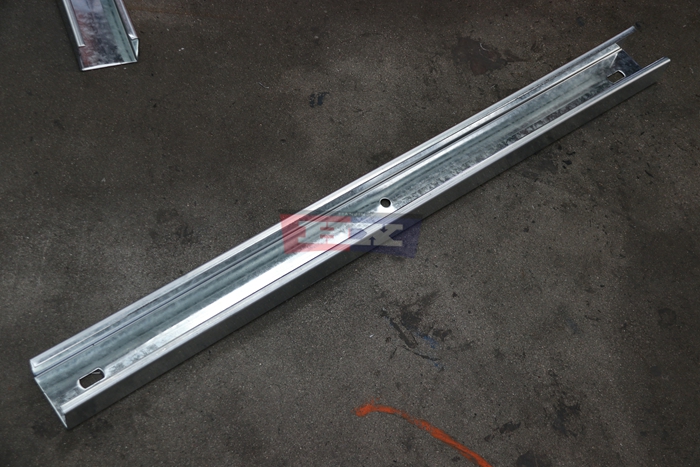

C-shaped purlins are commonly used as secondary structural members in steel building roof and wall framing systems. U-shaped channels may be specified for compatible structural support, framing and connection applications according to the approved building design.
The automatic C/U changeover mechanism adjusts relevant forming components according to the selected profile geometry. This allows manufacturers to organize production of different C and U sections without installing a separate dedicated machine for each supported profile type.
The actual changeover sequence, required operator actions and available profile range depend on the approved machine configuration.

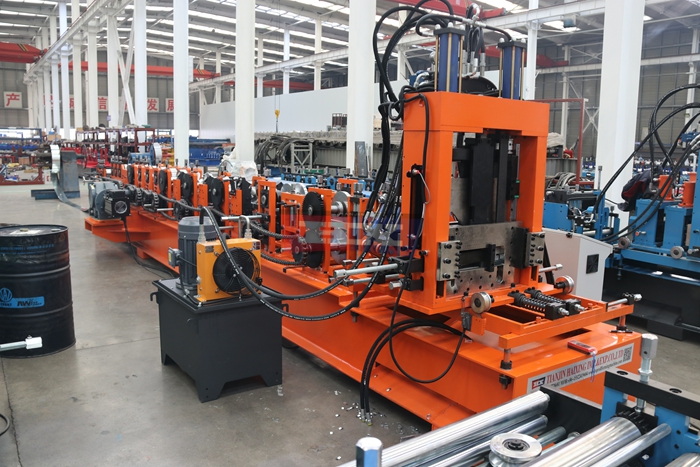

Automatic Size Adjustment for Multiple Steel Profile Specifications
Steel building projects often require structural profiles with different web heights, flange widths, lip dimensions where applicable, and finished lengths. An automatic size adjustment system helps operators prepare the machine for different supported C/U profile specifications.

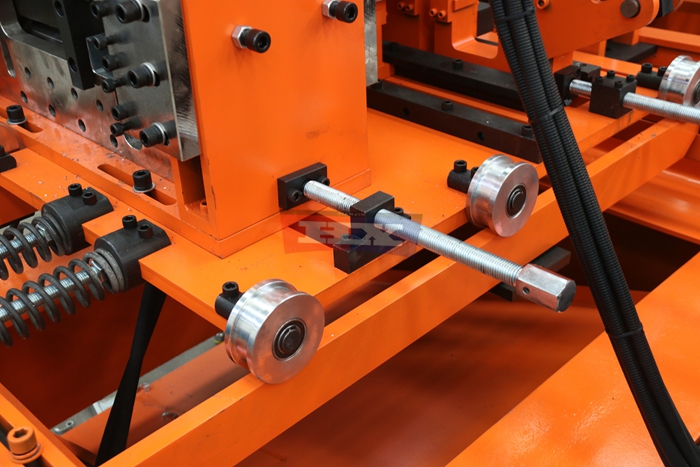

Depending on the selected equipment design, motorized adjustment mechanisms can reposition forming components through programmed control settings. This helps reduce repetitive manual adjustment when changing between compatible profile dimensions.
Automatic size adjustment is particularly useful for manufacturers processing orders for warehouses, industrial workshops and prefabricated steel buildings that require different structural steel sections.
The actual size range, adjustable dimensions and supported steel thickness should be confirmed according to the customer’s profile drawings and final machine specifications.

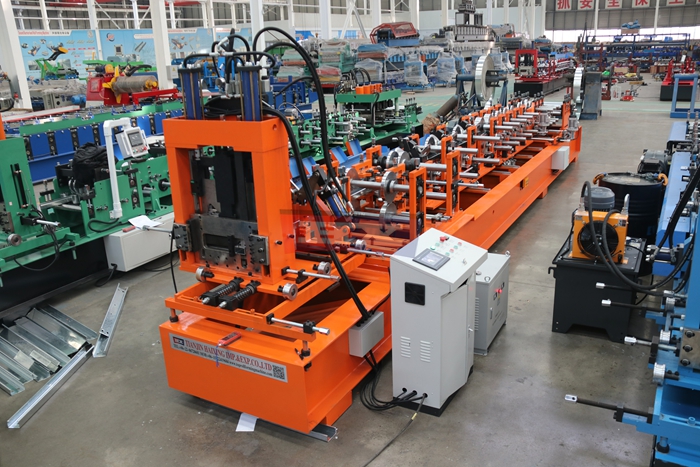

Integrated Automatic C/U Purlin Production Process

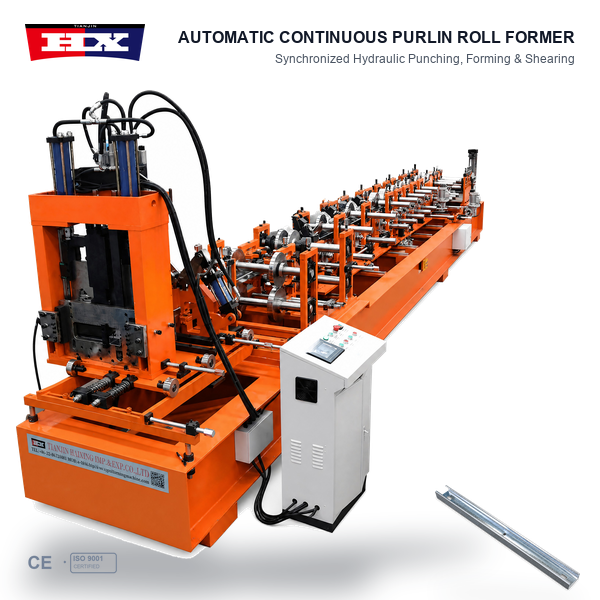

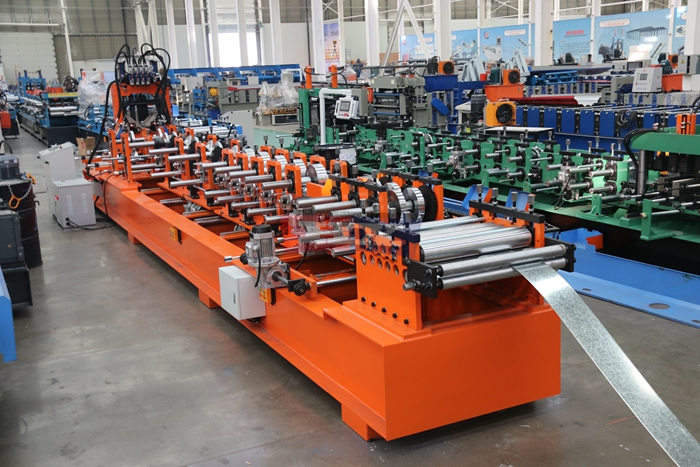

A typical fully automatic C/U purlin production line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching equipment may be integrated according to the required profile drawings.

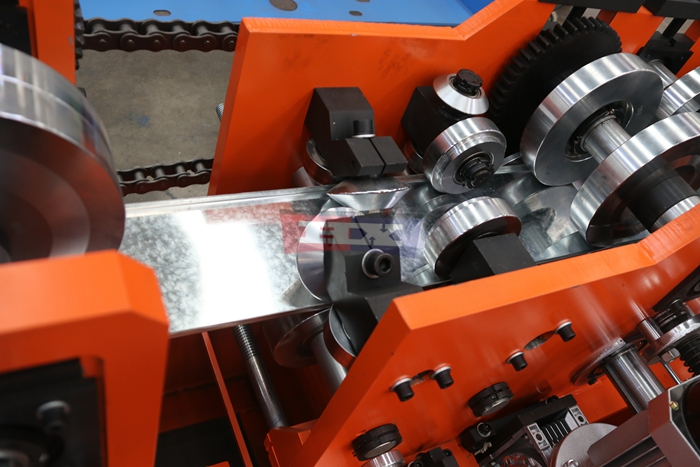

During operation, steel coil material enters the forming section and passes through successive roller stations. These rollers progressively bend the steel strip into the required C-shaped purlin or U-shaped channel cross-section.

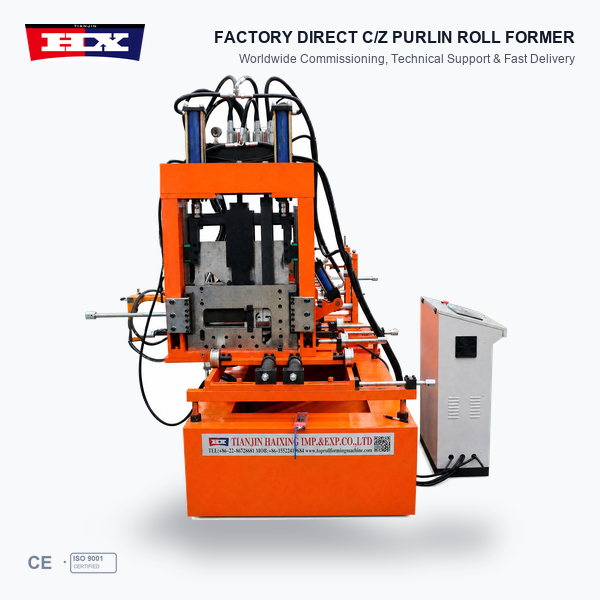

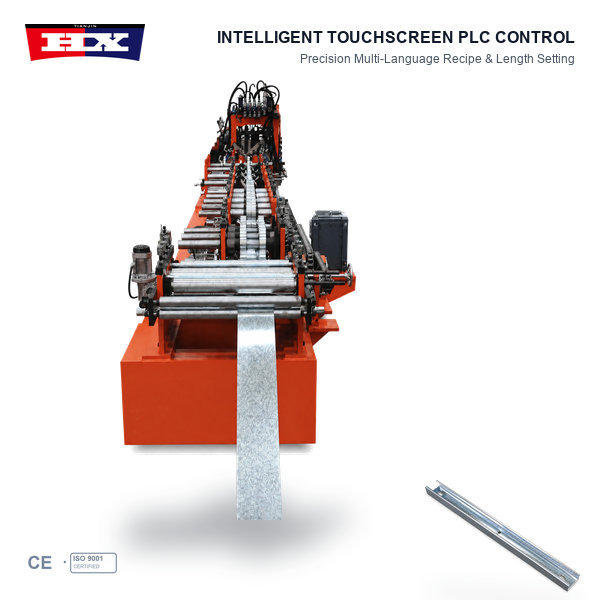

After forming, the finished profiles are cut to the specified length. Depending on the selected control system, operators may manage profile selection, dimensional settings, cutting length and production quantity through the machine interface.

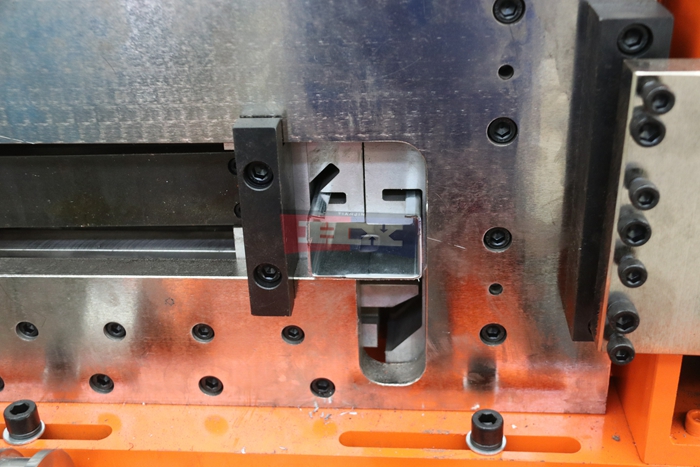

The cutting method, optional punching arrangement and complete production sequence depend on the approved equipment design.
Customized C/U Purlin Dimensions and Steel Materials
The fully automatic C U purlin machine can be configured according to customers’ structural steel profile requirements. Important specifications include web height, flange width, lip dimensions where applicable, material thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the approved machine specifications. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings or samples to discuss suitable forming roller arrangements, automatic adjustment functions, optional punching equipment and cutting configurations.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a wide range of structural steel applications, including industrial warehouses, manufacturing workshops, prefabricated buildings, agricultural facilities and commercial steel structures.
C purlins are commonly specified as secondary structural members in roof and wall framing systems. U-shaped channels may be used for compatible support, framing and connection applications according to the building’s structural engineering requirements.
For manufacturers supplying different construction projects, a flexible C/U purlin forming system supports production of multiple approved profile specifications on one manufacturing line.
Machine Automation and Production Planning
Before selecting a fully automatic C U purlin machine, manufacturers should confirm the required C/U profile range, steel thickness, automatic changeover method, dimensional adjustment functions, punching requirements, cutting system and expected production capacity.
Depending on the selected equipment configuration, automation functions may include C/U profile selection, profile size settings, production length control, quantity counting and other production management features.
Factory layout, steel coil handling, material feeding and finished profile collection should also be considered when planning the complete production line.
Why Choose Haixing?
Haixing supplies roll forming machinery for structural steel and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or upgrading an existing structural steel profile production facility, Haixing can discuss suitable equipment solutions based on your manufacturing requirements.
Request a Fully Automatic C/U Purlin Machine Quotation
Looking for a fully automatic C U purlin machine for your structural steel manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile dimensions, steel thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
