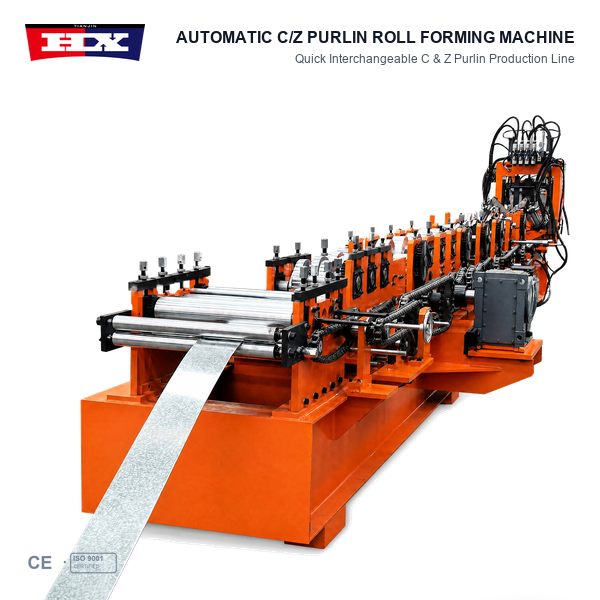

Automatic Size Changing C U Purlin Machine | Haixing
The automatic size changing C U purlin machine from Haixing is designed to manufacture C-shaped steel purlins and U-shaped steel channels in different dimensions for structural steel construction. By combining adjustable roll forming components, automatic production controls and C/U profile changeover functions, this equipment helps manufacturers handle multiple structural steel profile specifications on a single production line.
Steel building projects frequently require different profile heights, flange widths, material thicknesses and finished lengths. A size-adjustable C/U purlin forming system provides a practical solution for manufacturers supplying steel warehouses, industrial workshops, prefabricated buildings and other structural framing projects.
Haixing offers customized equipment configurations based on customers’ profile drawings, material properties, required size adjustment functions and production objectives.

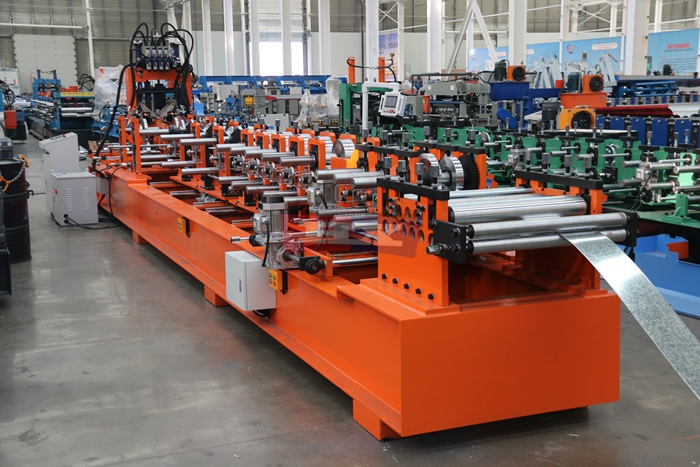

Automatic Size Adjustment for Different C/U Profiles
A major advantage of the automatic size changing C U purlin machine is its ability to adjust the forming system for different supported profile dimensions. This is especially useful for manufacturers producing C purlins and U channels for multiple steel construction projects.
Depending on the selected machine configuration, the automatic adjustment system can coordinate motorized movements of relevant forming components according to programmed profile settings.
Operators can select the required profile specifications through the control interface, while the adjustment system prepares the machine for the supported dimensions. The exact adjustable parameters, operating sequence and degree of automation depend on the approved equipment design.
Automatic size adjustment can reduce repetitive manual setup work when changing between compatible profile specifications. Customers should provide detailed drawings to confirm the available size range and material thickness.
Flexible C Purlin and U Channel Production
The machine is designed to manufacture both C-shaped steel purlins and U-shaped steel channels within its supported forming configuration.
C purlins are commonly used as secondary structural members in roof and wall framing systems. U-shaped channels may be specified for compatible structural framing, support and connection applications according to the approved building design.

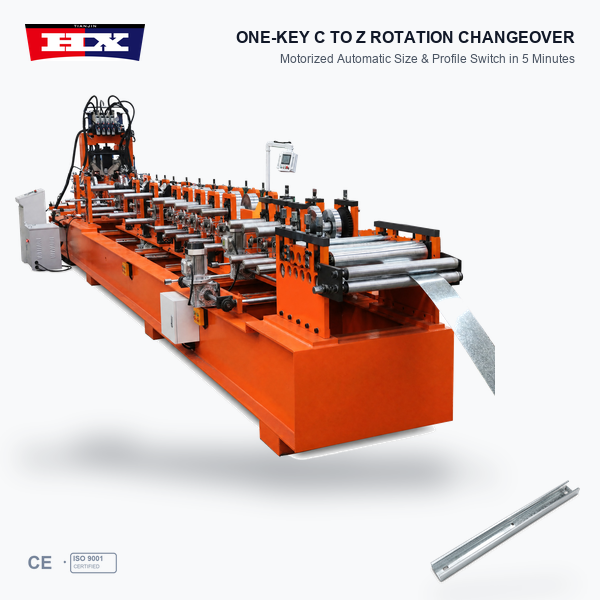

The C/U changeover arrangement adjusts the relevant forming components to accommodate the required profile geometry. Depending on the final configuration, this process may be coordinated through the automatic control system.
The actual changeover method and supported C/U profile dimensions should be confirmed in the technical proposal.
How the Automatic C/U Purlin Forming Process Works

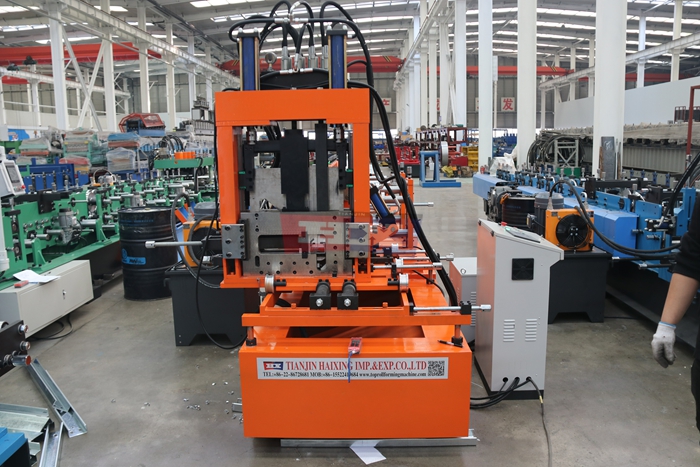

A typical automatic C/U purlin production line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching equipment may be included when the finished steel profiles require mounting holes.

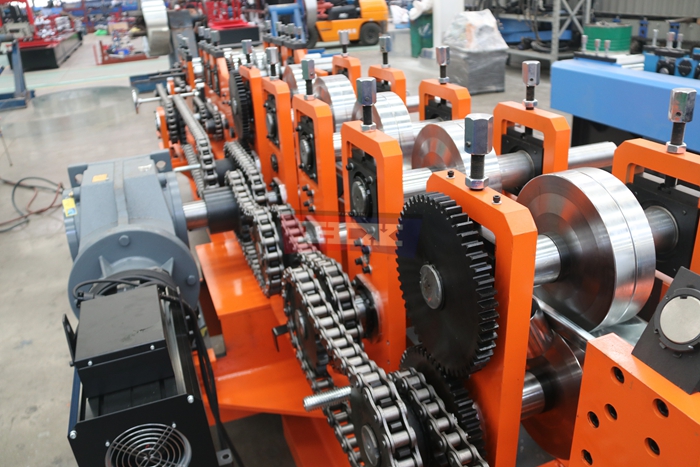

During operation, steel coil material enters the forming section and passes through successive roller stations. The rollers progressively bend the steel strip into the required C-shaped purlin or U-shaped channel cross-section.
After forming, the finished profiles are cut to the specified length. Depending on the selected control system, operators may manage profile settings, production length and quantity through the machine interface.

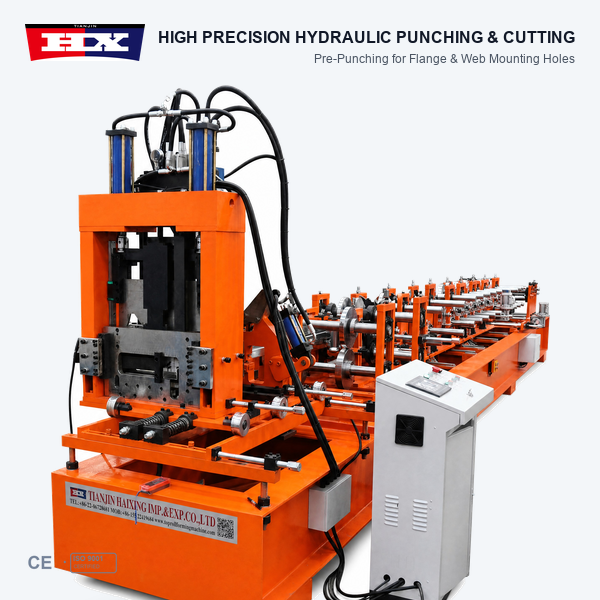

The punching arrangement, cutting method and processing sequence depend on the approved machine design.
Customized Profile Dimensions and Steel Materials

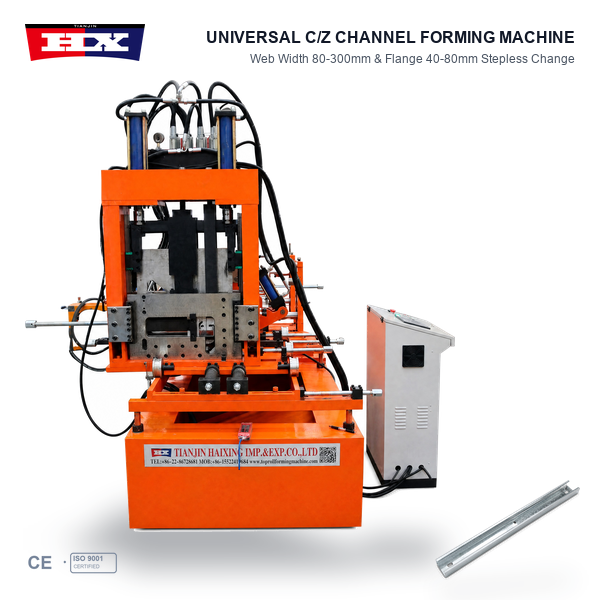

The automatic size changing C U purlin machine can be configured according to customers’ required structural steel profile specifications. Important parameters include web height, flange width, lip dimensions where applicable, material thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the approved machine specifications. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings or samples to discuss suitable forming roller arrangements, automatic adjustment functions, punching options and cutting configurations.
Applications in Steel Structure Manufacturing
C-shaped purlins and U-shaped channels can be manufactured for a range of structural steel applications, including industrial warehouses, manufacturing workshops, prefabricated buildings, agricultural facilities and commercial steel structures.
C purlins are commonly used as secondary structural members in suitable roof and wall systems. U channels may serve compatible framing, support and connection functions according to the building’s engineering design.
For manufacturers handling different customer orders, an adjustable C/U purlin forming system supports flexible production of multiple approved steel profile dimensions.
Automation and Production Configuration
Before selecting an automatic size changing C U purlin machine, manufacturers should confirm the required C/U profile range, steel thickness, dimensional adjustment method, profile changeover functions, punching requirements, cutting system and expected production capacity.
Depending on the selected equipment configuration, automation functions may include profile selection, size adjustment settings, production length control, quantity counting and other production management features.
Factory layout, steel coil handling, material feeding and finished profile collection should also be considered when planning the complete production line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin production facility or upgrading an existing workshop, Haixing can discuss suitable equipment solutions based on your profile requirements and manufacturing objectives.
Request an Automatic Size Changing C/U Purlin Machine Quotation
Looking for an automatic size changing C U purlin machine for your steel structure manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile dimensions, material thickness range, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
