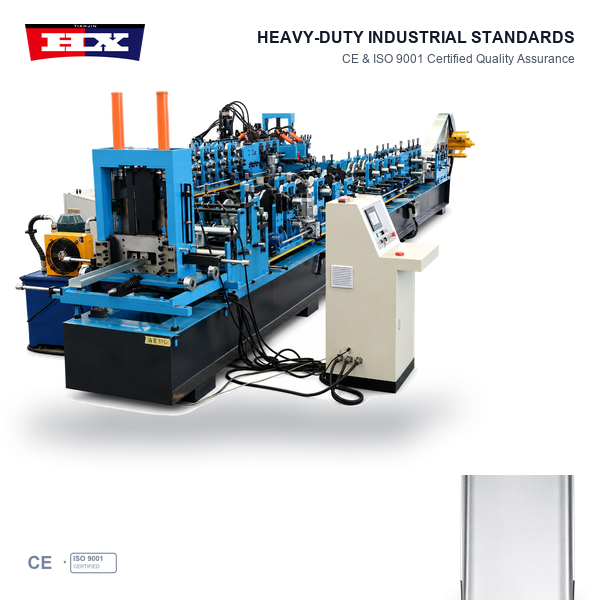

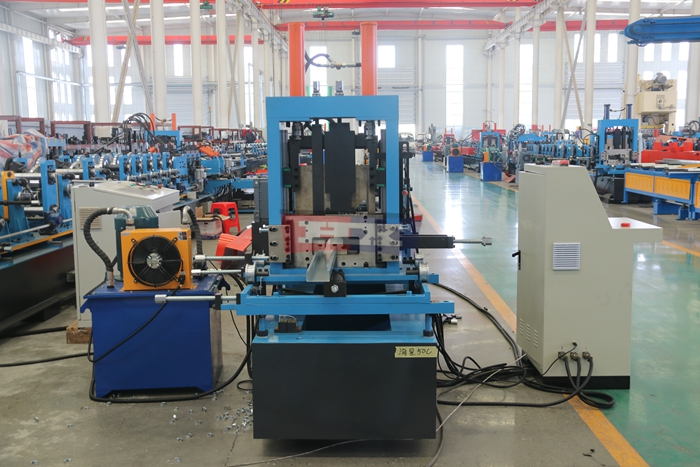

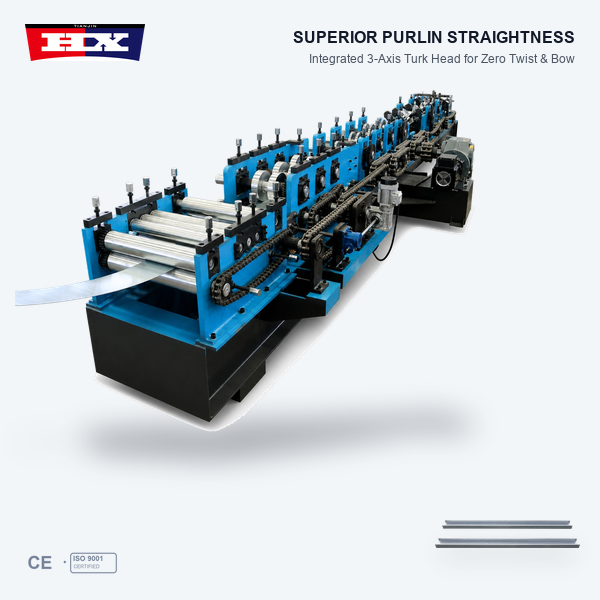

The automatic CU purlin machine from Haixing is designed to manufacture C-shaped steel purlins and U-shaped steel channels for structural building applications. By combining automatic C/U profile changeover, an adjustable roll forming system and automatic production controls, this machine provides a flexible solution for steel profile manufacturers handling different structural steel dimensions and building projects.
C purlins and U channels are used in prefabricated steel buildings, industrial warehouses, factories and compatible structural framing systems. For manufacturers that need to supply both profile types, a combined C/U purlin machine can reduce the need for separate dedicated forming lines, provided the required profiles fall within the machine’s approved production range.
Haixing offers customized equipment configurations based on customers’ C and U profile drawings, material properties, required adjustment functions and production requirements.
Combined C Purlin and U Channel Manufacturing
A major feature of the automatic CU purlin machine is its ability to produce both C-shaped purlins and U-shaped steel channels within the supported machine configuration.

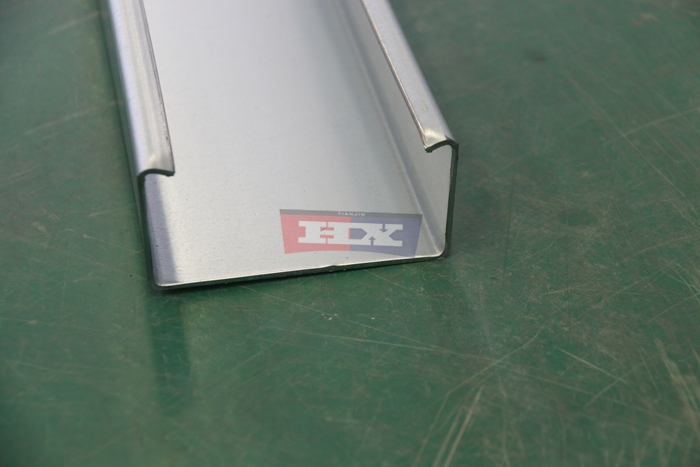

C-shaped purlins are commonly specified as secondary structural members in roof and wall framing applications. U-shaped channels may be used for compatible structural support, framing and connection applications according to the approved building design.

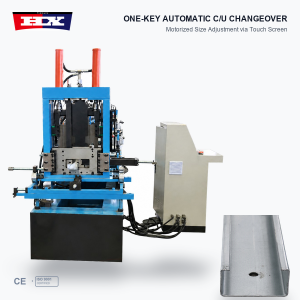

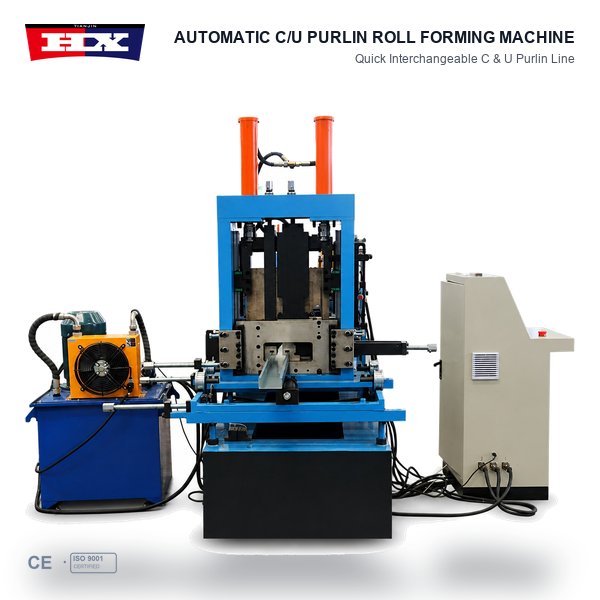

The machine’s forming arrangement is designed around the required C and U profile geometries. An automatic C/U changeover system adjusts the relevant forming components according to the selected profile type.
The actual C-to-U changeover method, adjustment sequence and supported dimensions should be confirmed in the technical proposal.
Automatic C/U Purlin Size Adjustment
Steel construction projects frequently require structural profiles with different section heights, flange widths, lip dimensions where applicable, and finished lengths. An adjustable forming system helps manufacturers prepare the production line for multiple C/U profile specifications.
Depending on the selected equipment configuration, the automatic control system can coordinate supported dimensional adjustments through motorized mechanisms and programmed settings.
Automatic size adjustment helps manufacturers organize production for different customer orders while reducing manual adjustments between supported profile dimensions.
The available size range and adjustment functions depend on the approved roller design, steel thickness and profile requirements. Manufacturers should provide detailed drawings before confirming the machine configuration.
How the Automatic CU Purlin Roll Forming Process Works

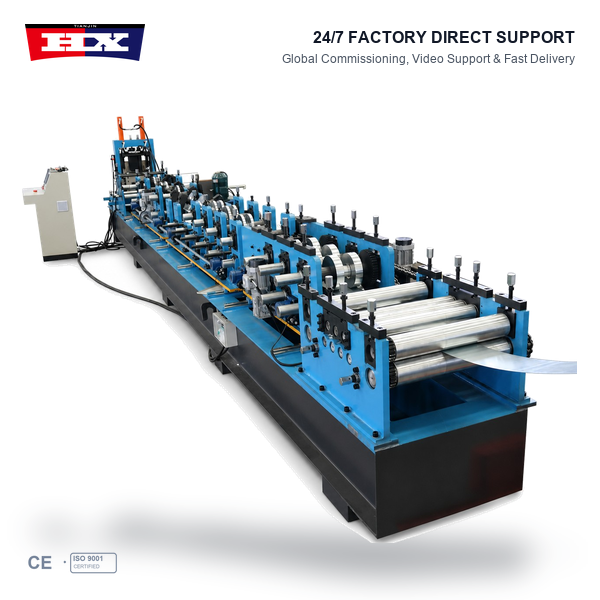

A typical automatic CU purlin production line includes a decoiler, material guiding section, roll forming stations, cutting equipment and an automatic control system. Optional punching equipment can be considered when the finished profiles require mounting holes.

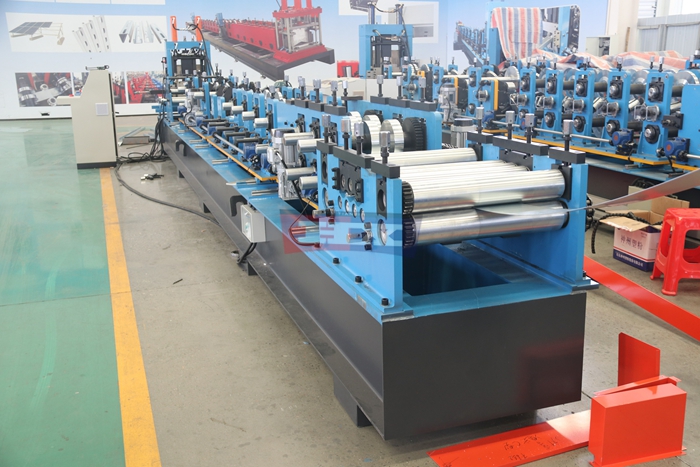

During operation, steel coil material is fed into the forming section. A sequence of roller stations progressively bends the steel strip into the required C-shaped purlin or U-shaped channel cross-section.

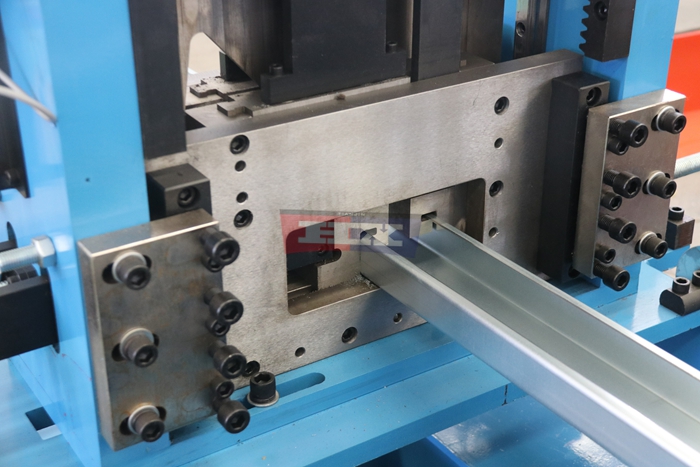

After forming, the finished profiles are cut to the specified length. The punching arrangement, cutting method and production sequence depend on the final equipment design.
Haixing can discuss these functions according to the customer’s required profile drawings and manufacturing objectives.
Customized Steel Materials and C/U Profile Dimensions
The automatic CU purlin machine can be configured for different structural steel profiles within its approved forming range. Important technical parameters include section height, flange width, lip dimensions where applicable, steel thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials may be used when their thickness and mechanical properties meet the machine’s specifications. Material grade, yield strength and coating requirements should be reviewed before equipment manufacturing.
Customers can submit C purlin and U channel drawings or samples so that Haixing can evaluate the forming roller arrangement, adjustment requirements and suitable processing options.
Applications of C Purlins and U Steel Channels

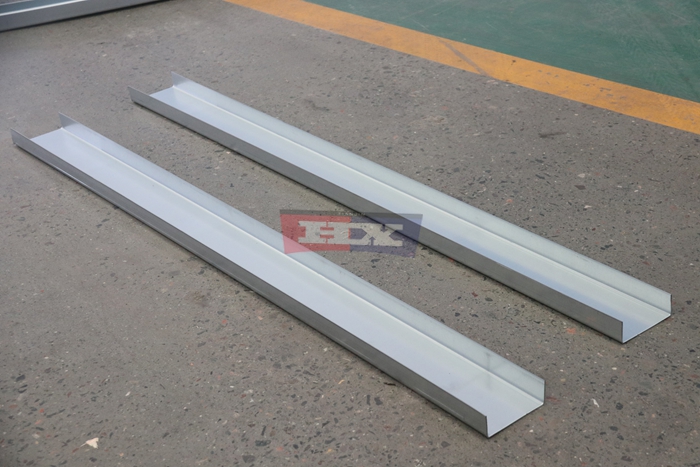

C-shaped steel purlins and U-shaped channels can be manufactured for a variety of structural steel applications, including warehouses, industrial factories, agricultural buildings, commercial steel structures and prefabricated construction projects.
C purlins serve as secondary structural members in suitable roof and wall systems. U channels may be specified for compatible structural support, framing and connection arrangements according to the building’s engineering design.
The selection of C or U sections depends on project requirements, structural loads, profile dimensions and installation arrangements.
Automation and Equipment Configuration
Before selecting an automatic CU purlin machine, manufacturers should confirm the required C/U profile range, steel thickness, dimensional adjustment method, C/U changeover requirements, optional punching configuration, cutting system and expected production capacity.
Depending on the selected control system, automation functions may include C/U profile selection, production length settings, quantity counting, profile dimension settings and other production management features.
Factory space, coil handling arrangements and finished profile collection should also be considered when planning the complete manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming equipment for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, machine configuration, equipment manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin production facility or upgrading an existing workshop, Haixing can discuss suitable equipment solutions based on your required profile dimensions and manufacturing objectives.
Request an Automatic CU Purlin Machine Quotation
Looking for an automatic CU purlin machine for your steel structure manufacturing business?
Send Haixing your C purlin and U channel drawings, material thickness range, required profile dimensions, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
