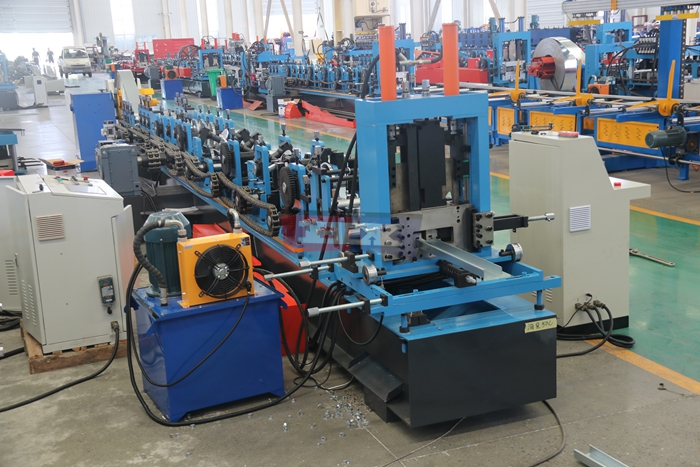

Fully Automatic C U Purlin Roll Forming Machine | Haixing
The fully automatic C U purlin roll forming machine from Haixing is designed for manufacturing cold-formed C-shaped and U-shaped steel purlin profiles used in steel structure construction. Combining automatic C/U profile changeover, adjustable forming functions and automated production control, this equipment supports manufacturers producing different structural steel sections within the approved machine configuration.
Steel building projects often require different channel and purlin dimensions for roof framing, wall support systems and secondary structural applications. A combined C/U forming machine provides a flexible manufacturing solution for processing different supported profile types on a single production line.
Haixing offers customized C/U purlin roll forming solutions based on customers’ profile drawings, steel material specifications, automation requirements and production objectives.
Automatic C and U Steel Purlin Production

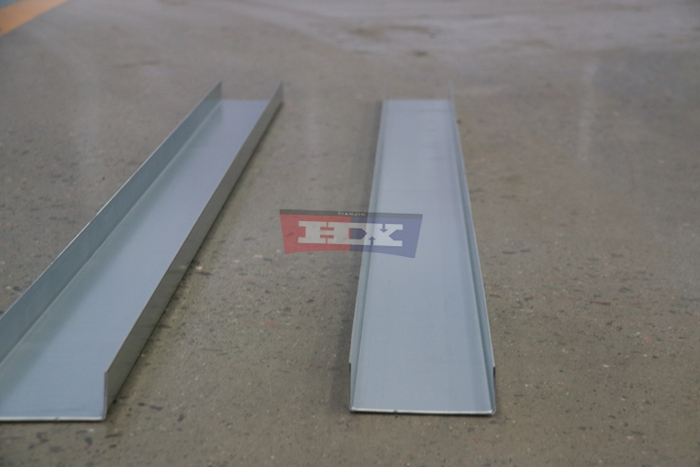

A key feature of the fully automatic C U purlin roll forming machine is its ability to manufacture both C-shaped and U-shaped steel sections within the supported equipment configuration.
C-shaped purlins are commonly used as secondary structural members in steel buildings, while U-shaped channels can be manufactured for compatible framing, support and connection applications according to the project design.
The machine’s forming system is designed around the required C and U cross-sectional geometries. Its automatic changeover system adjusts relevant forming components for the selected profile type.
The actual C-to-U changeover method, adjustment sequence and supported profile dimensions depend on the approved machine design.
Automatic Size Adjustment for Multiple C/U Profile Specifications

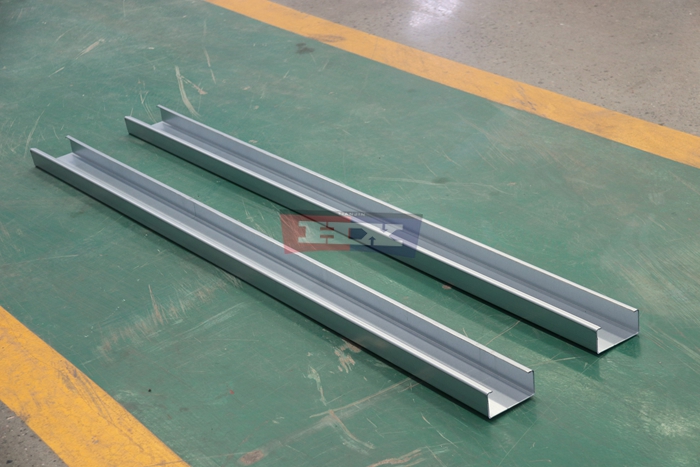

Steel structure manufacturers often need to produce C and U sections with different web heights, flange widths, material thicknesses and finished lengths. An adjustable forming system helps operators prepare the production line for different supported profile specifications.
Depending on the selected configuration, automatic size adjustment functions can be coordinated through the machine control system and associated motorized adjustment mechanisms.
This arrangement supports production planning when manufacturers handle orders requiring different steel profile dimensions. The actual adjustment range, C/U switching functions and supported material thickness should be confirmed according to the final equipment specifications.
How the Automatic C/U Purlin Production Process Works

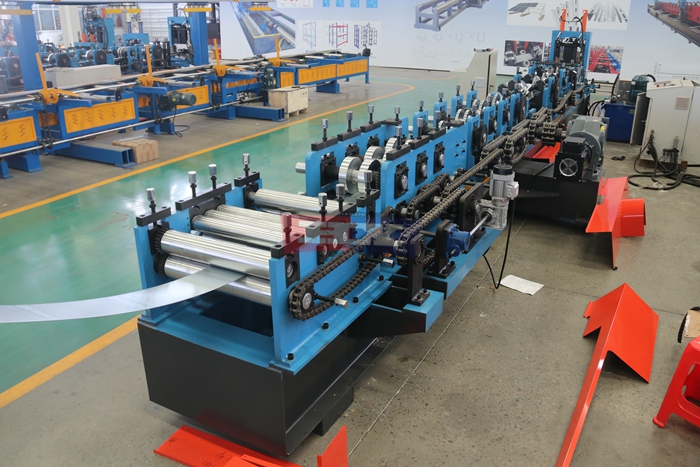

A typical automatic C/U purlin production line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching equipment may also be integrated when the required profiles include mounting or connection holes.

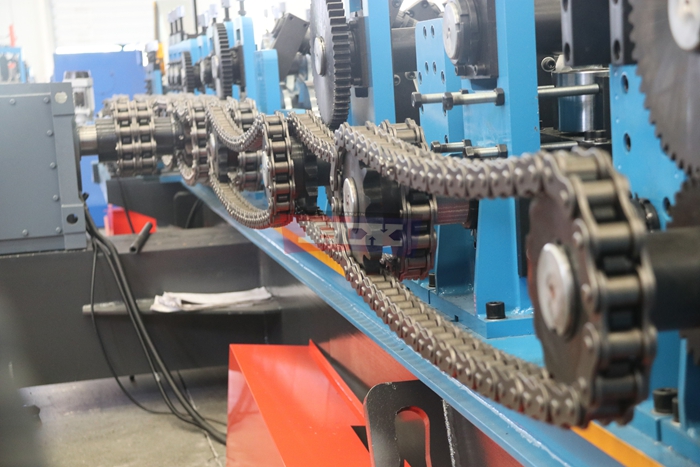

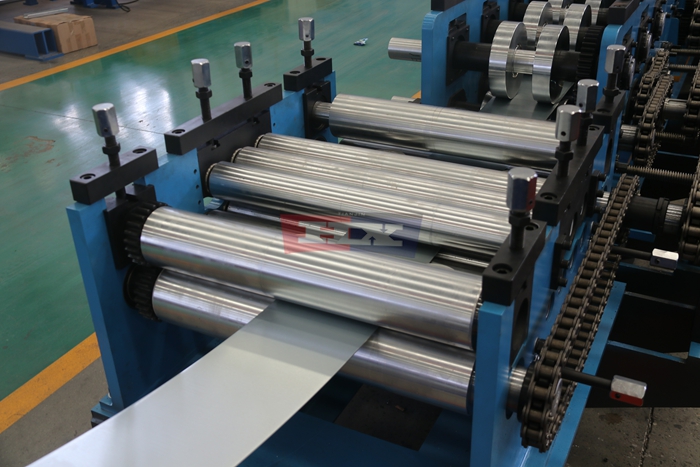

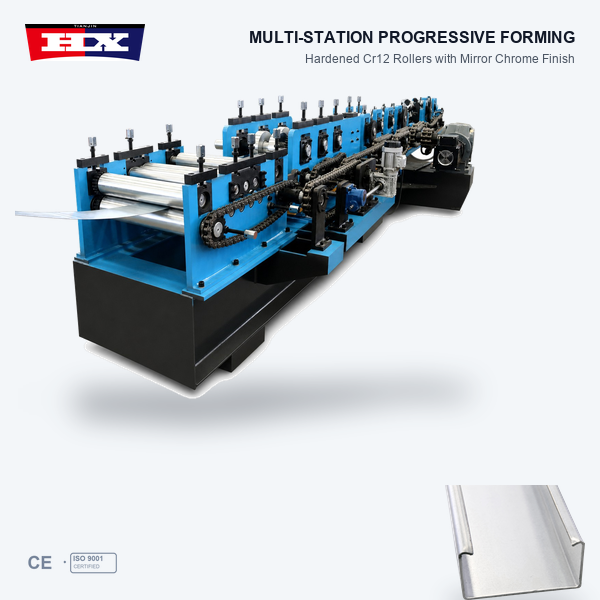

During production, steel coil material enters the forming section and passes through successive roller stations. These stations progressively bend the steel strip into the required C-shaped or U-shaped cross-section.

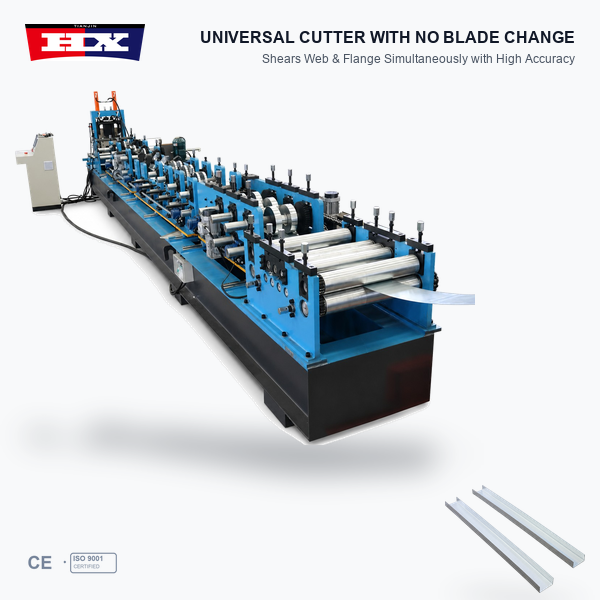

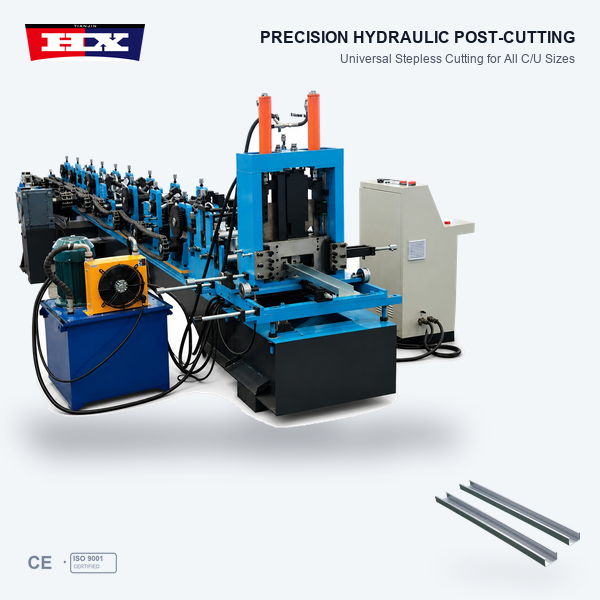

After forming, the finished steel profiles are cut to the specified length. The punching arrangement, cutting method and production sequence depend on the approved equipment configuration.
Operators can prepare supported profile settings and production quantities through the selected control system, subject to the machine’s available automation functions.
Customized C/U Purlin Profiles and Steel Materials
The fully automatic C U purlin roll forming machine can be configured according to customers’ required structural steel profile dimensions. Important specifications include web height, flange width, lip dimensions where applicable, material thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the machine design. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C and U profile drawings or samples to discuss suitable forming roller arrangements, automatic size adjustment functions, C/U changeover mechanisms and optional processing equipment.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped steel channels can be used in a variety of steel building and structural framing applications, depending on the approved engineering design.
Typical applications include industrial workshops, warehouses, prefabricated steel buildings, agricultural facilities, commercial steel structures and compatible roof or wall framing systems.
C profiles are frequently selected for secondary structural framing, while U profiles may serve as channels or support members where specified by the project design.
The appropriate profile geometry, steel grade, section dimensions and structural application must be determined according to the engineering requirements of each project.
Machine Configuration and Automation Options
Before selecting a fully automatic C U purlin roll forming machine, manufacturers should confirm the required C/U profile range, steel thickness, material grade, automatic changeover method, size adjustment functions, punching requirements, cutting system and expected production capacity.
Depending on the selected control system, automation functions may include profile selection, dimensional settings, production length control, quantity counting and other production management features.
Factory layout, steel coil handling, material feeding and finished profile collection should also be considered when planning the complete C/U purlin production line.
Why Choose Haixing?
Haixing supplies roll forming machinery for structural steel and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel profile factory or expanding an existing production facility, Haixing can discuss suitable C/U purlin manufacturing solutions based on your production requirements.
Request a Fully Automatic C/U Purlin Machine Quotation
Looking for a fully automatic C U purlin roll forming machine for your structural steel profile manufacturing business?
Send Haixing your C and U profile drawings, required size range, steel thickness, material specifications, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
