Automatic C U Purlin Production Line | Haixing
The automatic C U purlin production line from Haixing is designed for manufacturing cold-formed C-shaped steel purlins and U-shaped steel channels used in structural steel construction. Combining progressive roll forming, automatic C/U profile changeover and adjustable forming functions, this production line supports manufacturers producing different structural steel profile specifications within the approved machine configuration.
Steel structure construction projects frequently require multiple purlin and channel sizes for different building designs. An integrated C/U production line allows manufacturers to organize production of both supported profile types on a single forming system, reducing the need for separate dedicated equipment for each profile geometry.
Haixing provides customized C/U purlin production line configurations based on customers’ profile drawings, steel material specifications, required automation functions and expected production capacity.
Integrated C Purlin and U Channel Manufacturing
A key feature of the automatic C U purlin production line is its ability to manufacture both C-shaped steel purlins and U-shaped steel channels within the supported machine configuration.

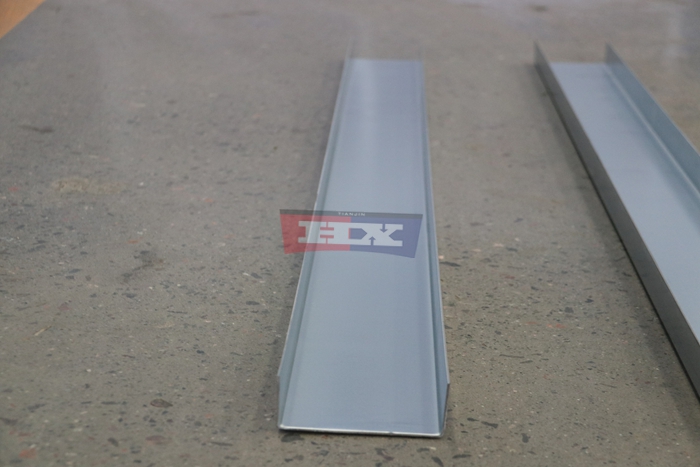

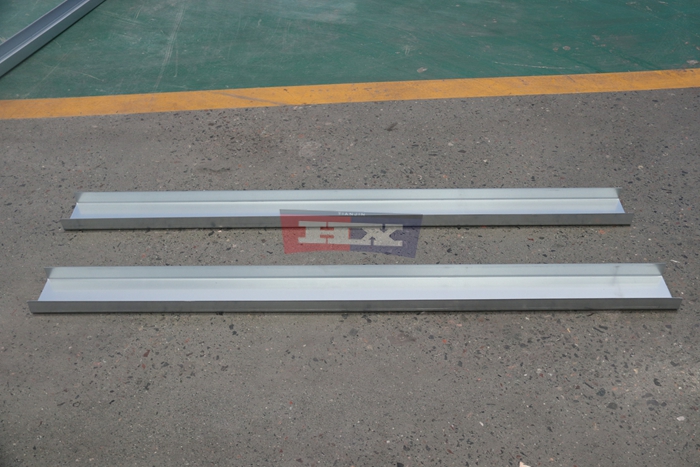

C-shaped purlins are commonly used as secondary structural members in steel building roof and wall framing systems. U-shaped steel channels can be manufactured for compatible structural framing, support and connection applications according to the approved building design.
The machine’s forming system is designed around the required C and U profile geometries. The automatic changeover mechanism adjusts relevant forming components according to the selected profile type.
The actual C-to-U changeover method, adjustment sequence and supported profile dimensions depend on the approved equipment design.
Automatic Size Adjustment for Multiple Steel Purlin Specifications
Steel profile manufacturers often need to produce C-shaped purlins and U-shaped channels with different web heights, flange widths, steel thicknesses and finished lengths. An adjustable forming system helps operators prepare the production line for different supported C/U profile specifications.

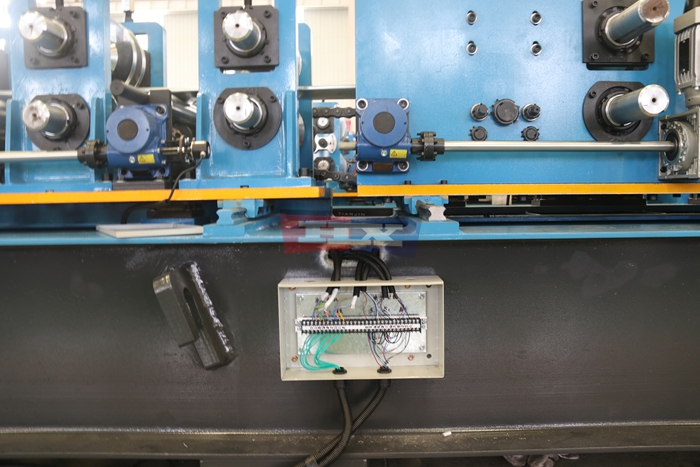

Depending on the approved machine configuration, automatic size adjustment functions can be coordinated through the control system and associated motorized adjustment mechanisms.
This functionality supports production planning when manufacturers process orders requiring different structural steel profile dimensions. The actual adjustment range, supported material thickness and setup requirements should be confirmed according to the customer’s profile drawings and final equipment specifications.
How the Automatic C/U Purlin Production Process Works

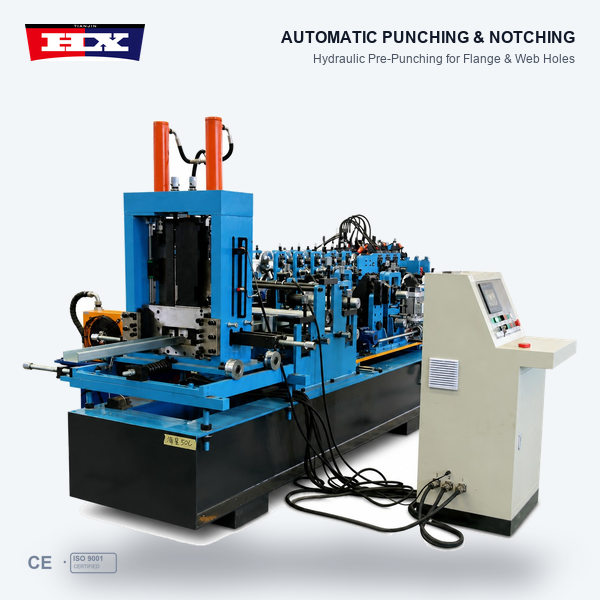

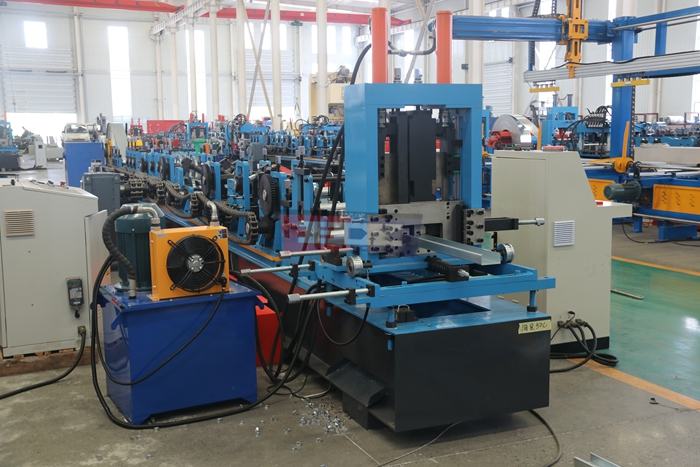

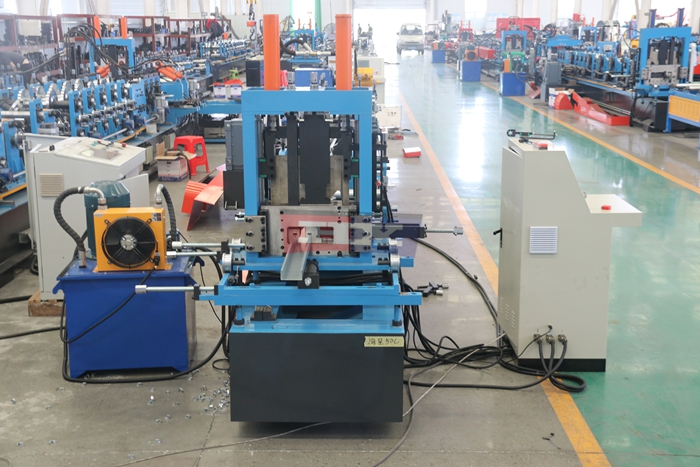

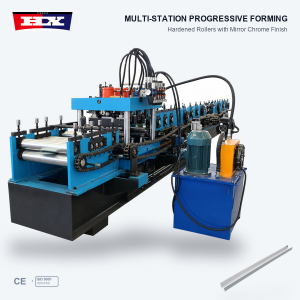

A typical automatic C U purlin production line includes a decoiler, material guiding system, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching equipment may also be integrated when the finished steel profiles require mounting holes or other processing features.

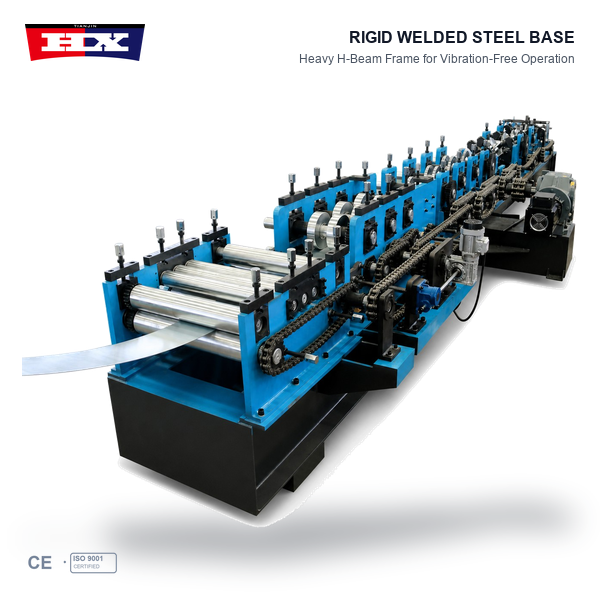

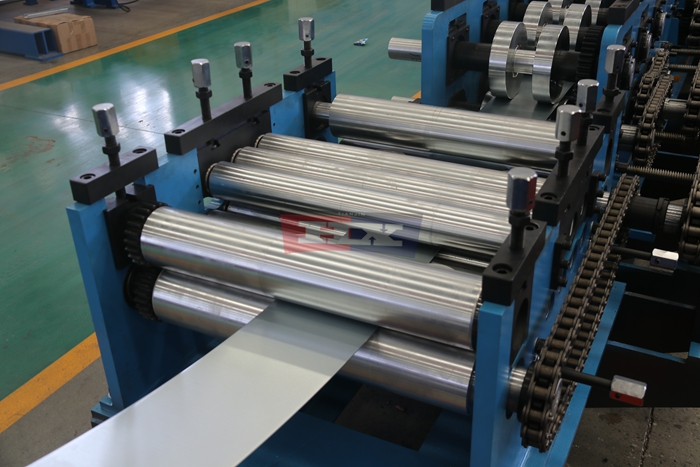

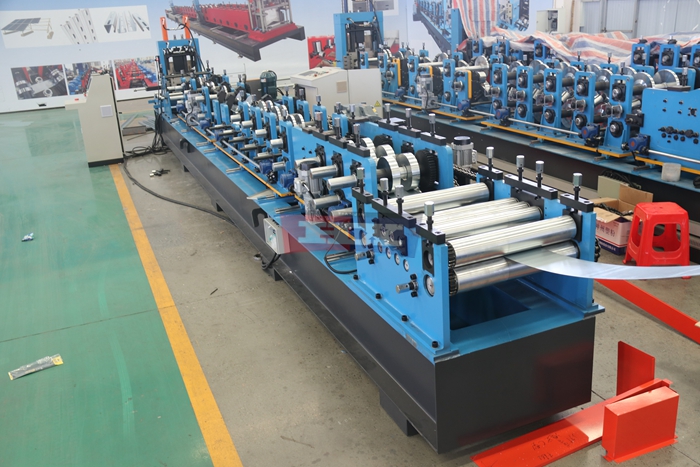

During production, steel coil material is fed into the forming section, where successive roller stations gradually shape the steel strip into the specified C-shaped purlin or U-shaped channel cross-section.

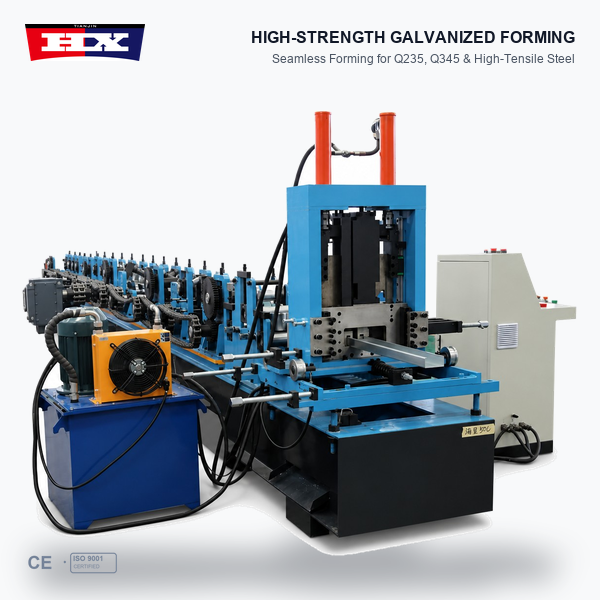

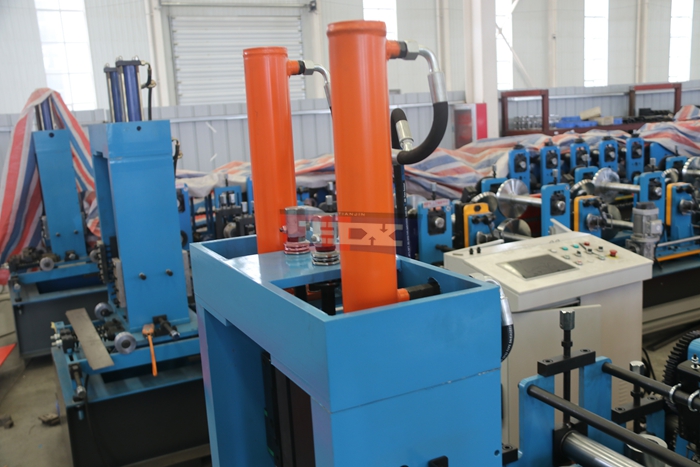

After forming, the finished steel profiles are cut to the required length. The cutting method, optional punching arrangement and processing sequence depend on the approved production line design.

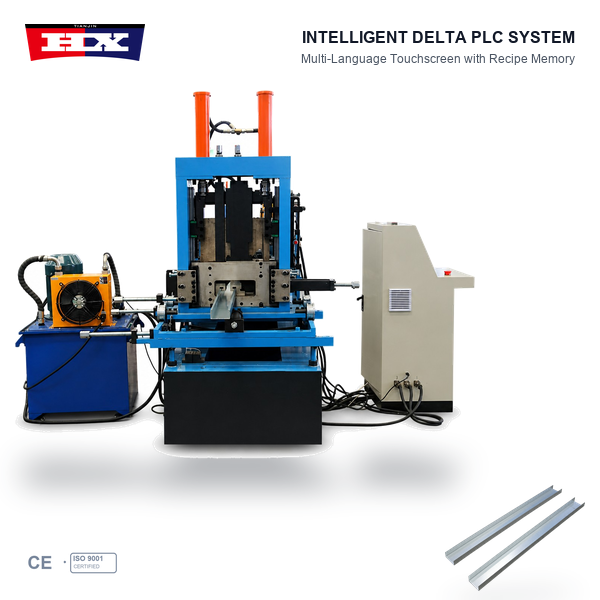

Depending on the selected equipment configuration, the control system can coordinate profile selection, dimensional settings, cutting length and production quantity to support the manufacturing process.
Customized C/U Purlin Profiles and Steel Materials
The automatic C U purlin production line can be configured according to different structural steel profile requirements. Important specifications include web height, flange width, lip dimensions where applicable, steel thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the approved forming specifications. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings or samples to discuss suitable forming roller arrangements, automatic adjustment functions and optional processing equipment.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a variety of steel building applications, including industrial warehouses, manufacturing workshops, prefabricated buildings, agricultural facilities and commercial construction projects.
C-shaped purlins are commonly specified for secondary roof and wall framing members. U-shaped channels may be used in compatible framing, support and connection arrangements according to the building’s structural design.
The appropriate C/U profile dimensions, steel grade, material thickness and installation arrangement depend on the engineering requirements of each construction project.
An integrated C/U purlin production line allows manufacturers to produce supported structural steel profiles according to approved drawings and customer orders.
Production Line Configuration and Automation Options
Before selecting an automatic C U purlin production line, manufacturers should confirm the required C/U profile range, steel material thickness, automatic changeover method, size adjustment functions, optional punching requirements, cutting system and expected production capacity.
Depending on the selected control system, automation functions may include C/U profile selection, profile size settings, production length control, quantity counting and other production management features.
Factory layout, steel coil handling, material feeding and finished profile collection should also be considered when planning the complete manufacturing line.
Haixing can discuss the equipment arrangement and production workflow based on the customer’s available workshop space and required steel profile specifications.
Why Choose Haixing?
Haixing supplies roll forming machinery for structural steel and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin manufacturing facility or expanding an existing structural steel profile production line, Haixing can discuss suitable equipment solutions based on your production objectives.
Request an Automatic C/U Purlin Production Line Quotation
Looking for an automatic C U purlin production line for your structural steel manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile sizes, steel thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
