Automatic Changeover C U Purlin Machine | Haixing
The automatic changeover C U purlin machine from Haixing is designed for manufacturing cold-formed C-shaped steel purlins and U-shaped steel channels used in structural steel construction. Featuring an automatic C/U profile changeover system and adjustable forming functions, this equipment supports manufacturers producing different steel profile types and dimensions on a single production line.
Steel structure manufacturers often process orders requiring multiple profile specifications for warehouses, industrial workshops, prefabricated buildings and commercial construction projects. An automatic changeover system provides a practical solution for switching between supported C-shaped and U-shaped profiles while organizing production around different customer requirements.
Haixing offers customized C/U purlin forming solutions based on customers’ profile drawings, steel material specifications, required automation functions and production objectives.

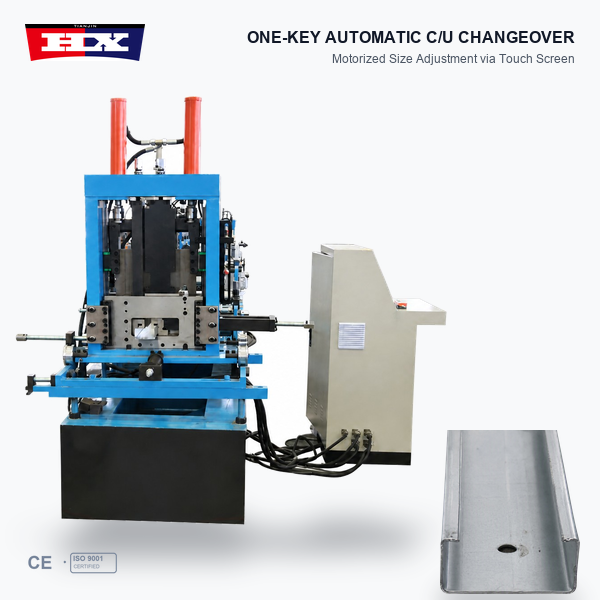

Automatic Changeover Between C Purlin and U Channel Profiles

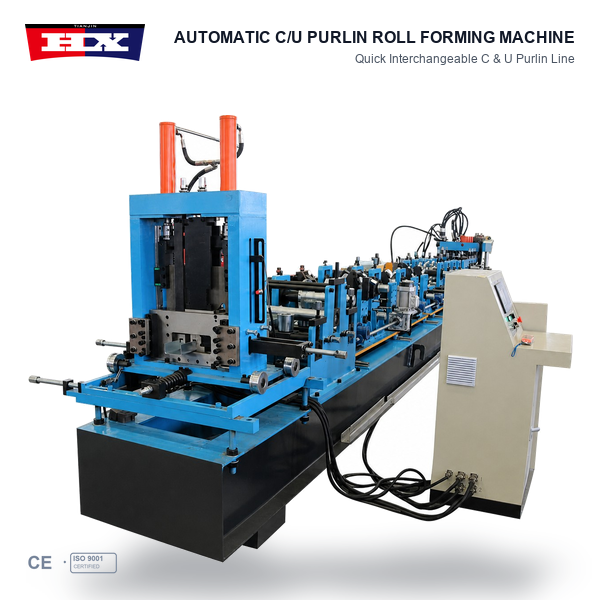

One of the main features of the automatic changeover C U purlin machine is its ability to switch between C-shaped purlin and U-shaped channel production through the designed changeover system.
C purlins and U channels have different cross-sectional geometries and may be specified for different structural framing applications. The automatic changeover mechanism adjusts the relevant forming components according to the selected profile type and approved machine design.
This functionality is useful for steel profile manufacturers processing orders that require both C-shaped purlins and U-shaped channels. The exact changeover procedure, control sequence and supported profile range depend on the final equipment configuration.

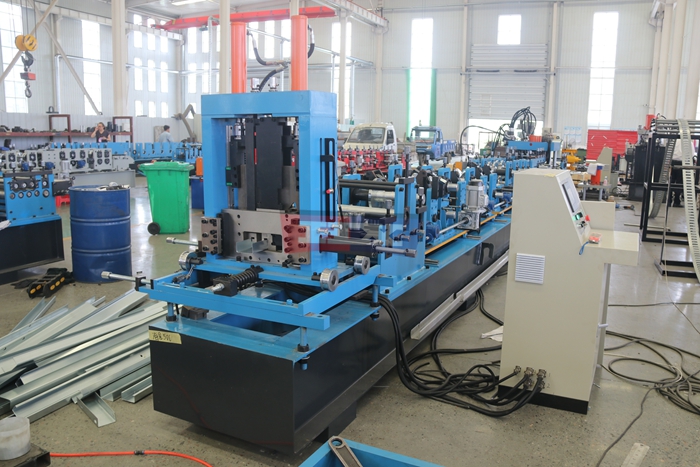

Automatic Size Adjustment for Different C/U Steel Profile Dimensions
Steel construction projects often require C-shaped and U-shaped sections with different web heights, flange widths and finished lengths. The automatic size adjustment system allows operators to select supported profile specifications through the machine’s control interface.

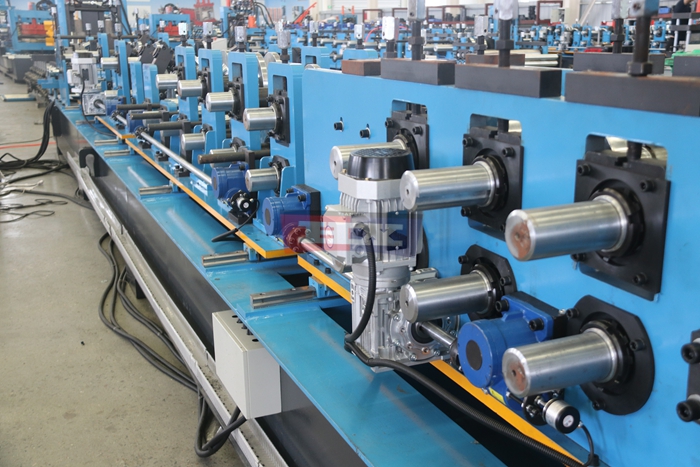

Depending on the equipment design, motorized adjustment mechanisms can reposition forming components to accommodate different profile dimensions within the approved range.
This makes the machine suitable for manufacturers producing multiple C/U steel profile sizes. The actual adjustment range, compatible steel thickness and required setup procedures should be confirmed in the technical specifications.
How the Automatic C/U Purlin Production Process Works

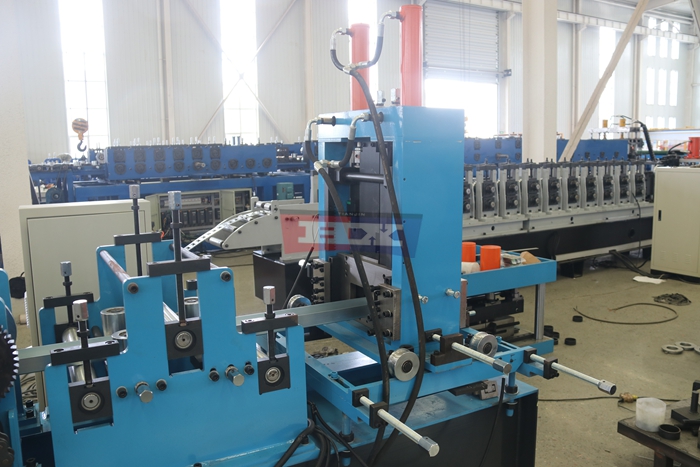

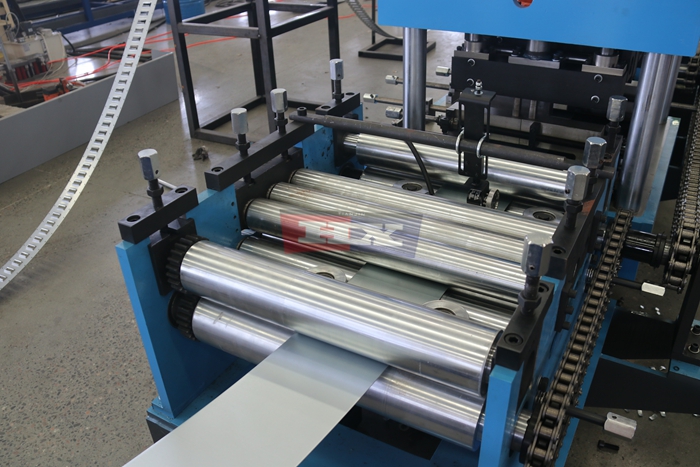

A typical automatic C/U purlin production line includes a decoiler, material guiding system, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching equipment can be integrated when required by the customer’s structural profile design.
During production, steel coil material enters the forming section and passes through successive roller stations. These rollers gradually shape the steel strip into the selected C-shaped purlin or U-shaped channel cross-section.
The finished profiles are cut to the specified length. When mounting holes or additional processing features are required, suitable equipment can be discussed according to the customer’s profile drawings and production requirements.
The exact cutting method, optional punching sequence and automation arrangement depend on the approved production line configuration.

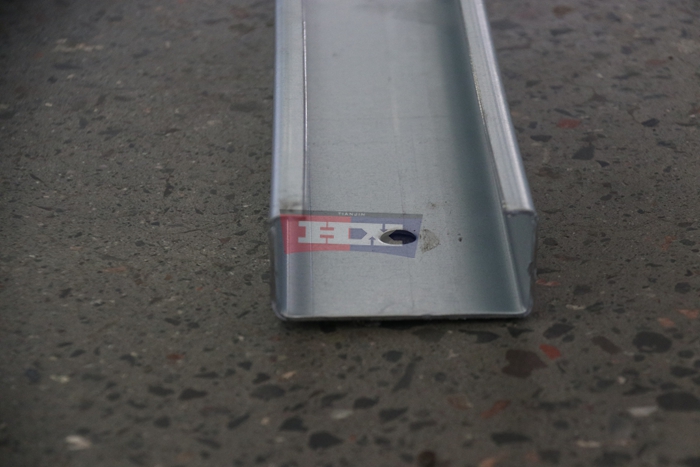

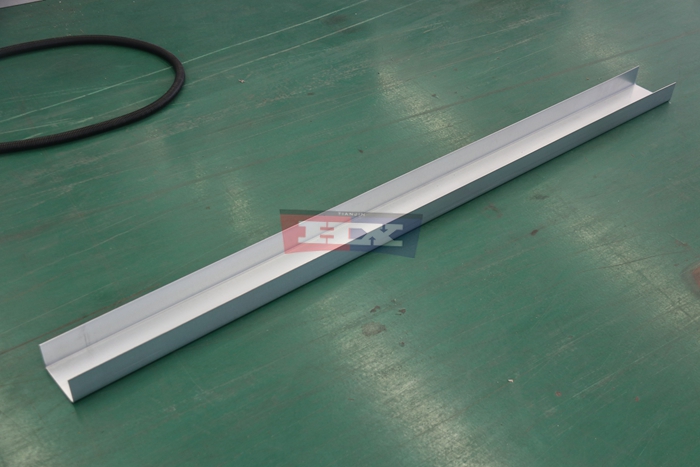

Customized C Purlin and U Channel Profiles
The automatic changeover C U purlin machine can be configured according to customers’ structural steel profile requirements. Important technical parameters include web height, flange dimensions, lip dimensions where applicable, material thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the machine design. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings to discuss suitable forming roller arrangements, automatic changeover functions, optional punching equipment and cutting configurations.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a variety of steel building applications, including industrial warehouses, prefabricated steel structures, manufacturing workshops, agricultural facilities and commercial construction projects.
C-shaped purlins are commonly used as secondary structural members in roof and wall framing systems. U-shaped channels may be specified for compatible support, framing and connection applications according to the approved building design.
The appropriate profile type, steel thickness and section dimensions depend on the structural engineering requirements of each project.
Machine Automation and Production Planning
Before selecting an automatic changeover C U purlin machine, manufacturers should confirm the required C/U profile range, steel material thickness, automatic changeover method, size adjustment functions, optional punching requirements, cutting system and expected production capacity.
Depending on the selected control system, automated functions may include C/U profile selection, dimensional settings, production length control and quantity counting.
Factory layout, coil handling and finished profile collection should also be considered when planning the complete structural steel profile production line.
Why Choose Haixing?
Haixing supplies roll forming machinery for structural steel and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or upgrading an existing structural steel profile production facility, Haixing can discuss suitable equipment solutions based on your manufacturing requirements.
Request an Automatic Changeover C/U Purlin Machine Quotation
Looking for an automatic changeover C U purlin machine for your structural steel profile manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile sizes, steel thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
