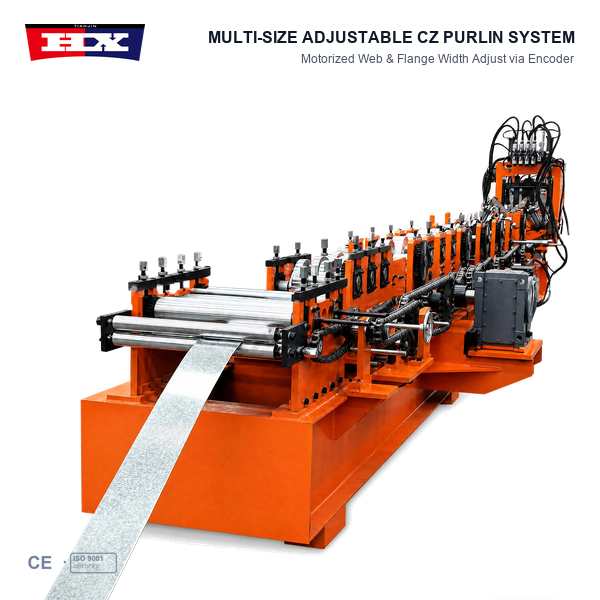

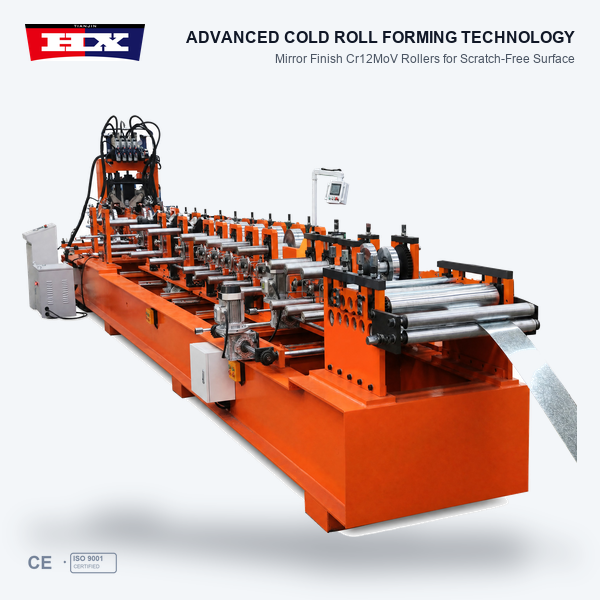

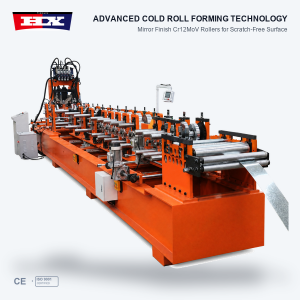

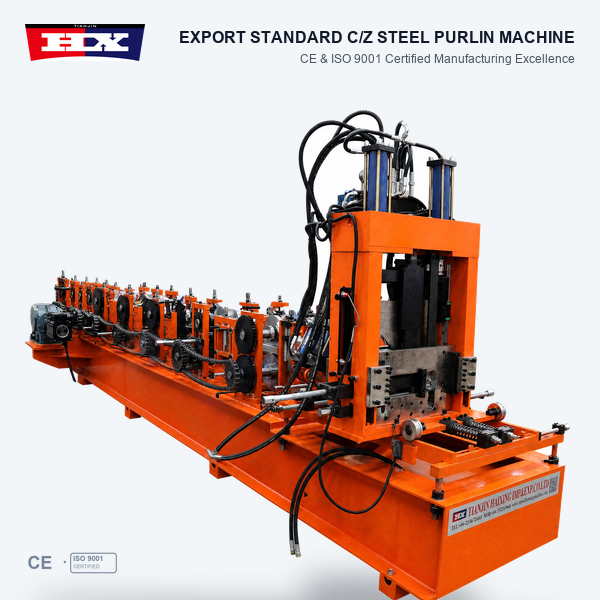

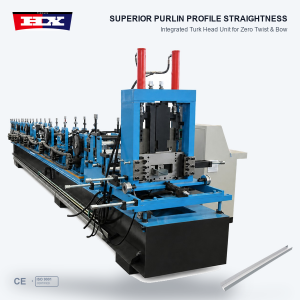

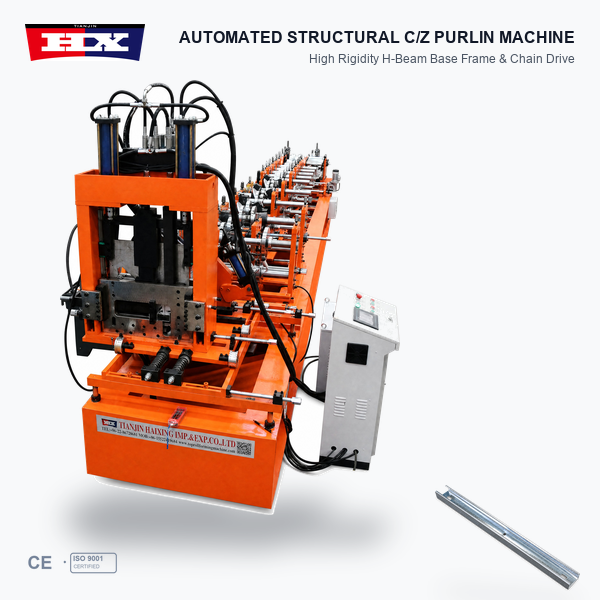

C U Purlin Roll Forming Machine | Haixing
The C U purlin roll forming machine from Haixing is designed for manufacturing cold-formed C-shaped steel purlins and U-shaped steel channels used in structural steel construction. Equipped with an adjustable roll forming system and automatic production controls, this machine supports flexible manufacturing of different C/U steel profile specifications.
C purlins and U channels are widely used in steel structure buildings, industrial workshops, warehouses, prefabricated construction and other metal framing applications. For manufacturers supplying multiple building projects, a combined C/U forming machine provides a practical solution for producing different structural steel profiles on a single production line.
Haixing offers customized C/U purlin forming solutions based on customers’ profile drawings, material thickness, required profile dimensions, automation functions and production capacity.
Automatic C/U Profile Changeover
One of the main advantages of the C U purlin roll forming machine is its ability to manufacture both C-shaped purlins and U-shaped steel channels within the supported machine configuration.
C purlins are commonly used as secondary structural members in steel building roof and wall systems. U-shaped channels may be used for compatible structural framing, support and connection applications according to the approved building design.
The automatic C/U changeover system adjusts relevant forming components according to the selected profile type. This helps manufacturers organize production of different C and U sections without requiring separate dedicated forming equipment for every supported profile.
The actual changeover procedure, adjustment sequence and supported profile dimensions depend on the final machine configuration.

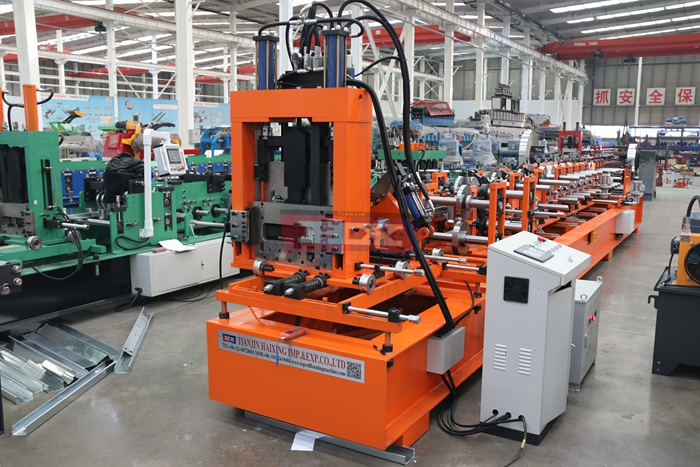

Automatic Size Adjustment for Different Purlin Dimensions
Steel structure manufacturers frequently receive orders requiring different profile heights, flange widths and finished lengths. An automatic size adjustment system allows operators to prepare the machine for different supported profile specifications through the control interface.

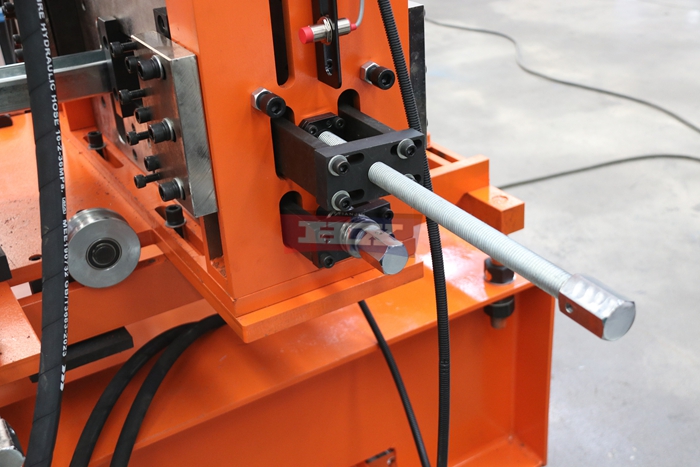

Depending on the approved equipment design, motorized adjustment mechanisms can reposition relevant forming components according to the selected C/U profile dimensions.
This functionality is useful for manufacturers handling multiple steel building projects. The available size range, compatible steel thickness and adjustment functions should be confirmed according to the customer’s profile drawings.
How the C/U Purlin Roll Forming Process Works

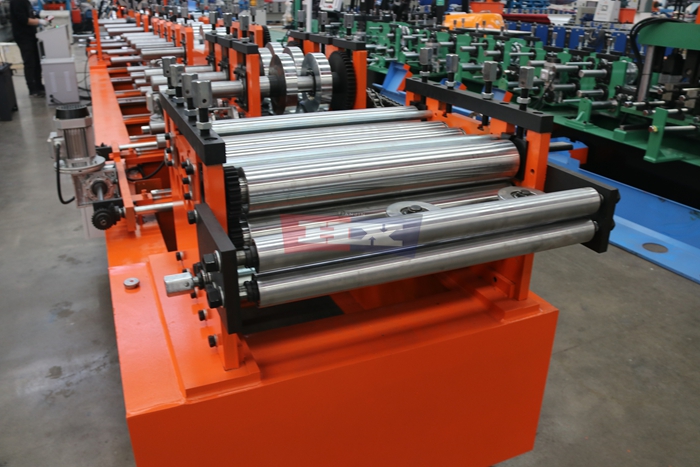

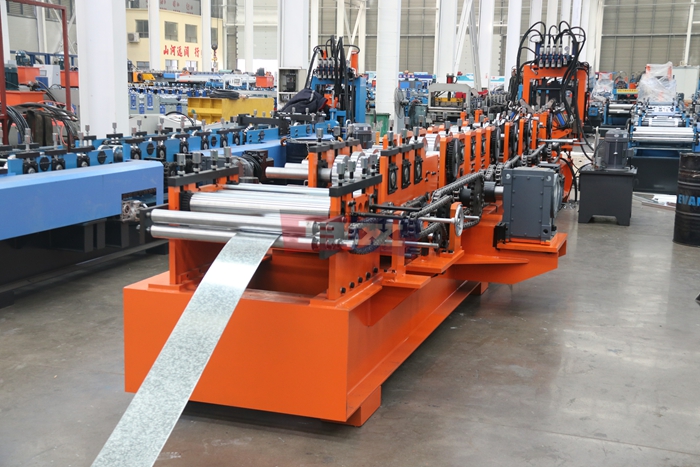

A typical automatic C/U purlin production line includes a decoiler, material guiding system, roll forming stations, cutting equipment and an automatic control system. Optional punching equipment may also be integrated when required by the finished profile drawings.

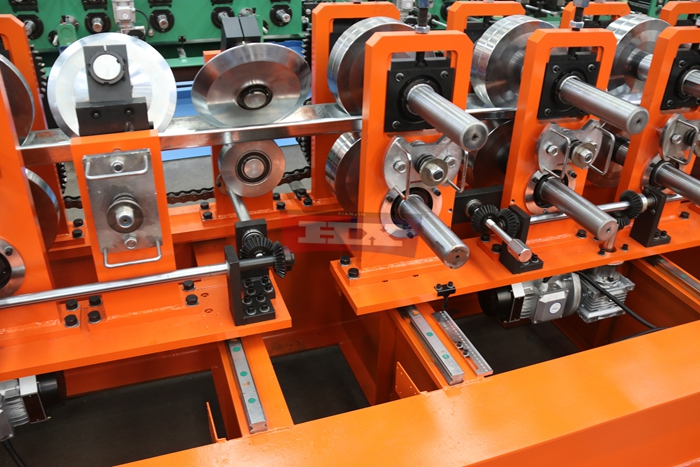

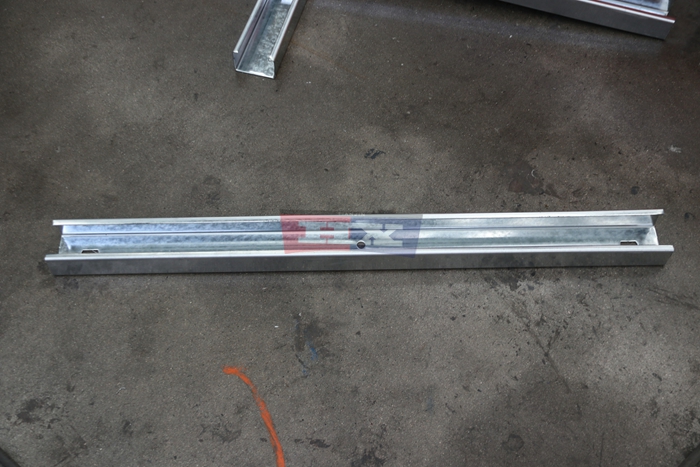

During operation, steel coil material is fed into the forming section. A series of roller stations progressively bends the steel strip into the required C-shaped purlin or U-shaped channel cross-section.

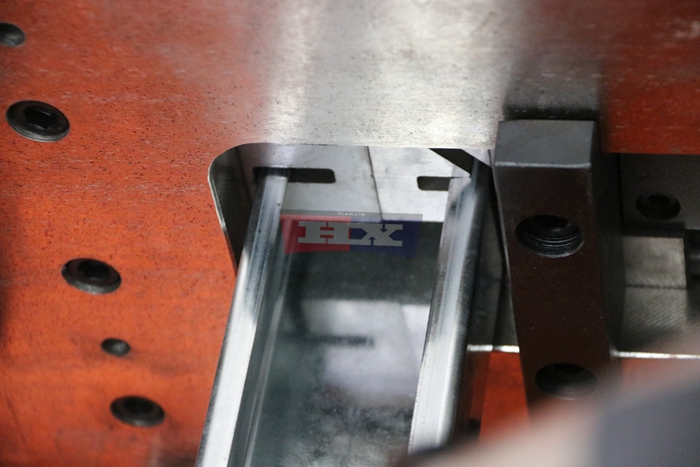

After forming, the finished profiles are cut to the specified length. The cutting method, punching arrangement and production sequence depend on the approved machine configuration.
Depending on the selected control system, operators may manage profile settings, cutting length and production quantity through the machine interface.
Customized C/U Purlin Sizes and Steel Materials
The C U purlin roll forming machine can be configured according to different structural steel profile requirements. Important technical parameters include web height, flange width, lip dimensions where applicable, material thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the approved machine specifications. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings to discuss suitable forming roller arrangements, automatic adjustment functions, punching options and cutting configurations.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a wide range of steel construction applications, including industrial warehouses, manufacturing workshops, prefabricated buildings, agricultural facilities and commercial steel structures.
C purlins are commonly specified as secondary structural members in roof and wall framing systems. U-shaped steel channels may be selected for compatible framing, support and connection applications according to the building’s structural design.
The appropriate profile dimensions, steel grade and material thickness depend on the engineering requirements of each construction project.
Machine Configuration and Automation Options
Before selecting a C U purlin roll forming machine, manufacturers should confirm the required C/U profile range, material thickness, automatic changeover functions, size adjustment method, punching requirements, cutting system and expected production capacity.
Depending on the selected equipment configuration, automation functions may include C/U profile selection, profile size settings, production length control, quantity counting and other production management features.
Factory layout, steel coil handling and finished profile collection should also be considered when planning the complete manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or expanding an existing production facility, Haixing can discuss suitable equipment solutions based on your profile requirements and manufacturing objectives.
Request a C/U Purlin Roll Forming Machine Quotation
Looking for a C U purlin roll forming machine for your steel structure manufacturing business?
Send Haixing your C purlin and U channel drawings, required profile dimensions, steel thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
