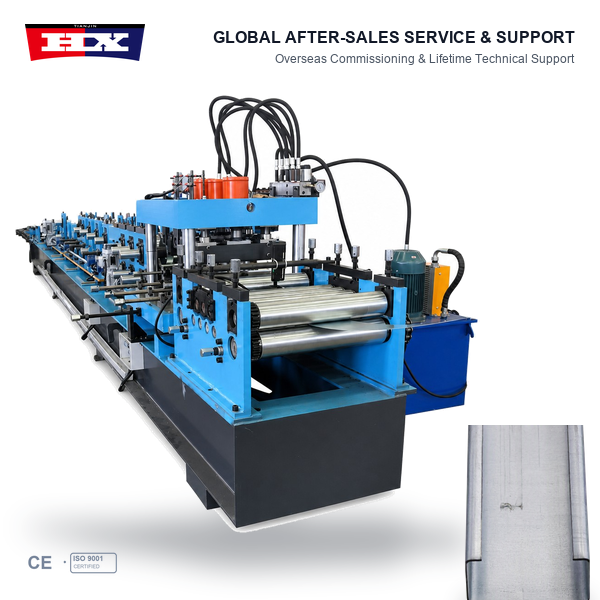

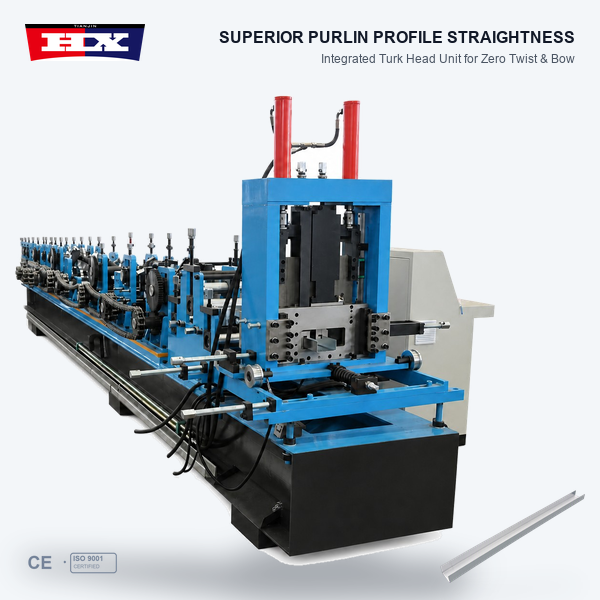

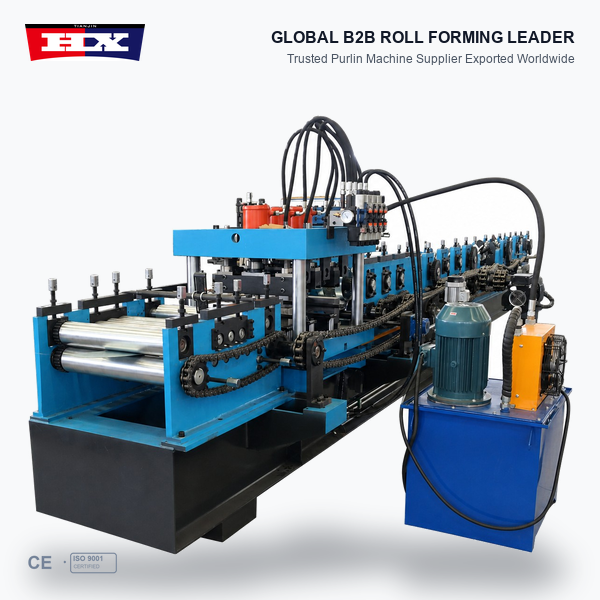

Automatic C U Purlin Roll Forming Machine | Haixing
The automatic C U purlin roll forming machine from Haixing is designed to manufacture C-shaped steel purlins and U-shaped steel channels for structural building applications. Featuring automatic C/U profile changeover and adjustable forming functions, this equipment helps manufacturers produce different cold-formed steel sections on a single production line.
C-shaped purlins and U-shaped channels are used in a variety of steel construction projects, including prefabricated buildings, industrial workshops, warehouses and structural framing systems. For steel profile manufacturers handling different customer requirements, an automatic C/U forming machine provides a flexible production solution for manufacturing supported profile types and dimensions.
Haixing offers customized C/U purlin forming solutions based on customers’ profile drawings, steel material specifications, required automation functions and production objectives.
Automatic Changeover Between C Purlin and U Channel Profiles
The automatic C U purlin roll forming machine is designed to support the production of both C-shaped purlins and U-shaped steel channels through an automatic profile changeover system.
C and U profiles have different cross-sectional geometries and may be specified for different structural framing applications. The machine’s changeover system adjusts the relevant forming components according to the selected profile type.
This arrangement helps steel profile manufacturers organize production for different building projects without relying on separate dedicated forming lines for every supported profile type.
The exact changeover sequence, required operator actions and supported profile range depend on the final machine configuration.
Automatic Size Adjustment for Different C/U Steel Profiles
Steel building projects require structural profiles in different web heights, flange widths, material thicknesses and finished lengths. An automatic size adjustment system allows operators to select supported profile specifications through the machine’s control interface.
Depending on the approved equipment design, motorized adjustment mechanisms reposition relevant forming components to accommodate different C-shaped and U-shaped profile dimensions.
This functionality supports manufacturers processing orders with multiple structural steel specifications. The available adjustment range, compatible steel thickness and required setup procedures should be confirmed according to the final technical specifications.
How the Automatic C/U Purlin Roll Forming Process Works
A typical automatic C/U purlin production line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and an automatic control system. Optional punching equipment may also be integrated when the finished steel profiles require mounting or connection holes.

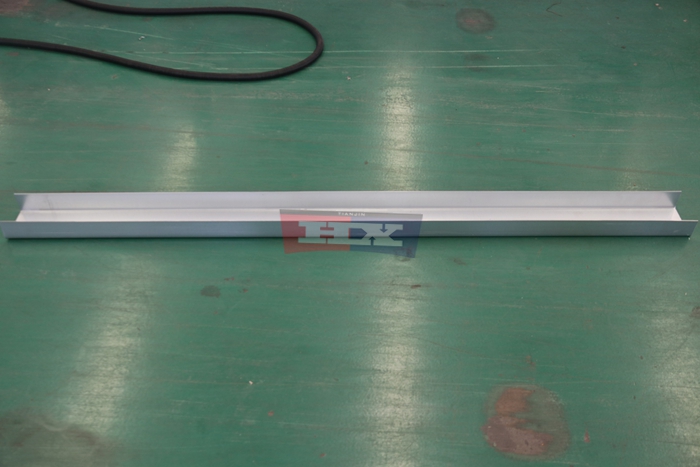

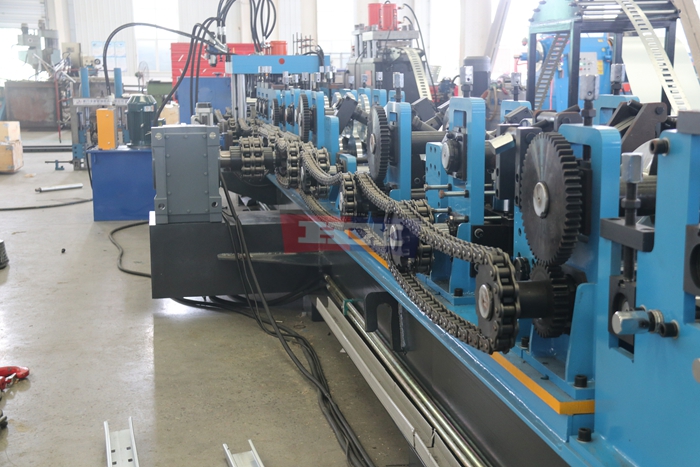

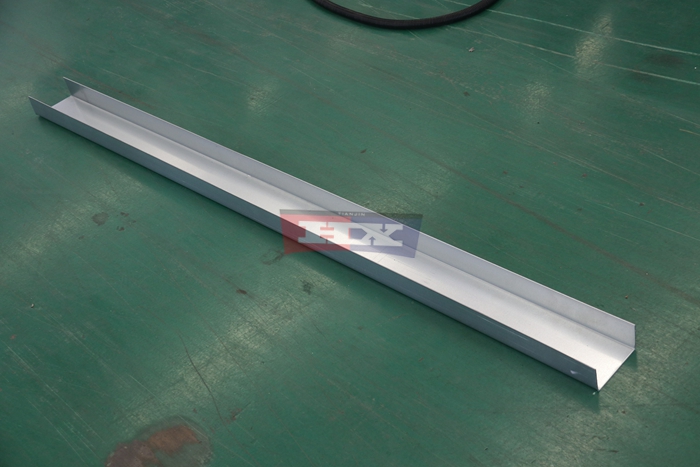

During production, steel coil material is fed into the forming section. The material passes through successive roller stations that gradually bend the steel strip into the required C-shaped purlin or U-shaped channel cross-section.

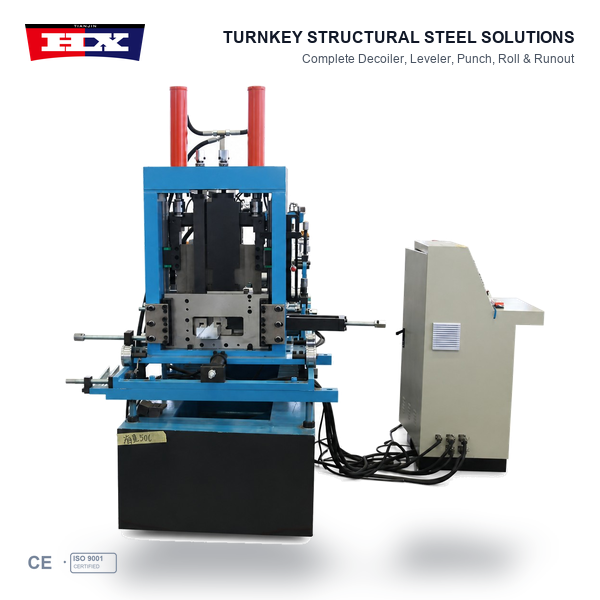

After forming, the finished steel profiles are cut to the specified length. The cutting method, optional punching arrangement and production sequence depend on the approved equipment configuration.

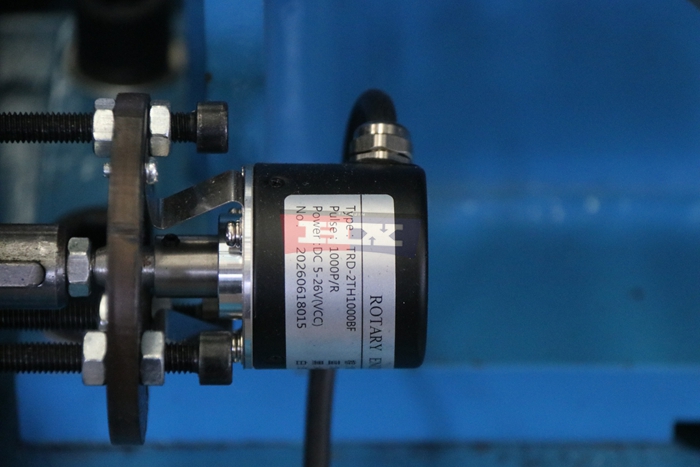

The machine’s automatic control functions help operators manage supported profile settings, production lengths and required quantities according to the selected equipment configuration.
Customized C Purlin and U Channel Profiles
The automatic C U purlin roll forming machine can be configured according to customers’ structural steel profile requirements. Important specifications include web height, flange width, lip dimensions where applicable, steel thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the approved forming specifications. Material grade, yield strength, coating requirements and steel thickness should be reviewed before equipment manufacturing.
Haixing can evaluate customers’ C and U profile drawings to discuss suitable roller designs, automatic changeover functions, size adjustment systems and optional punching or cutting equipment.
Applications in Steel Structure Construction
C-shaped steel purlins and U-shaped channels can be manufactured for a variety of steel structure applications, including industrial workshops, warehouses, prefabricated buildings, agricultural facilities and commercial construction projects.
C-shaped purlins are commonly used as secondary structural members in roof and wall framing systems. U-shaped steel channels may be specified for compatible support, framing and connection applications according to the approved building design.
The appropriate profile geometry, section dimensions, steel grade and material thickness depend on the structural engineering requirements of each project.
Machine Automation and Production Planning
Before selecting an automatic C U purlin roll forming machine, manufacturers should confirm the required C/U profile dimensions, steel material thickness, automatic changeover method, size adjustment functions, optional punching requirements, cutting system and expected production capacity.
Depending on the selected control system, automated functions may include C/U profile selection, dimensional settings, production length control, quantity counting and other production management features.
Factory layout, coil handling and finished profile collection should also be considered when planning the complete manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming machinery for structural steel and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or upgrading an existing production line, Haixing can discuss suitable C/U steel profile manufacturing solutions based on your requirements.
Request an Automatic C/U Purlin Roll Forming Machine Quotation
Looking for an automatic C U purlin roll forming machine for your structural steel profile manufacturing business?
Send Haixing your C and U profile drawings, required size range, steel thickness, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
