C U Purlin Making Machine for Steel Structures | Haixing

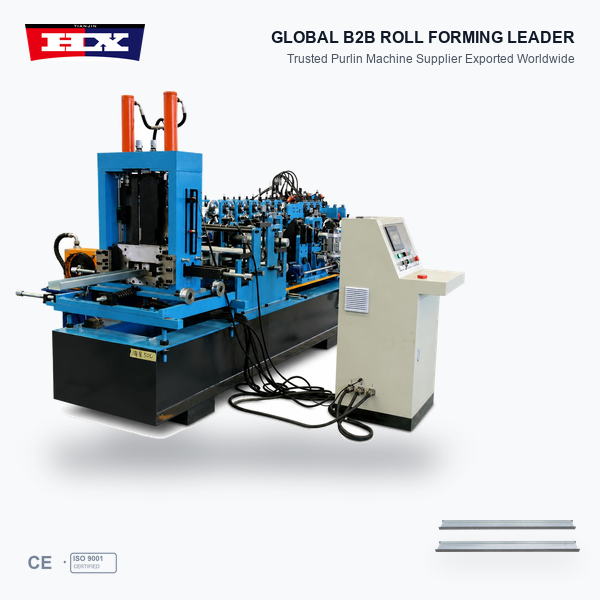

The C U purlin making machine from Haixing is an automatic roll forming solution designed for manufacturing C-shaped cold-formed steel purlins and U-shaped steel channels. These structural profiles are used in prefabricated steel buildings, warehouses, industrial workshops and compatible roof and wall framing systems.
For steel profile manufacturers supplying different construction projects, a combined C/U purlin machine offers flexibility in profile production. Instead of relying on separate dedicated equipment for every section type, manufacturers can select a machine configuration that supports multiple C purlin and U channel dimensions within an approved forming range.
Haixing provides customized C/U purlin making machine solutions based on customers’ profile drawings, steel material specifications, automation requirements and production objectives.
Manufacturing Both C Purlins and U Steel Channels

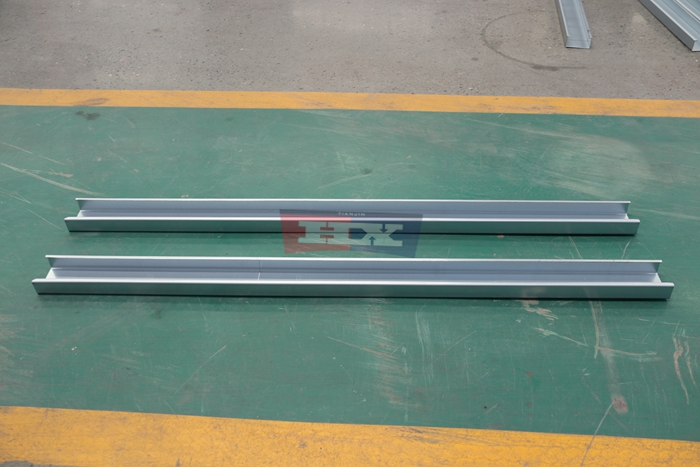

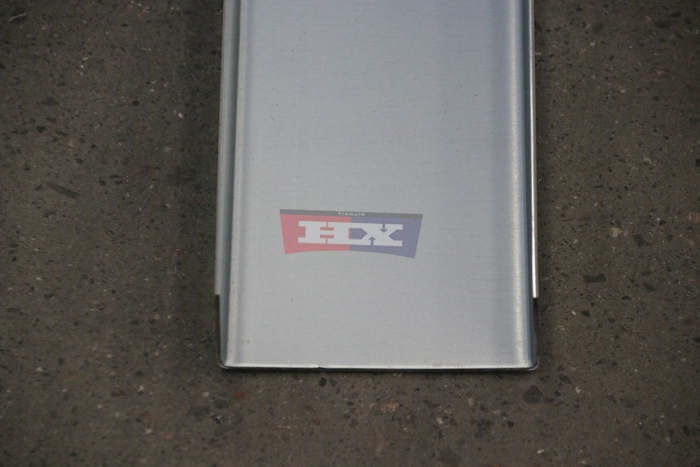

A key feature of the C U purlin making machine is its ability to produce both C-shaped purlins and U-shaped steel channels within the supported equipment configuration.
C purlins are commonly used as secondary structural members in roof and wall framing systems. U-shaped channels can be manufactured for compatible support, framing and connection applications according to the approved structural design.

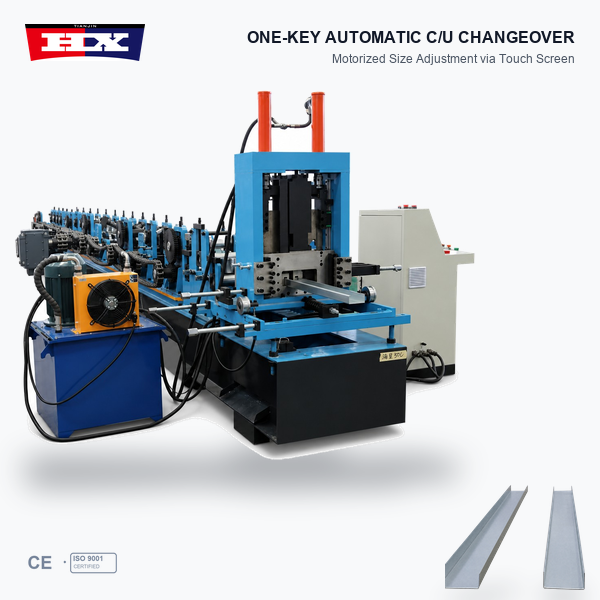

The forming system is designed according to the required cross-sectional geometry. Automatic C/U changeover mechanisms adjust relevant forming components to accommodate the selected profile type.
The actual C-to-U changeover procedure, required operator actions and supported profile dimensions depend on the approved machine configuration.
Automatic Size Adjustment for Different C/U Profile Specifications
Steel construction projects require structural profiles with different section heights, flange widths, lip dimensions where applicable, and finished lengths. An adjustable forming system helps manufacturers handle these variations within the machine’s approved production range.
Depending on the selected configuration, automatic adjustment mechanisms can be coordinated through the machine control system. This allows operators to prepare production settings for different supported C and U profile dimensions.
Automatic size adjustment helps manufacturers organize production for different customer orders while reducing the need for extensive manual adjustments between supported specifications.
The actual adjustment range, C/U switching functions and supported steel thickness should be confirmed according to the customer’s technical requirements.
How the C/U Purlin Manufacturing Process Works

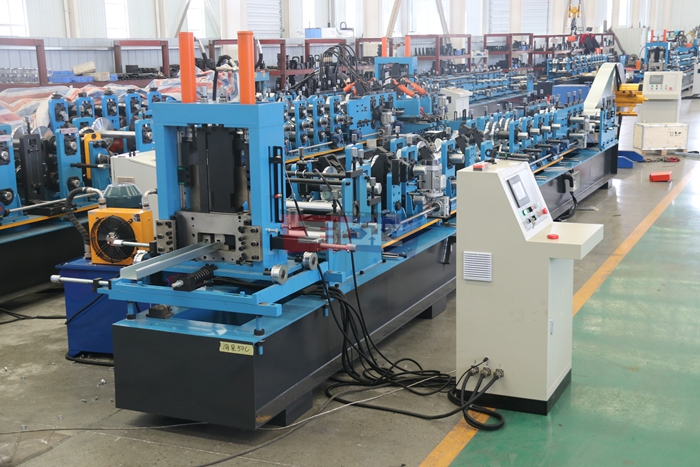

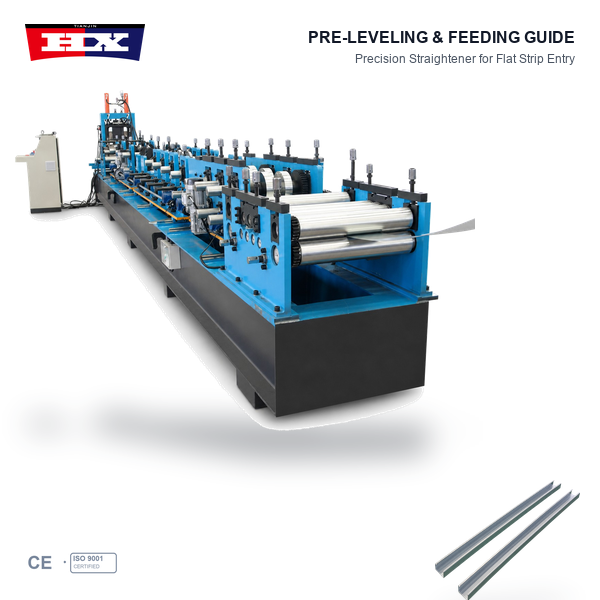

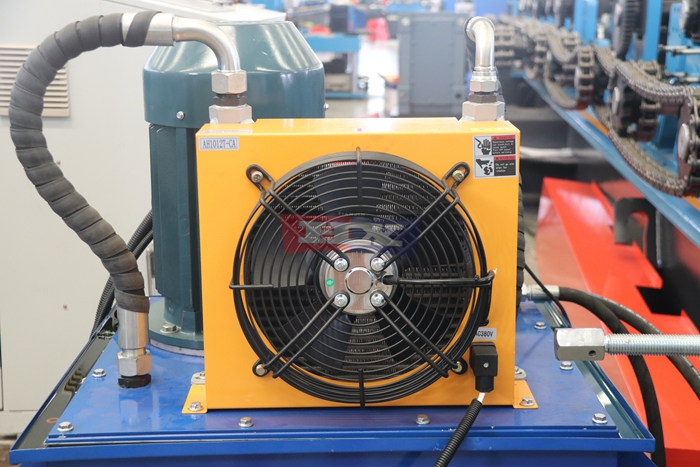

A typical automatic C/U purlin production line includes a decoiler, material guiding system, roll forming section, cutting equipment and automatic control system. Punching equipment may also be integrated when required by the finished profile drawings.

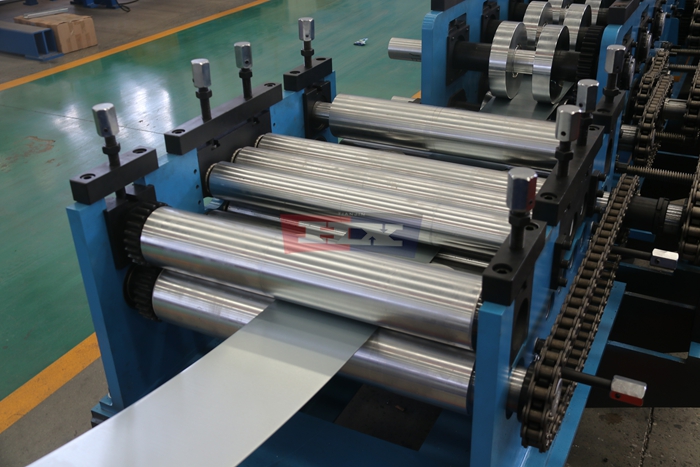

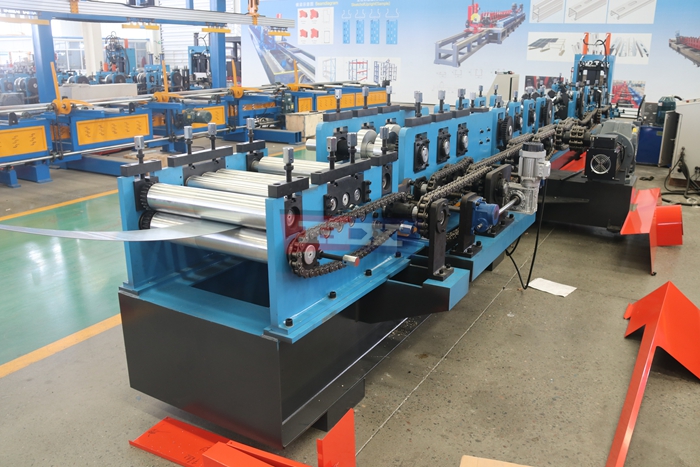

During production, steel coil material is fed through successive forming rollers, which progressively bend the steel strip into the specified C-shaped purlin or U-shaped channel cross-section.
After the forming process, the finished steel profiles are cut to the required length. The punching arrangement, cutting method and production sequence depend on the approved equipment design.
Depending on the selected control system, operators can manage supported profile settings, production lengths and quantity requirements through the machine interface.
Customized C/U Purlin Dimensions and Steel Materials
The C U purlin making machine can be configured according to different structural steel profile requirements. Important specifications include section height, flange width, lip dimensions where applicable, steel thickness, coil width and finished profile length.
Galvanized steel and other suitable structural steel materials can be considered according to the machine design. Material grade, yield strength, coating requirements and thickness should be reviewed before manufacturing.
Haixing can evaluate customers’ C purlin and U channel drawings or samples to discuss suitable forming roller arrangements, automatic adjustment functions and optional processing equipment.
Applications in Steel Building Construction
C-shaped purlins and U-shaped steel channels can be manufactured for a variety of steel building applications, including industrial warehouses, factories, agricultural buildings, commercial steel structures and prefabricated construction projects.
C purlins serve as secondary structural members in suitable roof and wall framing systems. U channels may be specified for compatible structural support, framing and connection applications.
The appropriate profile type, steel grade, section dimensions and material thickness depend on the structural engineering requirements of each building project.
Machine Configuration and Automation Options
Before selecting a C U purlin making machine, manufacturers should confirm the required profile range, material thickness, C/U changeover functions, automatic size adjustment method, punching requirements, cutting system and expected production capacity.
Depending on the selected control system, automation functions may include C/U profile selection, profile size settings, production length control, quantity counting and other production management features.
Factory layout, steel coil handling, material feeding and finished profile collection should also be considered when planning the complete manufacturing line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
Whether you are establishing a new steel purlin factory or expanding an existing production facility, Haixing can discuss suitable equipment solutions based on your manufacturing requirements.
Request a C/U Purlin Making Machine Quotation
Looking for a C U purlin making machine for your steel structure manufacturing business?
Send Haixing your C purlin and U channel drawings, required size range, material thickness, punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
