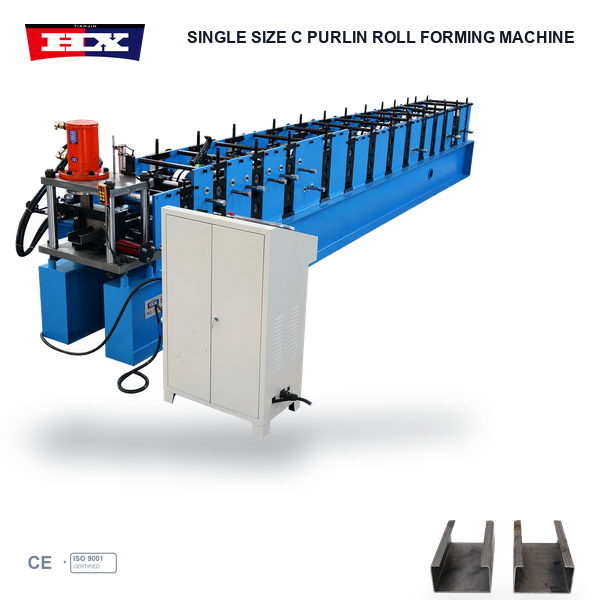

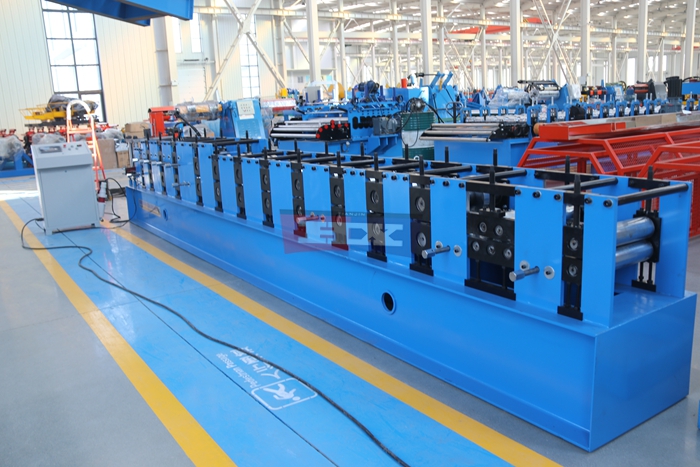

Steel C Purlin Machine for Steel Buildings | Haixing
The steel C purlin machine from Haixing is designed to manufacture cold-formed C-shaped steel purlins for structural steel buildings. Using a progressive roll forming process, this equipment converts suitable steel coil materials into C-section profiles with dimensions specified according to the customer’s construction and manufacturing requirements.
C-shaped steel purlins are widely used as secondary structural members in industrial warehouses, steel workshops, agricultural buildings and prefabricated steel structures. A dedicated C purlin forming machine provides manufacturers with a practical solution for producing structural C sections without requiring a combined C/Z or C/U profile changeover system.
Haixing offers customized equipment configurations based on C-section profile drawings, steel material properties, required processing functions and production objectives.

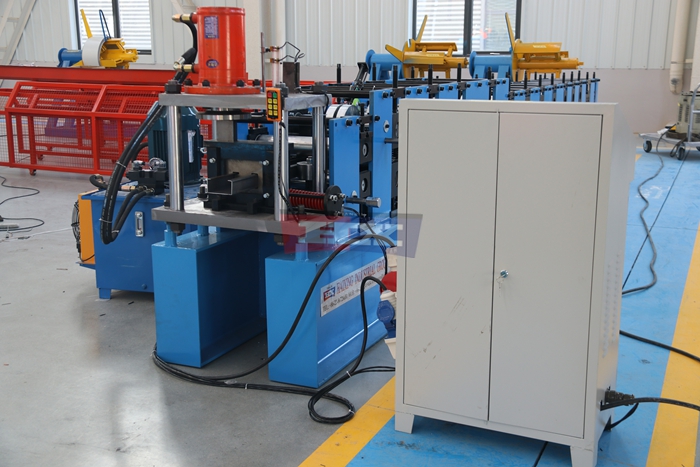

Dedicated C-Shaped Steel Purlin Manufacturing
The steel C purlin machine focuses on manufacturing C-shaped structural steel sections. Its forming rollers are designed to progressively bend steel strip material into the required C-section geometry.

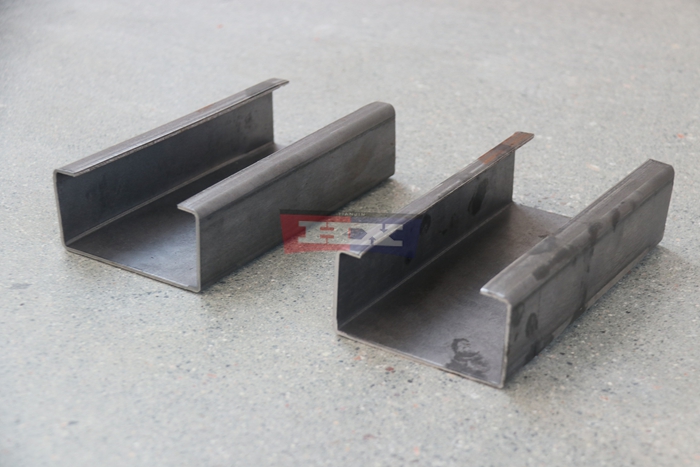

A typical C purlin consists of a central web, two flanges and, where specified, inward-facing lips. The dimensions of these elements are determined by the customer’s approved profile drawings.
Unlike combined profile production systems, a dedicated C purlin machine is configured specifically for C-shaped sections. This allows manufacturers to focus on the required C-section production process without additional mechanisms for switching to Z-shaped or U-shaped profiles.
The supported C purlin dimensions and available adjustment functions depend on the approved equipment design.

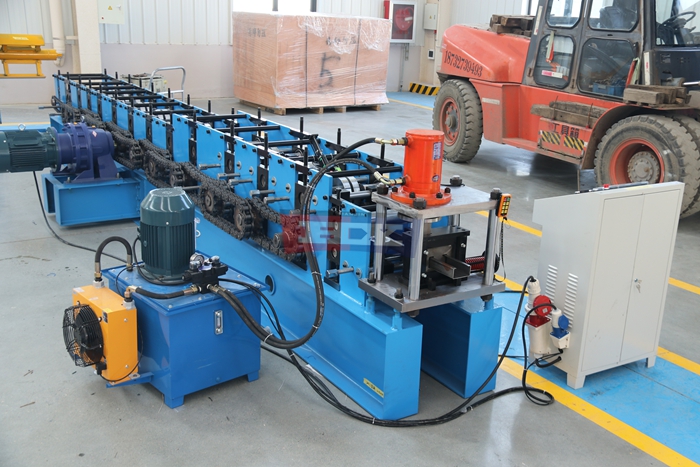

Customized C Purlin Sizes and Profile Specifications
Steel building projects require C purlins with specific web heights, flange widths, lip dimensions, material thicknesses and finished lengths. Haixing can evaluate customer drawings to determine suitable forming equipment for the required profile specifications.
For a fixed-size C purlin machine, the forming rollers are designed around the approved section geometry. If a manufacturer needs to produce several C-section sizes, an adjustable forming configuration can be evaluated separately.
Important technical parameters include profile dimensions, steel thickness, coil width, material strength and required cutting length. These factors influence the forming roller design, machine structure and processing configuration.
Customers should provide detailed C-section drawings and steel material specifications to confirm the final machine capabilities.
How the Steel C Purlin Roll Forming Process Works

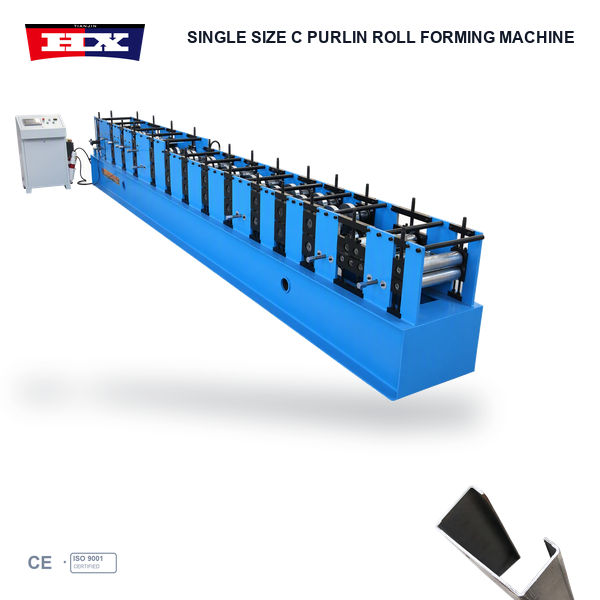

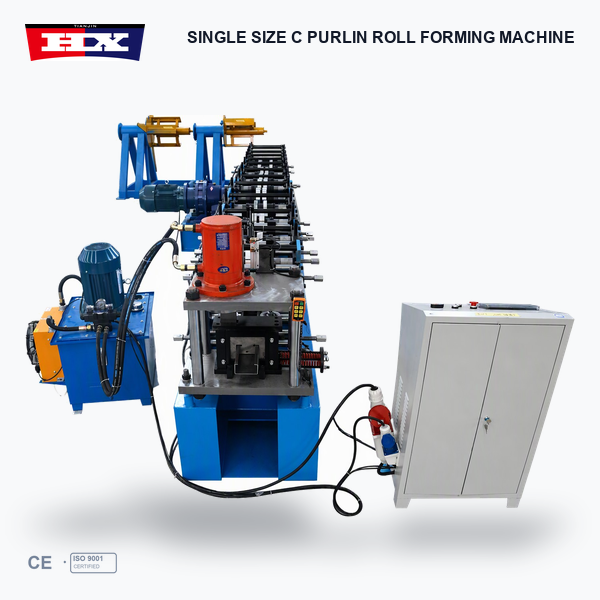

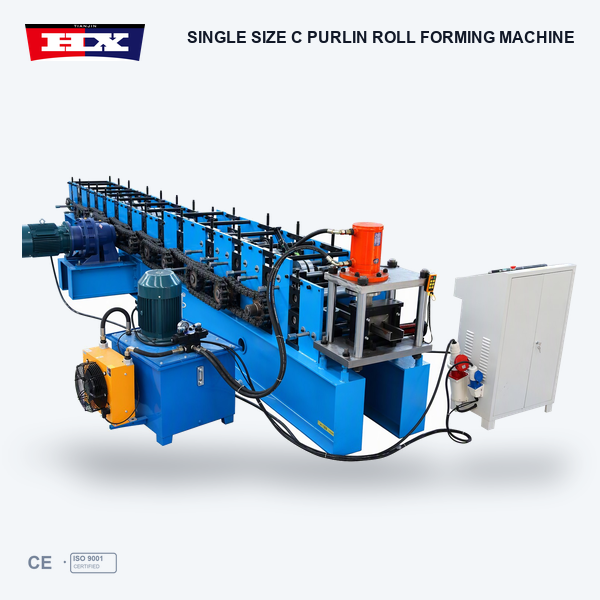

A typical C purlin manufacturing line consists of a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment can be included when the finished profiles require mounting holes.

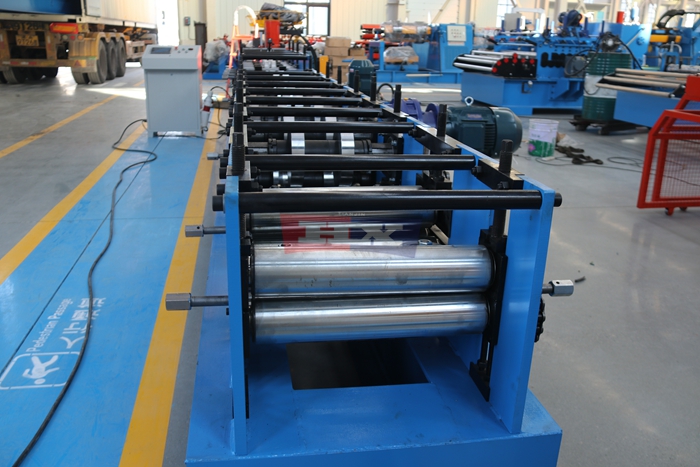

During operation, steel coil material is fed into the forming section. The steel strip passes through a sequence of roller stations that gradually shape it into the required C-shaped cross-section.

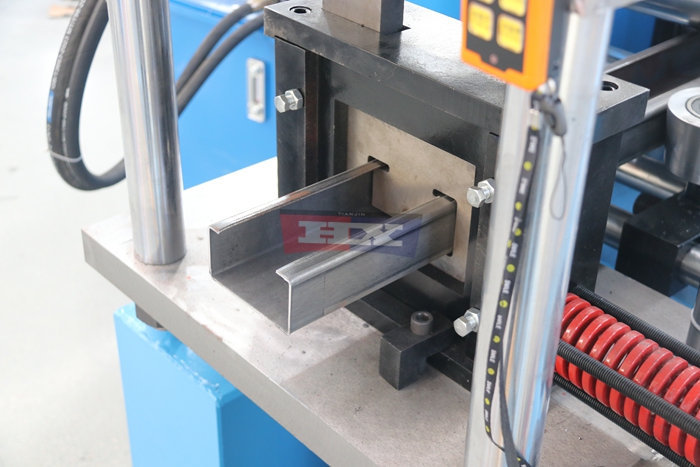

After forming, the finished C purlins are cut to the specified length. Depending on the selected machine configuration, production length and quantity may be managed through the control interface.
The cutting method, punching arrangement and processing sequence depend on the approved equipment design.
Suitable Steel Materials for C Purlin Production
The steel C purlin machine can be configured to process suitable structural steel materials within its approved forming range. Galvanized steel and other compatible steel grades may be considered according to the required profile specifications.
Material thickness, yield strength, coating properties and coil width are important considerations when determining the forming roller arrangement, drive system and machine configuration.
Haixing can review customers’ steel material specifications and C-section drawings to discuss suitable production equipment and optional processing functions.
Applications of Steel C Purlins
C-shaped steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, C purlins function as secondary structural members that support building cladding and transfer loads according to the approved structural design.
The appropriate purlin dimensions, steel grade, thickness and installation arrangement depend on the engineering requirements of each building project.
Machine Configuration and Production Options
Before purchasing a steel C purlin machine, manufacturers should confirm the required C-section dimensions, material thickness, steel grade, production capacity, punching details and cutting method.
Depending on the equipment configuration, available options may include PLC-based controls, programmable cutting lengths, production quantity counting and customized punching arrangements.
Factory space, coil handling requirements and finished purlin collection should also be considered when planning the complete production line.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers focusing on C-shaped structural steel profiles, Haixing can discuss dedicated forming solutions based on the required profile dimensions, material properties and manufacturing objectives.
Request a Steel C Purlin Machine Quotation
Looking for a steel C purlin machine for your structural steel manufacturing business?
Send Haixing your C-section drawings, required dimensions, steel thickness, material grade, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
