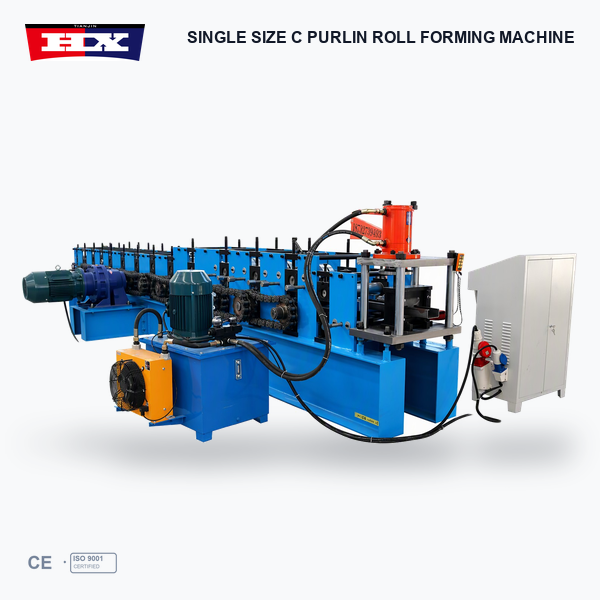

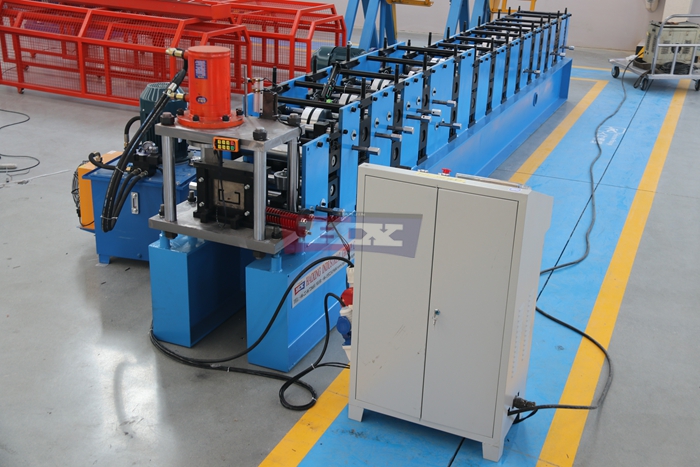

C Section Roll Forming Machine for Steel Purlins | Haixing
The C section roll forming machine from Haixing is designed to manufacture cold-formed C-shaped steel purlins for structural steel construction. Using a dedicated roller forming system, the equipment progressively shapes suitable steel coil materials into C-section profiles according to approved drawings and material specifications.
C-shaped steel purlins are commonly used as secondary structural members in industrial warehouses, manufacturing workshops, prefabricated buildings and agricultural facilities. For manufacturers focusing on C-section production, a dedicated roll forming machine offers a practical way to manufacture structural steel profiles without additional C/Z or C/U profile changeover mechanisms.
Haixing provides customized C-section forming solutions based on customers’ profile drawings, steel thickness, material properties and production requirements.
Dedicated Roll Forming System for C-Shaped Steel Sections

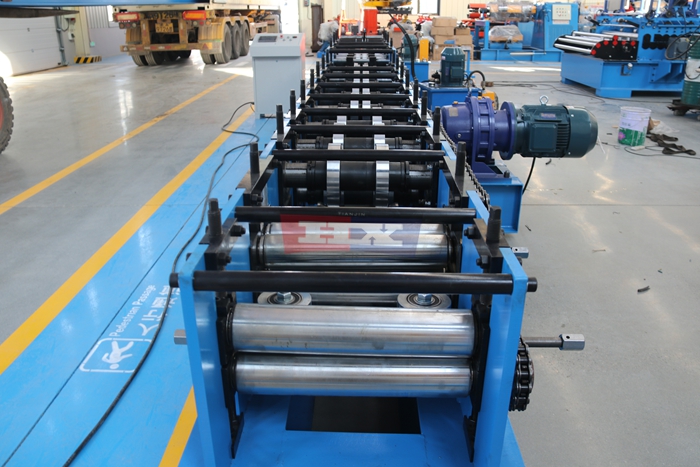

The C section roll forming machine is configured specifically for producing C-shaped structural steel profiles. Its forming rollers gradually bend steel strip material into the required C-section geometry through a sequence of forming stations.

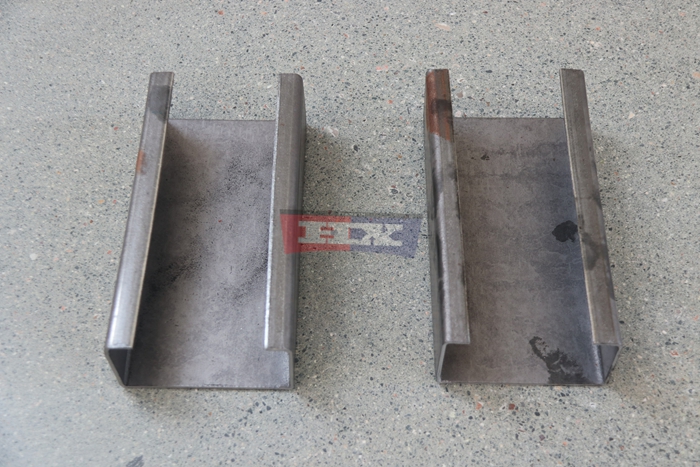

A typical C purlin includes a central web, two flanges and, where specified, inward-facing lips. These dimensions are determined according to the customer’s approved profile drawing and intended building application.
Unlike combined C/Z or C/U equipment, a dedicated C-section forming machine focuses on one cross-sectional profile type. The machine may be configured for a fixed C-section dimension or, where specified, an adjustable range of C-profile sizes.
The supported profile dimensions and adjustment method depend on the approved machine design.

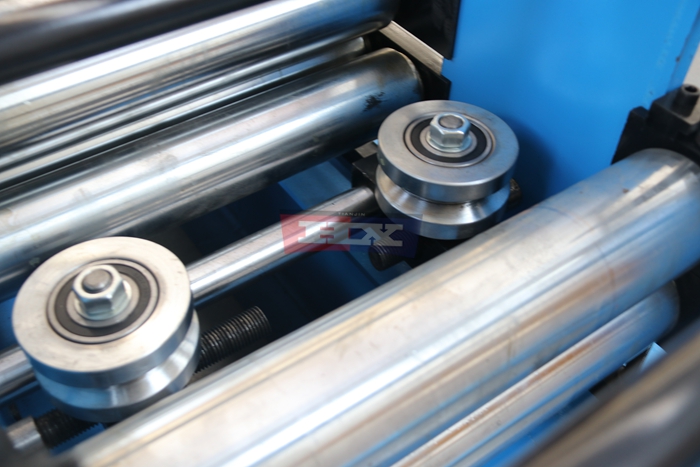

Custom Roller Design for C Purlin Profiles
Roller design is an important part of C-section manufacturing. The forming rollers must progressively shape the steel strip into the required profile while accommodating the approved material thickness and mechanical properties.
Haixing can evaluate C-section drawings to discuss suitable roller arrangements for the required web height, flange width, lip dimensions and other specified profile features.
The forming station arrangement, roller geometry and drive configuration depend on the required C-section dimensions, steel grade and production objectives.

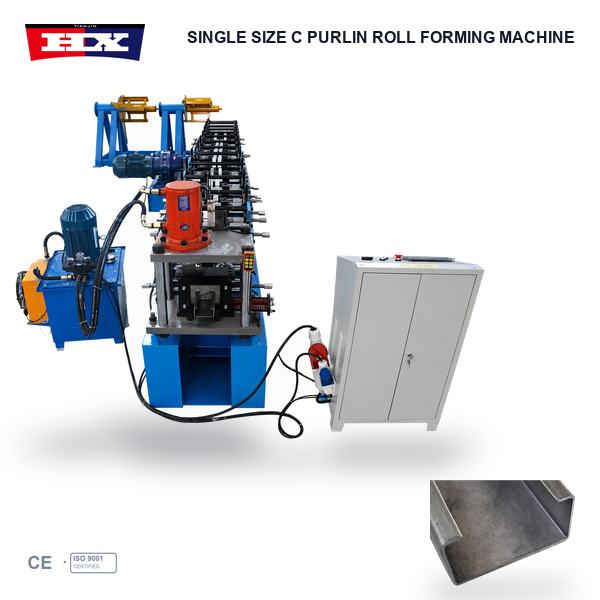

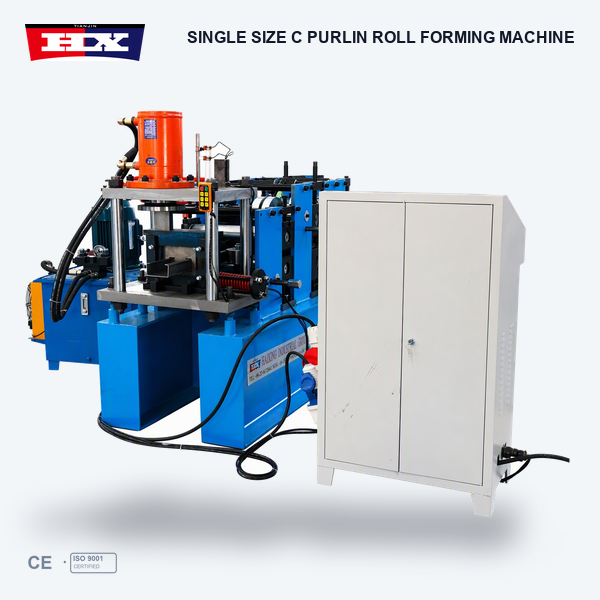

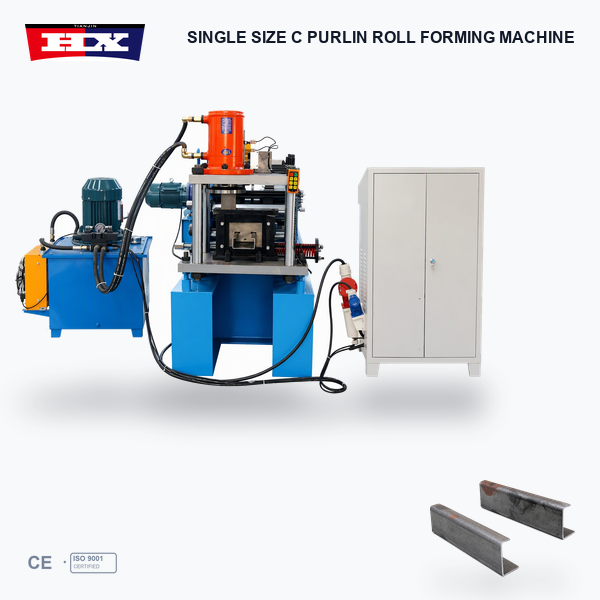

For customers producing a single standardized C purlin size, a dedicated fixed-profile machine may be considered. Manufacturers requiring several C-section dimensions can discuss alternative adjustable configurations.
How the C Section Roll Forming Process Works

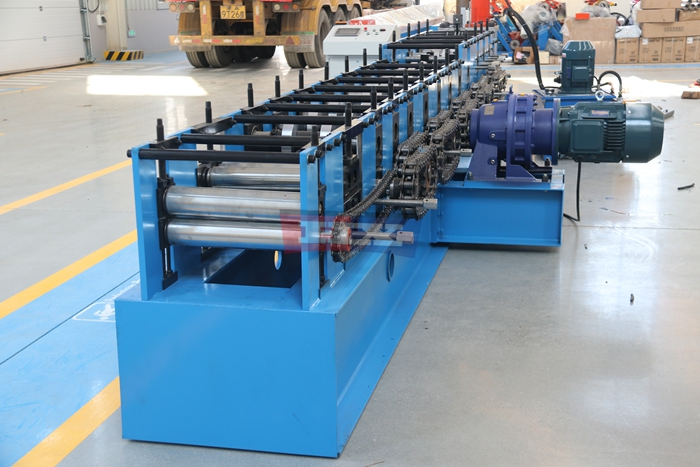

A typical C-section manufacturing line includes a decoiler, material guiding section, progressive roll forming stations, cutting equipment and a production control system. Optional punching equipment may be integrated when finished profiles require mounting holes.

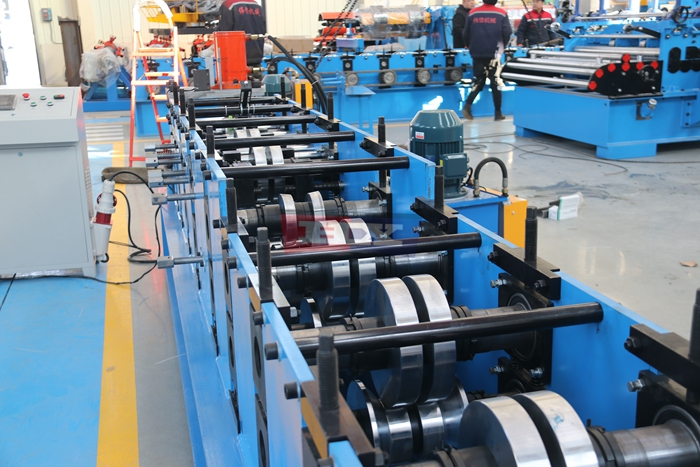

During operation, steel coil material is fed into the forming section. The steel strip passes through successive roller stations, where it is gradually bent into the required C-shaped cross-section.

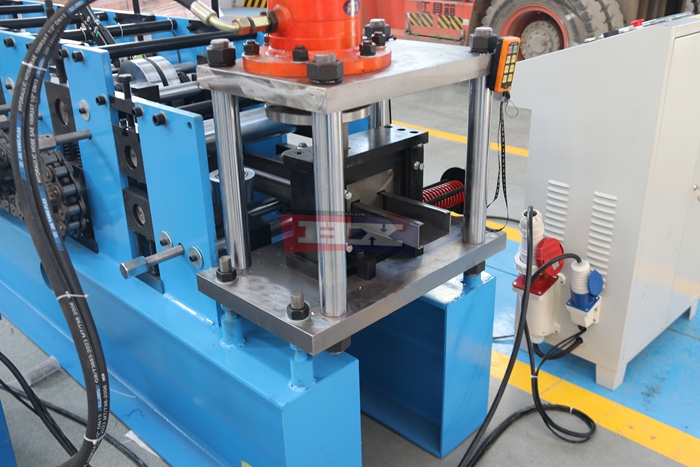

After forming, the finished C sections are cut to the specified length. Depending on the selected equipment configuration, production length and quantity may be managed through the machine control interface.
The cutting method, punching arrangement and complete processing sequence depend on the approved equipment specifications.
Customized C Section Dimensions and Steel Materials
The C section roll forming machine can be designed around customers’ required C-profile dimensions. Important parameters include web height, flange width, lip size, material thickness, coil width and finished profile length.
Galvanized steel and other compatible structural steel materials may be processed when their thickness, strength and coating properties meet the approved machine specifications.
Customers should provide detailed profile drawings and material information so that Haixing can evaluate the appropriate forming roller design, drive arrangement and cutting configuration.
Applications of Cold-Formed C Sections
C-shaped steel purlins are commonly used in industrial warehouses, manufacturing workshops, prefabricated steel buildings, agricultural facilities and commercial steel structures.
In suitable roof and wall framing systems, C purlins serve as secondary structural members that support building cladding and transfer loads according to the approved structural engineering design.
The required profile dimensions, steel grade, thickness and installation arrangement depend on the specific building application.
Machine Configuration and Optional Features
Before selecting a C section roll forming machine, manufacturers should confirm the required profile dimensions, material thickness, steel grade, production capacity, punching requirements and cutting method.
Depending on the approved machine configuration, available options may include PLC-based controls, programmable cutting lengths, quantity counting and customized punching arrangements.
Factory layout, steel coil handling and finished profile collection should also be considered when planning the production facility.
Why Choose Haixing?
Haixing supplies roll forming machinery for steel construction and metal building material manufacturers. Our team supports customers with profile evaluation, equipment configuration, machine manufacturing, factory testing and technical assistance.
For manufacturers focusing on C-shaped structural steel profiles, Haixing can discuss dedicated forming solutions based on profile dimensions, material properties and production objectives.
Request a C Section Roll Forming Machine Quotation
Looking for a C section roll forming machine for your steel structure manufacturing business?
Send Haixing your C-section drawings, required dimensions, steel thickness, material grade, optional punching details and expected production capacity. Our team can review your requirements and prepare a customized equipment proposal and quotation.
